3009-7006-00

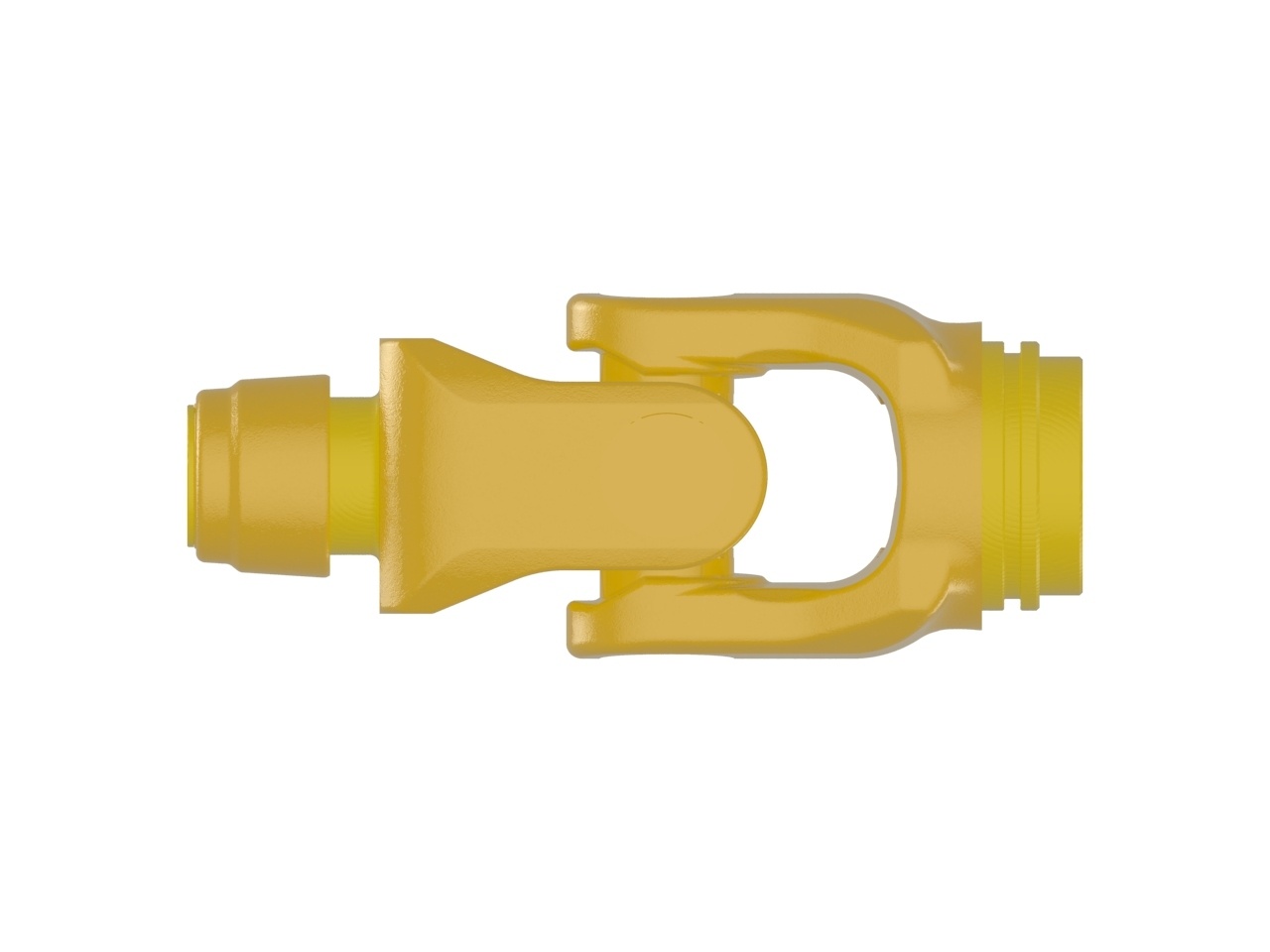

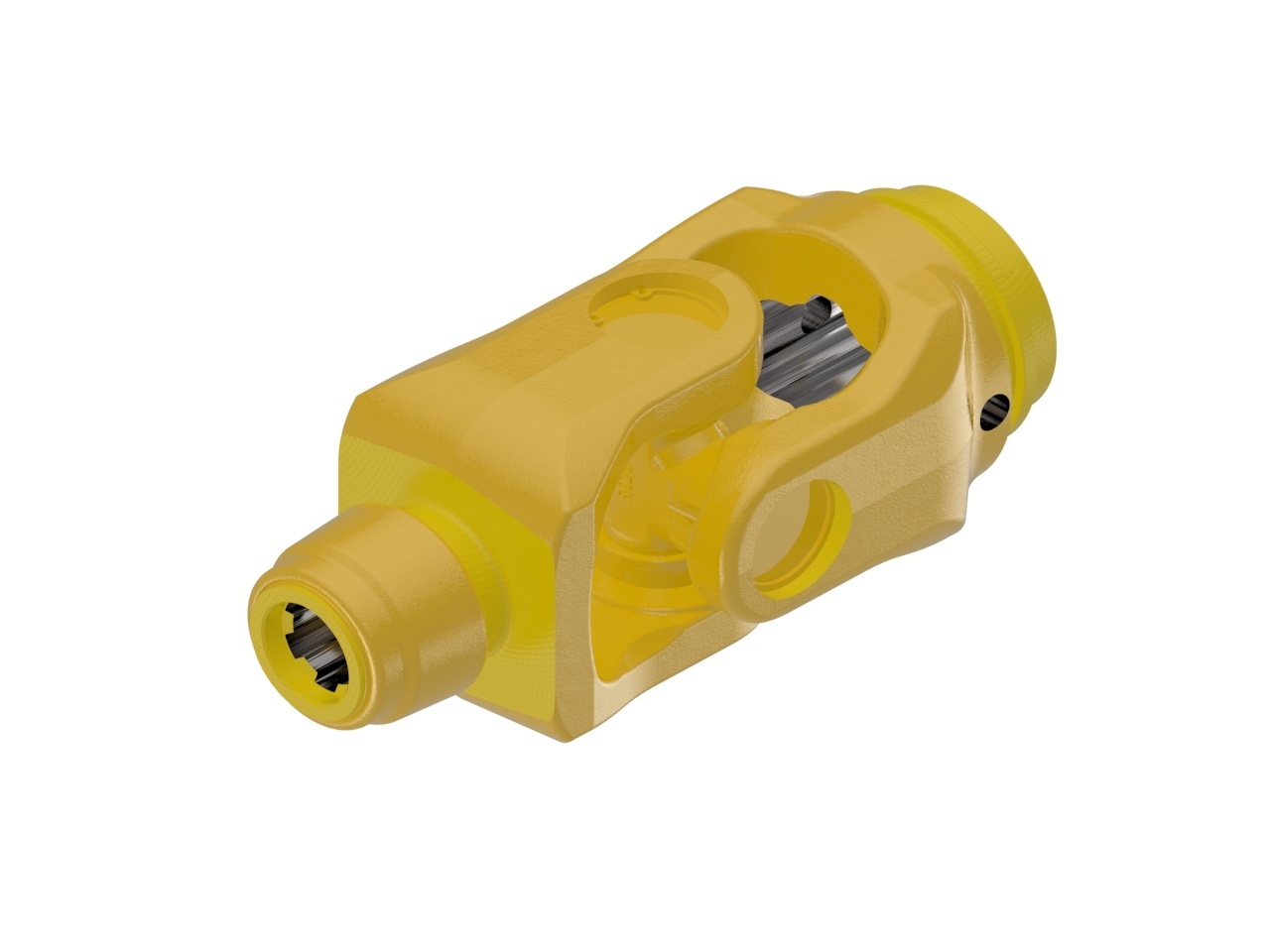

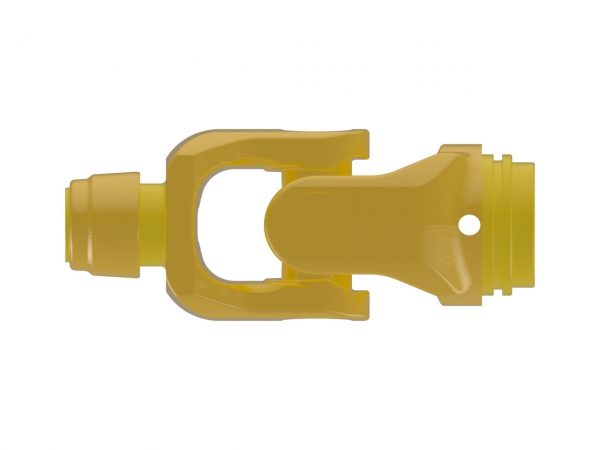

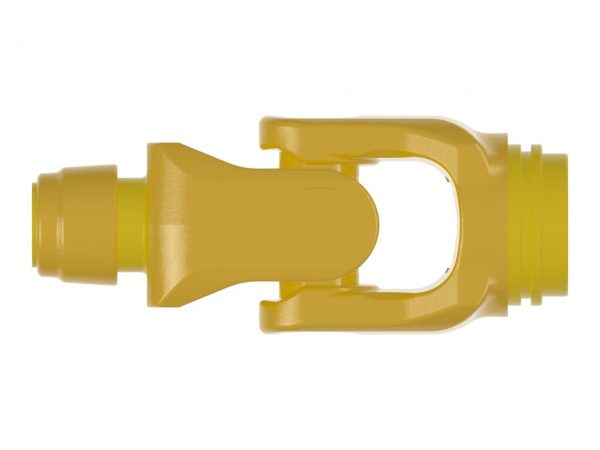

UNIVERSAL JOINTAW26 Series Universal Joint
AW26 series universal joint with 1 3/8-6 spline, safety slide lock connection and 61 mm star, telescoping connection
The Weasler Cardan type Universal Joints are robust, engineered and produced for high power density and long life. Produced to exact tolerances they provide for simple, easy service and tight bearing fits. The universal joints can be used alone, or as a component of a drive shaft system.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.37 inches | 35 mm |
| Bore 1 | 1 3/8-6 SPLINE | |
| Bore 2 | 2.49 inches | 63 mm |
| Bore 2 | 61 MM STAR | |
| Connection 1 | SAFETY SLIDE LOCK | |
| Connection 2 | TELESCOPING | |
| HP@1000RPM | 175 HP | 130 kilowatts |
| HP@540RPM | 113 HP | 84 kilowatts |
| Length | 11.42 inches | 290 mm |
| Shipping Dimensions | 11.429" L × 5.04" H × 5.04" W | 29cm L × 13cm H × 13cm W |
| Shipping Volume | 290.31 in3 | 4757 cm3 |
| Shipping Weight | 19.71 pounds | 9 kilograms |
| Weight | 19.71 pounds | 9 kilograms |
