800-7032
IMPLEMENT YOKEAW26 Series Setscrew Yoke

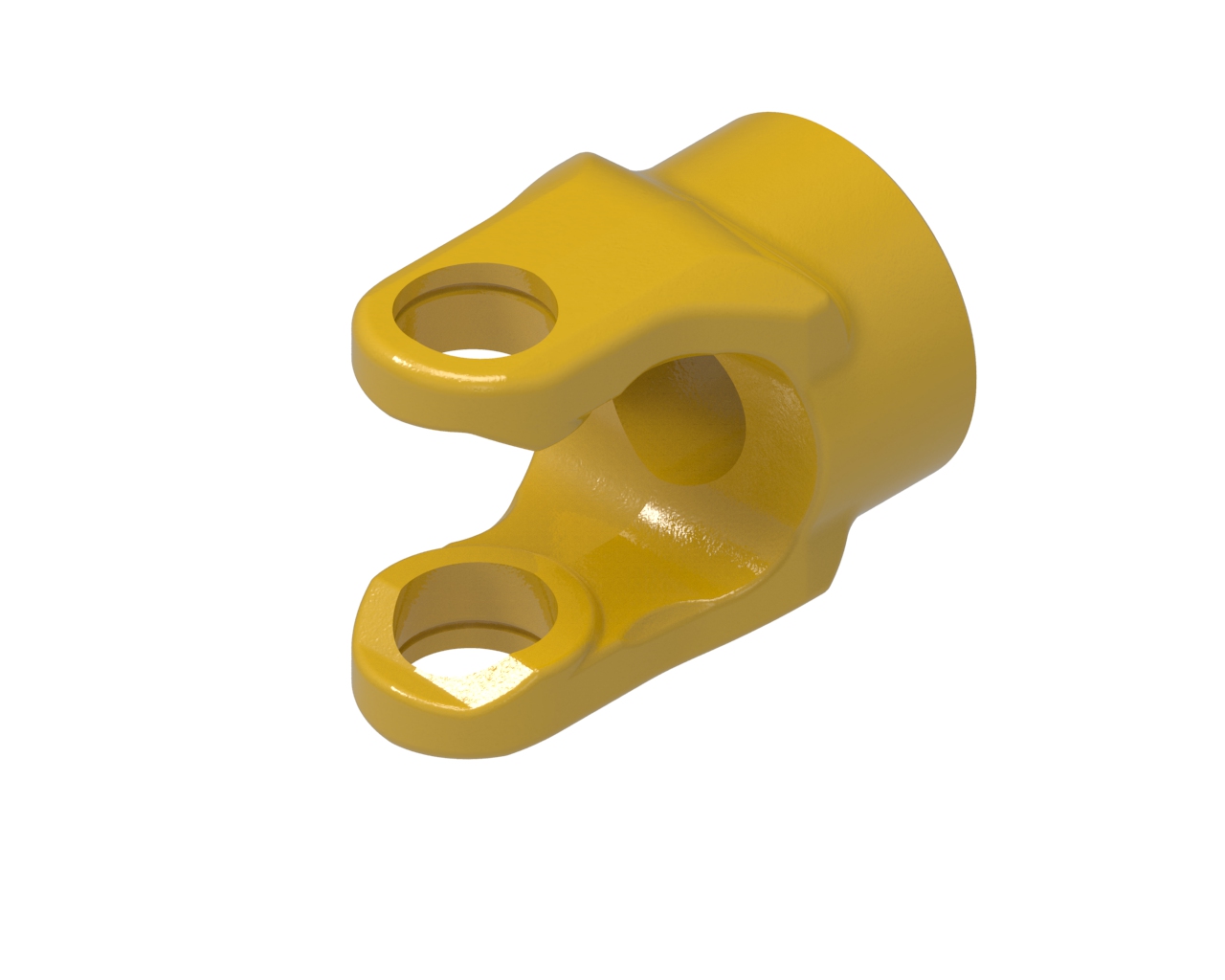

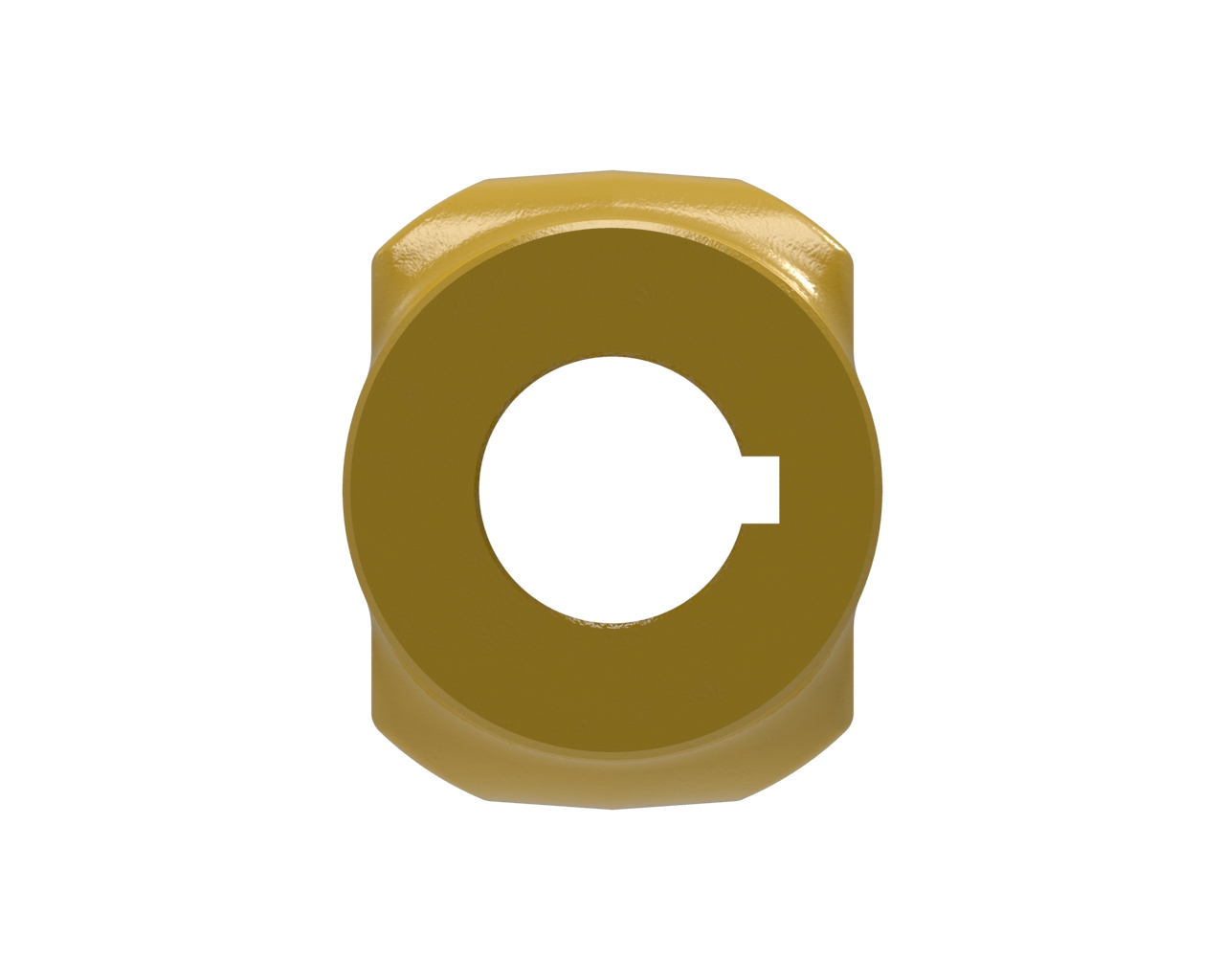

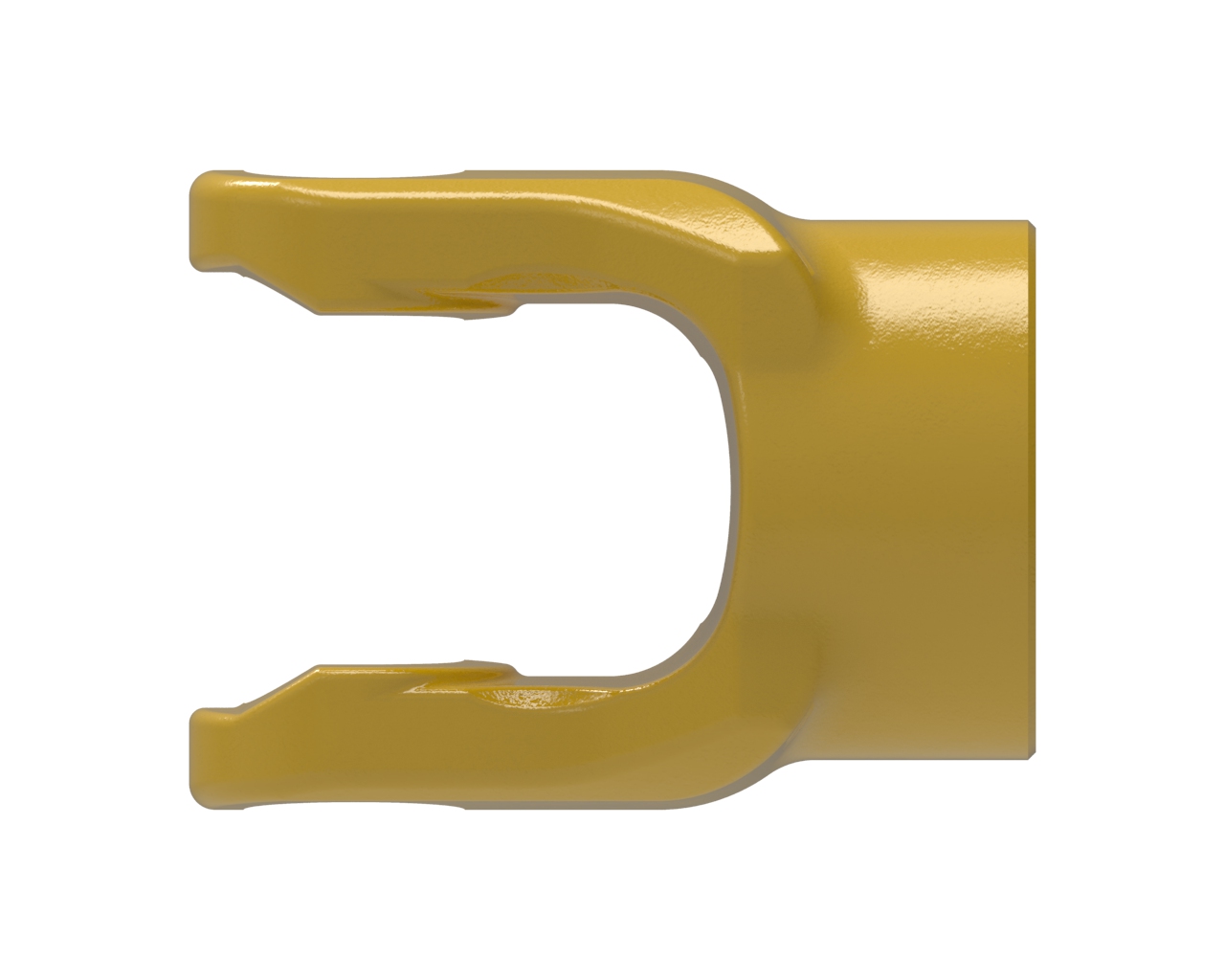

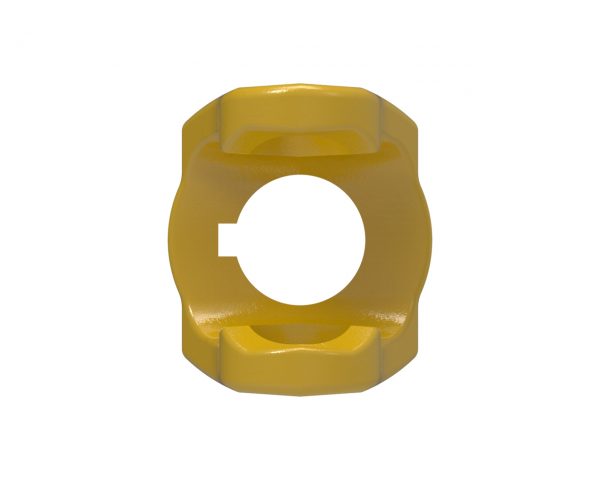

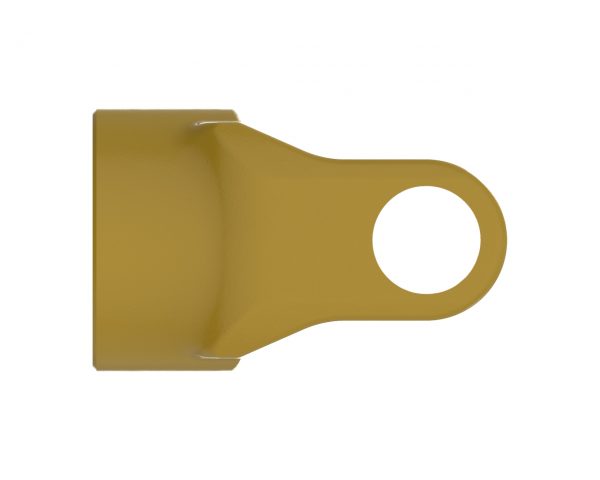

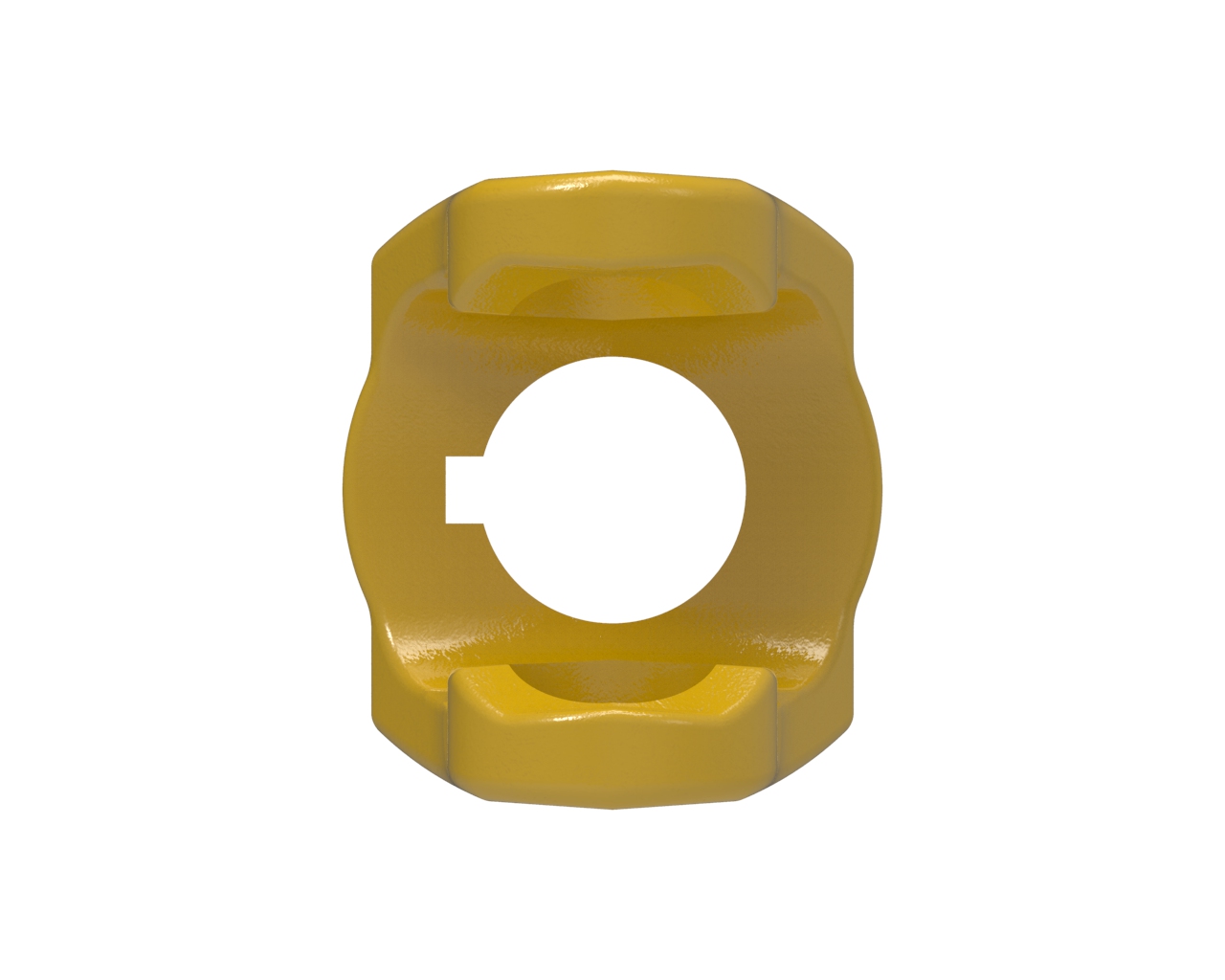

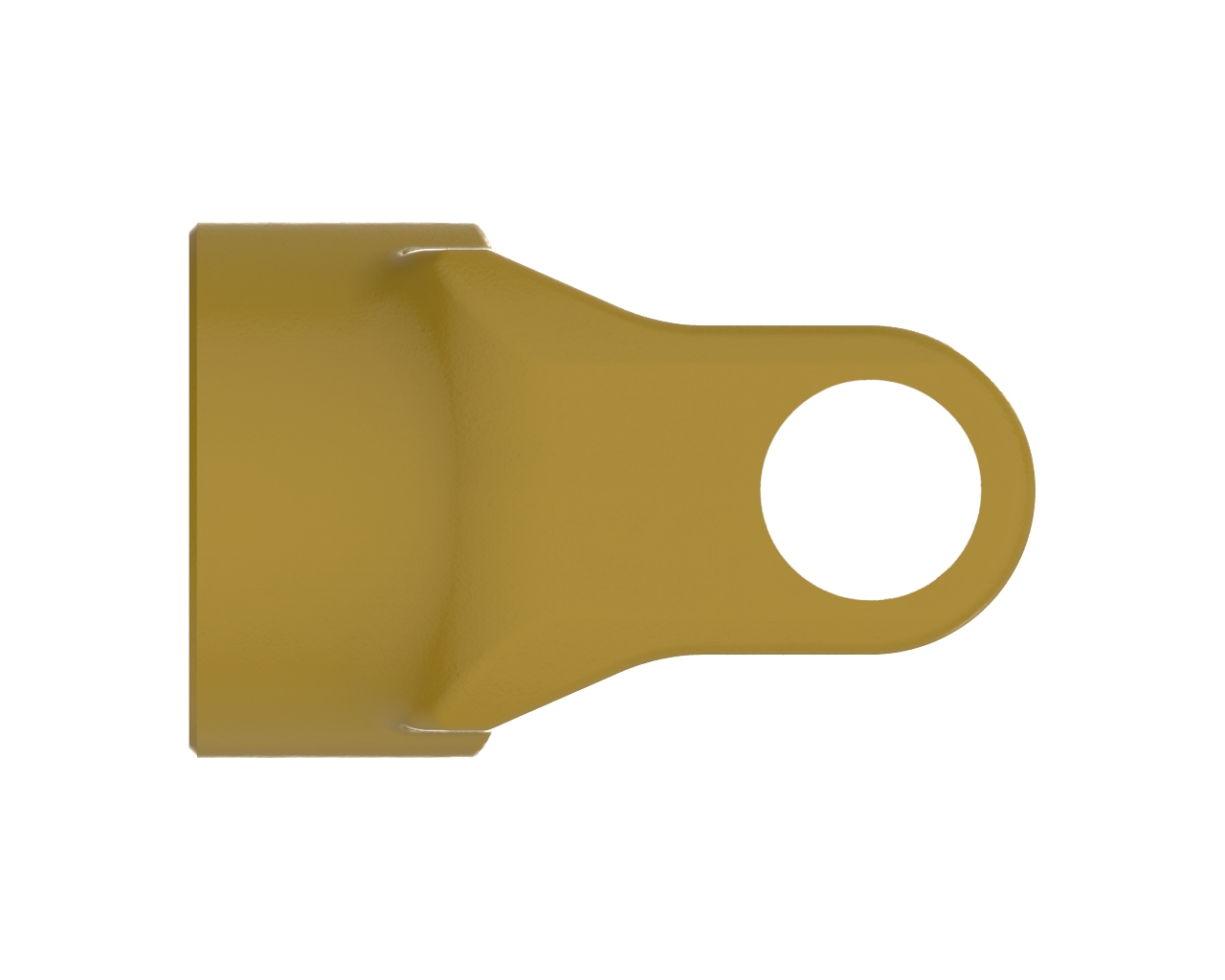

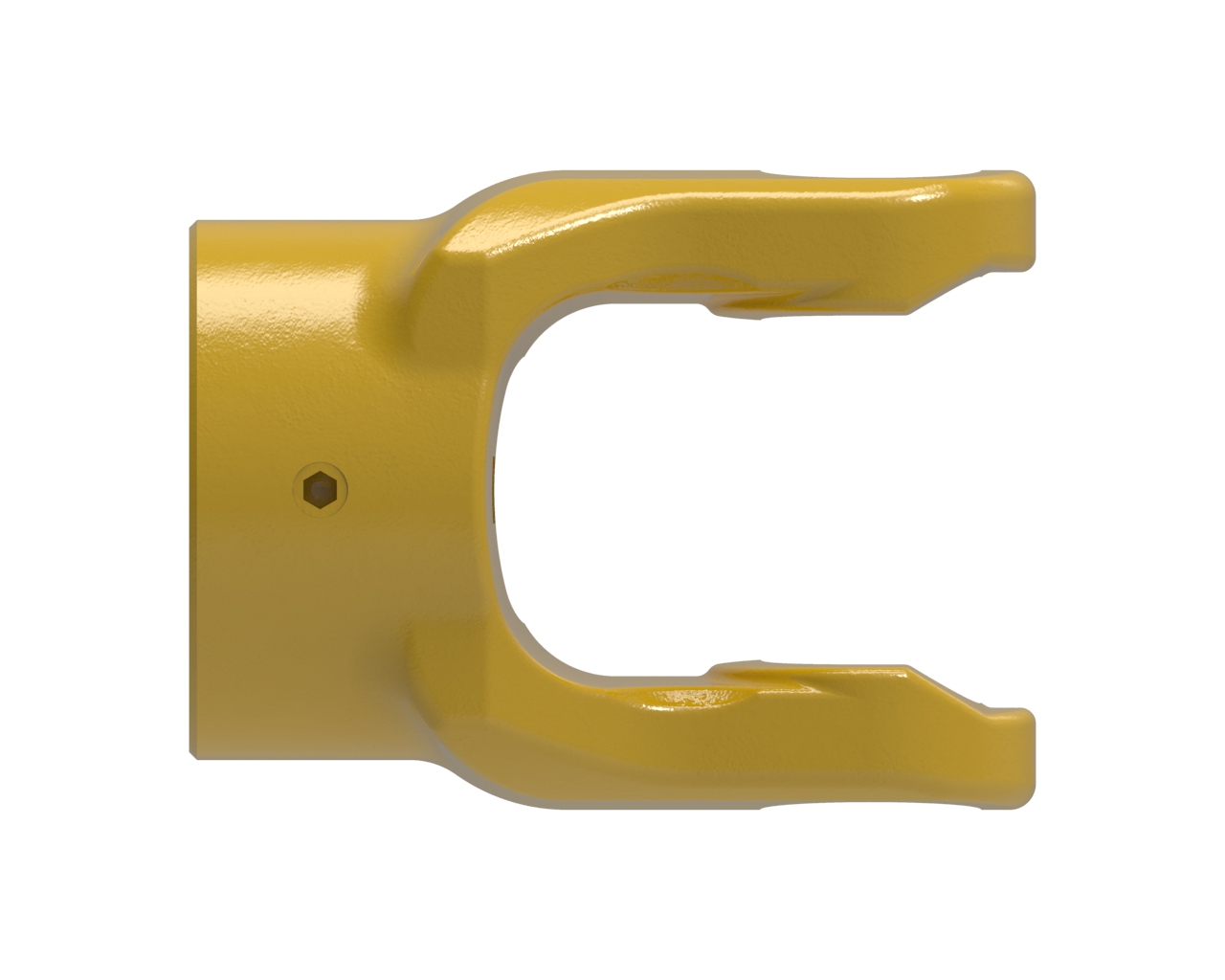

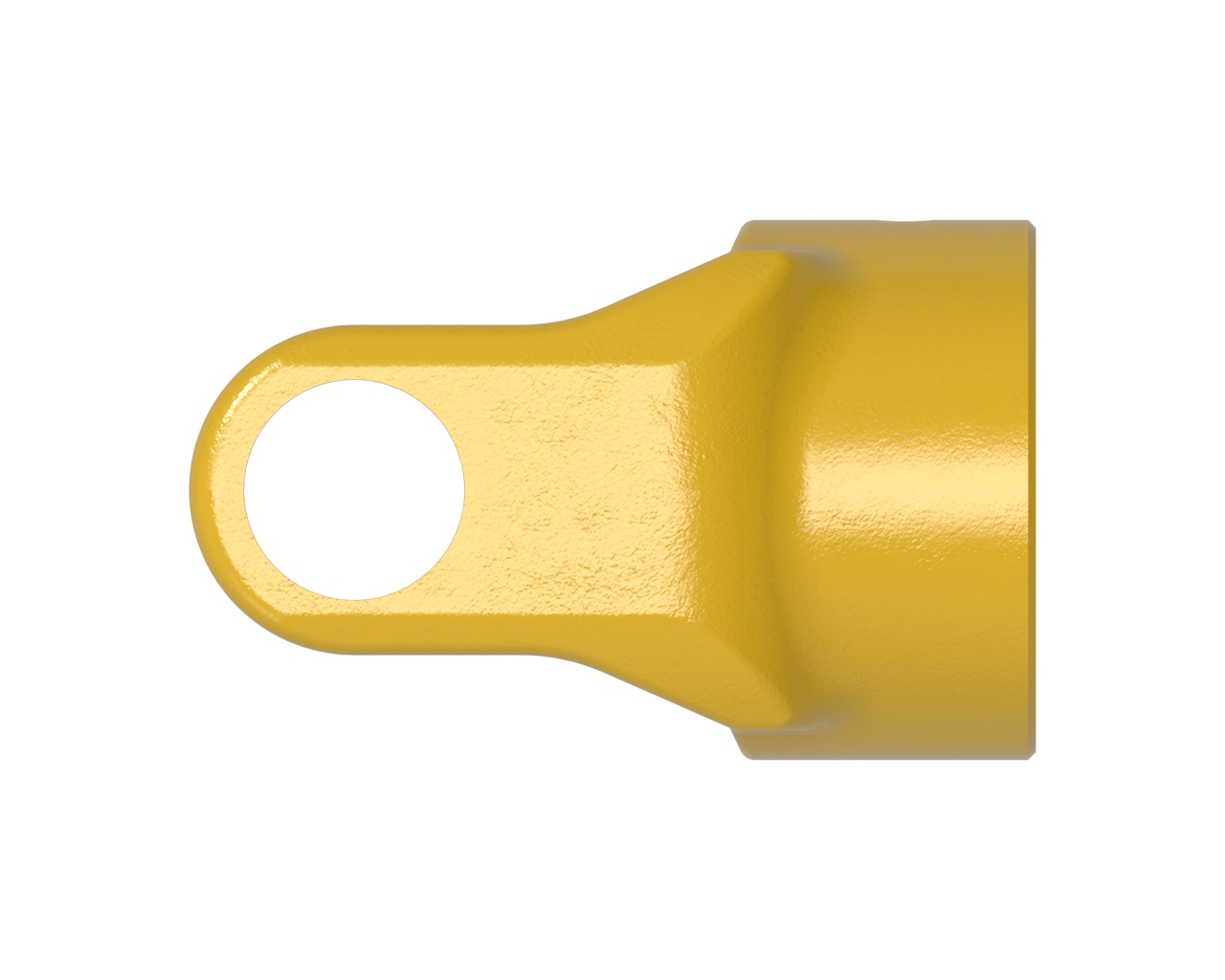

AW26 series yoke with round with keyway bore and setscrew connection. Note: Image color may not represent actual part.
PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 2.00 inches | 51 mm |
| Bore 1 | ROUND WITH KEYWAY | |
| Connection 1 | SETSCREW | |
| Height | 5.04 inches | 128 mm |
| HP@1000RPM | 230 HP | 172 kilowatts |
| HP@540RPM | 149 HP | 111 kilowatts |
| Keyway 1 | 0.50 inches | 13 mm |
| Length | 5.11 inches | 130 mm |
| Setscrew | 1/2-13 | |
| Shipping Dimensions | 6.36" L × 5.04" H × 3.62" W | 16cm L × 13cm H × 9cm W |
| Shipping Volume | 116.04 in3 | 1902 cm3 |
| Shipping Weight | 10.00 pounds | 5 kilograms |
| Weight | 10.00 pounds | 5 kilograms |
| Width | 3.62 inches | 92 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
