803-7008

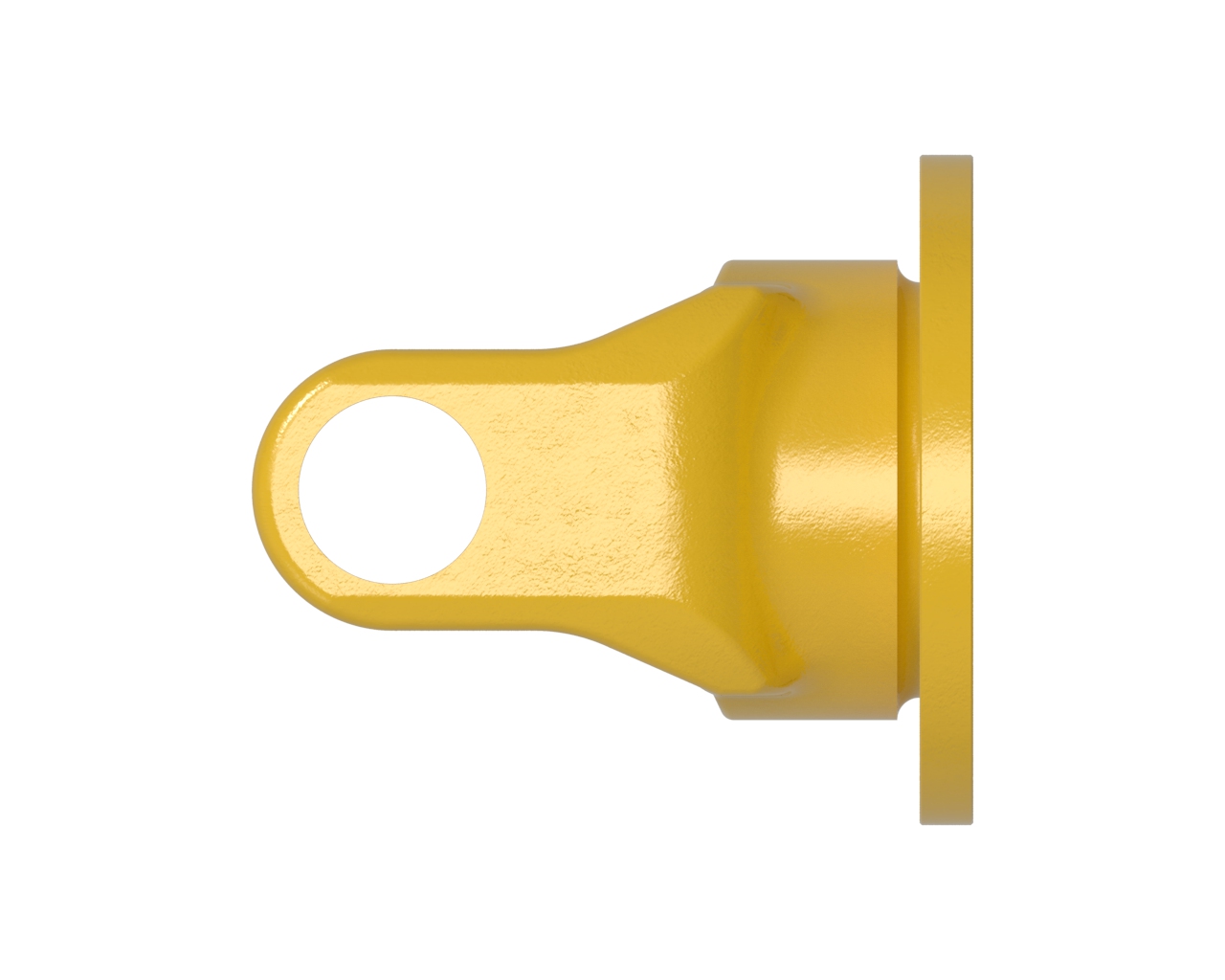

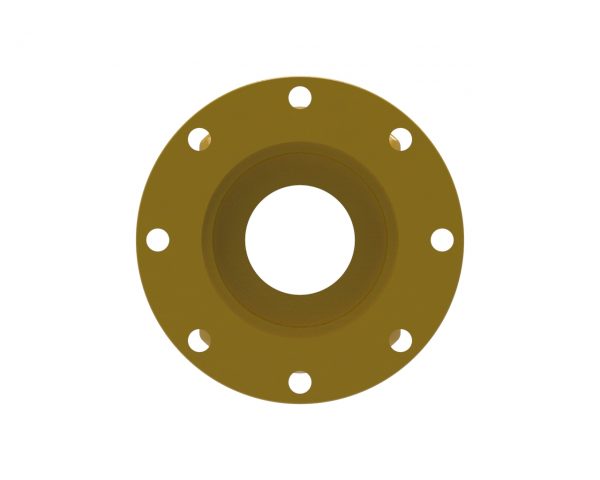

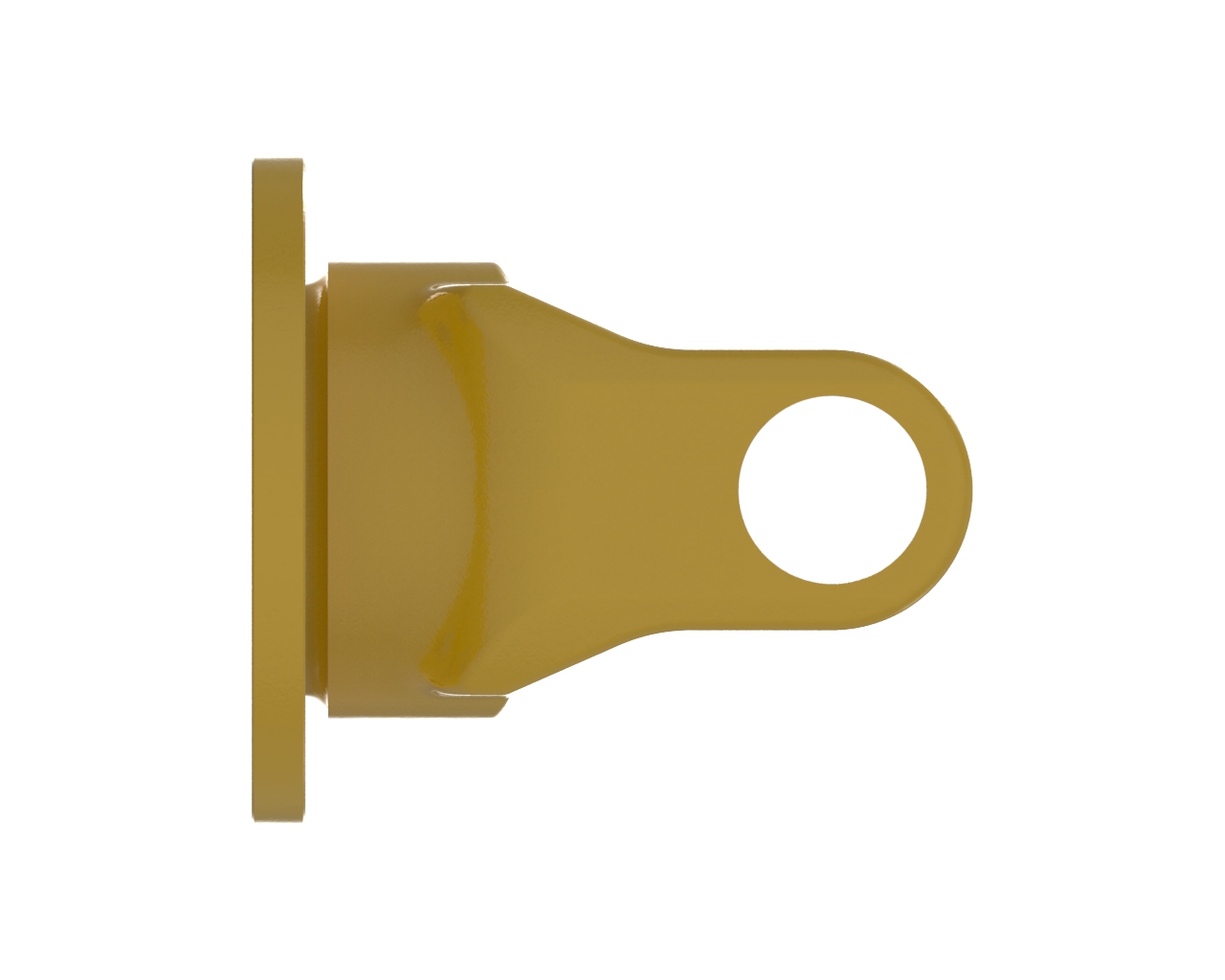

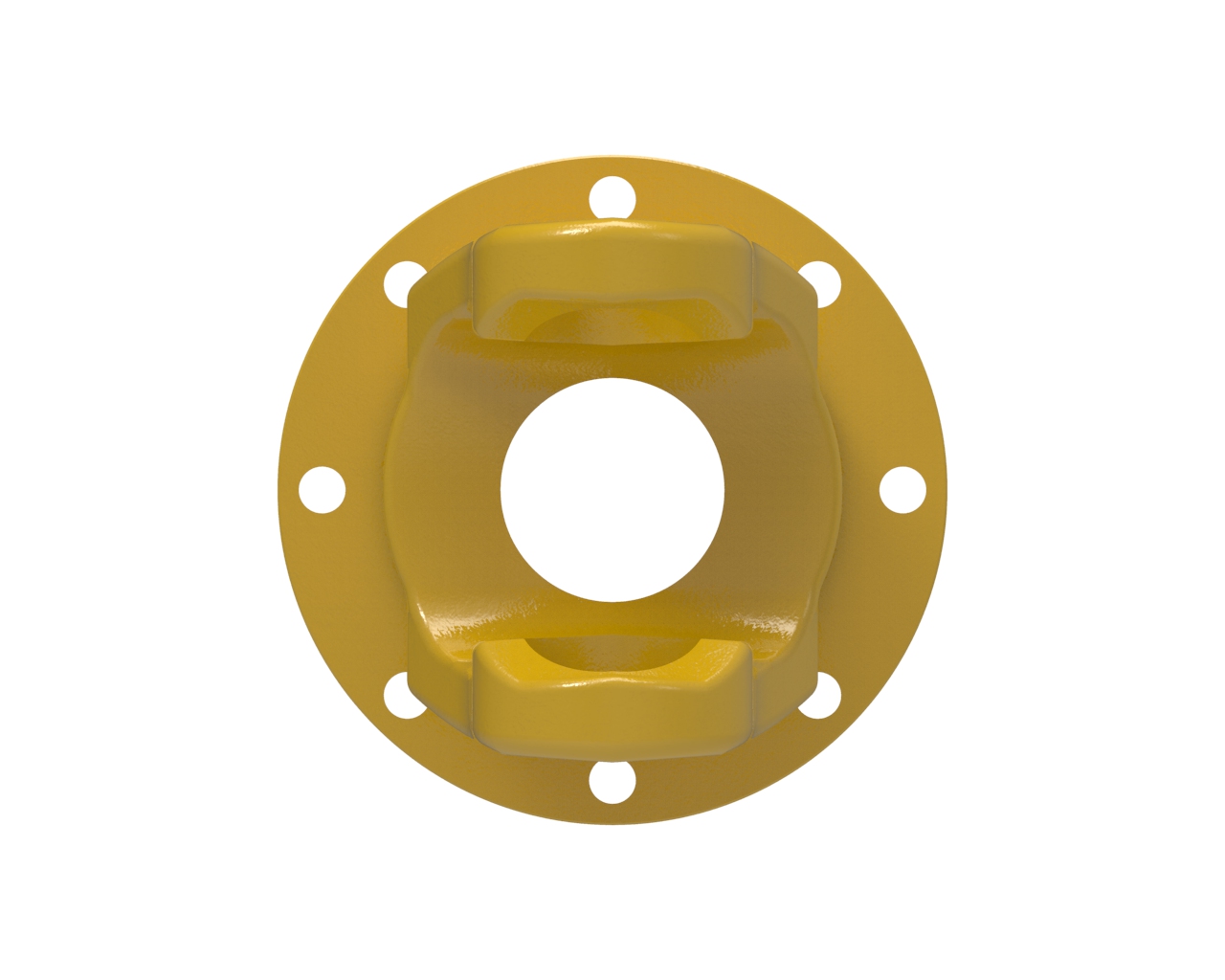

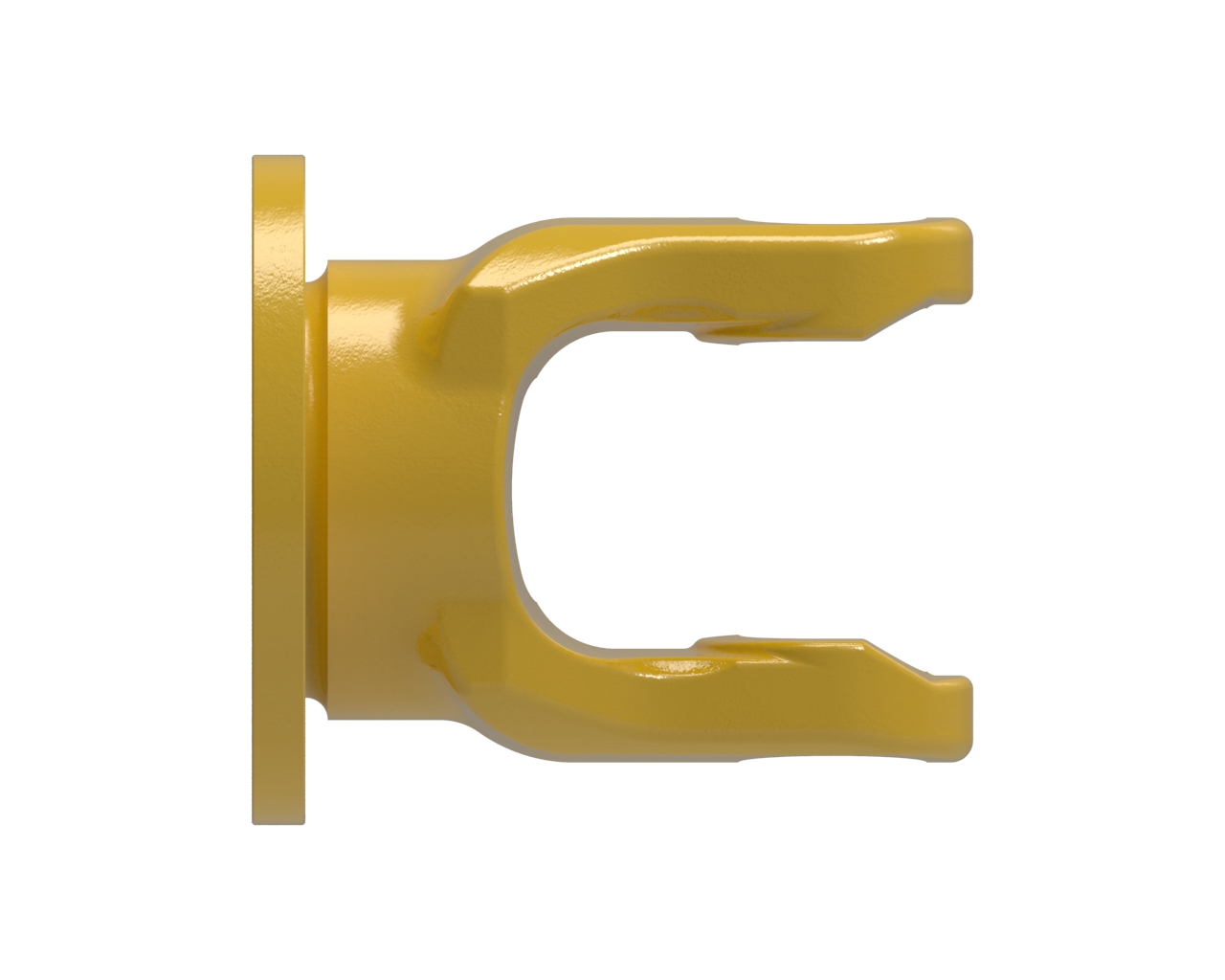

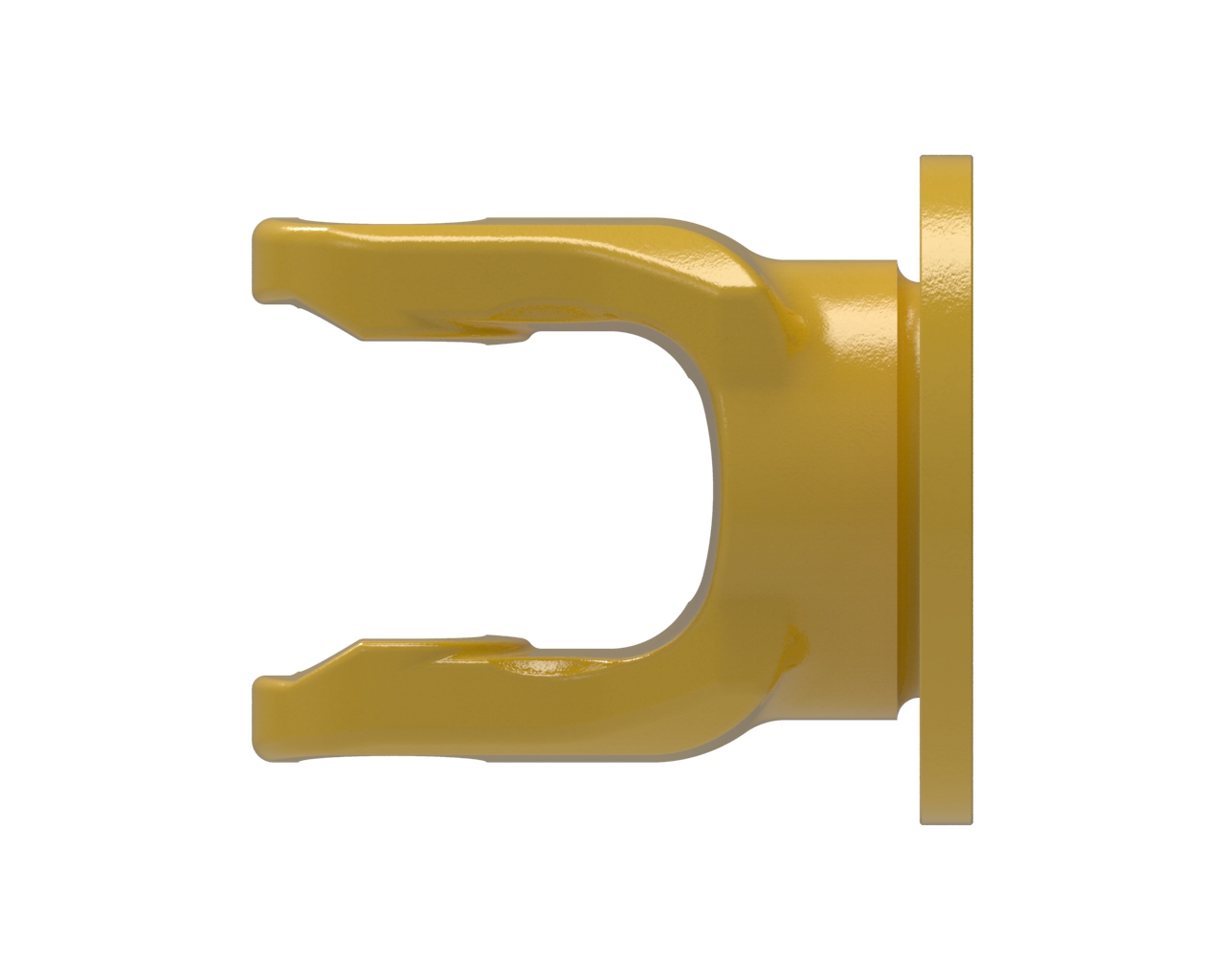

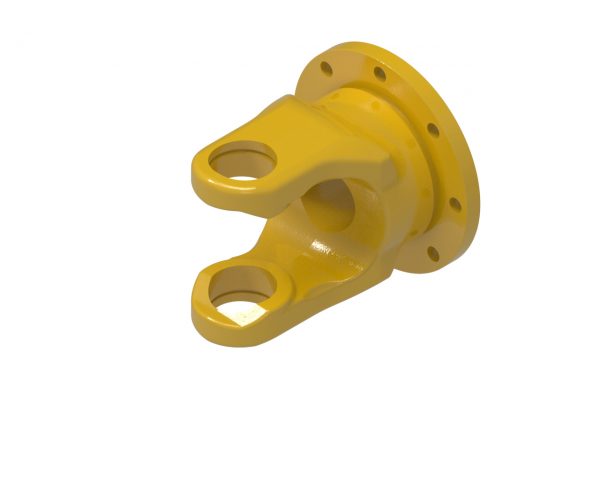

AW26 Series Flange Yoke

AW26 series yoke with 8 x 10 mm bolt circle bore and flange connection

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

The flange yoke allows for a bolted connection to a mating flange to eliminate fretting corrosion and wear, using standard hardware.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 15.12 inches130 mm
Bore 1 8 X 10 MM BOLT CIRCLE
Connection 1 FLANGE
HP@1000RPM230 HP172 kilowatts
HP@540RPM149 HP111 kilowatts
Length5.12 inches130 mm
Outside Diameter5.91 inches150 mm
Shipping Dimensions6.36" L  ×  5.91" H  ×  5.91" W16cm L  ×  15cm H  ×  15cm W
Shipping Volume222.14 in33640 cm3
Shipping Weight13.85 pounds6 kilograms
Weight13.85 pounds6 kilograms

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
