300-8551

AW22 Series Roll Pin Yoke

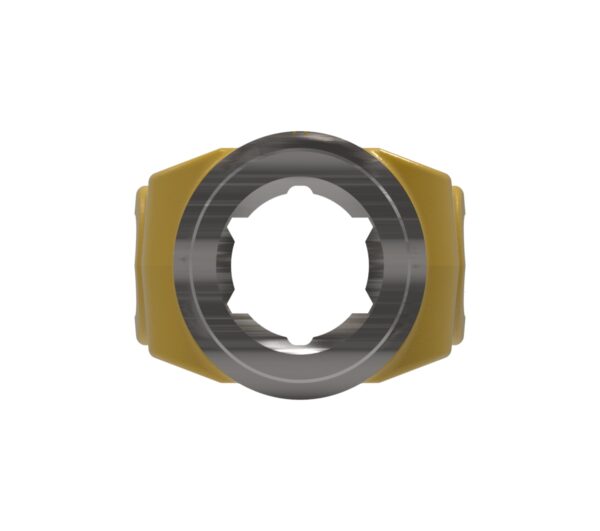

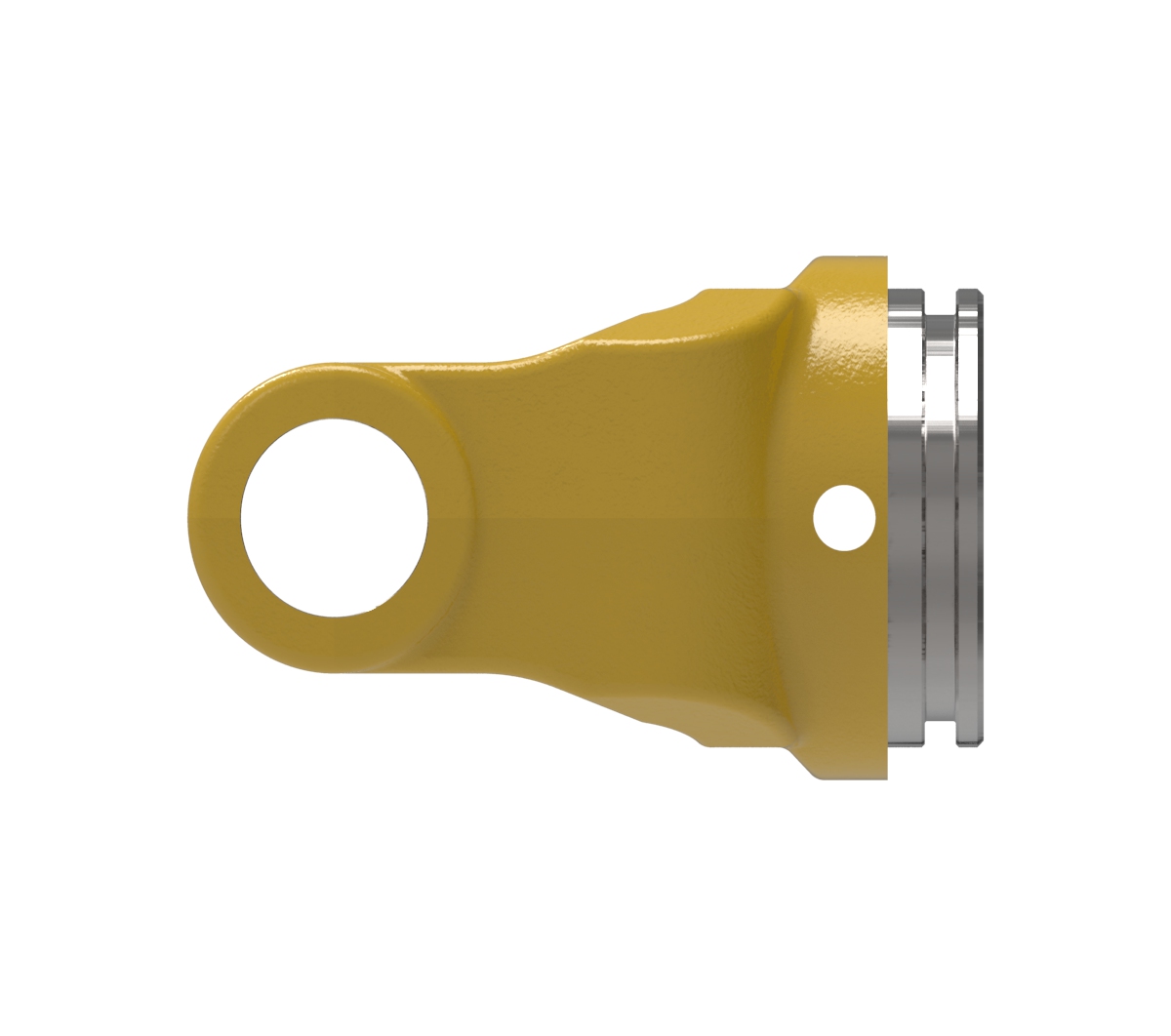

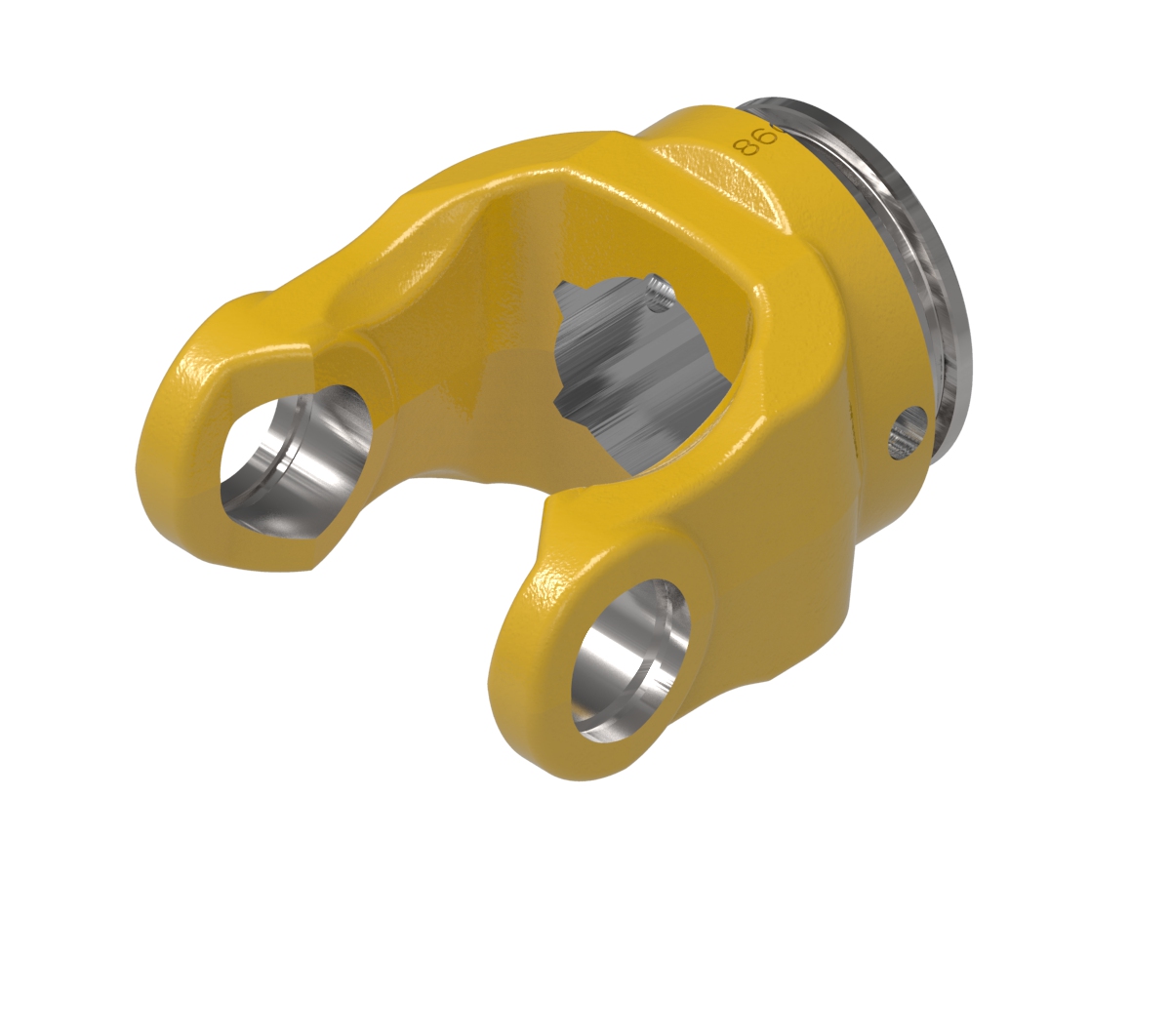

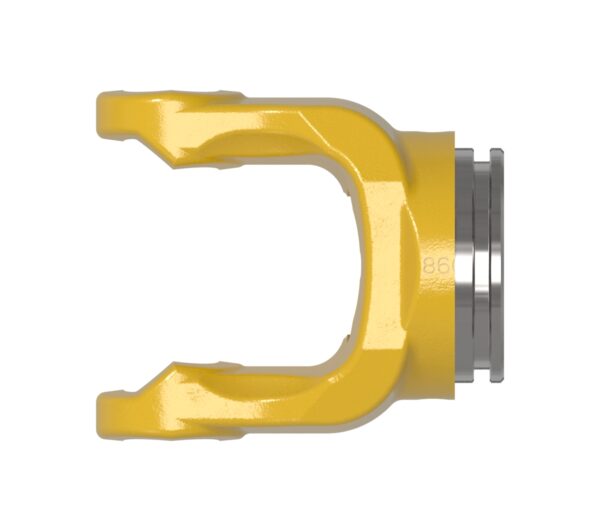

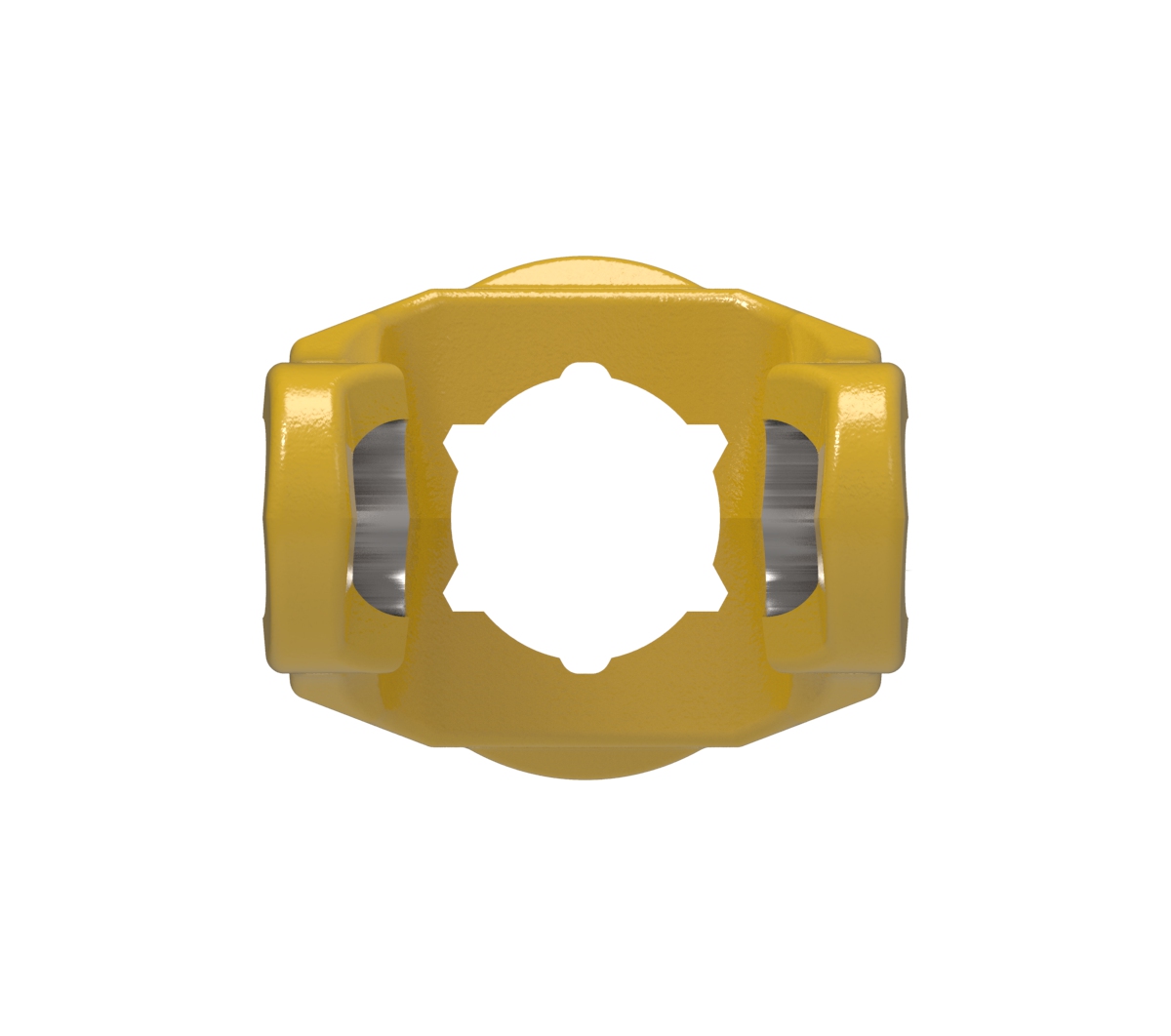

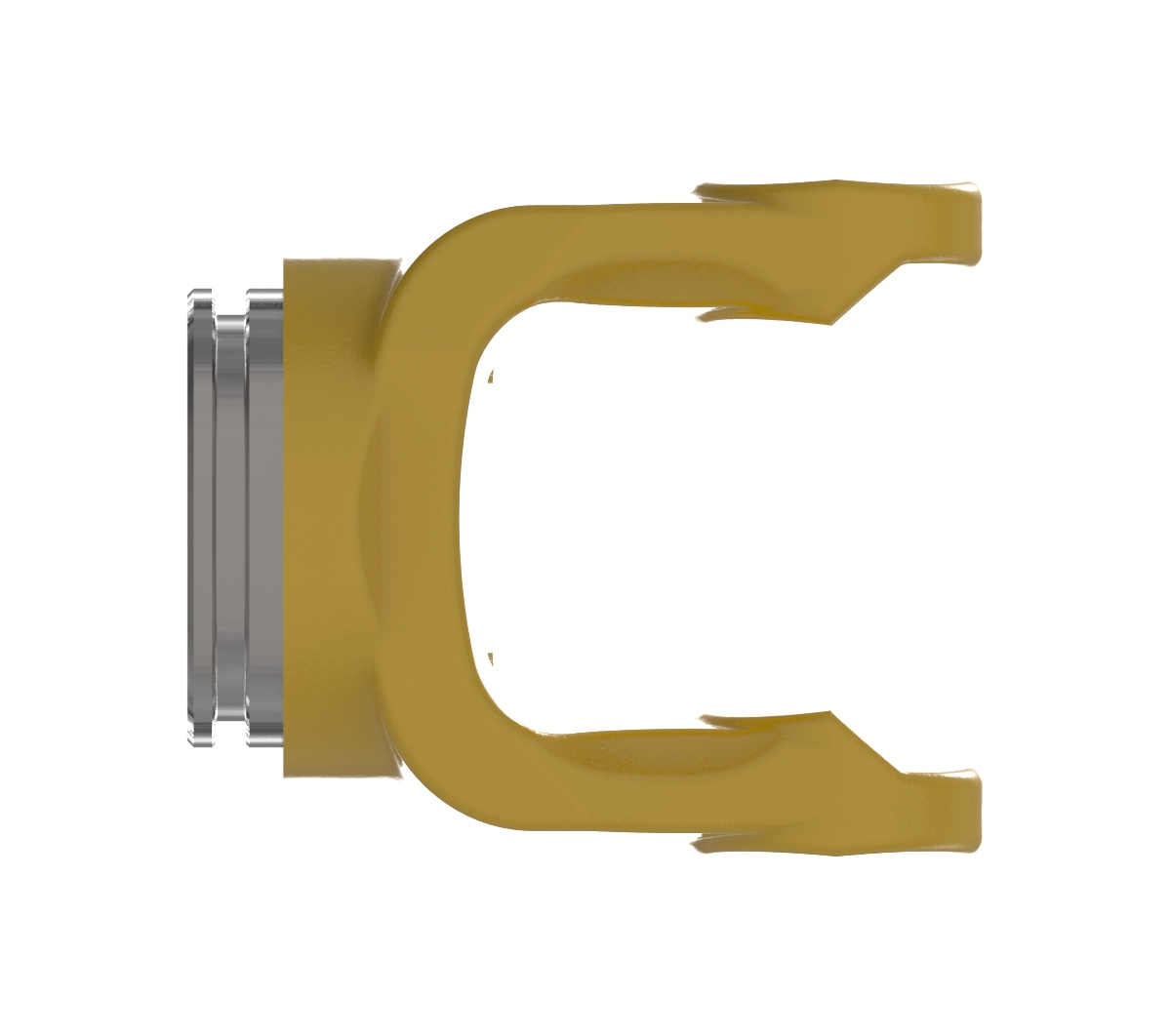

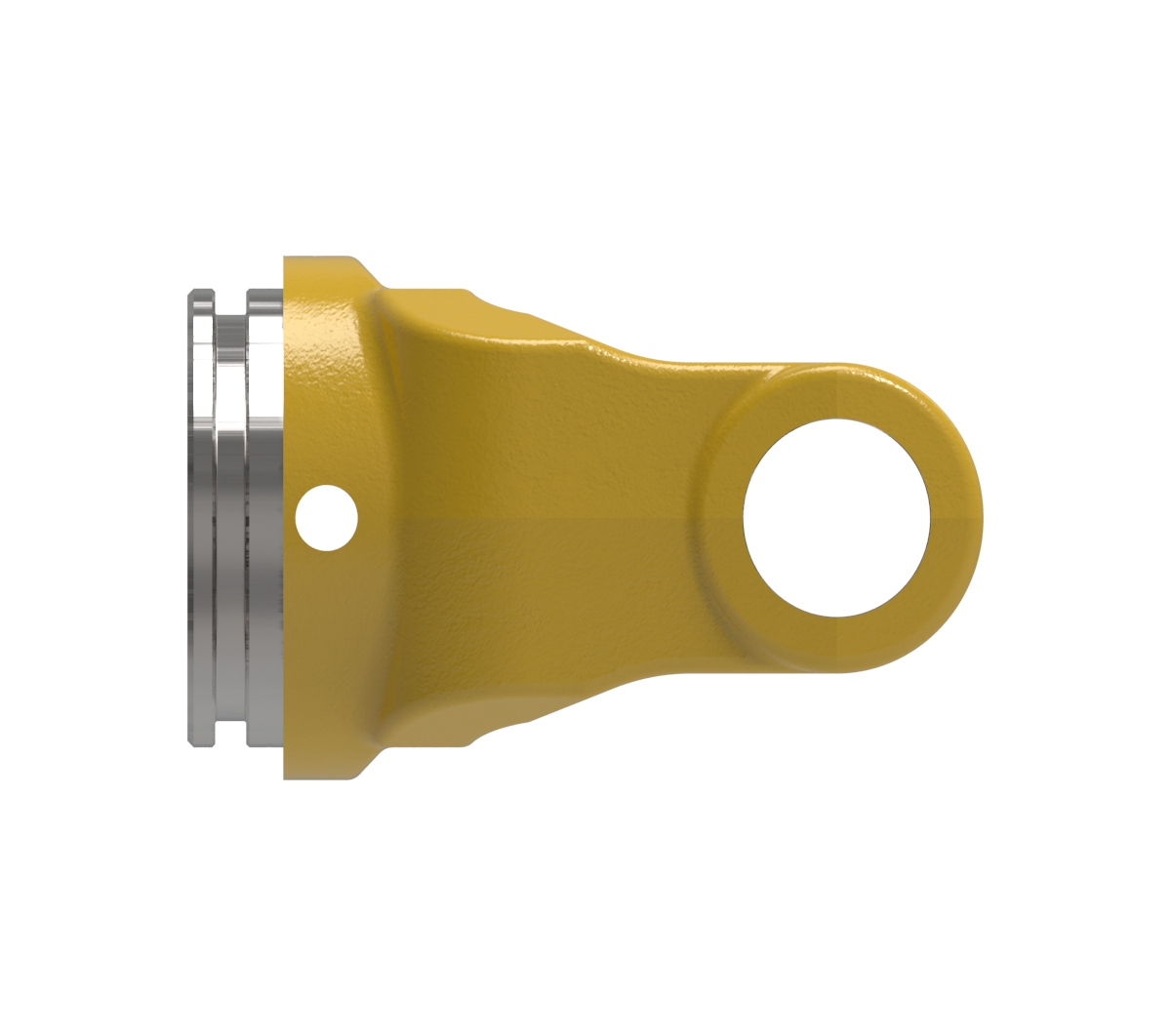

AW22 series yoke with 51 mm star bore and roll pin connection

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

Shaft yokes (or inner profile yokes) connect the cross and bearing kits to the telescoping shaft or inner tube. Tube yokes (or outer profile yokes), connect the other cross and bearing kits to the opposite side of the telescoping shaft or outer tube. Weasler provides both domestic (North American) and Weasler Profile metric shaft and tube yoke connection options. Domestic yokes are provided as square, rectangle, hexagon or splined in shape. Weasler Profile metric yokes are provided as lemon, star, or trilobe in shape.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 12.00 inches51 mm
Bore 1 51 MM STAR
Connection 1 ROLL PIN
Height4.49 inches114 mm
HP@1000RPM122 HP91 kilowatts
HP@540RPM79 HP59 kilowatts
Length4.13 inches105 mm
Shipping Dimensions5.06" L  ×  4.49" H  ×  2.76" W13cm L  ×  11cm H  ×  7cm W
Shipping Volume62.71 in31028 cm3
Width2.76 inches70 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
