301-7448

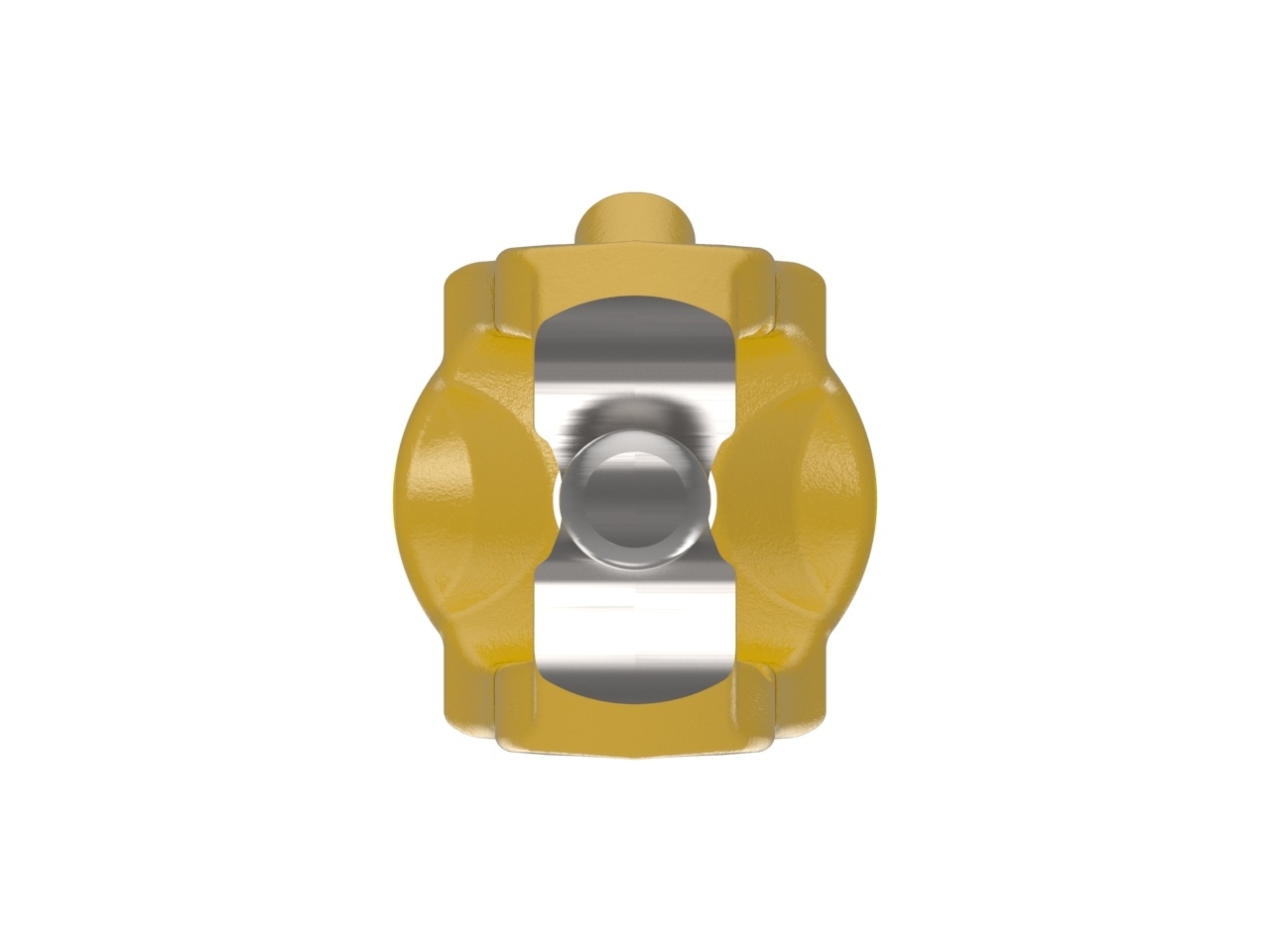

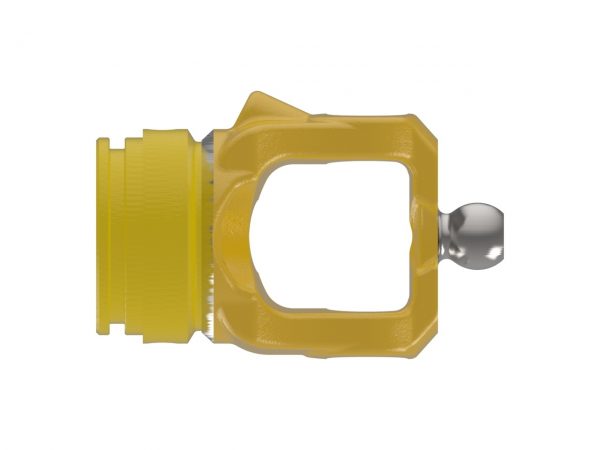

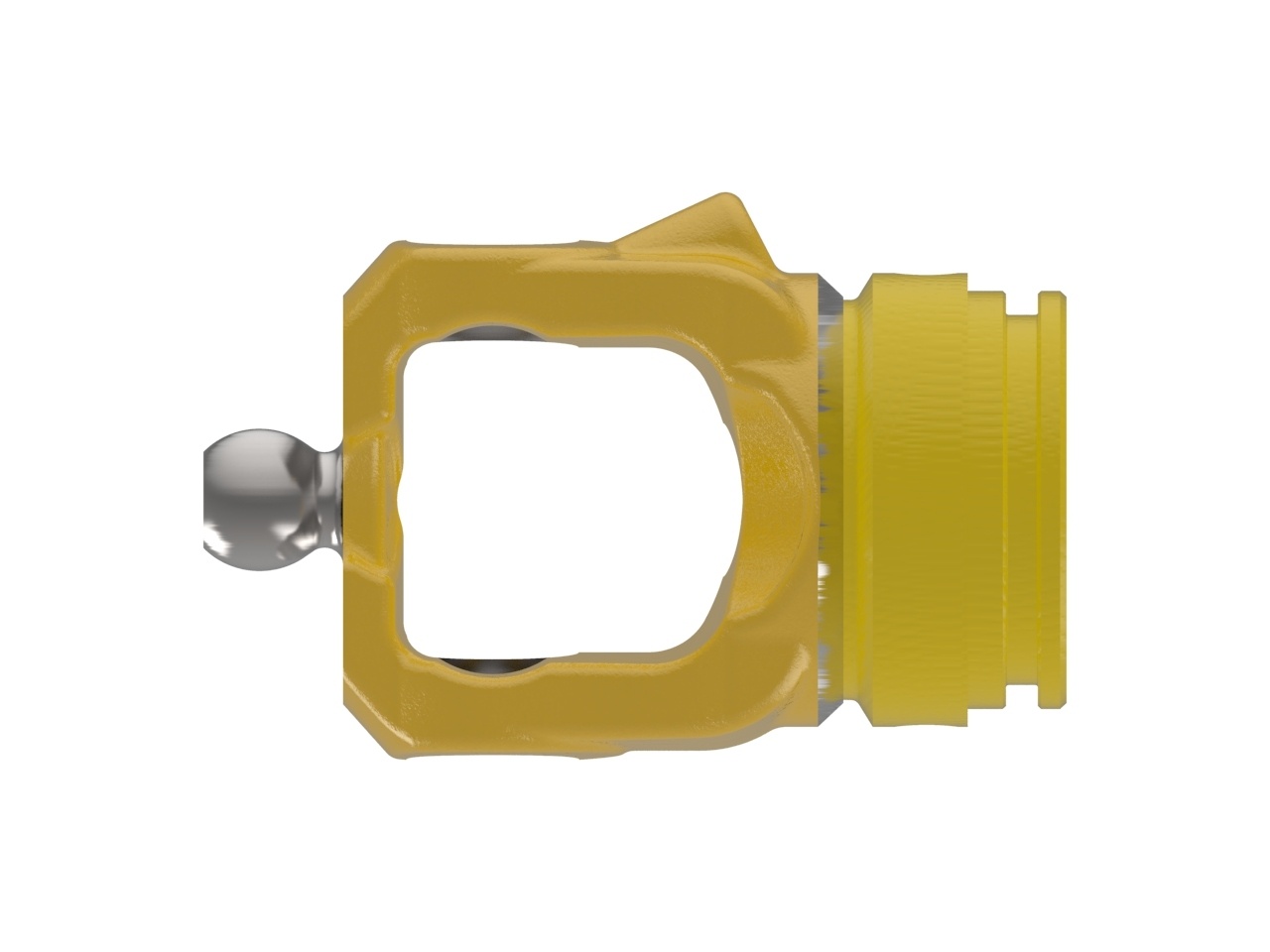

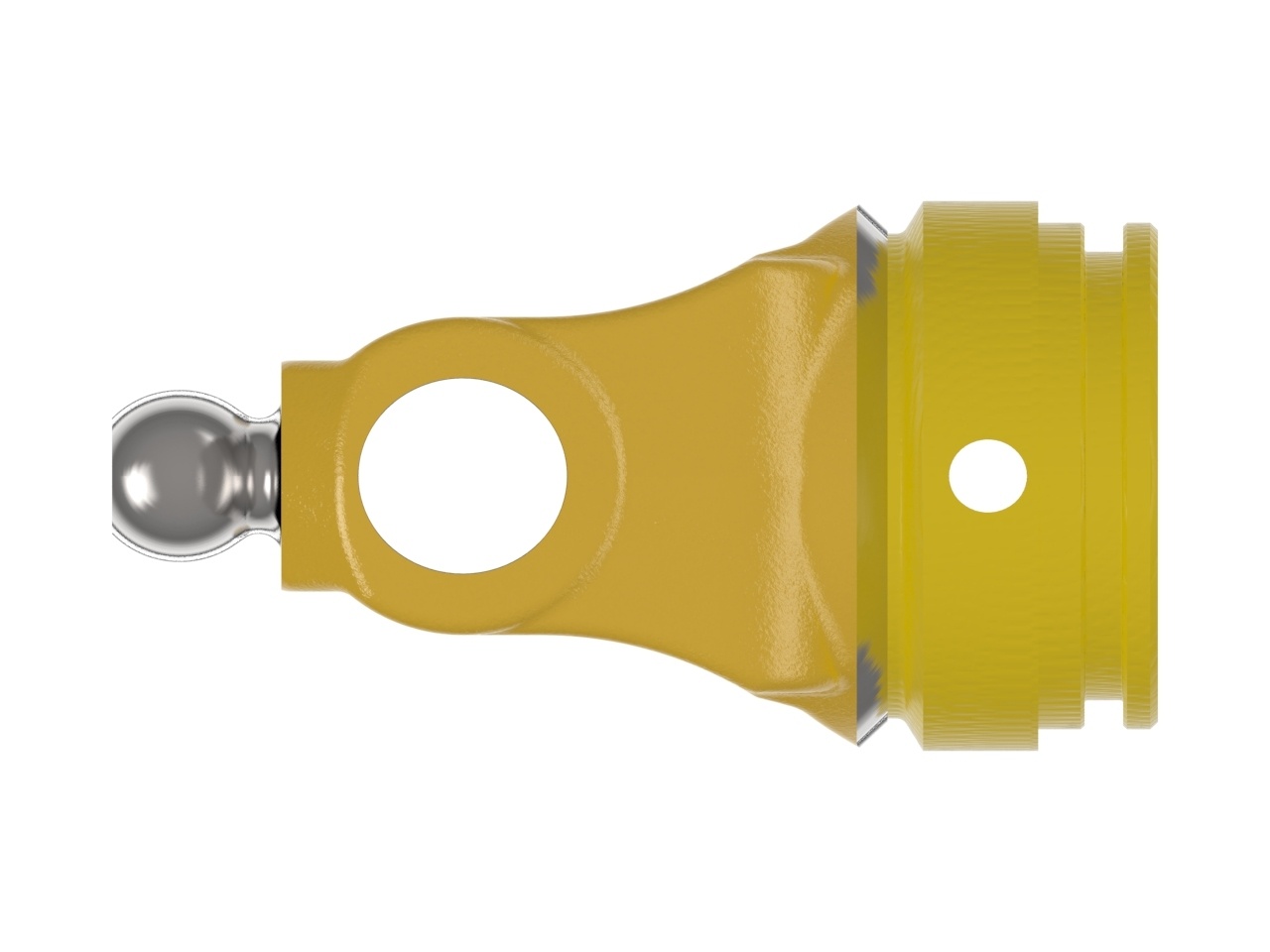

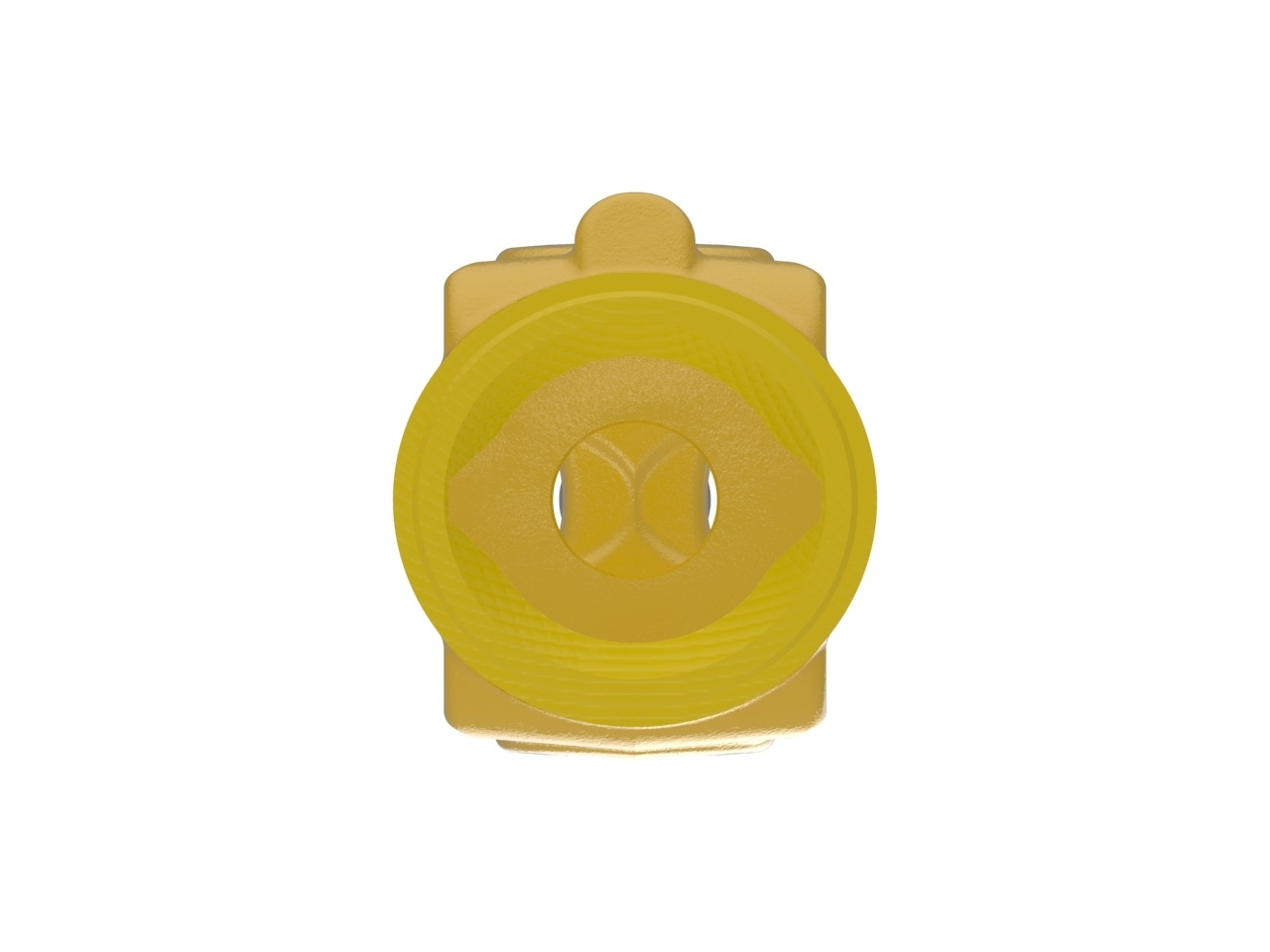

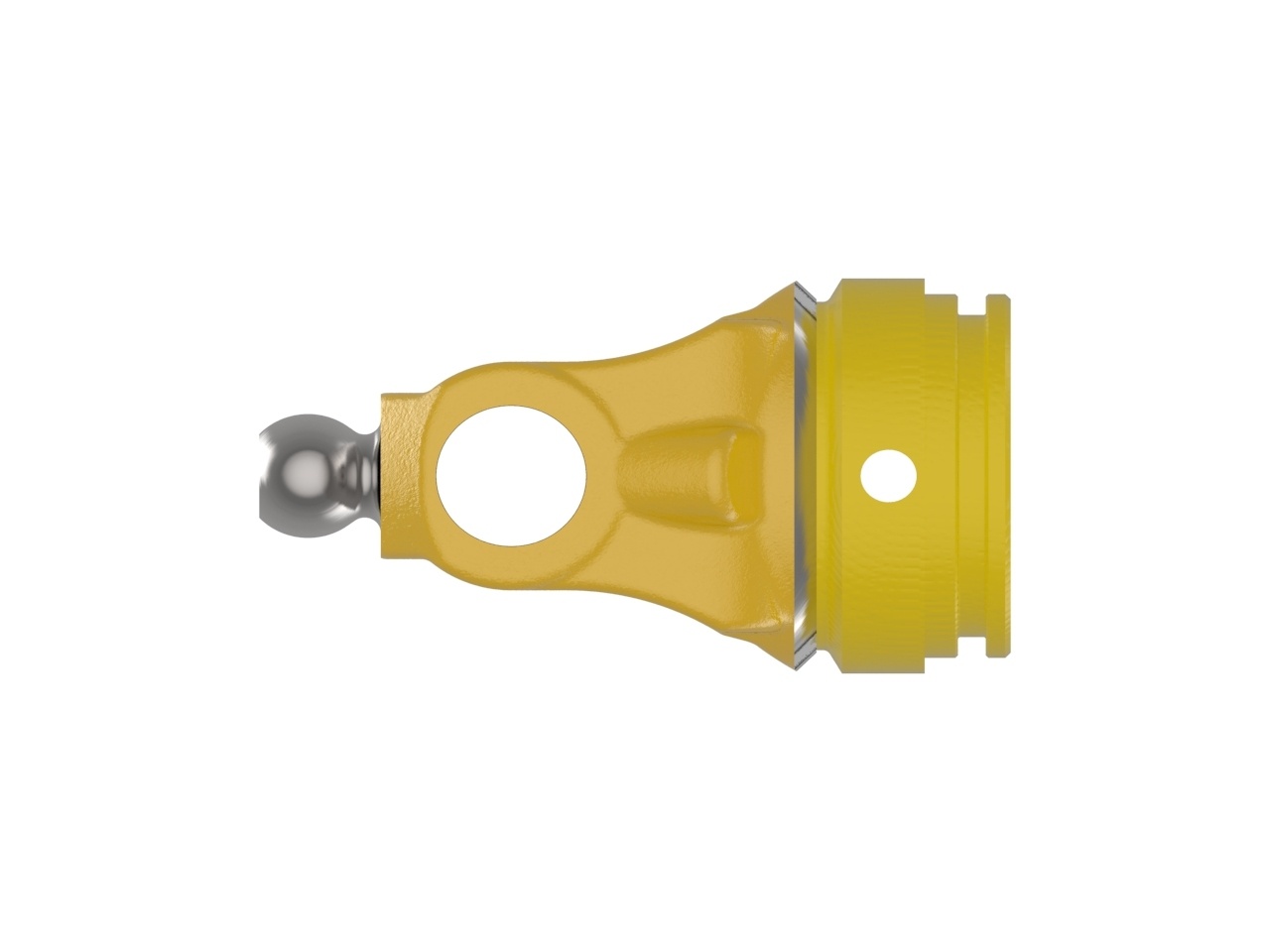

AW21-80 Series Roll Pin Yoke

AW21-80 series yoke with 48 mm lemon bore and roll pin connection

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

Specifications

Spec. Imperial Metric
Bore 11.88 inches48 mm
Bore 1 48 MM LEMON
Connection 1 ROLL PIN
Height3.30 inches84 mm
HP@1000RPM63 HP47 kilowatts
HP@540RPM41 HP31 kilowatts
Length3.54 inches90 mm
Shipping Dimensions5.343" L  ×  3.3" H  ×  3" W14cm L  ×  8cm H  ×  8cm W
Shipping Volume52.90 in3867 cm3
Width3.00 inches76 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating 80 Deg CV.pdf Maintenance Document English
Service Instructions - CV Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle Operating.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle NonOperating.pdf Troubleshooting Document English
WE0101003_1019_USL_80DegConstantVelocityJoint.pdf Performance Benefits Document English
