AW10 Series Setscrew Yoke

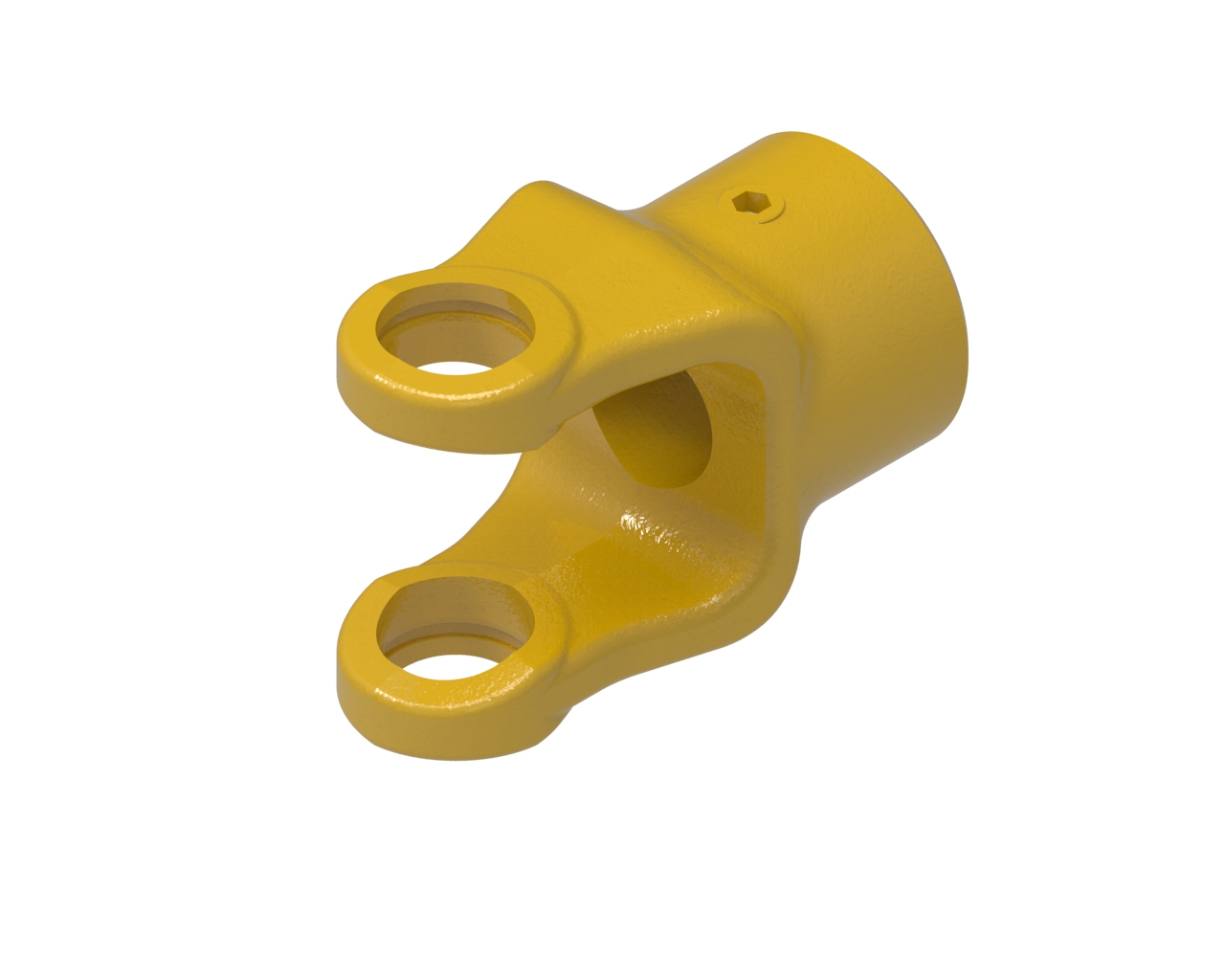

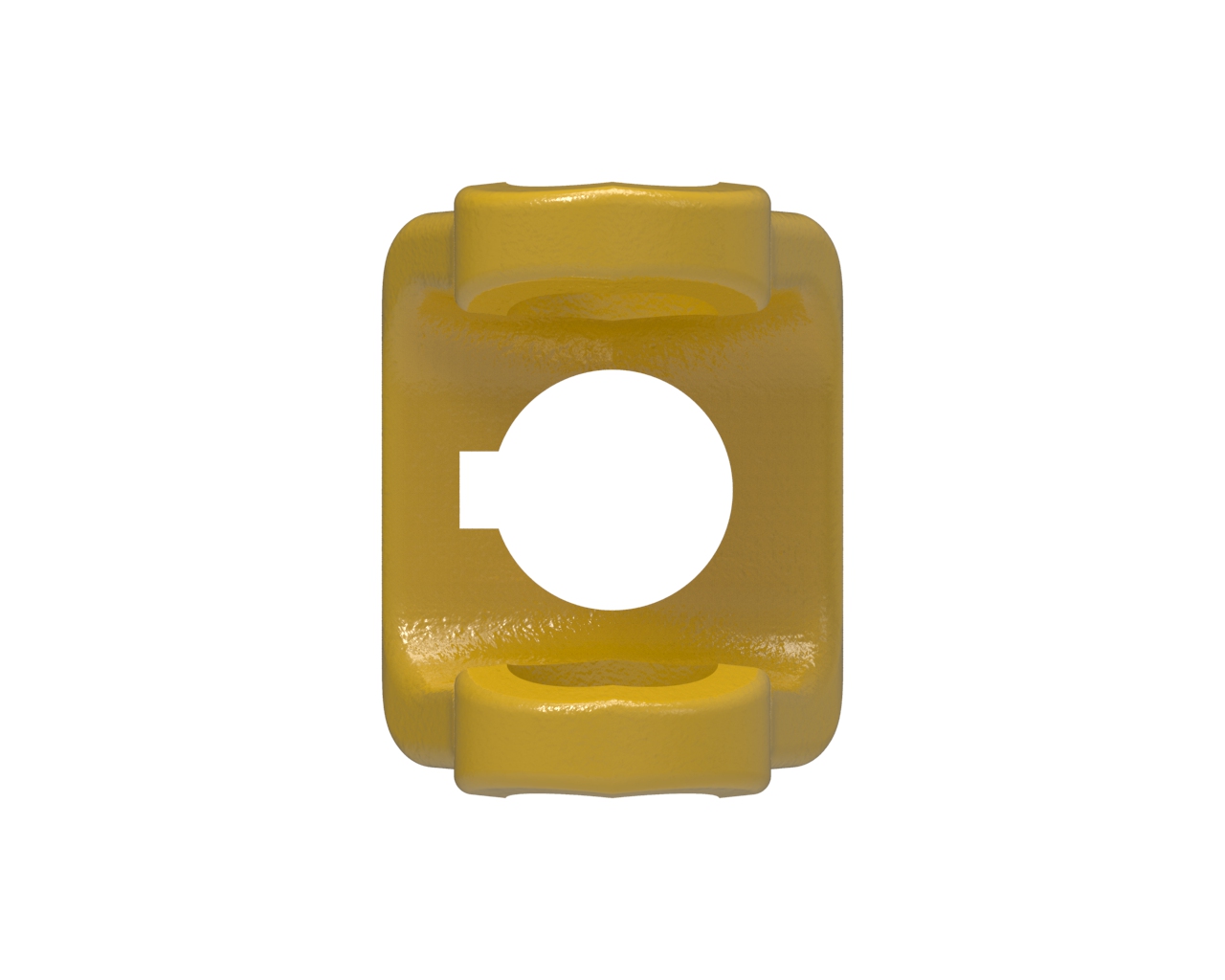

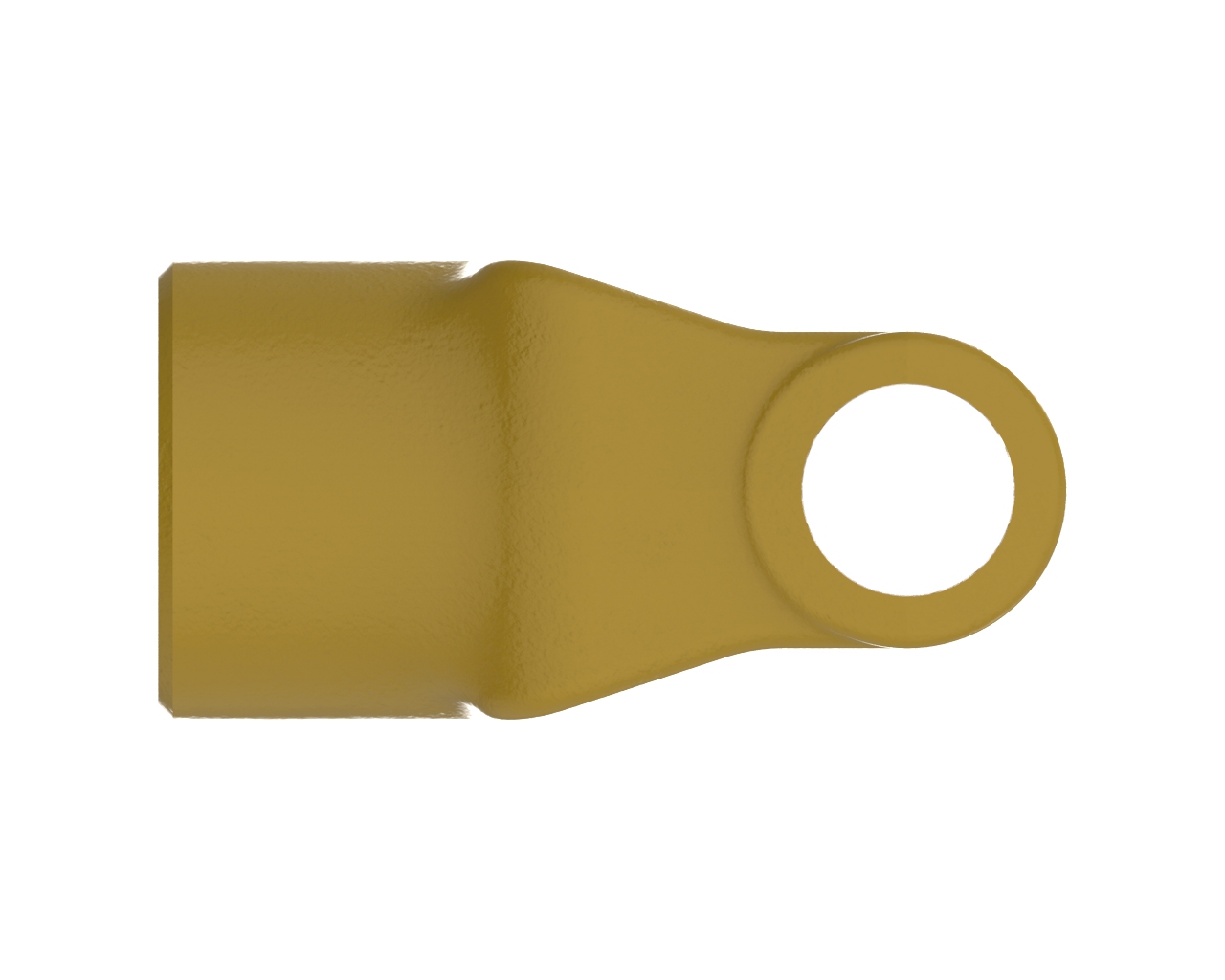

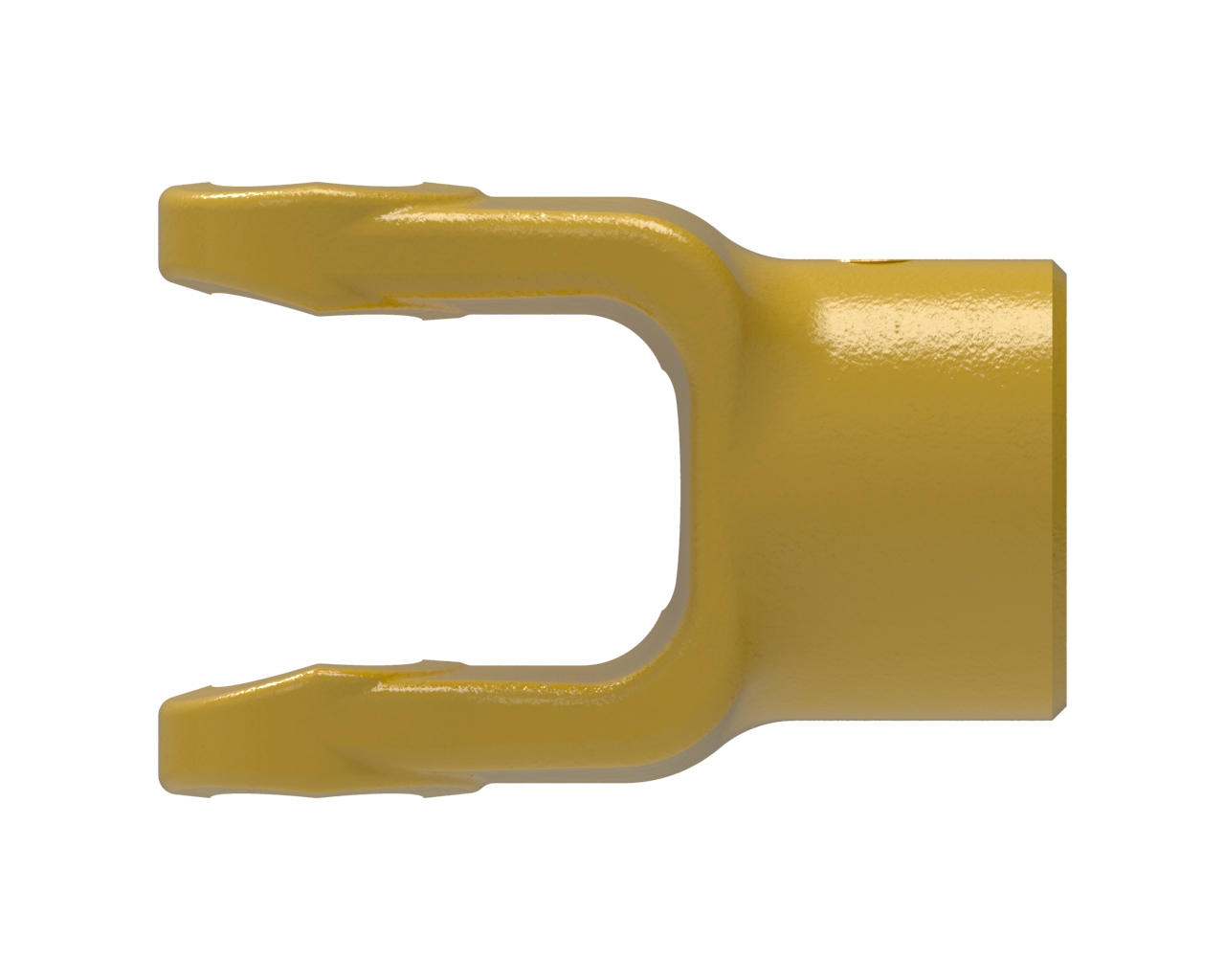

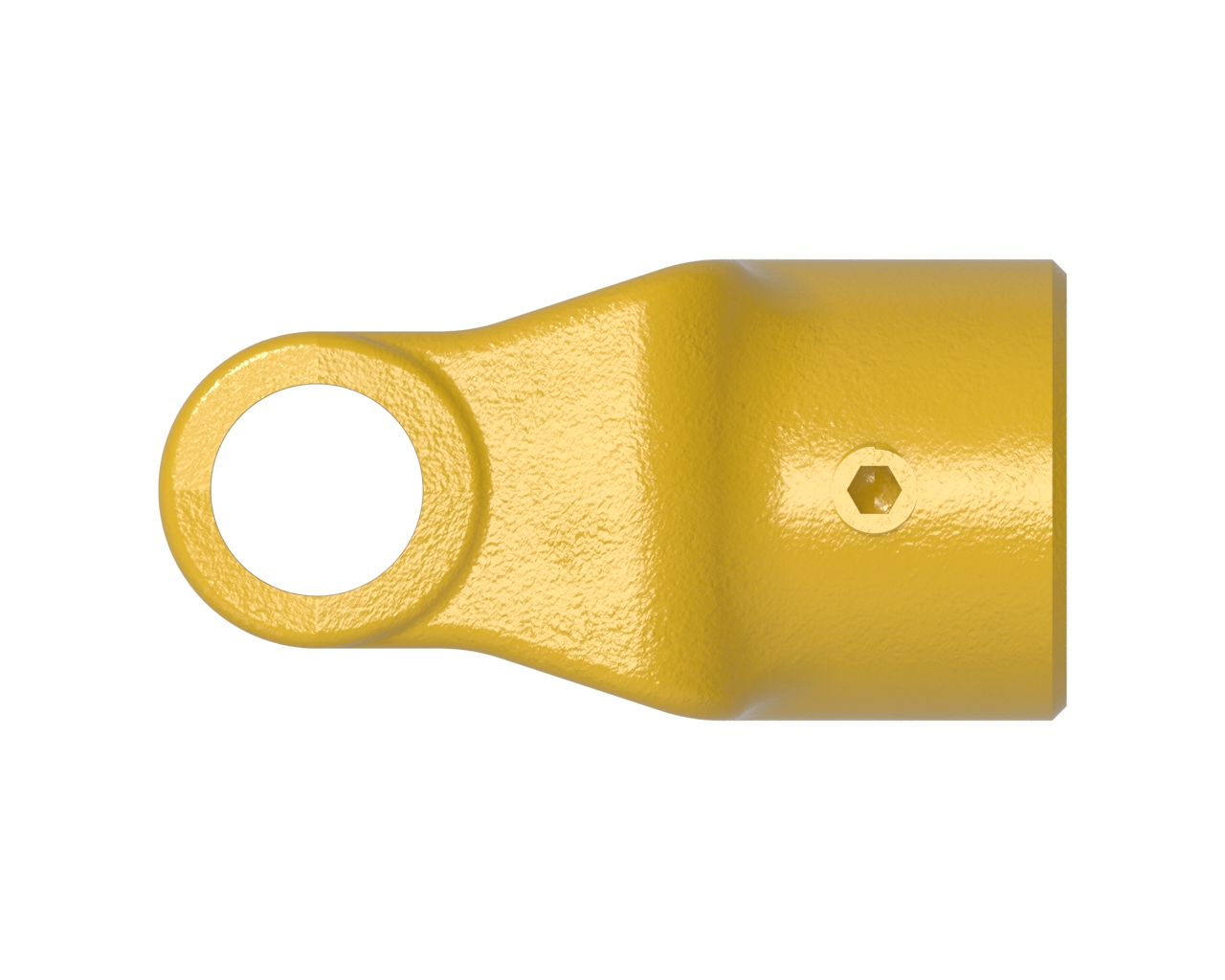

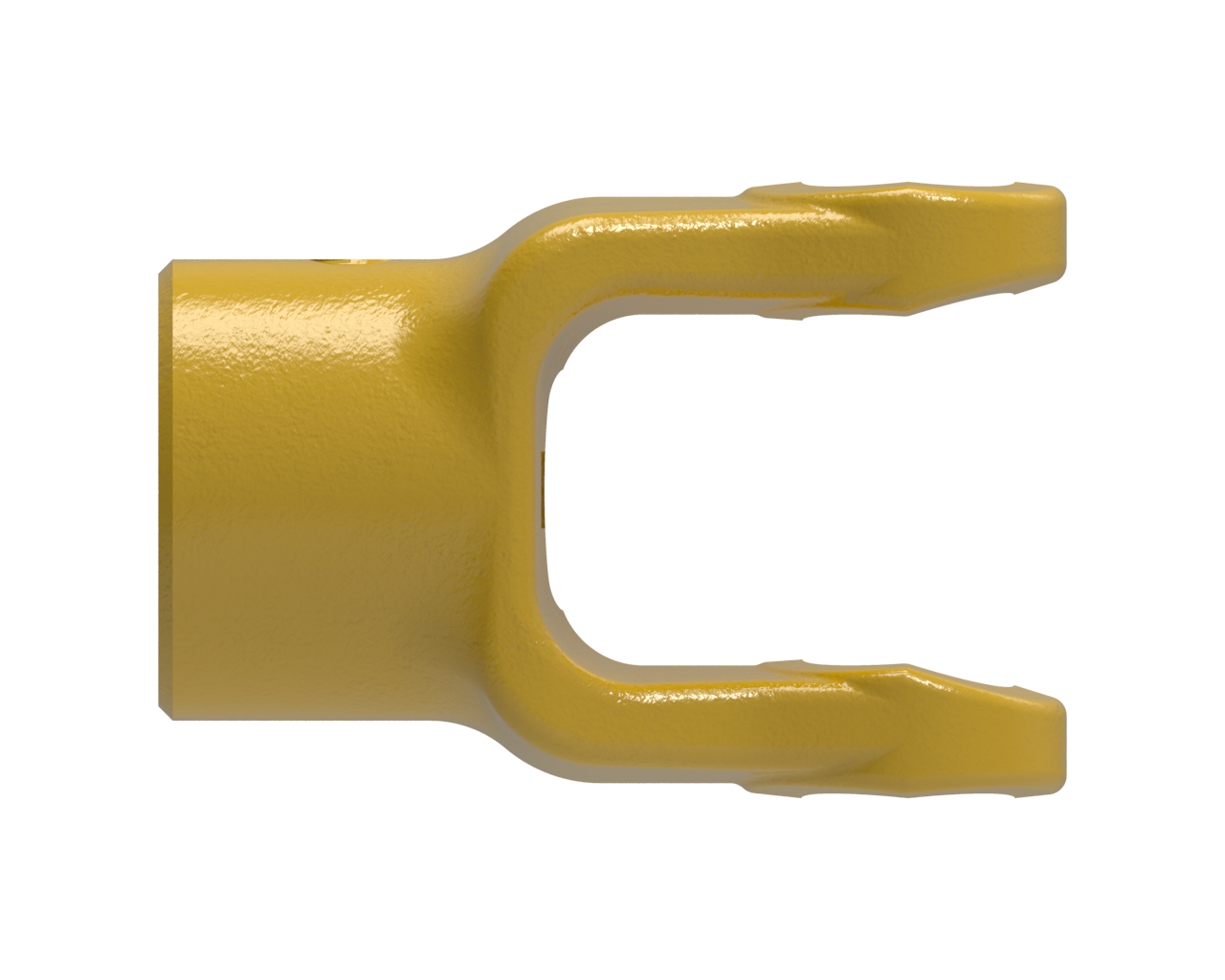

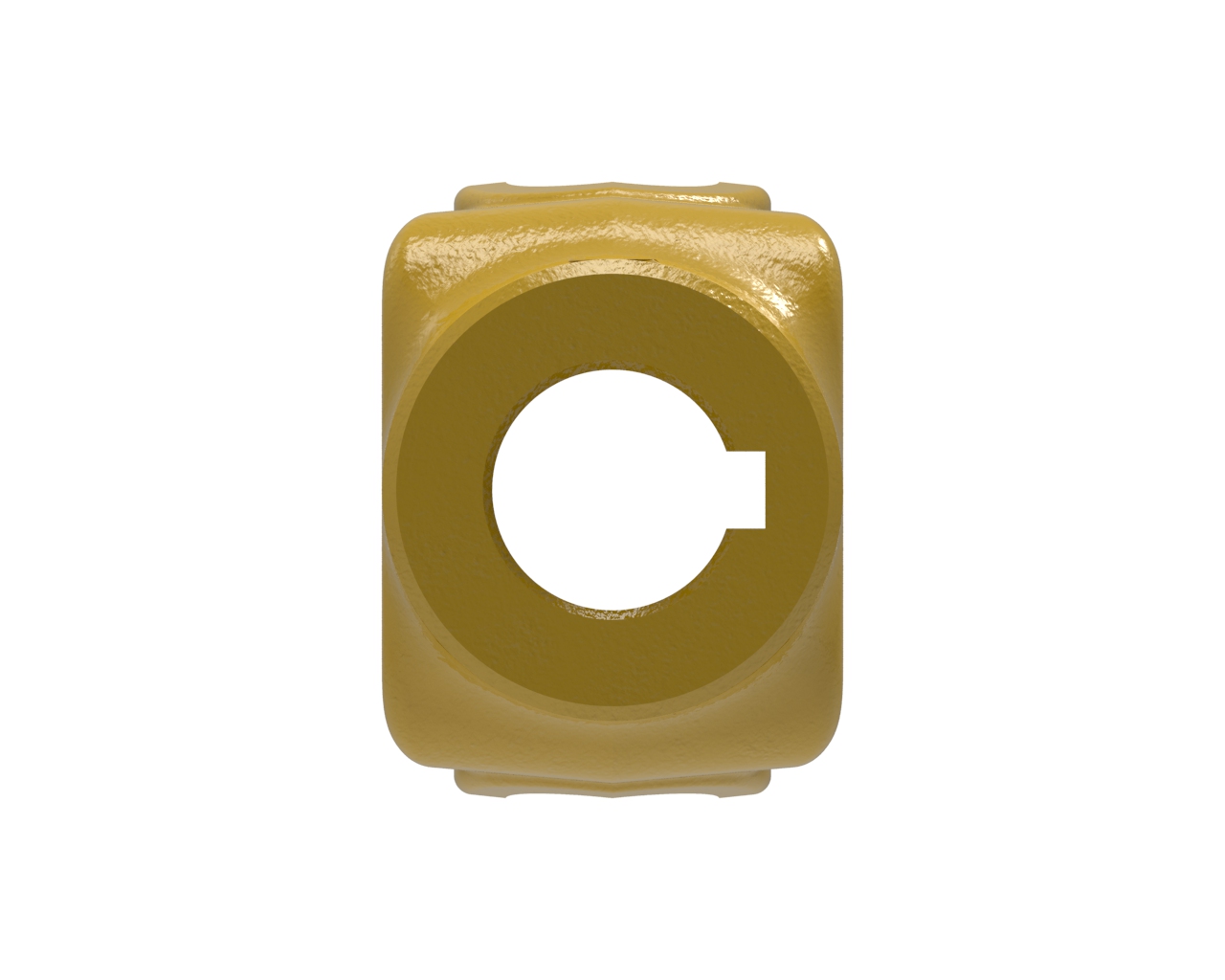

AW10 series yoke with round with keyway bore and setscrew connection. Note: Image color may not represent actual part.

View My List

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.



Spec. Imperial Metric
Bore 10.98 inches25 mm
Connection 1 SETSCREW
Height2.80 inches71 mm
HP@1000RPM29 HP22 kilowatts
HP@540RPM19 HP14 kilowatts
Keyway 10.31 inches8 mm
Length3.07 inches78 mm
Setscrew M10x10
Shipping Dimensions3.7" L  ×  2.8" H  ×  2.32" W9cm L  ×  7cm H  ×  6cm W
Shipping Volume24.04 in3394 cm3
Shipping Weight1.12 pounds1 kilograms
Weight1.12 pounds1 kilograms
Width2.32 inches59 mm


Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
