553-6828-00
OVERRUNNING CLUTCH YOKEAB8,AW24 Series Overrunning Clutch Clamp Yoke

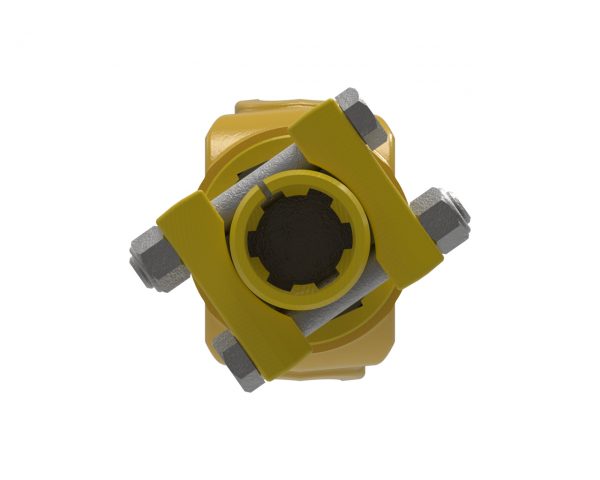

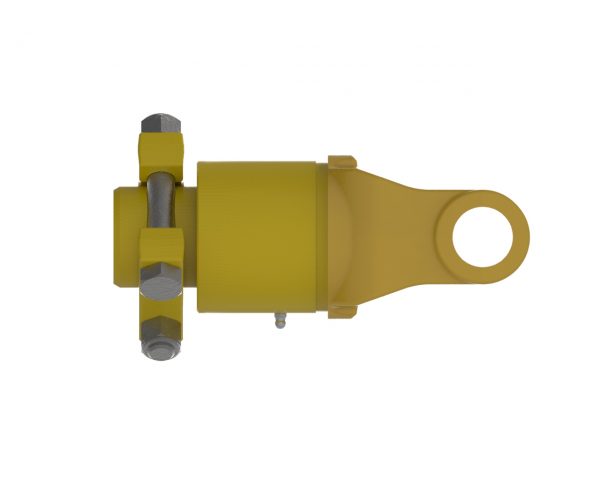

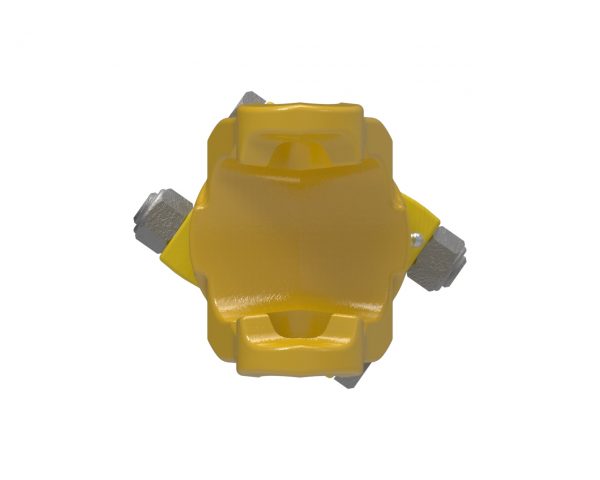

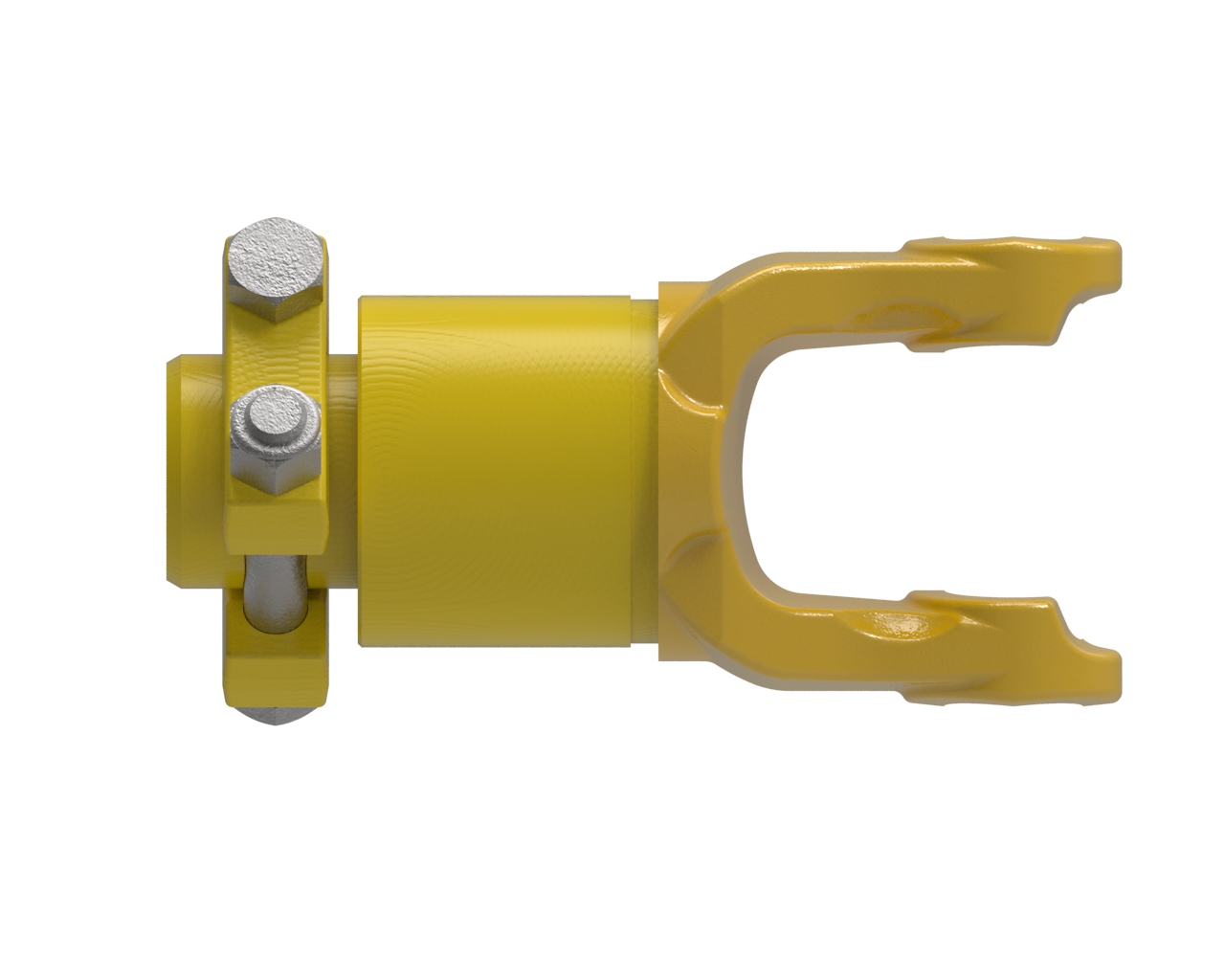

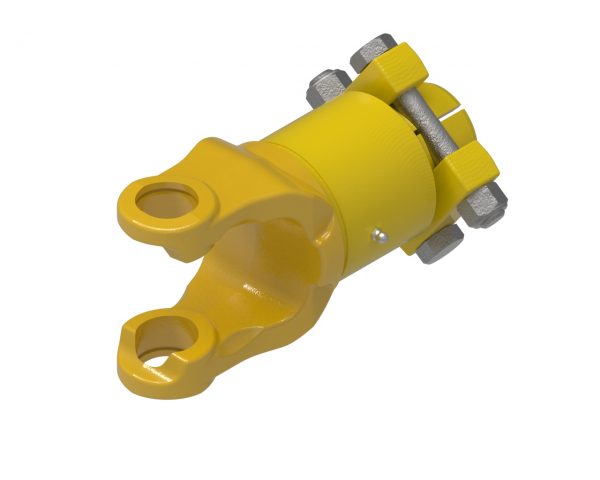

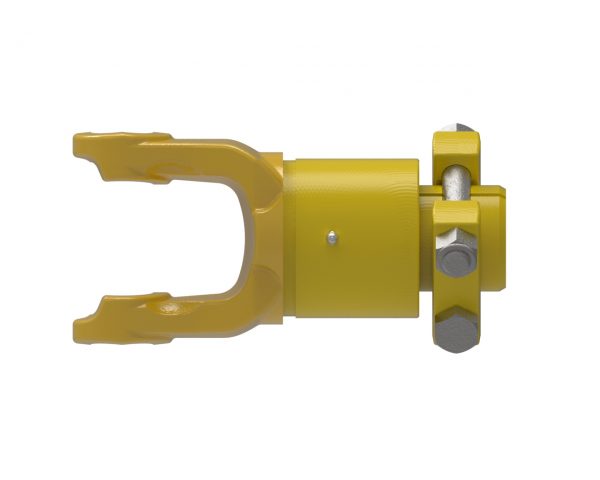

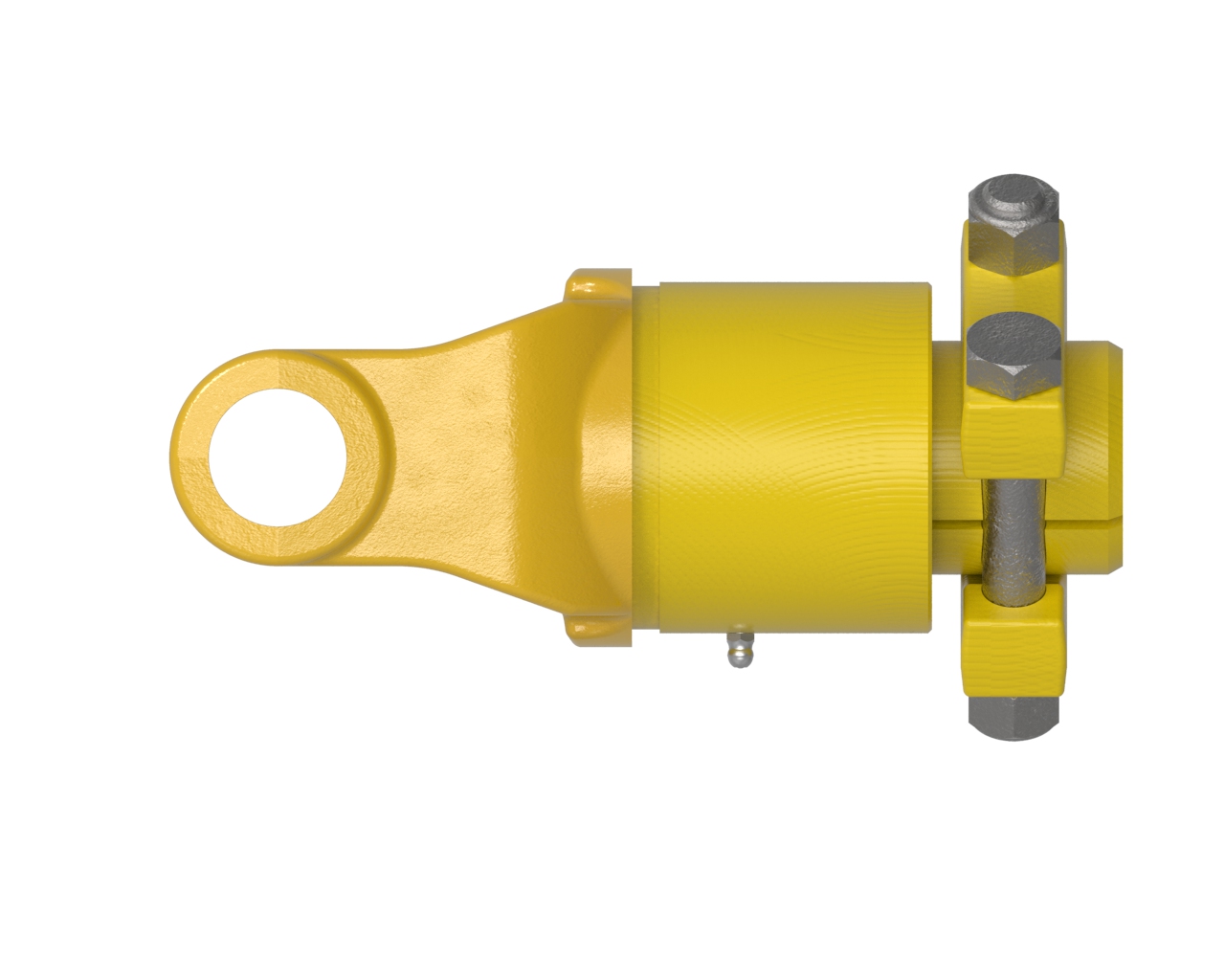

AB8,AW24 series overrunning clutch yoke with 1 3/4-6 spline bore and clamp connection. Note: Image color may not represent actual part.
The overruning clutch allows any implement to free-wheel to a stop. Any implement with a large rotating mass may need overload protection by allowing it to free-wheel to a stop. The clutch prevents the machine from driving the tractor when the PTO drive shaft has stopped. The overruning clutch direction is dependant on the application, the normal tractor PTO direction is clockwise . Overrunning clutches do not absorb any energy, so start up overloads must be absorbed by other means.
PERFORMANCE BENEFITS
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bearing Diameter | 1.37 inches | 35 mm |
Bearing Span | 4.18 inches | 106 mm |
Bore 1 | 1.75 inches | 44 mm |
Bore 1 | 1 3/4-6 SPLINE | |
Connection 1 | CLAMP | |
HP@1000RPM | 185 HP | 138 kilowatts |
HP@540RPM | 120 HP | 89 kilowatts |
Length | 8.40 inches | 213 mm |
Outside Diameter | 3.81 inches | 97 mm |
Shipping Dimensions | 9.483" L × 5.12" H × 3.819" W | 24cm L × 13cm H × 10cm W |
Shipping Volume | 185.42 in3 | 3038 cm3 |
Shipping Weight | 14.71 pounds | 7 kilograms |
Weight | 14.71 pounds | 7 kilograms |
Downloads
Document Name | Type | Language |
---|---|---|
Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
Service Instructions - Universal Joint.pdf | Service Document | English |
Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
WE0101025_0817_USL_OverrunningClutch.pdf | Performance Benefits Document | English |
