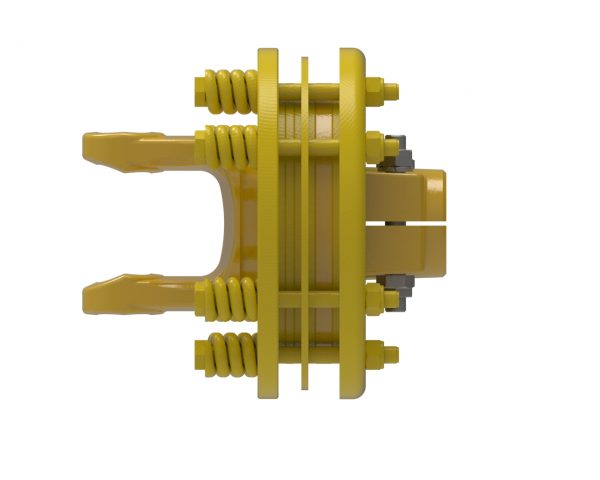

AB8,AW24 Series Friction Clutch Clamp Yoke

AB8,AW24 series friction clutch yoke with 1 3/8-6 spline bore and clamp connection

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

The Friction clutch is indispensable in certain agricultural implement applications. The friction clutch is the only torque limiter that has the ability to continuously transmit power (at a reduced level) while overloaded. This is valuable during startup of high inertia machines, as well as for leveling out torsional fluctuations due to high cyclic loads. The standard friction clutch with coil springs can be set in the field to the desired overload protection and must be readjusted after slipping.



Spec. Imperial Metric
Bearing Diameter1.37 inches35 mm
Bearing Span4.18 inches106 mm
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Connection 1 CLAMP
HP@1000RPM185 HP138 kilowatts
HP@540RPM120 HP89 kilowatts
Length7.76 inches197 mm
Outside Diameter7.87 inches200 mm
Shipping Dimensions8.843" L  ×  7.874" H  ×  7.874" W22cm L  ×  20cm H  ×  20cm W
Shipping Volume548.26 in38984 cm3
Shipping Weight26.01 pounds12 kilograms
Weight26.01 pounds12 kilograms


Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
