807-6828

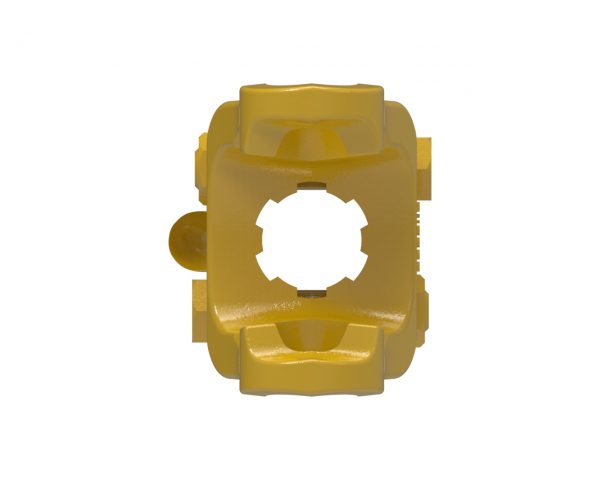

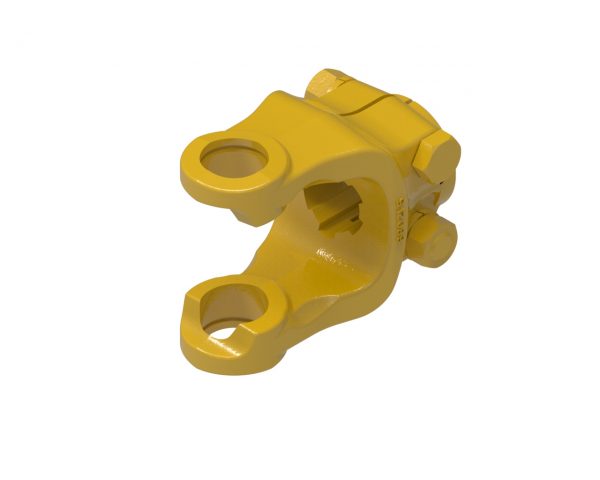

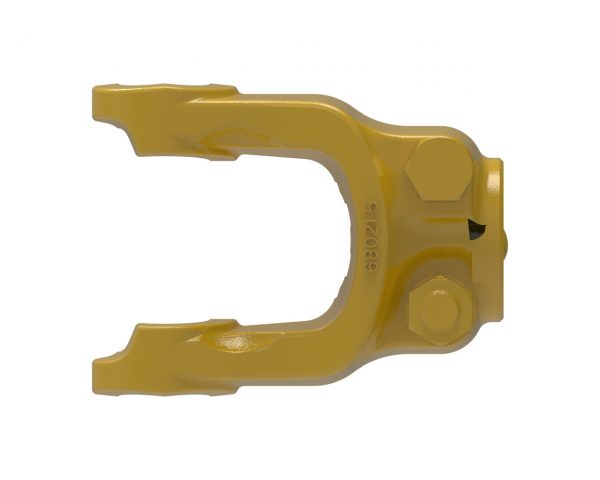

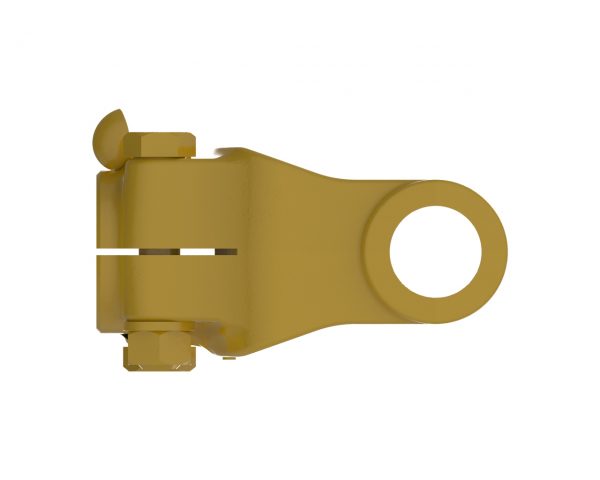

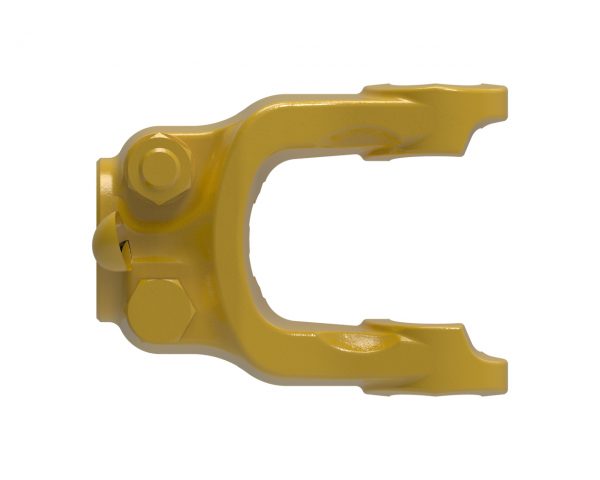

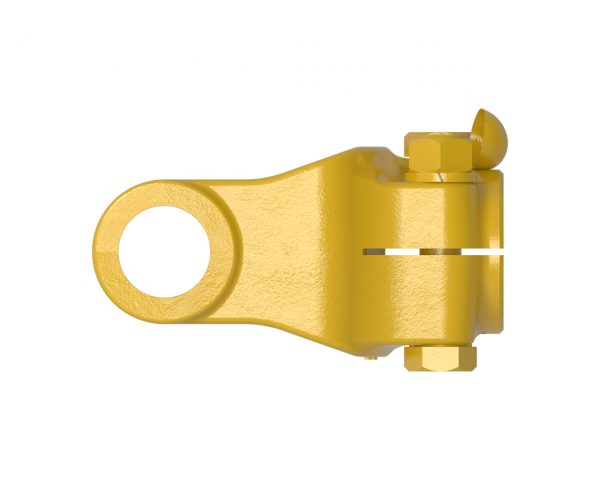

AB8,AW24 Series Clamp Yoke

AB8,AW24 series yoke with 1 3/4-6 spline bore and clamp connection

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.81 inches46 mm
Bore 1 1 3/4-6 SPLINE
Connection 1 CLAMP
Height5.12 inches130 mm
HP@1000RPM185 HP138 kilowatts
HP@540RPM120 HP89 kilowatts
Length5.08 inches129 mm
Shipping Dimensions6.16" L  ×  5.12" H  ×  3.15" W16cm L  ×  13cm H  ×  8cm W
Shipping Volume99.35 in31628 cm3
Shipping Weight6.94 pounds3 kilograms
Weight6.94 pounds3 kilograms
Width3.15 inches80 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
