800-6740
IMPLEMENT YOKEAB7N Series Setscrew Yoke

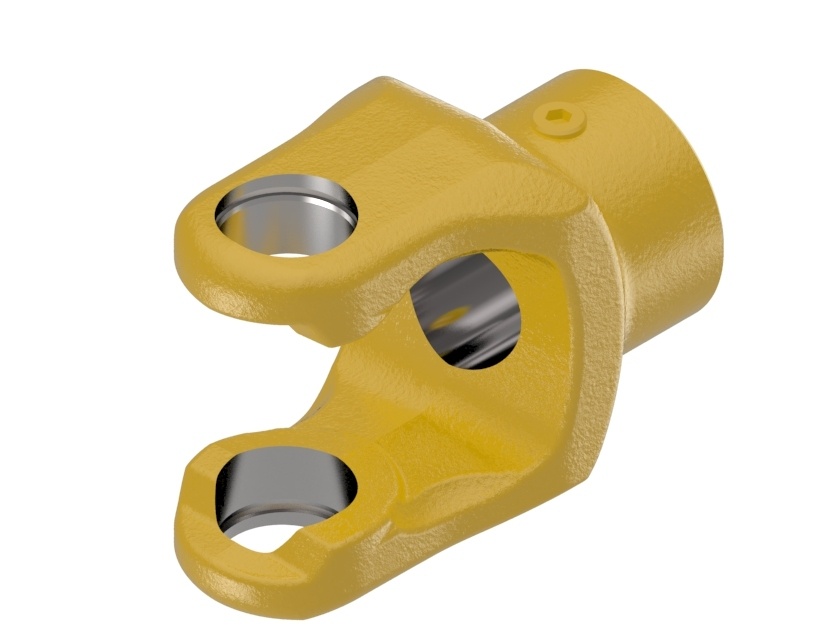

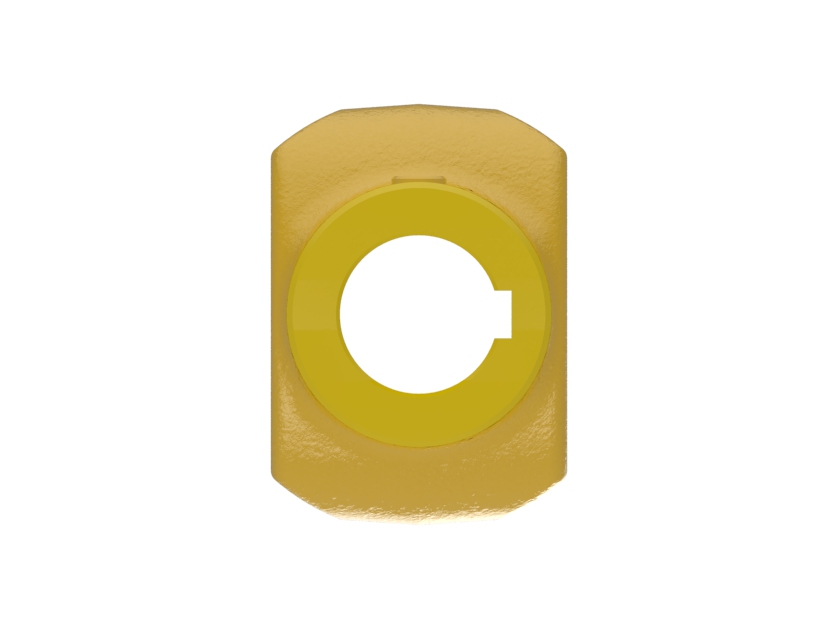

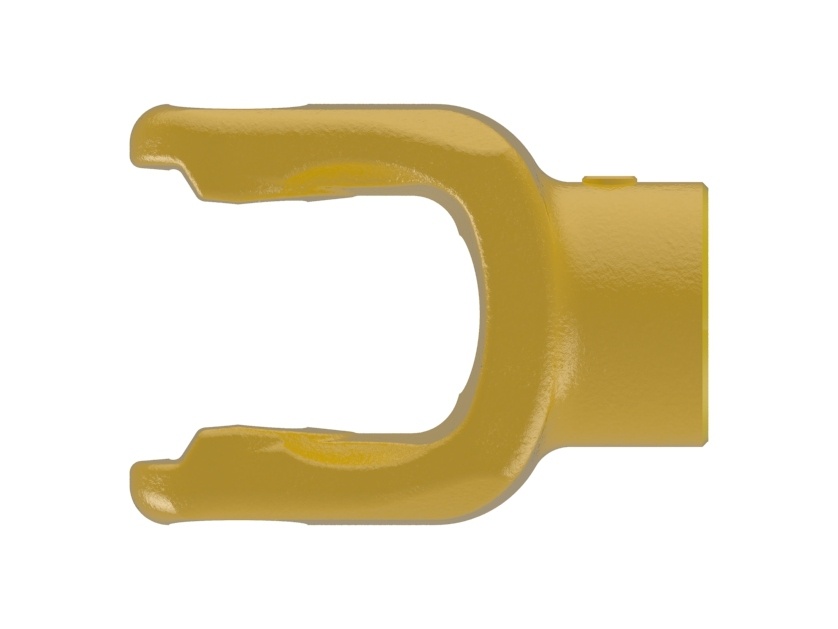

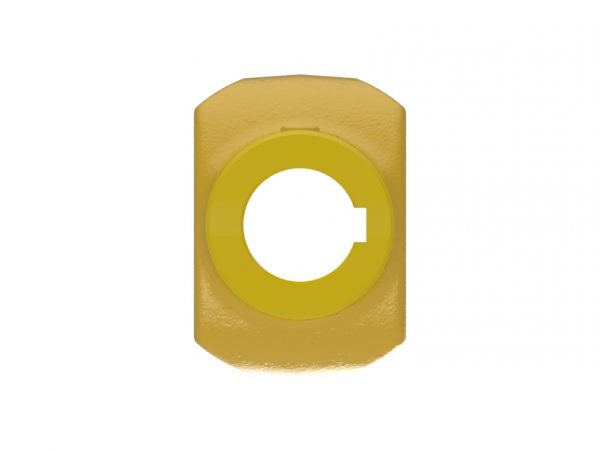

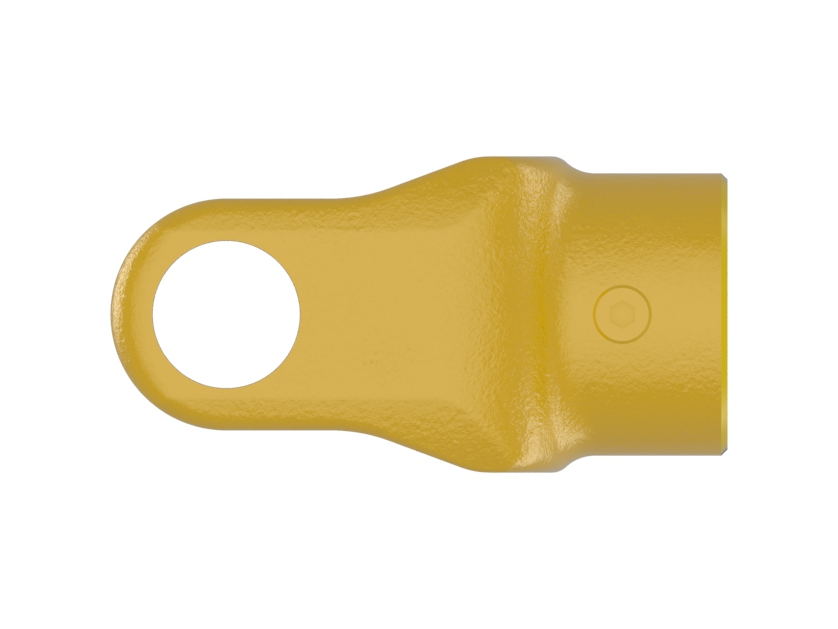

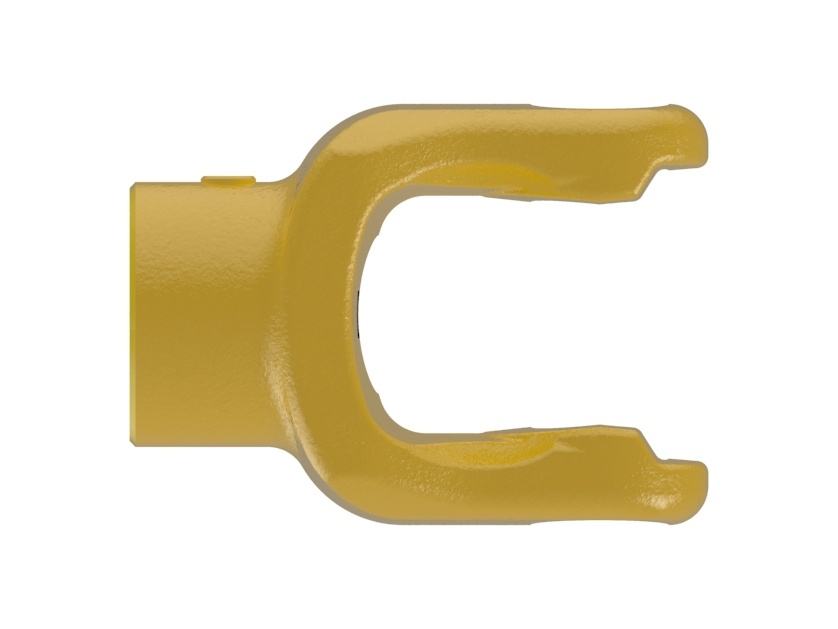

AB7N series yoke with round with keyway bore and setscrew connection. Note: Image color may not represent actual part.
PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.57 inches | 40 mm |
| Bore 1 | ROUND WITH KEYWAY | |
| Connection 1 | SETSCREW | |
| Height | 4.72 inches | 120 mm |
| HP@1000RPM | 145 HP | 108 kilowatts |
| HP@540RPM | 94 HP | 70 kilowatts |
| Keyway 1 | 0.47 inches | 12 mm |
| Length | 4.68 inches | 119 mm |
| Setscrew | M14x14 | |
| Shipping Dimensions | 5.77" L × 4.72" H × 2.95" W | 15cm L × 12cm H × 7cm W |
| Shipping Volume | 80.34 in3 | 1317 cm3 |
| Shipping Weight | 4.10 pounds | 2 kilograms |
| Weight | 4.10 pounds | 2 kilograms |
| Width | 2.95 inches | 75 mm |
