300-6740
PROFILE YOKEAB7N Series Roll Pin Yoke

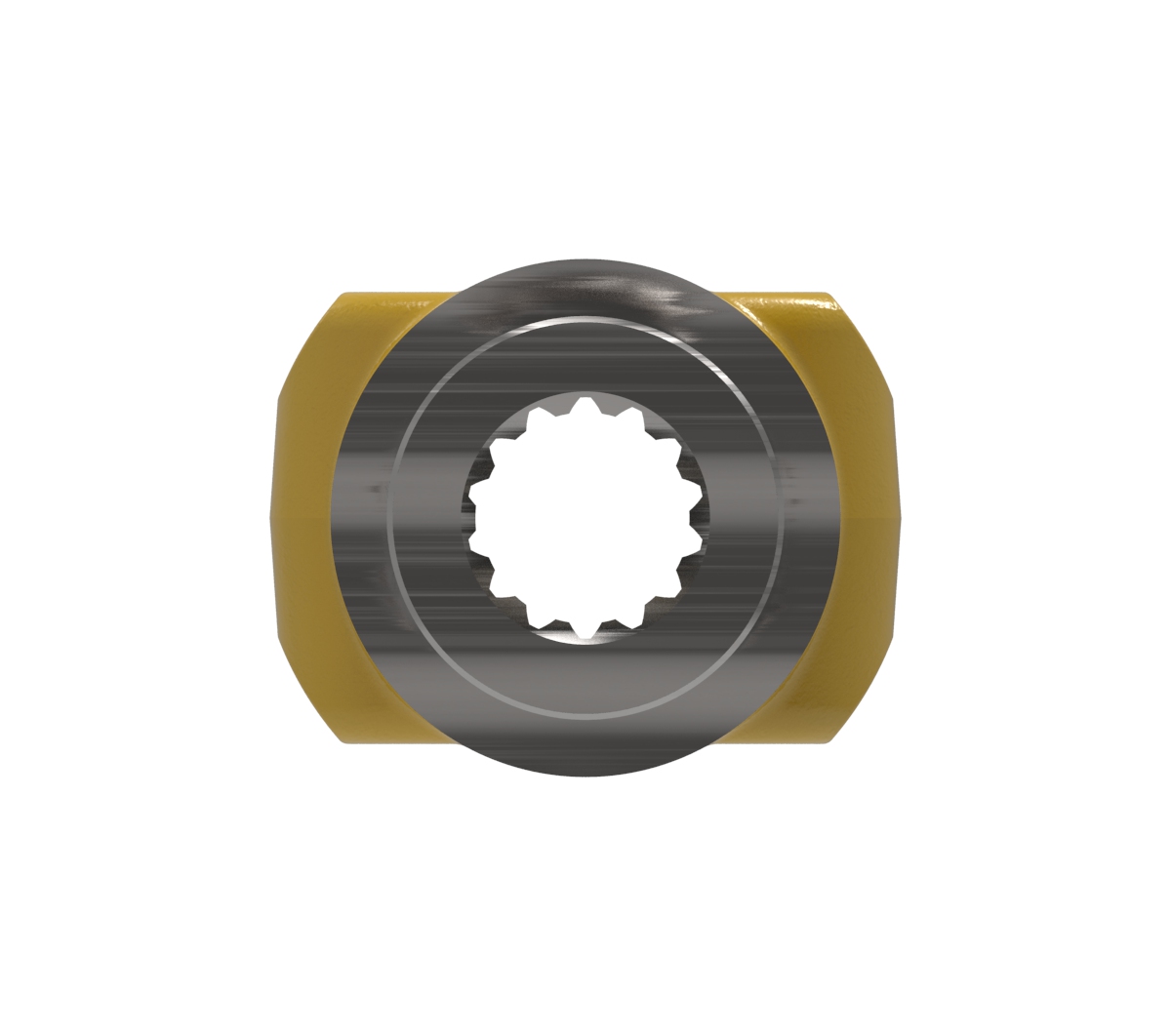

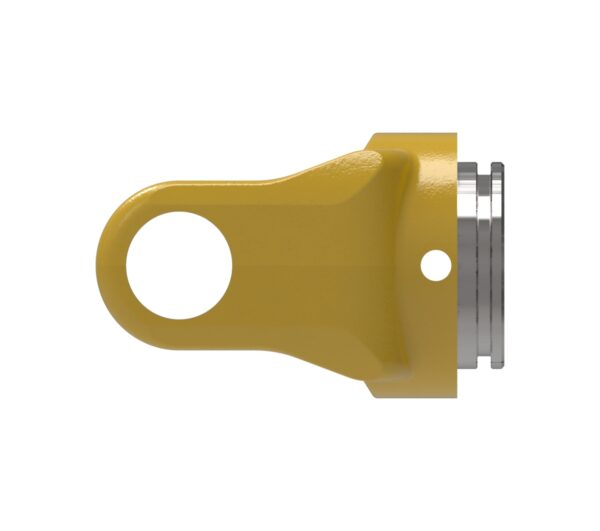

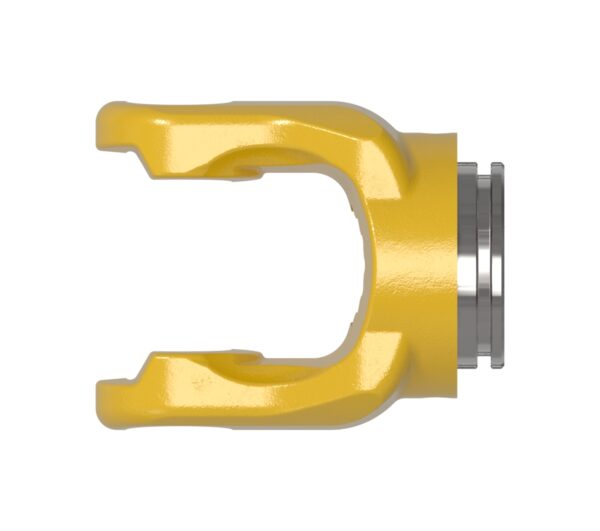

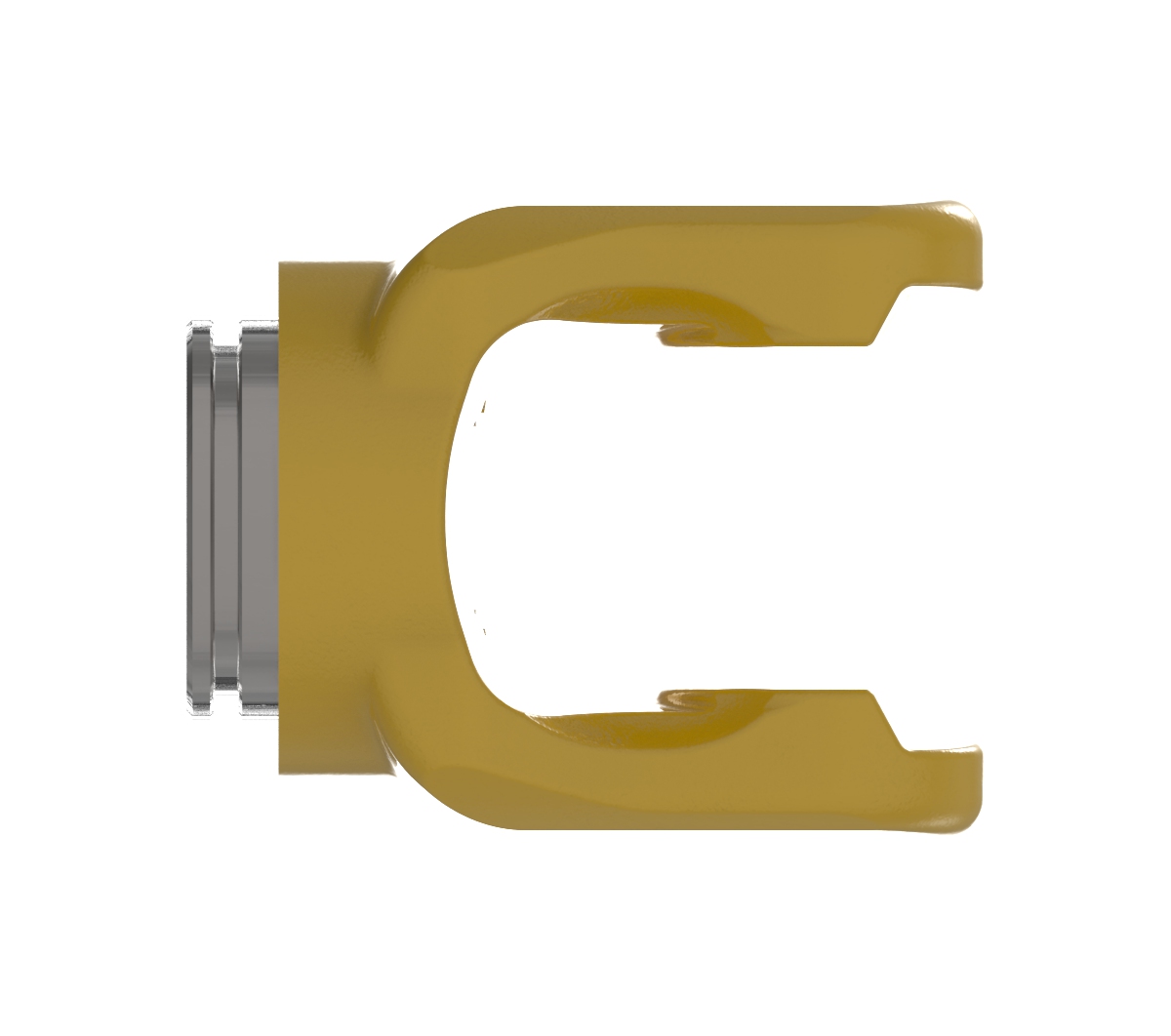

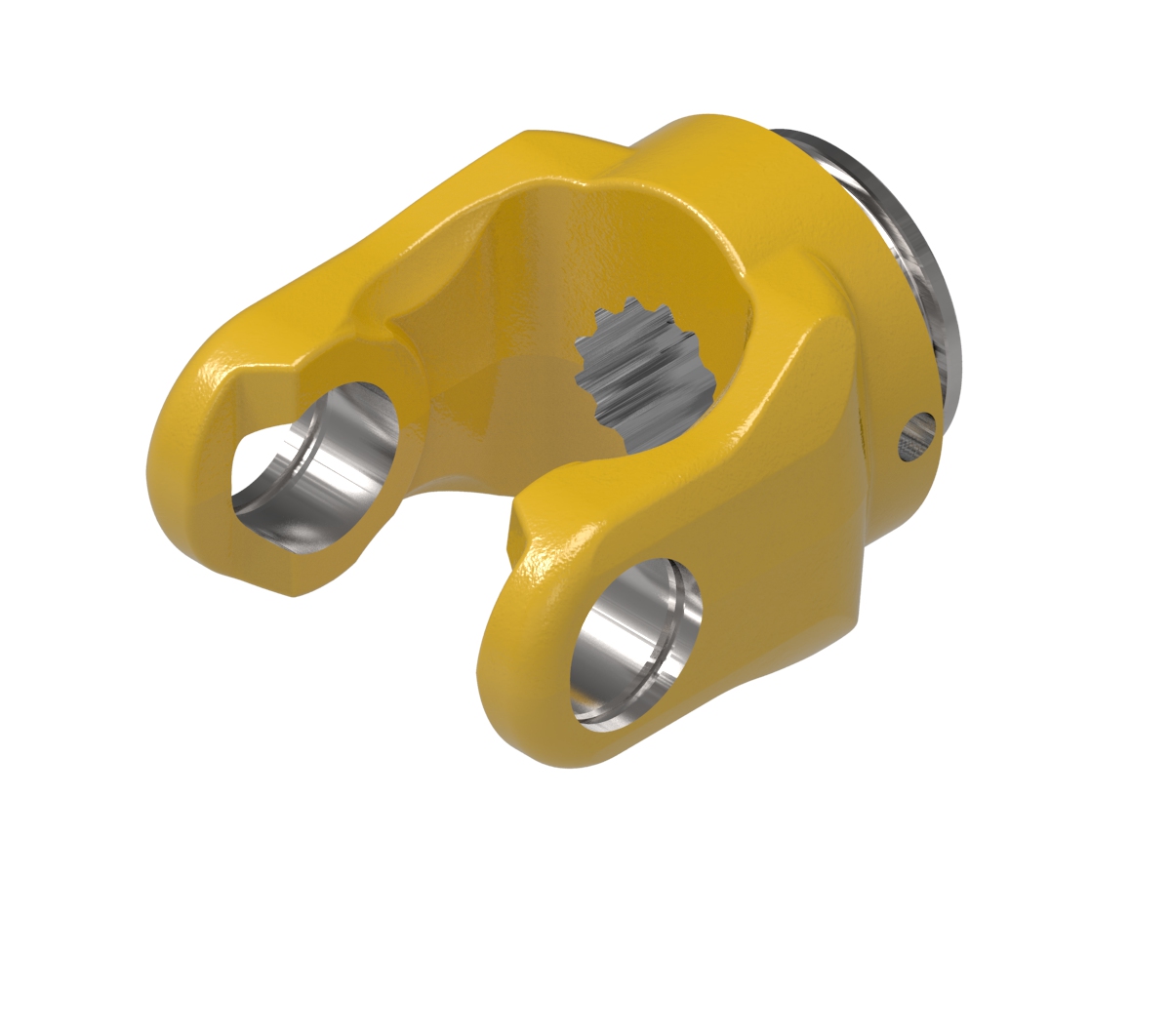

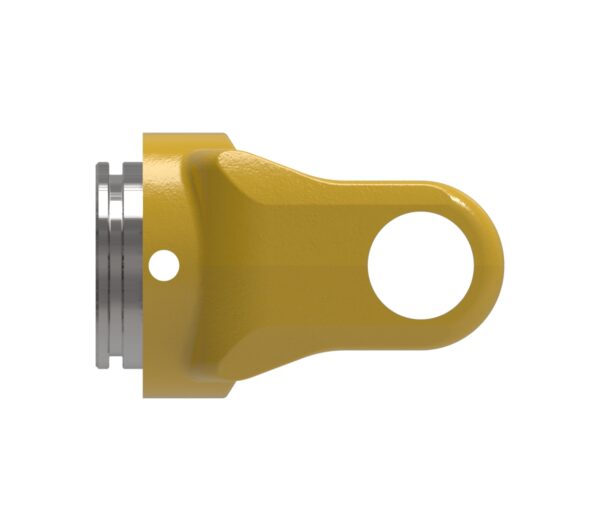

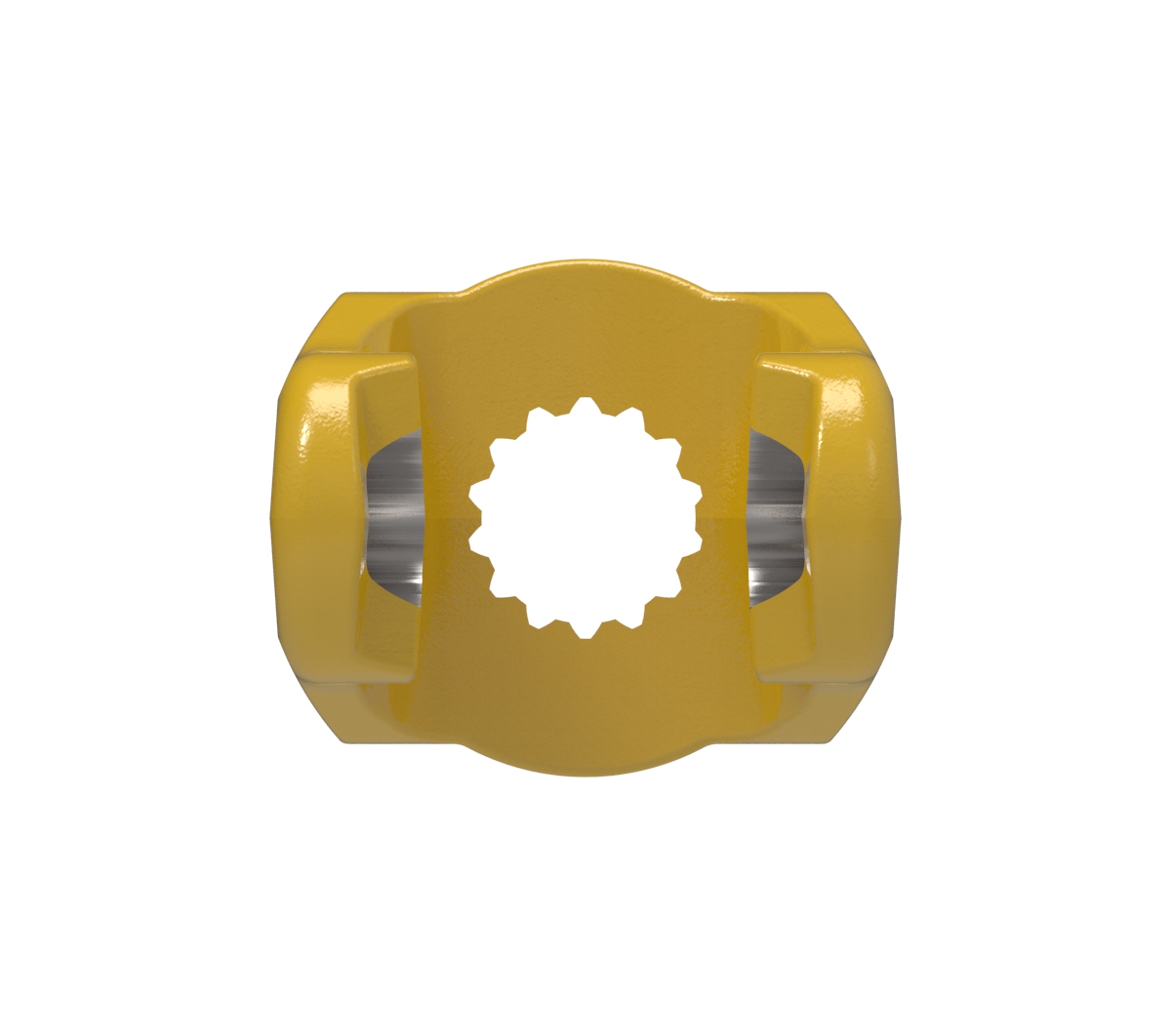

AB7N series yoke with 40 mm cuna bore and roll pin connection
Shaft yokes (or inner profile yokes) connect the cross and bearing kits to the telescoping shaft or inner tube. Tube yokes (or outer profile yokes), connect the other cross and bearing kits to the opposite side of the telescoping shaft or outer tube. Weasler provides both domestic (North American) and Weasler Profile metric shaft and tube yoke connection options. Domestic yokes are provided as square, rectangle, hexagon or splined in shape. Weasler Profile metric yokes are provided as lemon, star, or trilobe in shape.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.57 inches | 40 mm |
| Bore 1 | 40 MM CUNA | |
| Connection 1 | ROLL PIN | |
| Height | 4.72 inches | 120 mm |
| HP@1000RPM | 145 HP | 108 kilowatts |
| HP@540RPM | 94 HP | 70 kilowatts |
| Length | 4.21 inches | 107 mm |
| Shipping Dimensions | 5.296" L × 4.72" H × 2.9527559055118" W | 13cm L × 12cm H × 8cm W |
| Shipping Volume | 73.81 in3 | 1210 cm3 |
| Width | 2.95 inches | 75 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
