107-7906

AB7N-80,AW36-80 Series Safety Slide Lock Yoke

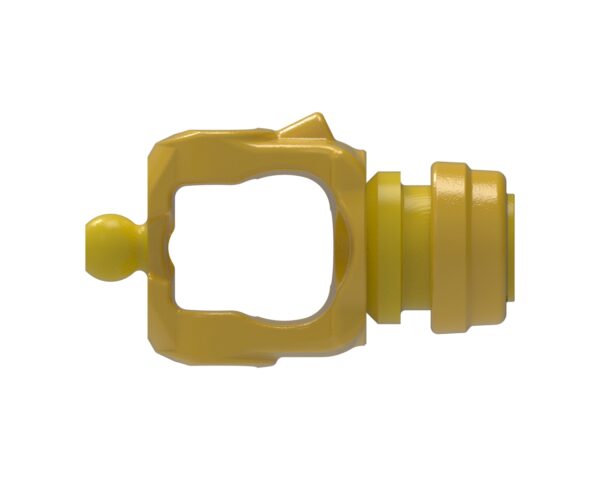

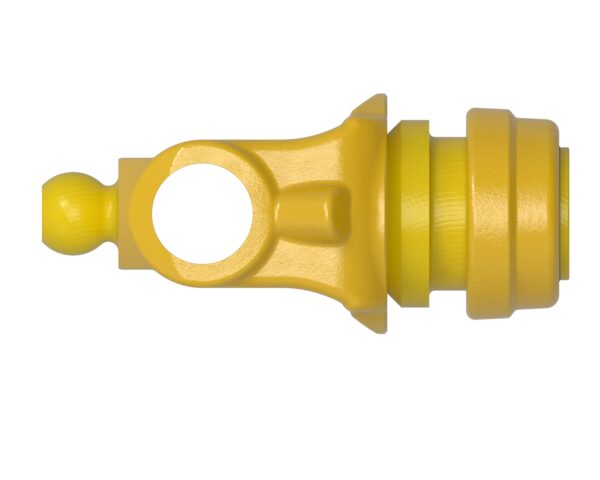

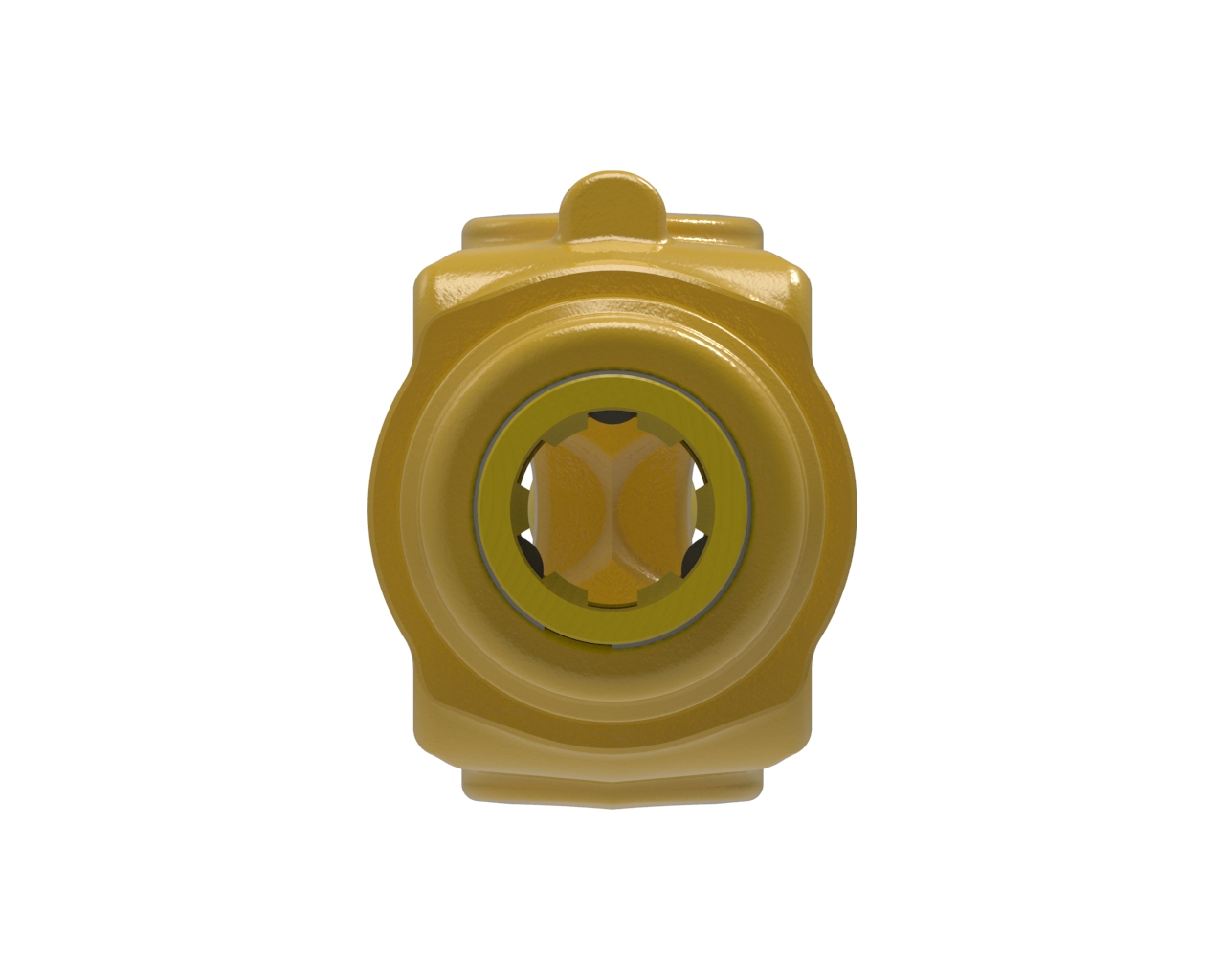

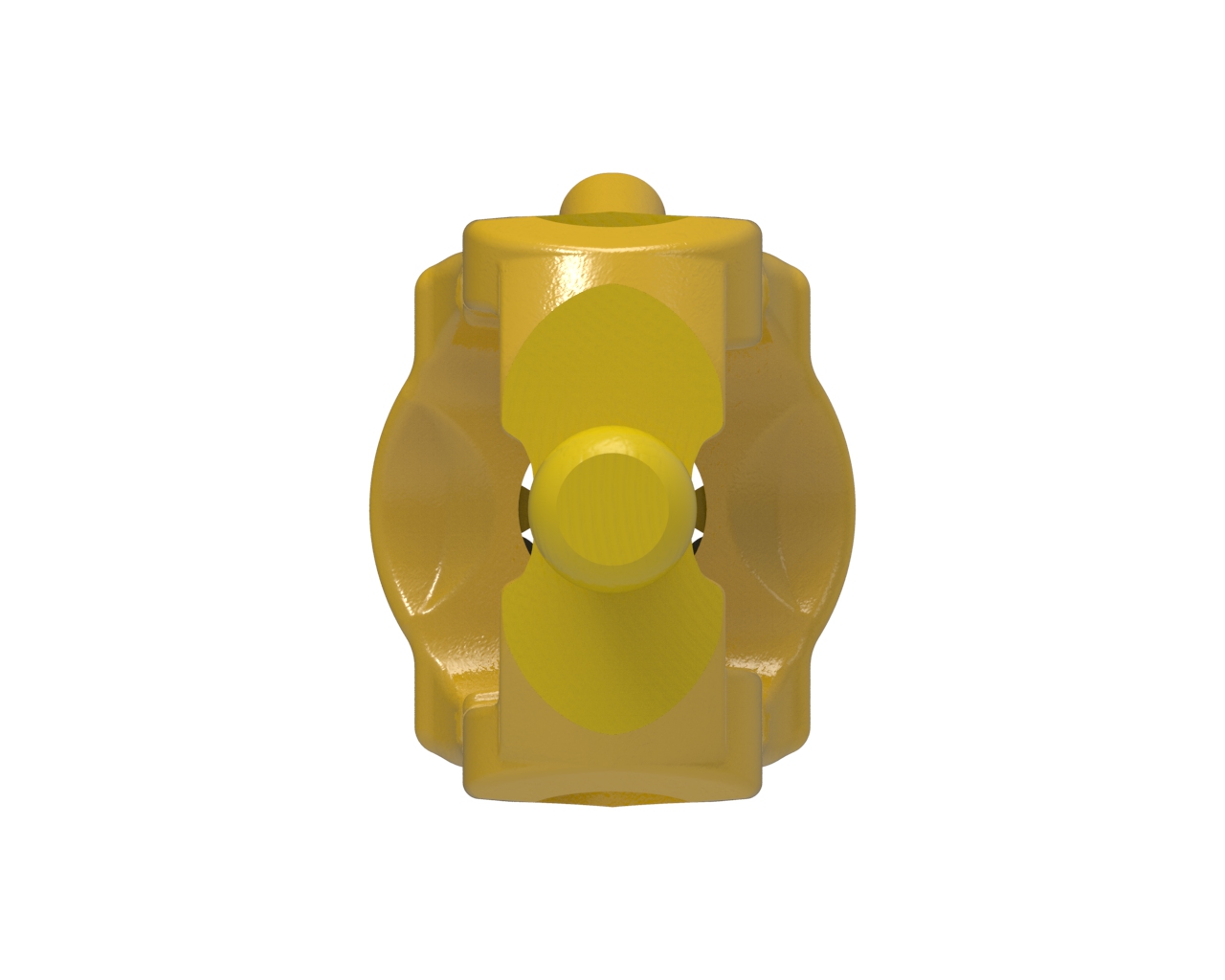

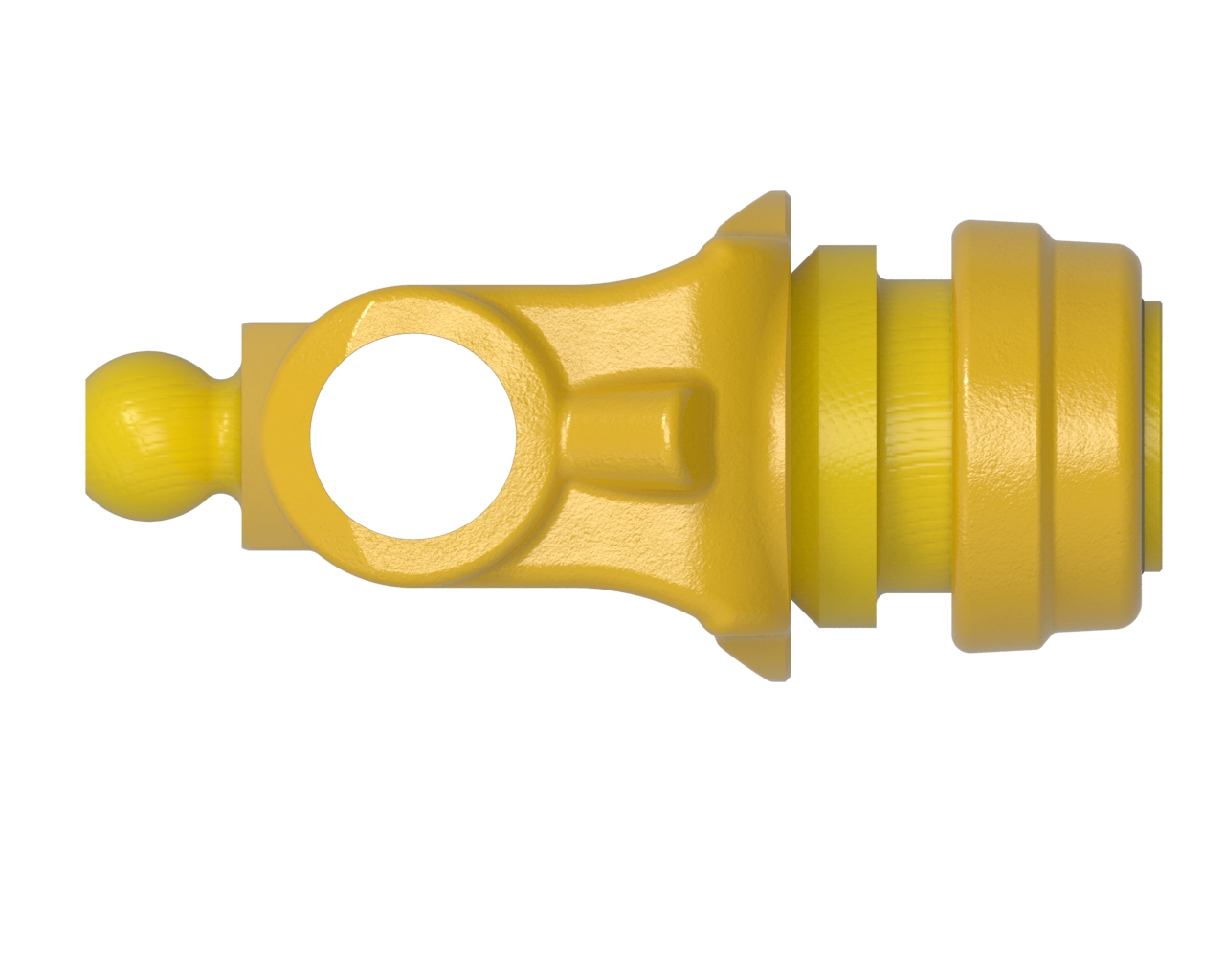

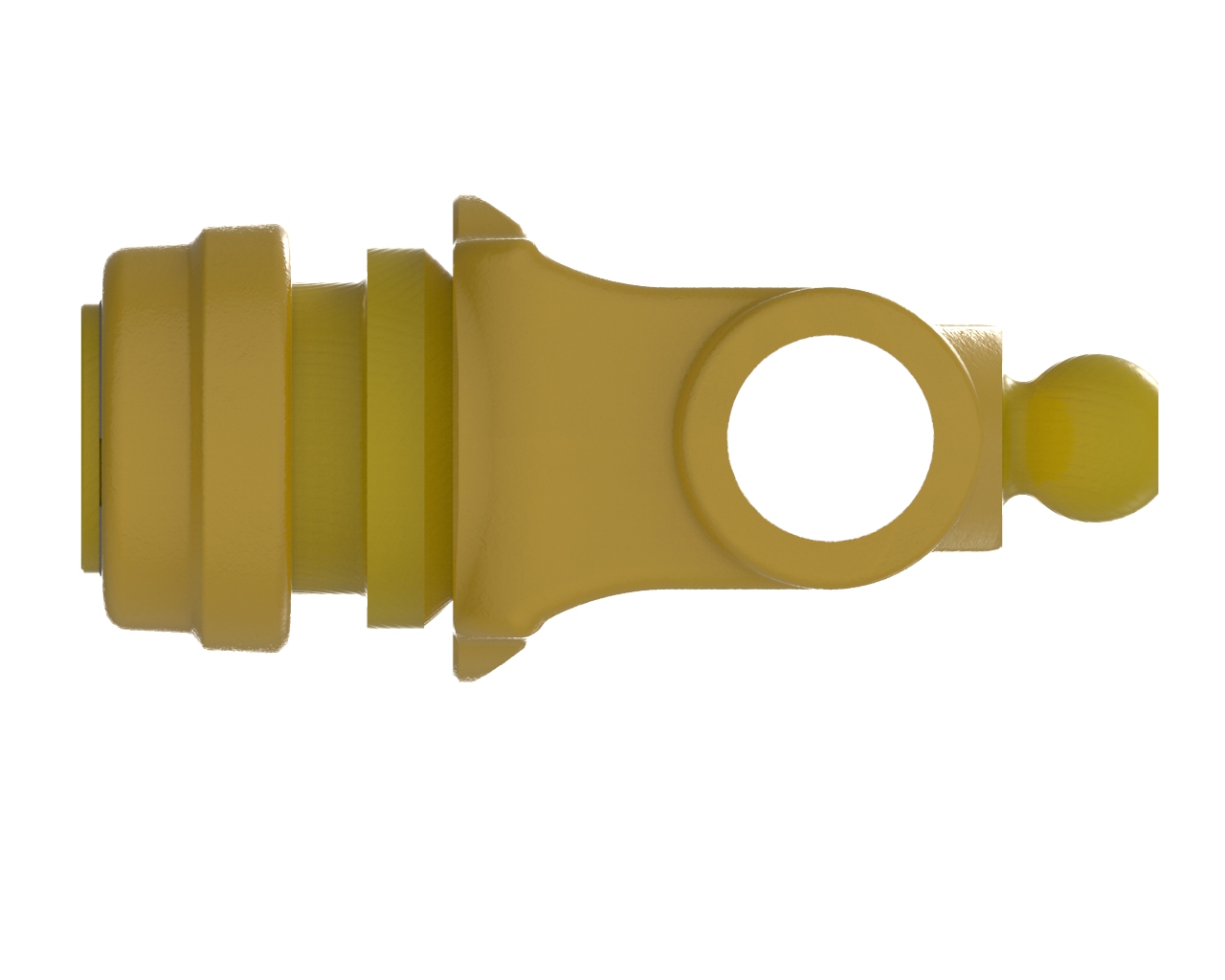

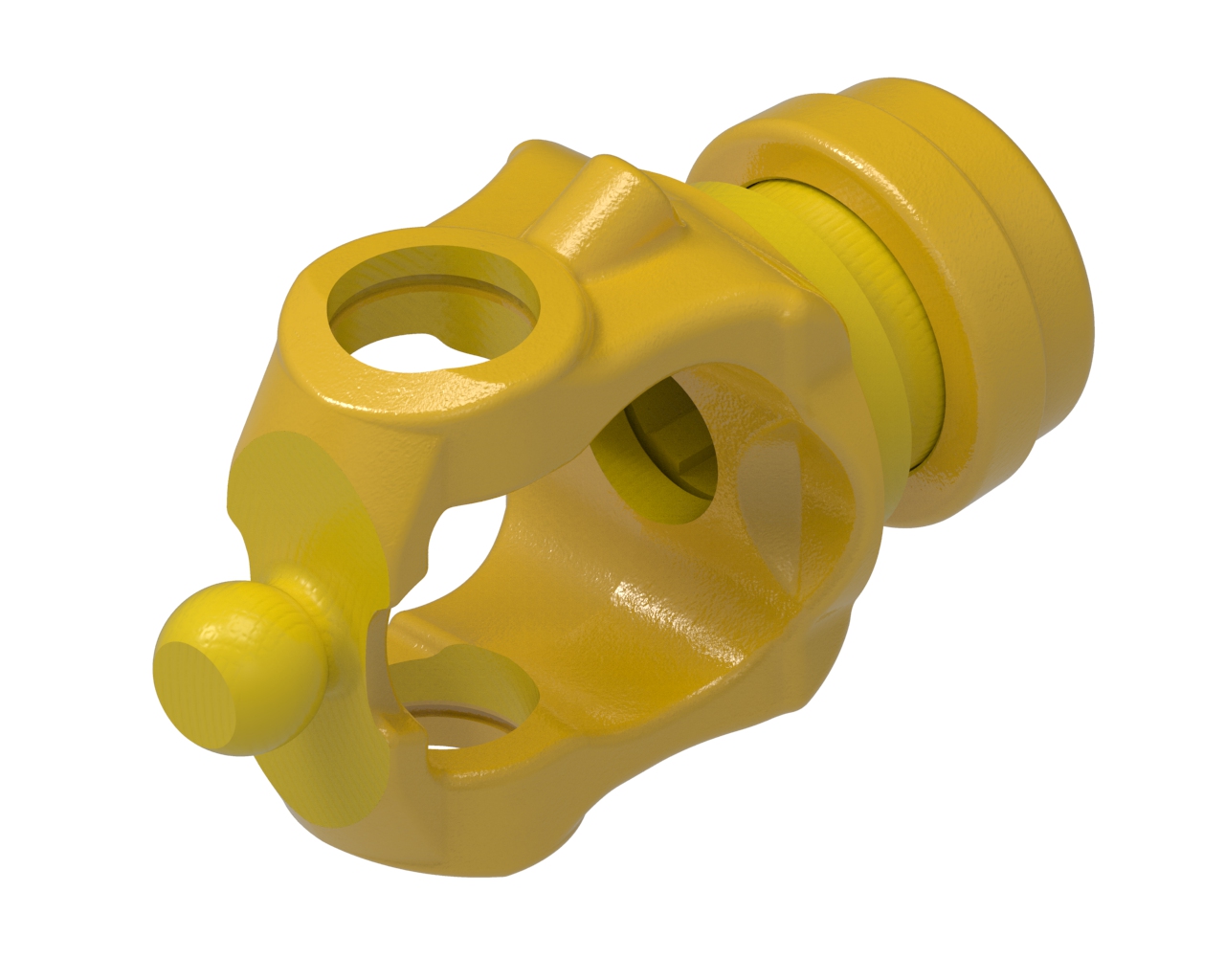

AB7N-80,AW36-80 series yoke with 1 3/8-6 spline bore and safety slide lock connection. Note: Image color may not represent actual part.

View My List

PTO drive shafts begin with a tractor yoke, it is the leading connection between the the tractor and the driveline. Weasler provides the CV wide angle tractor yokes with auto-lok or safety slide lock connections, and all connection types can be included on a 50° CV or 80° CV drive shaft or assembly. All yokes are compliant with, ANSI/ASABE AD5673, ANSI/ASABE S604 and EN1265. Agricultural CV wide angle tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Connection 1 SAFETY SLIDE LOCK
Height4.00 inches102 mm
HP@1000RPM145 HP108 kilowatts
HP@540RPM94 HP70 kilowatts
Length5.15 inches131 mm
Shipping Dimensions7.407" L  ×  4" H  ×  3" W19cm L  ×  10cm H  ×  8cm W
Shipping Volume88.88 in31456 cm3
Shipping Weight5.80 pounds3 kilograms
Weight5.80 pounds3 kilograms
Width3.00 inches76 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating 80 Deg CV.pdf Maintenance Document English
Service Instructions - CV Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle Operating.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle NonOperating.pdf Troubleshooting Document English
WE0101003_1019_USL_80DegConstantVelocityJoint.pdf Performance Benefits Document English
