CV WIDE ANGLE CENTER YOKEAB7N-80,AW36-80 Series CV Wide Angle Center Yoke

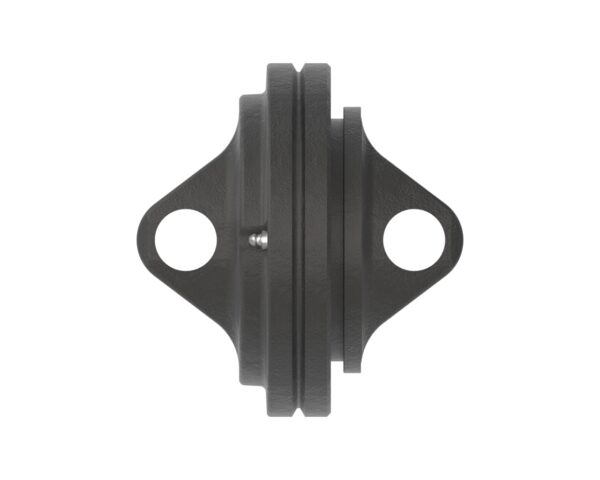

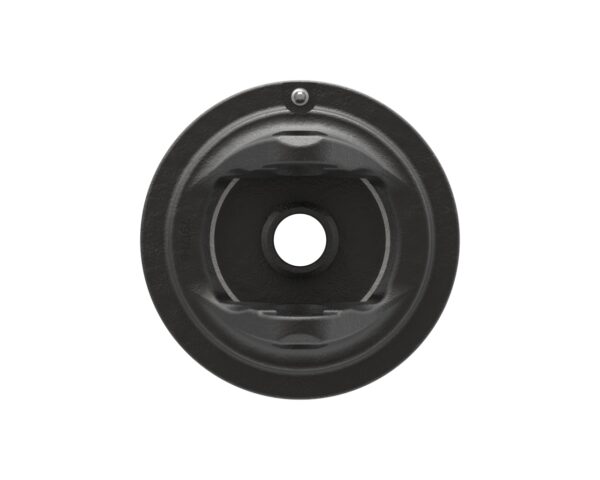

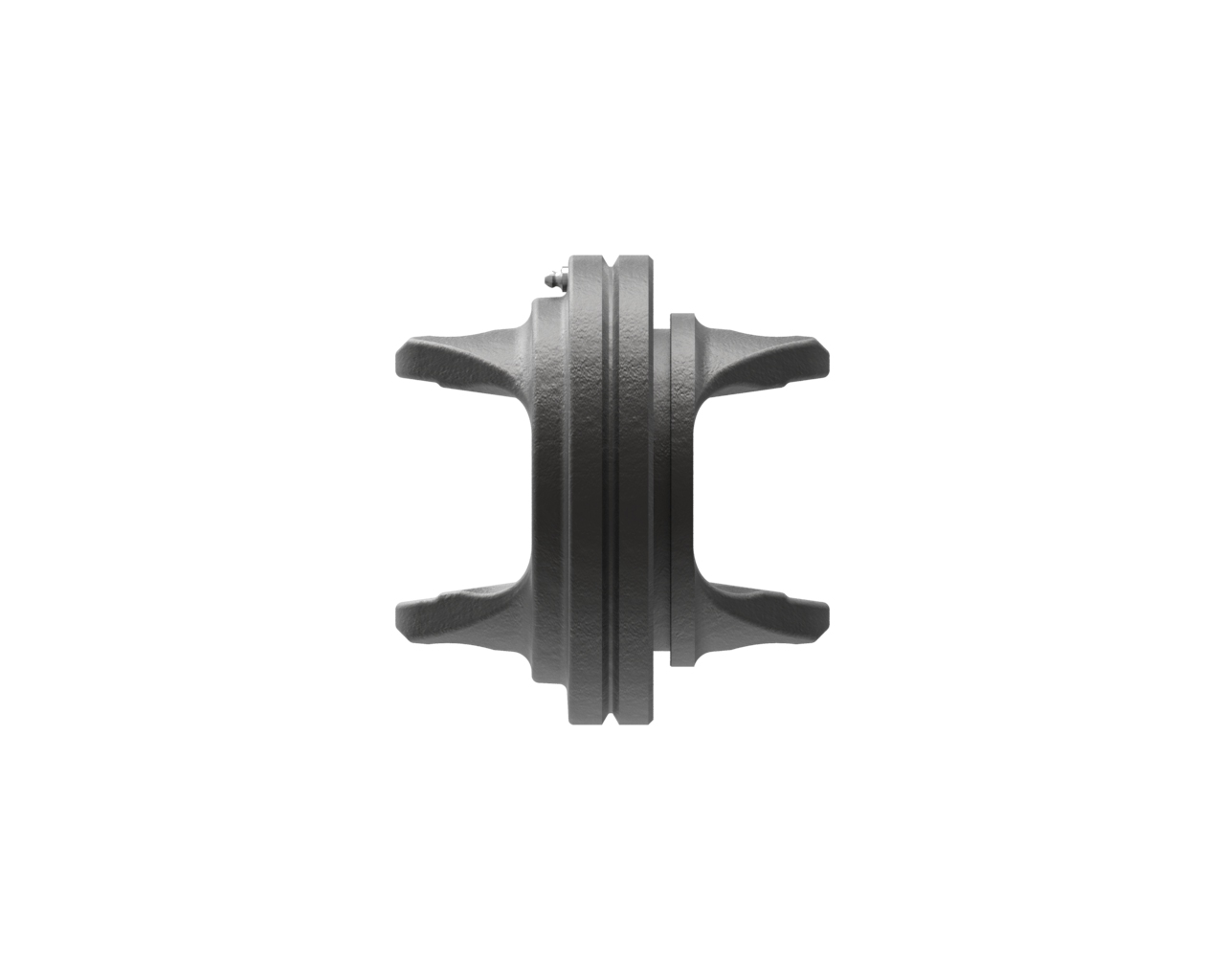

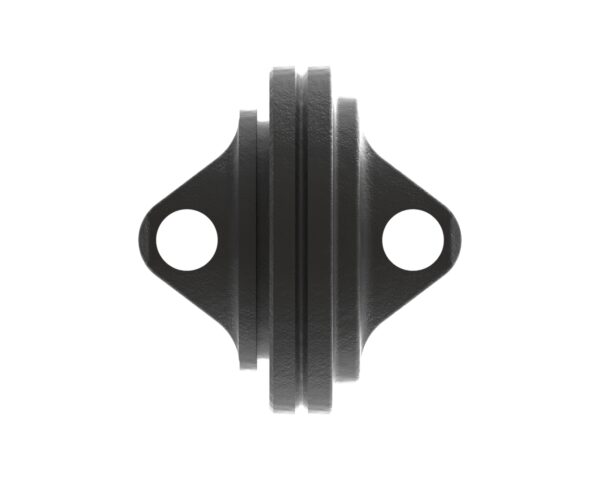

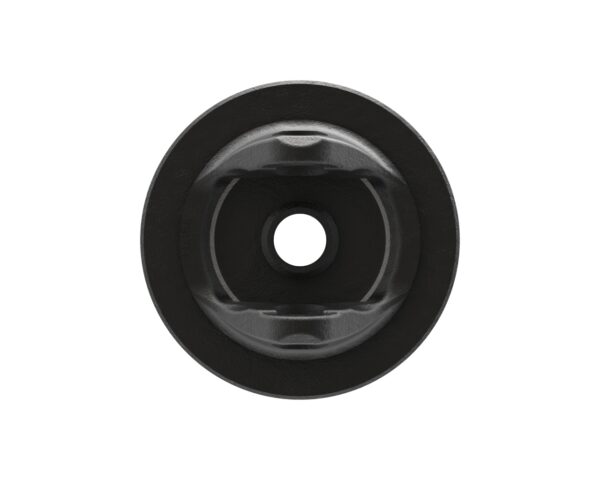

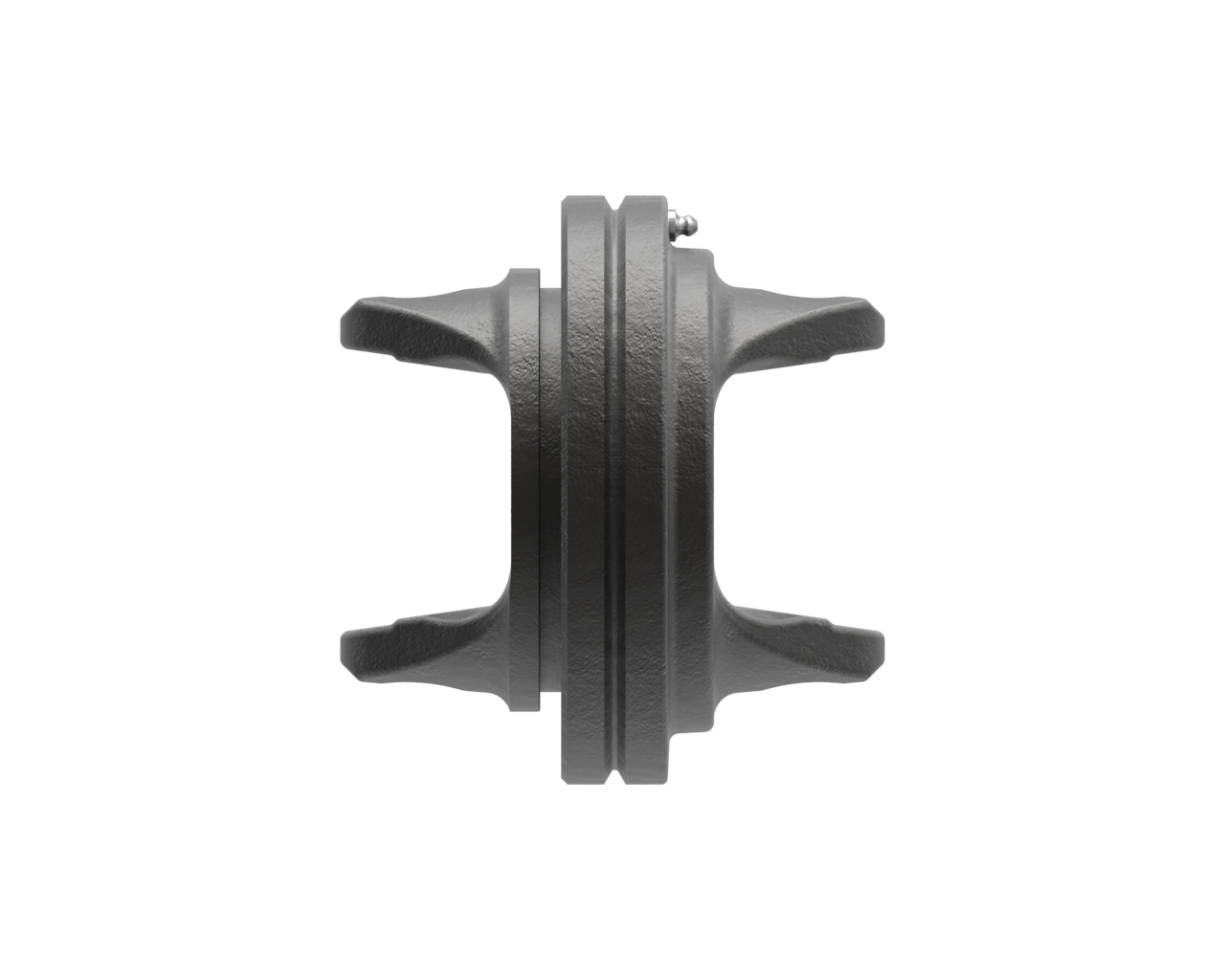

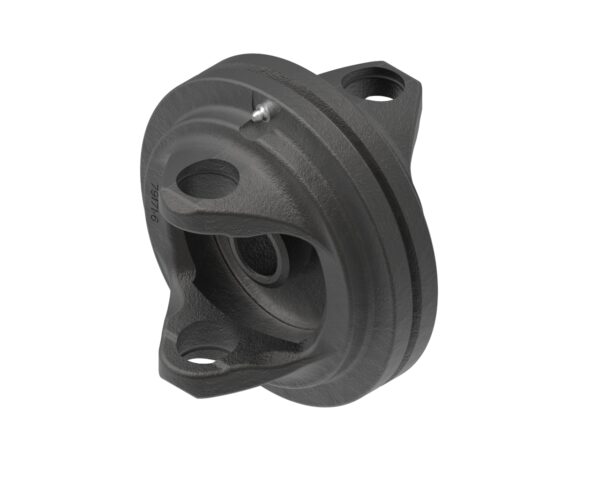

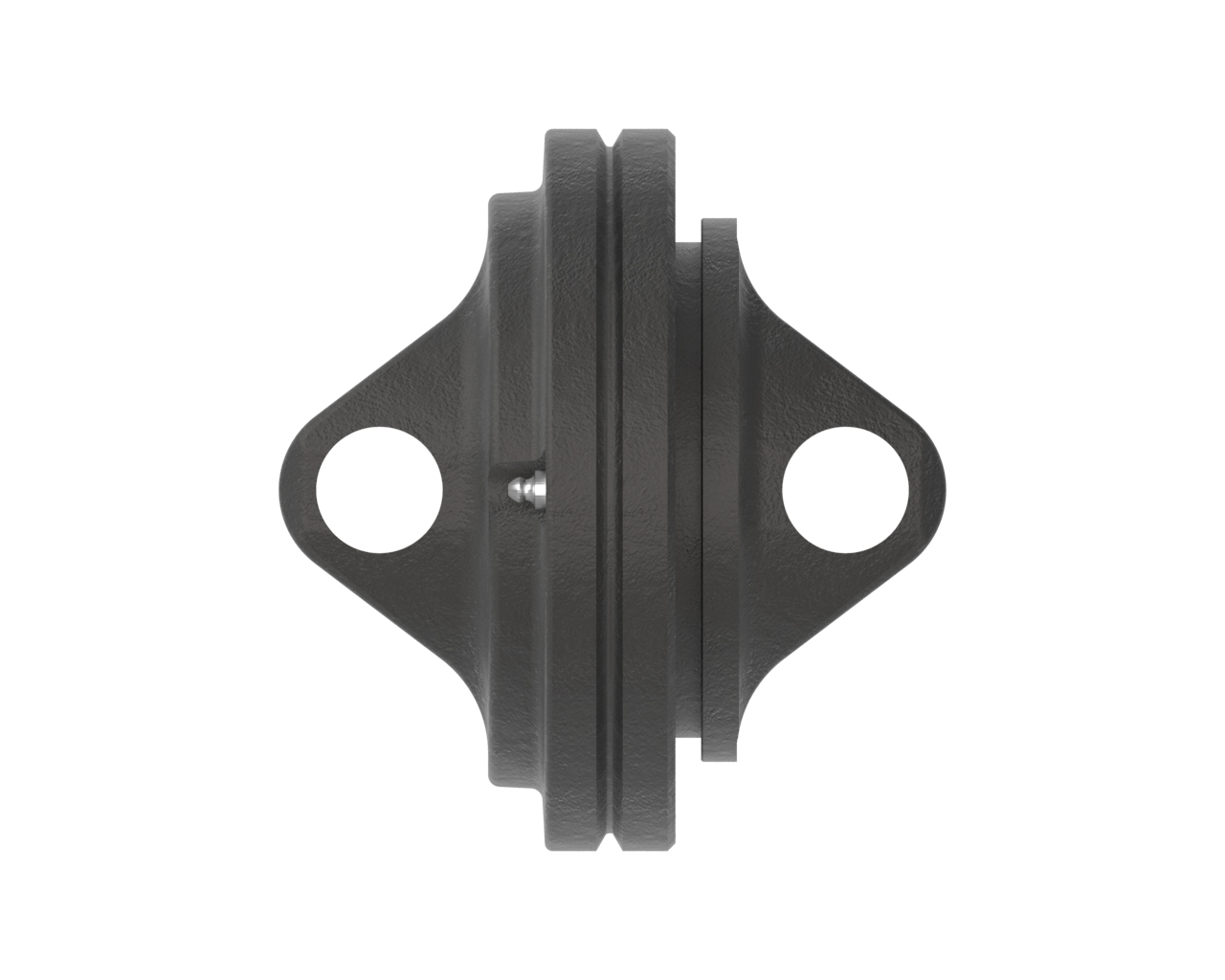

AB7N-80,AW36-80 series CV wide angle center yoke with centering plate bore and yoke arms connection
Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The center yoke connects the two outboard yokes to transmit power while maintaining constant angle to minimize vibration.
PERFORMANCE BENEFITS
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.18 inches | 30 mm |
Bore 1 | CENTERING PLATE | |
Connection 1 | YOKE ARMS | |
HP@1000RPM | 145 HP | 108 kilowatts |
HP@540RPM | 94 HP | 70 kilowatts |
Length | 4.65 inches | 118 mm |
Outside Diameter | 6.65 inches | 169 mm |
Shipping Dimensions | 6.81" L × 6.65" H × 6.65" W | 17cm L × 17cm H × 17cm W |
Shipping Volume | 301.16 in3 | 4935 cm3 |
Shipping Weight | 17.38 pounds | 8 kilograms |
Weight | 17.38 pounds | 8 kilograms |
Downloads
Document Name | Type | Language |
---|---|---|
Service Instructions - Lubricating 80 Deg CV.pdf | Maintenance Document | English |
Service Instructions - CV Joint.pdf | Service Document | English |
Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
80 deg CV Joint - Over Angle Operating.pdf | Troubleshooting Document | English |
80 deg CV Joint - Over Angle NonOperating.pdf | Troubleshooting Document | English |
WE0101003_1019_USL_80DegConstantVelocityJoint.pdf | Performance Benefits Document | English |
