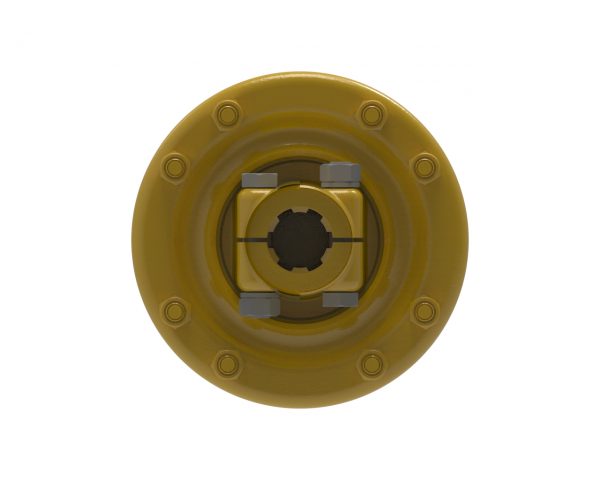

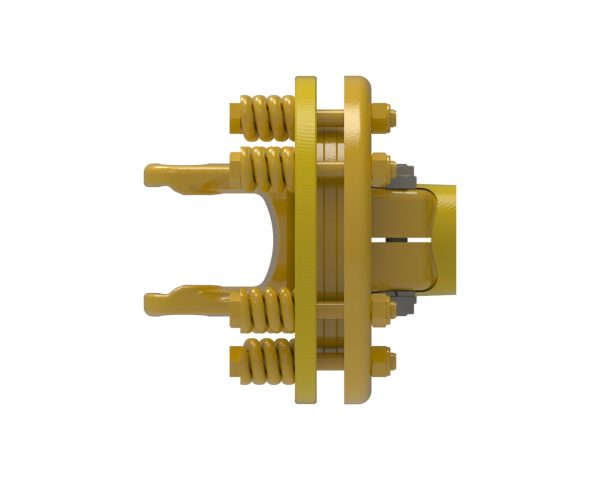

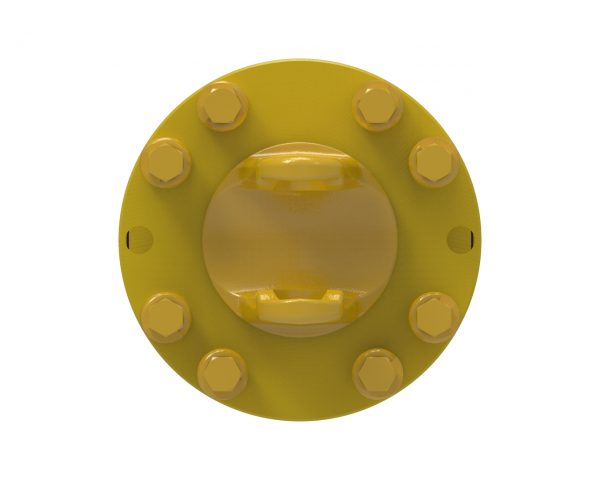

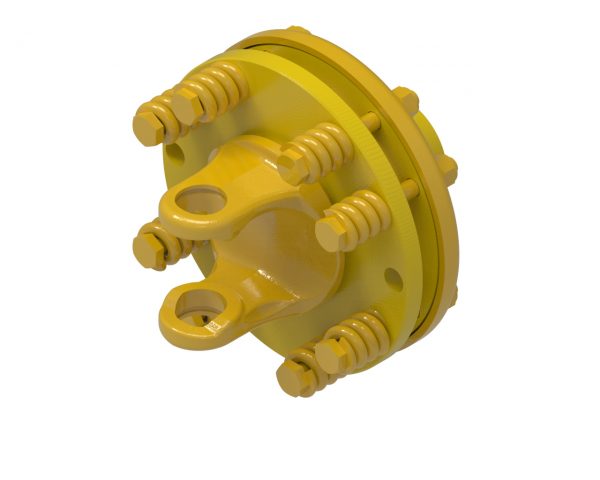

AB6,AW22 Series Friction Clutch Clamp Yoke

AB6,AW22 series friction clutch yoke with 1 3/8-6 spline bore and clamp connection

View My List


Spec. Imperial Metric
Bearing Diameter1.18 inches30 mm
Bearing Span3.61 inches92 mm
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Connection 1 CLAMP
HP@1000RPM122 HP91 kilowatts
HP@540RPM79 HP59 kilowatts
Length6.32 inches161 mm
Outside Diameter7.08 inches180 mm
Shipping Dimensions7.252" L  ×  7.087" H  ×  7.087" W18cm L  ×  18cm H  ×  18cm W
Shipping Volume364.24 in35969 cm3
Shipping Weight20.16 pounds9 kilograms
Weight20.16 pounds9 kilograms


Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English

Support Videos

Performance Benefits Video
