566-8620

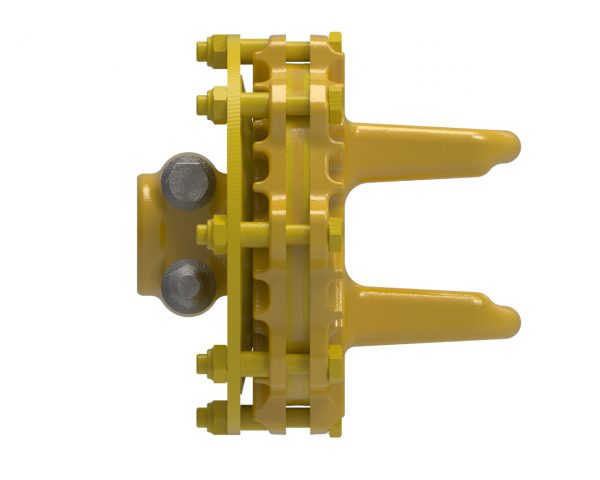

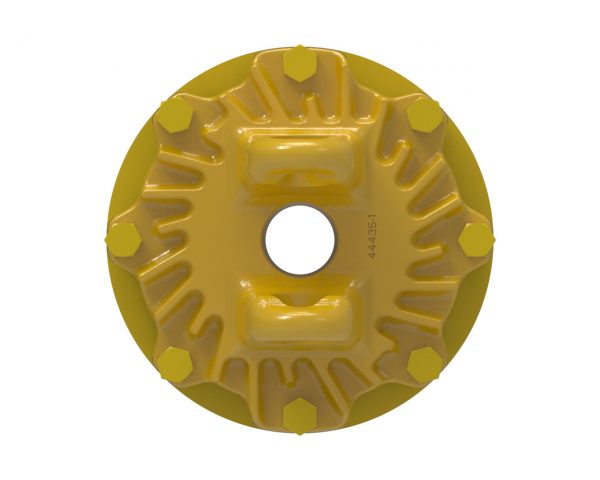

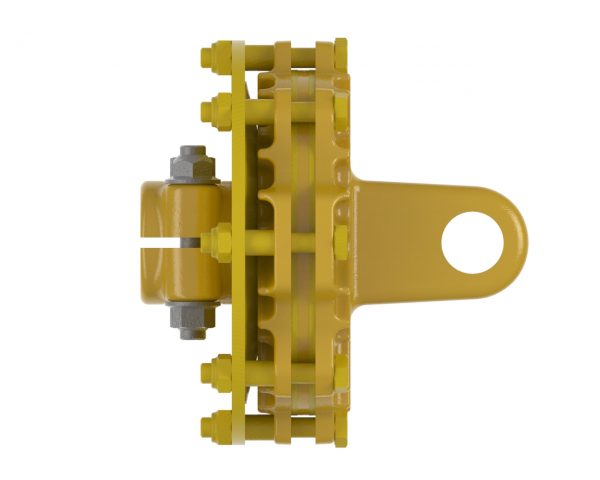

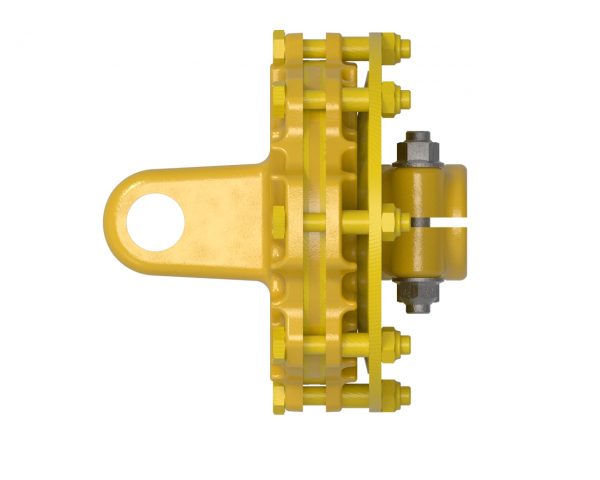

AB6,AW22 Series Friction Clutch Clamp Yoke

AB6,AW22 series friction clutch yoke with 1 3/4-20 spline bore and clamp connection

View My List

Specifications

Spec. Imperial Metric
Bearing Diameter1.18 inches30 mm
Bearing Span3.61 inches92 mm
Bore 11.75 inches44 mm
Bore 1 1 3/4-20 SPLINE
Connection 1 CLAMP
HP@1000RPM122 HP91 kilowatts
HP@540RPM79 HP59 kilowatts
Length6.35 inches161 mm
Outside Diameter7.75 inches197 mm
Shipping Dimensions7.275" L  ×  7.75" H  ×  7.75" W18cm L  ×  20cm H  ×  20cm W
Shipping Volume436.95 in37160 cm3
Shipping Weight21.00 pounds10 kilograms
Torque1500015000
Weight21.00 pounds10 kilograms
