807-8606

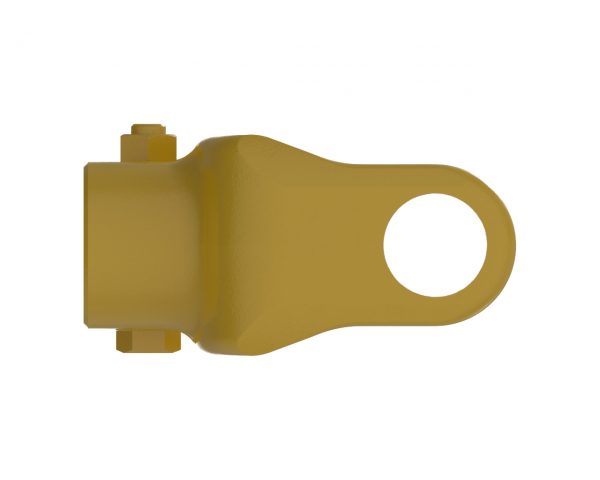

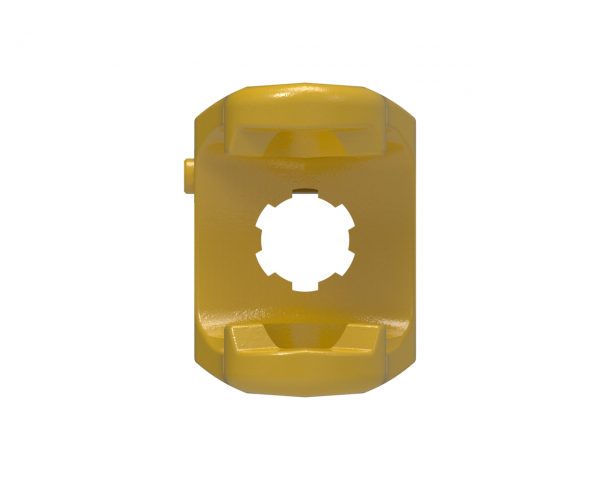

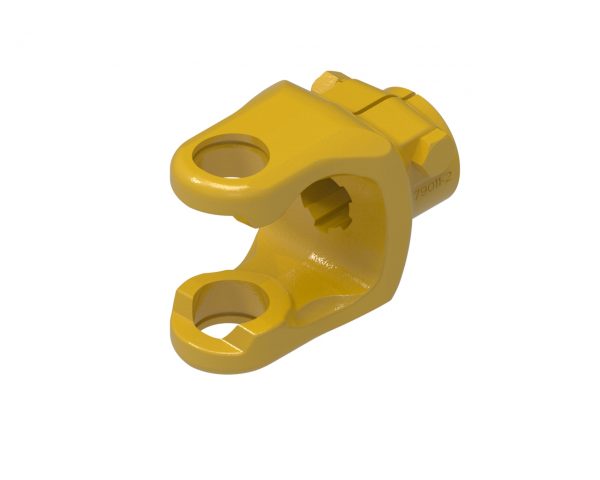

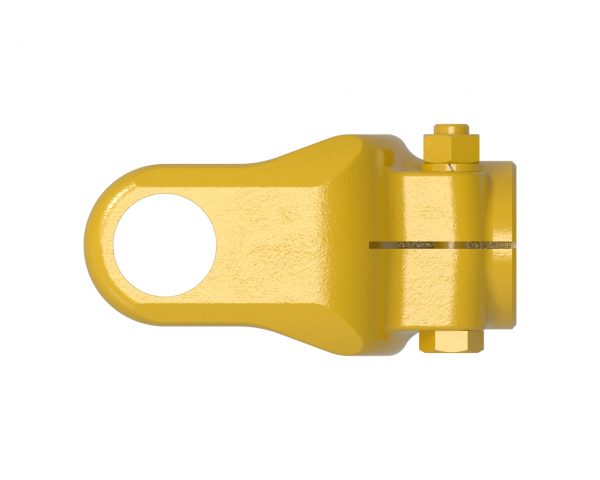

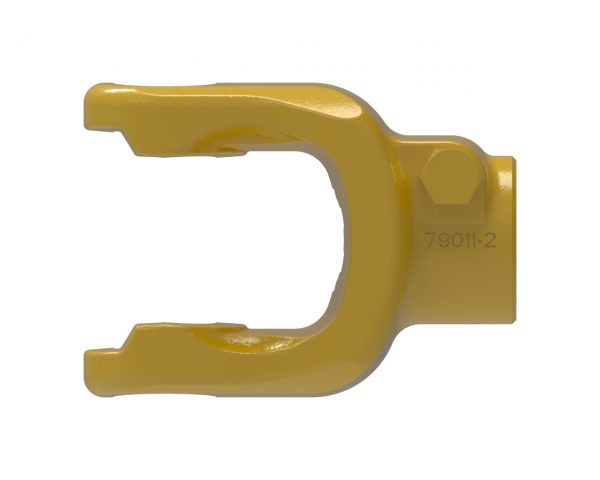

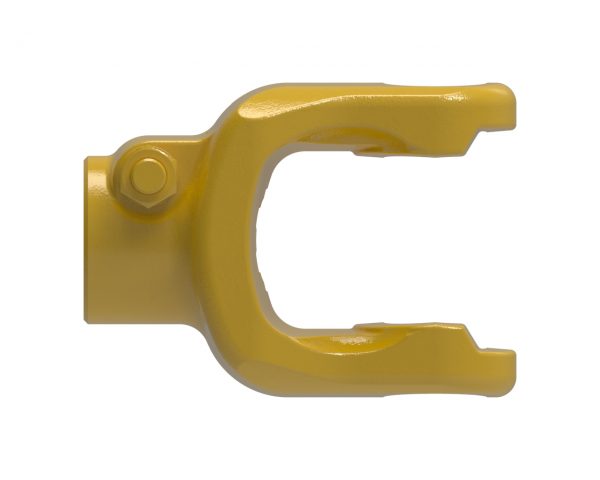

AB6,AW22 Series Clamp Yoke

AB6,AW22 series yoke with 1 3/8-6 spline bore and clamp connection

View My List

The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Connection 1 CLAMP
Height4.49 inches114 mm
HP@1000RPM122 HP91 kilowatts
HP@540RPM79 HP59 kilowatts
Length4.60 inches117 mm
Shipping Dimensions5.53" L  ×  4.49" H  ×  2.76" W14cm L  ×  11cm H  ×  7cm W
Shipping Volume68.53 in31123 cm3
Shipping Weight4.42 pounds2 kilograms
Weight4.42 pounds2 kilograms
Width2.76 inches70 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
