831-8640
CLAMP YOKEAB6,AW22 Series Clamp Yoke

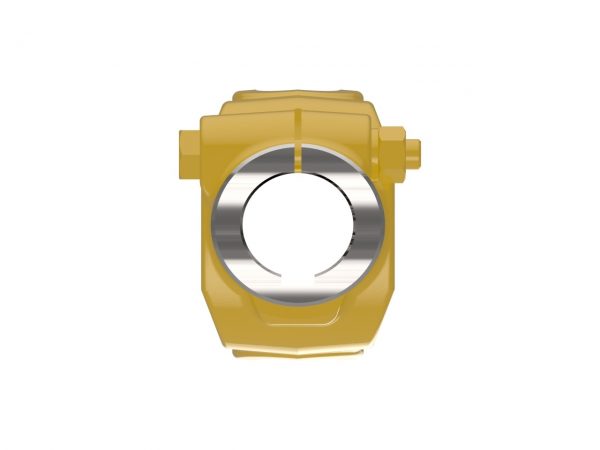

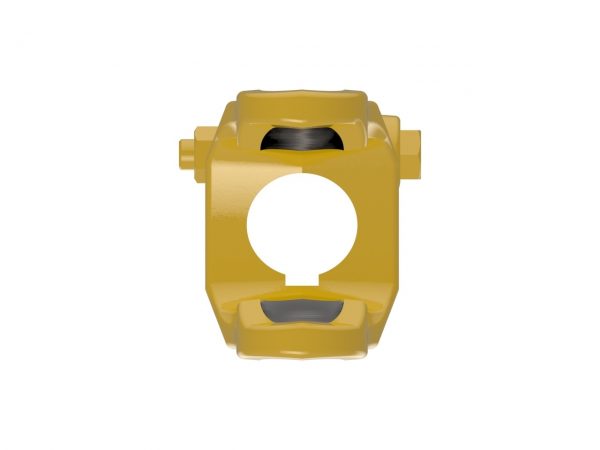

AB6,AW22 series yoke with round with keyway bore and clamp connection. Note: Image color may not represent actual part.
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.57 inches | 40 mm |
| Bore 1 | ROUND WITH KEYWAY | |
| Connection 1 | CLAMP | |
| Height | 4.49 inches | 114 mm |
| HP@1000RPM | 122 HP | 91 kilowatts |
| HP@540RPM | 79 HP | 59 kilowatts |
| Keyway 1 | 0.47 inches | 12 mm |
| Length | 4.72 inches | 120 mm |
| Shipping Dimensions | 5.645" L × 4.49" H × 2.75590551181" W | 14cm L × 11cm H × 7cm W |
| Shipping Volume | 69.85 in3 | 1145 cm3 |
| Shipping Weight | 4.57 pounds | 2 kilograms |
| Weight | 4.57 pounds | 2 kilograms |
| Width | 2.75 inches | 70 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
