110-8620

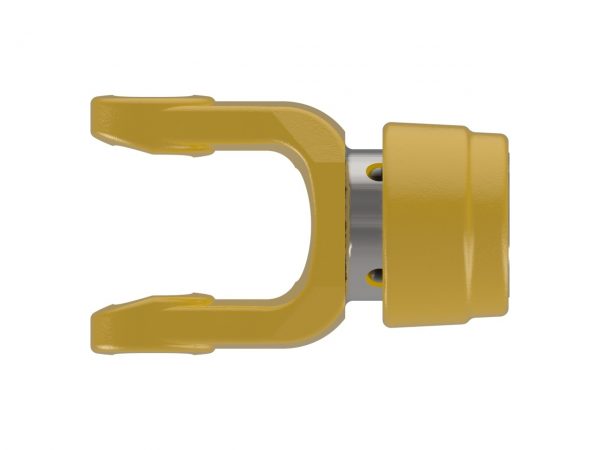

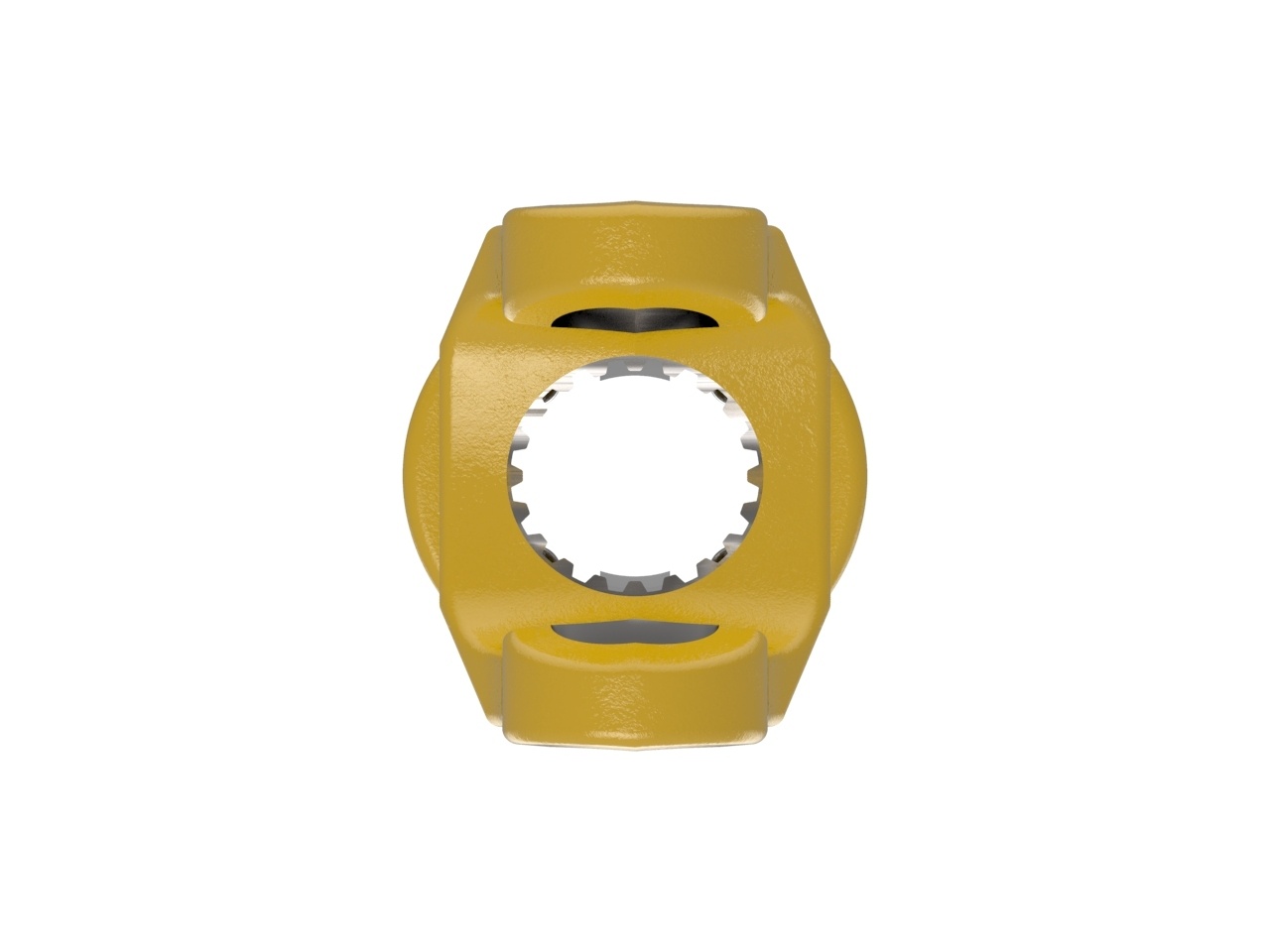

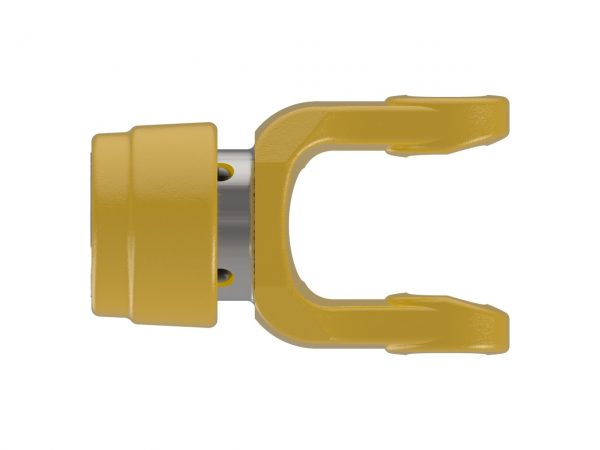

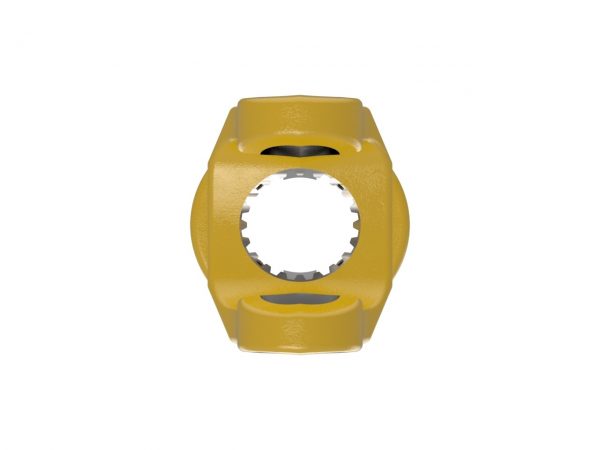

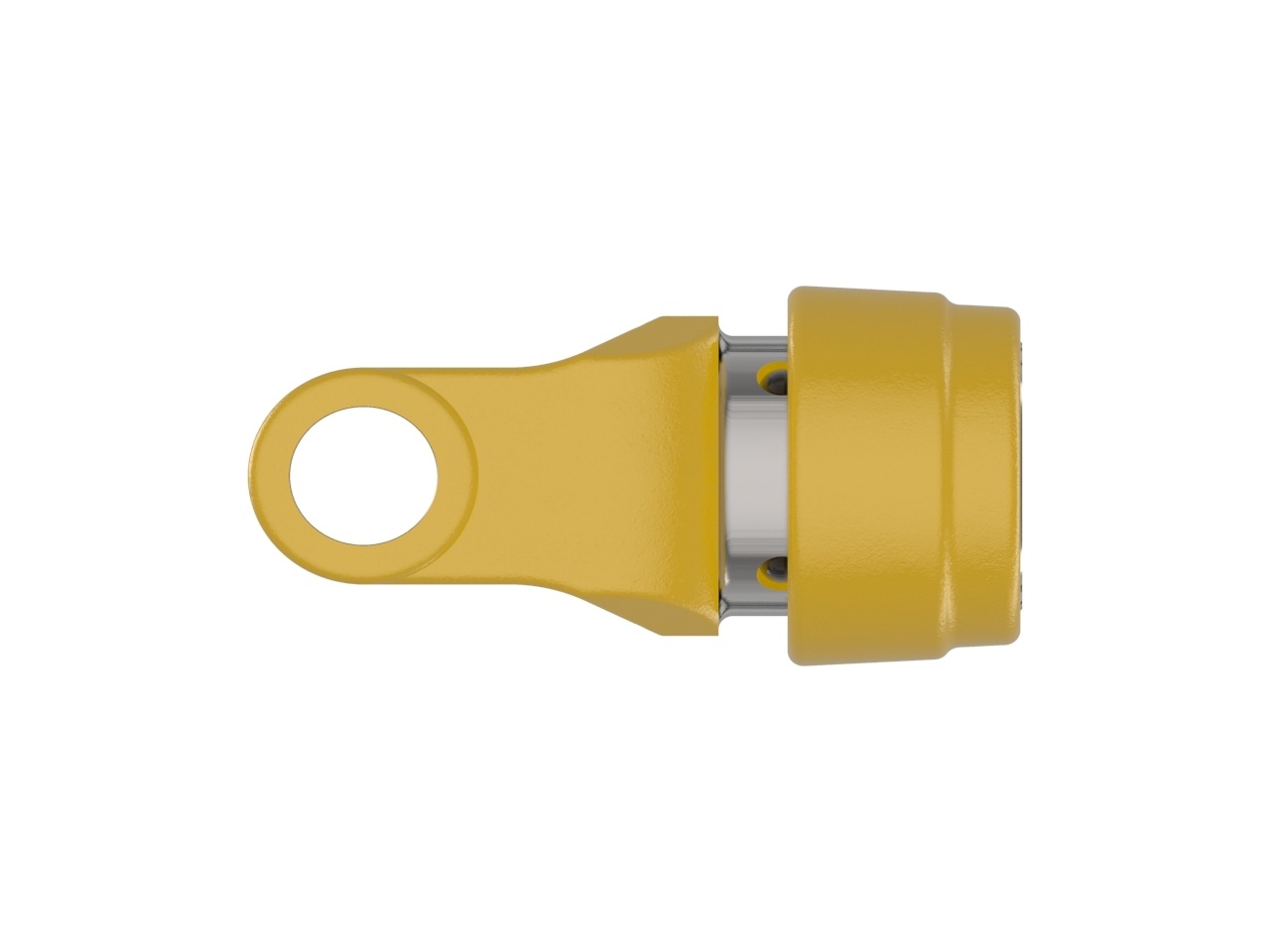

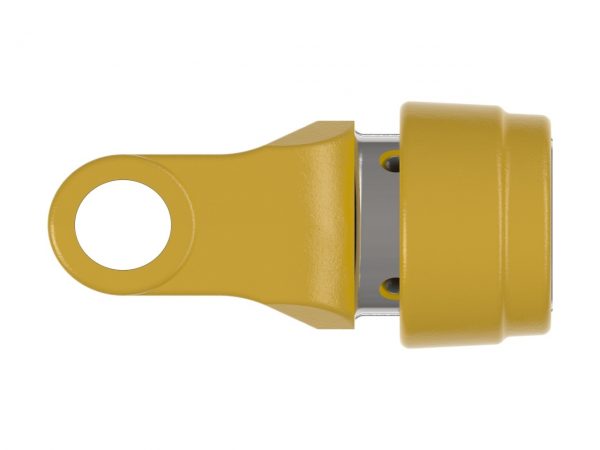

TRACTOR YOKEAB6,AW22 Series Auto-lok Yoke
AB6,AW22 series yoke with 1 3/4-20 spline bore and auto-lok connection
PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2″ 8-spline and 1 3/4″ 6-spline options are available. Lawn & Turf tractor yokes are offered in 1″ 10-spline and 1″ 15-spline.
PERFORMANCE BENEFITS
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.75 inches | 44 mm |
Bore 1 | 1 3/4-20 SPLINE | |
Connection 1 | AUTO-LOK | |
Height | 4.49 inches | 114 mm |
HP@1000RPM | 122 HP | 91 kilowatts |
HP@540RPM | 79 HP | 59 kilowatts |
Length | 5.31 inches | 135 mm |
Shipping Dimensions | 6.24" L × 4.49" H × 2.75590551181" W | 16cm L × 11cm H × 7cm W |
Shipping Volume | 77.21 in3 | 1265 cm3 |
Shipping Weight | 5.51 pounds | 2 kilograms |
Weight | 5.51 pounds | 2 kilograms |
Width | 2.75 inches | 70 mm |
Downloads
Document Name | Type | Language |
---|---|---|
Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
Service Instructions - Universal Joint.pdf | Service Document | English |
Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
WE0101004_0817_USL_AutoLokYoke.pdf | Performance Benefits Document | English |
