84300-0005
TRACTOR YOKEAB4,AW21 Series Quick Disconnect Yoke

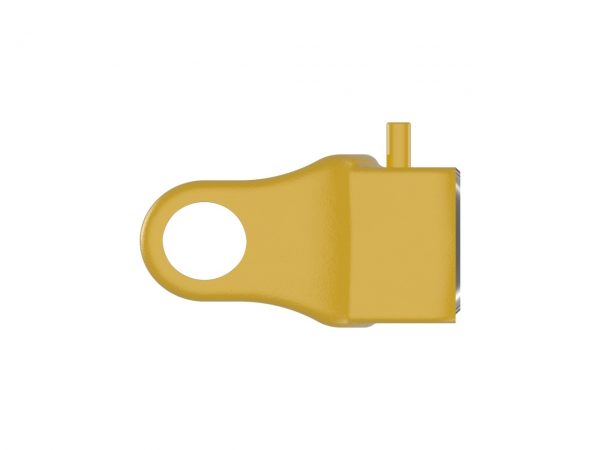

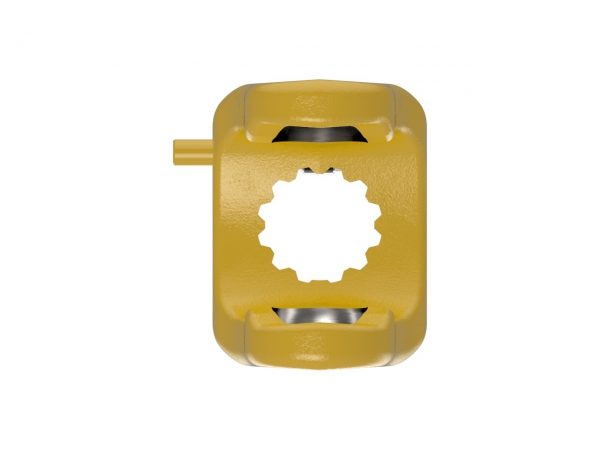

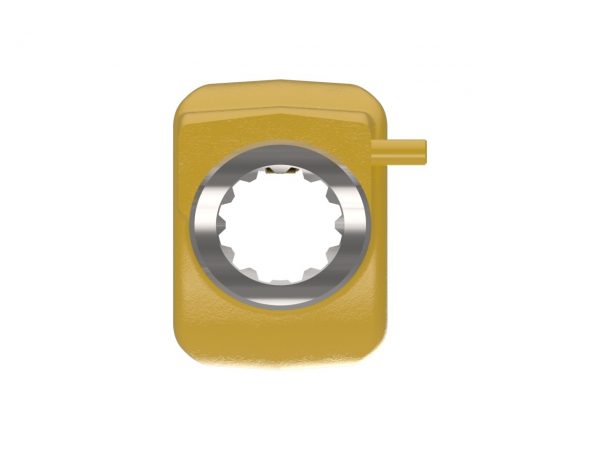

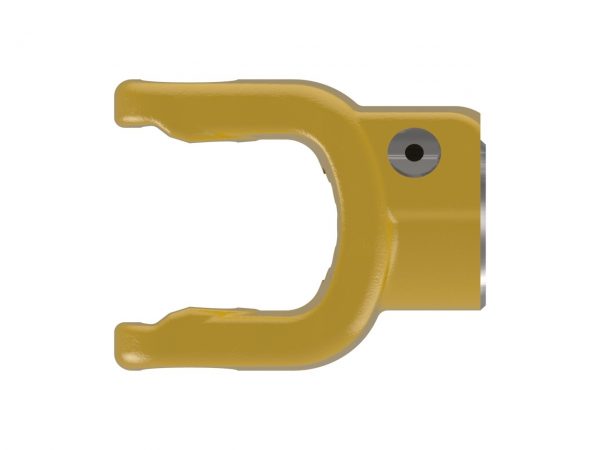

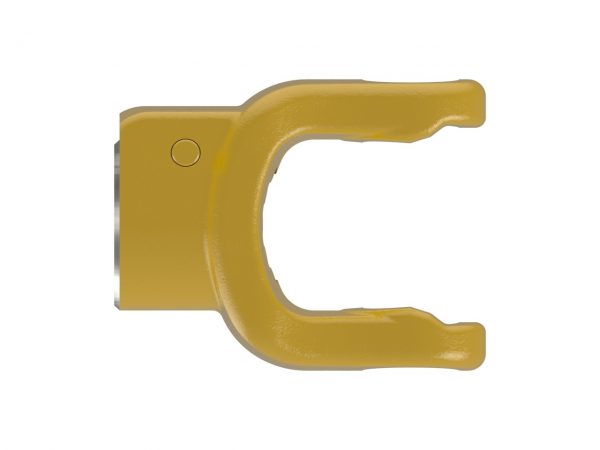

AB4,AW21 series yoke with 35 mm-12 spline bore and quick disconnect connection. Note: Image color may not represent actual part.
PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2″ 8-spline and 1 3/4″ 6-spline options are available. Lawn & Turf tractor yokes are offered in 1″ 10-spline and 1″ 15-spline.
PERFORMANCE BENEFITS
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.37 inches | 35 mm |
Bore 1 | 35 MM-12 SPLINE | |
Connection 1 | QUICK DISCONNECT | |
HP@1000RPM | 70 HP | 52 kilowatts |
HP@540RPM | 45 HP | 34 kilowatts |
Length | 3.27 inches | 83 mm |
Shipping Dimensions | 3.27" L × 0" H × 0" W | 8cm L × 0cm H × 0cm W |
