203-8474

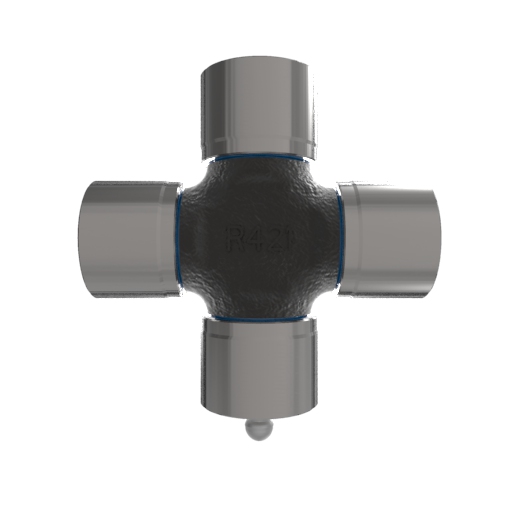

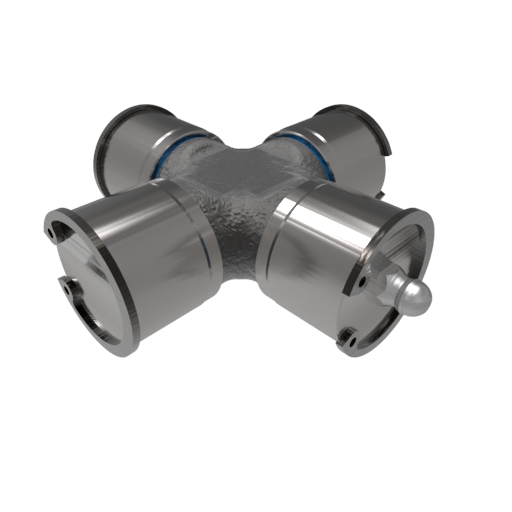

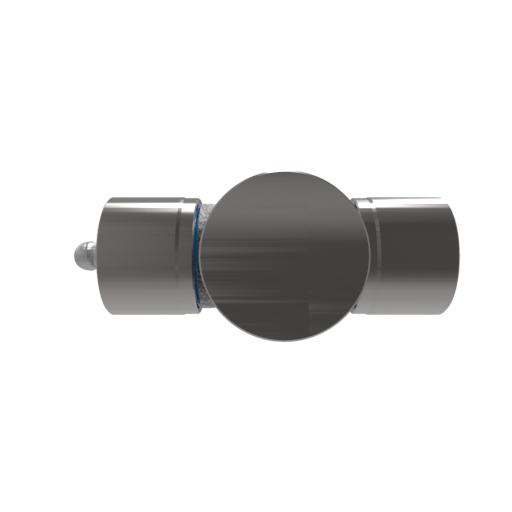

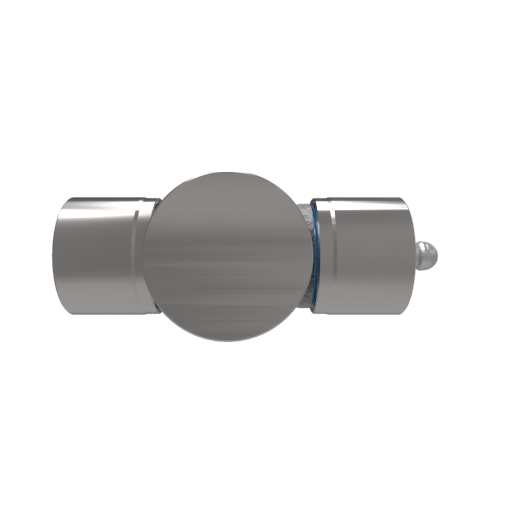

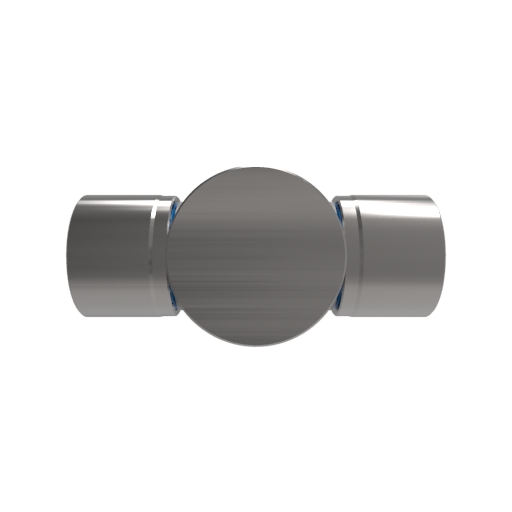

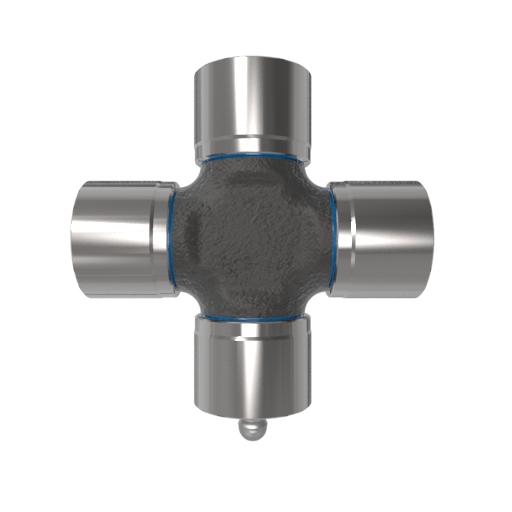

AB4,AW21 Series Cross And Bearing Kit

AB4,AW21 series cross and bearing kit, p standard, cup grease fitting

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

P-Kits are the Weasler Profile metric version of the R-Kit. P-Kits are standard and offer a highquality lube cycle of 8 hours which is acceptable for many applications. P-kits and E-kits are interchangeable for all available Weasler series as well as with standard cross and bearing sets in the market. This means that a Weasler PTO drive shaft with P-kits can still be upgraded to E-kits or M-kits.

PERFORMANCE BENEFITS
• Lubrication cycle of up to 8 hours.
• Interchangeable with standard profile metric cross and bearing kits available in the market.
• Easier grease access through the guard, no need to remove guard.

DESIGN FEATURES
• A blue seal with grease fitting makes it fast and easy to find a P-Kit.

Specifications

Spec. Imperial Metric
Bearing Diameter1.06 inches27 mm
Bearing Span2.93 inches74 mm
Bearing Diameter1.06 inches27 mm
Bearing Span2.93 inches74 mm
Height1.06 inches27 mm
HP@1000RPM56 HP42 kilowatts
HP@540RPM36 HP27 kilowatts
Kit Type P
Length2.93 inches74 mm
Lubrication Interval 8.00
Shipping Dimensions2.933" L  ×  1.063" H  ×  2.933" W7cm L  ×  3cm H  ×  7cm W
Shipping Volume9.14 in3150 cm3
Shipping Weight1.10 pounds0 kilograms
Snap Ring Location External
Weight1.10 pounds0 kilograms
Width2.93 inches74 mm

Downloads

Document Name Type Language
Service-Instructions-Lubricating-PTO-Drive-Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
WE0101007_0118_USL_EKit.pdf Performance Benefits Document English

Support Videos

Performance Benefits Video
