807-8420
CLAMP YOKEAB4,AW21 Series Clamp Yoke

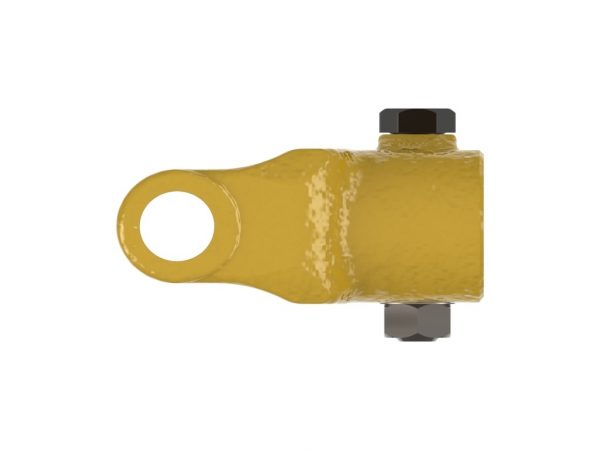

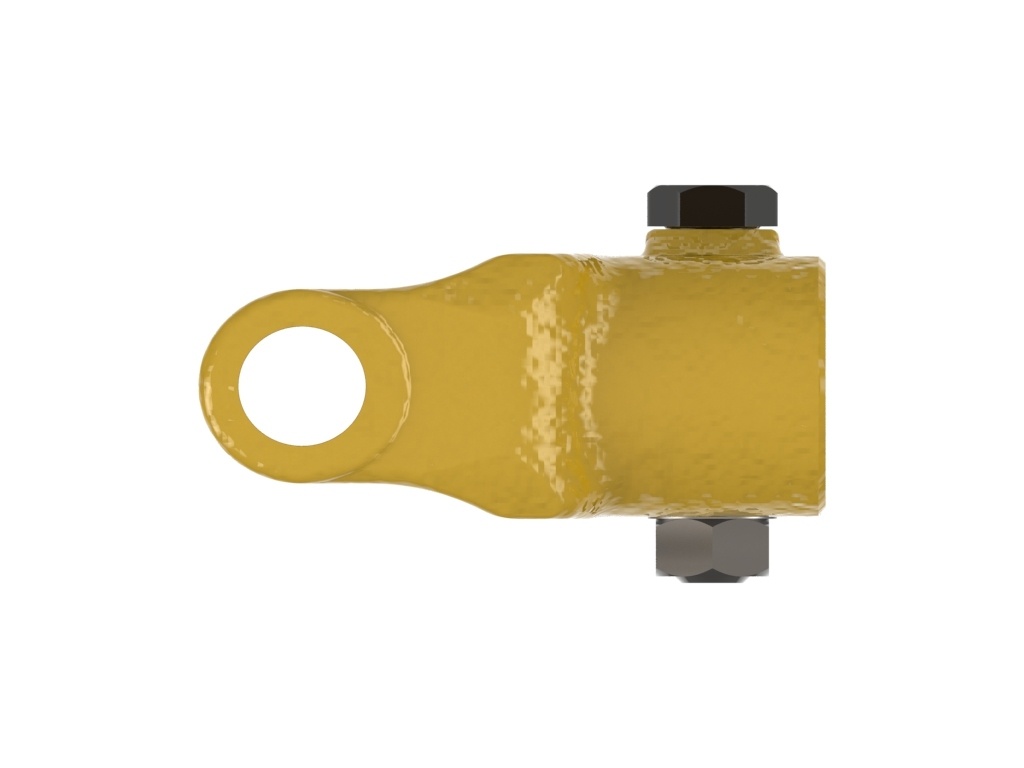

AB4,AW21 series yoke with round with keyway bore and clamp connection. Note: Image color may not represent actual part.
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 1.25 inches | 32 mm |
| Bore 1 | ROUND WITH KEYWAY | |
| Connection 1 | CLAMP | |
| Height | 3.82 inches | 97 mm |
| HP@1000RPM | 70 HP | 52 kilowatts |
| HP@540RPM | 45 HP | 34 kilowatts |
| Keyway 1 | 0.25 inches | 6 mm |
| Length | 4.37 inches | 111 mm |
| Shipping Dimensions | 5.23" L × 3.82" H × 2.36" W | 13cm L × 10cm H × 6cm W |
| Shipping Volume | 47.15 in3 | 773 cm3 |
| Shipping Weight | 3.10 pounds | 1 kilograms |
| Weight | 3.10 pounds | 1 kilograms |
| Width | 2.36 inches | 60 mm |
