847-8225
CLAMP YOKEAB2,AW20 Series Clamp Yoke

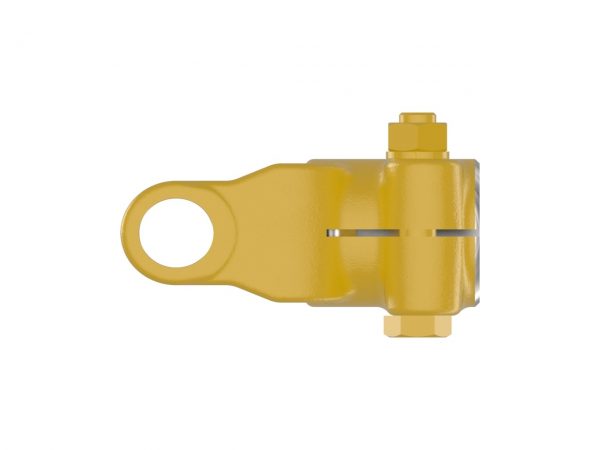

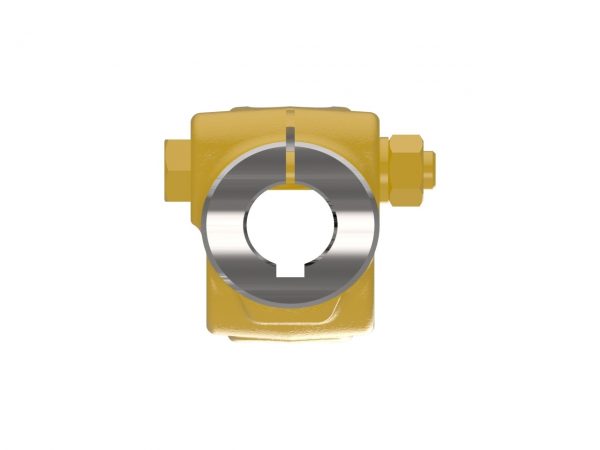

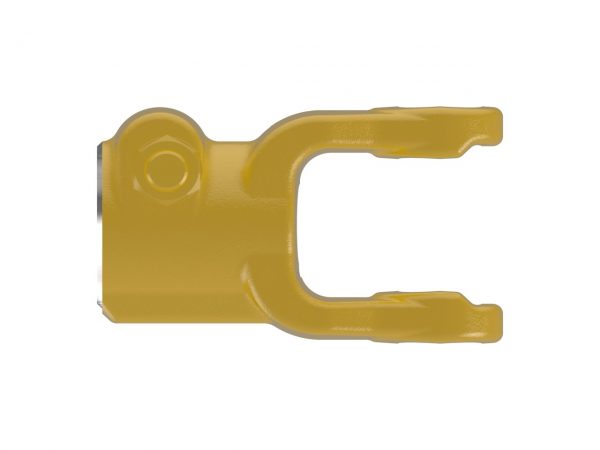

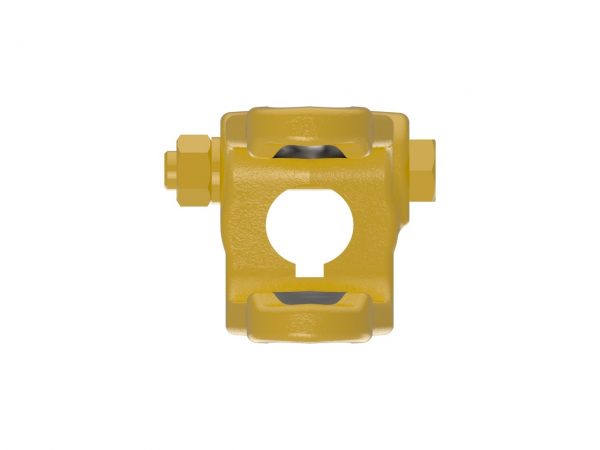

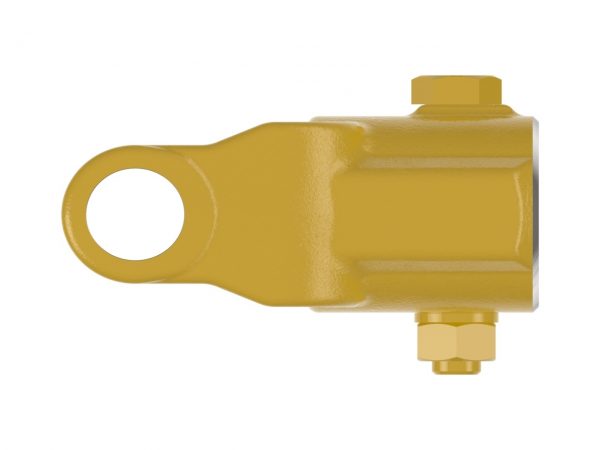

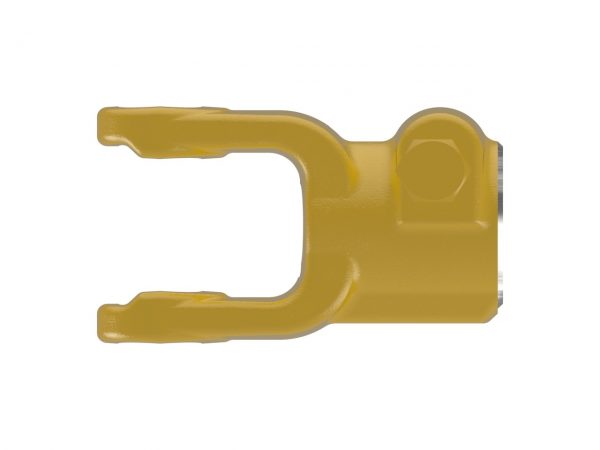

AB2,AW20 series yoke with round with keyway bore and clamp connection. Note: Image color may not represent actual part.
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 0.98 inches | 25 mm |
Bore 1 | ROUND WITH KEYWAY | |
Connection 1 | CLAMP | |
Height | 3.35 inches | 85 mm |
HP@1000RPM | 38 HP | 28 kilowatts |
HP@540RPM | 25 HP | 19 kilowatts |
Keyway 1 | 0.31 inches | 8 mm |
Length | 3.86 inches | 98 mm |
Shipping Dimensions | 4.57" L × 3.35" H × 2" W | 12cm L × 9cm H × 5cm W |
Shipping Volume | 30.62 in3 | 502 cm3 |
Shipping Weight | 2.60 pounds | 1 kilograms |
Weight | 2.60 pounds | 1 kilograms |
Width | 2.00 inches | 51 mm |
Downloads
Document Name | Type | Language |
---|---|---|
Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
Service Instructions - Universal Joint.pdf | Service Document | English |
Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
