107-8206
CV WIDE ANGLE TRACTOR YOKEAB2-80,AW20-80 Series Spring-lok Yoke

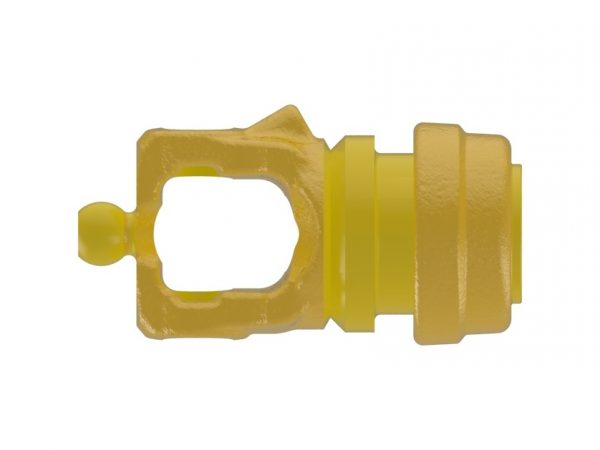

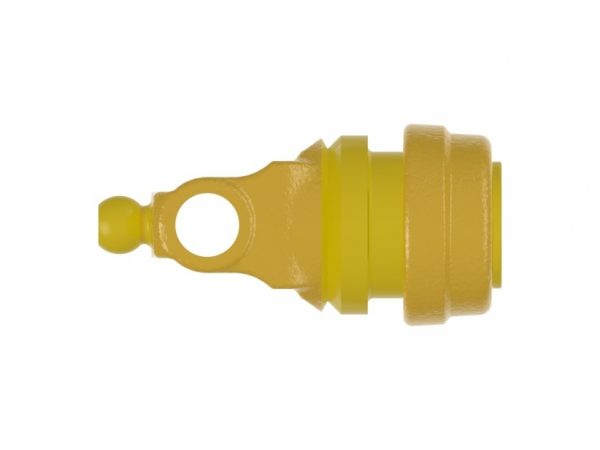

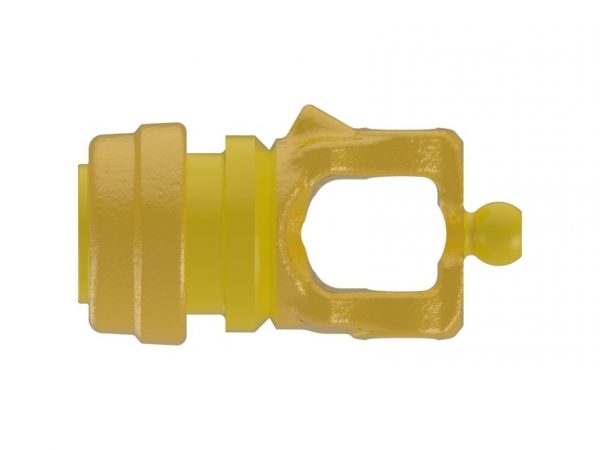

AB2-80,AW20-80 series yoke with 1 3/8-6 spline bore and spring-lok connection. Note: Image color may not represent actual part.
PTO drive shafts begin with a tractor yoke, it is the leading connection between the the tractor and the driveline. Weasler provides the CV wide angle tractor yokes with auto-lok or safety slide lock connections, and all connection types can be included on a 50° CV or 80° CV drive shaft or assembly. All yokes are compliant with, ANSI/ASABE AD5673, ANSI/ASABE S604 and EN1265. Agricultural CV wide angle tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed.
PERFORMANCE BENEFITS
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.37 inches | 35 mm |
Bore 1 | 1 3/8-6 SPLINE | |
Connection 1 | SPRING-LOK | |
Height | 2.75 inches | 70 mm |
HP@1000RPM | 47 HP | 35 kilowatts |
HP@540RPM | 31 HP | 23 kilowatts |
Length | 4.33 inches | 110 mm |
Shipping Dimensions | 5.941" L × 2.75" H × 3" W | 15cm L × 7cm H × 8cm W |
Shipping Volume | 49.01 in3 | 803 cm3 |
Shipping Weight | 2.38 pounds | 1 kilograms |
Weight | 2.38 pounds | 1 kilograms |
Width | 3.00 inches | 76 mm |
Downloads
Document Name | Type | Language |
---|---|---|
Service Instructions - Lubricating 80 Deg CV.pdf | Maintenance Document | English |
Service Instructions - CV Joint.pdf | Service Document | English |
Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
80 deg CV Joint - Over Angle Operating.pdf | Troubleshooting Document | English |
80 deg CV Joint - Over Angle NonOperating.pdf | Troubleshooting Document | English |
WE0101003_1019_USL_80DegConstantVelocityJoint.pdf | Performance Benefits Document | English |
