1552-6206-00

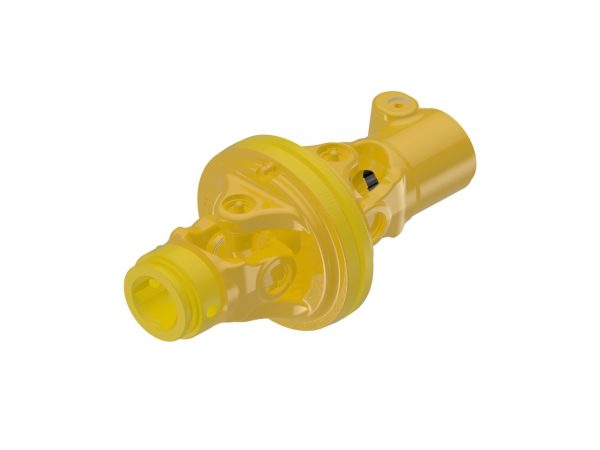

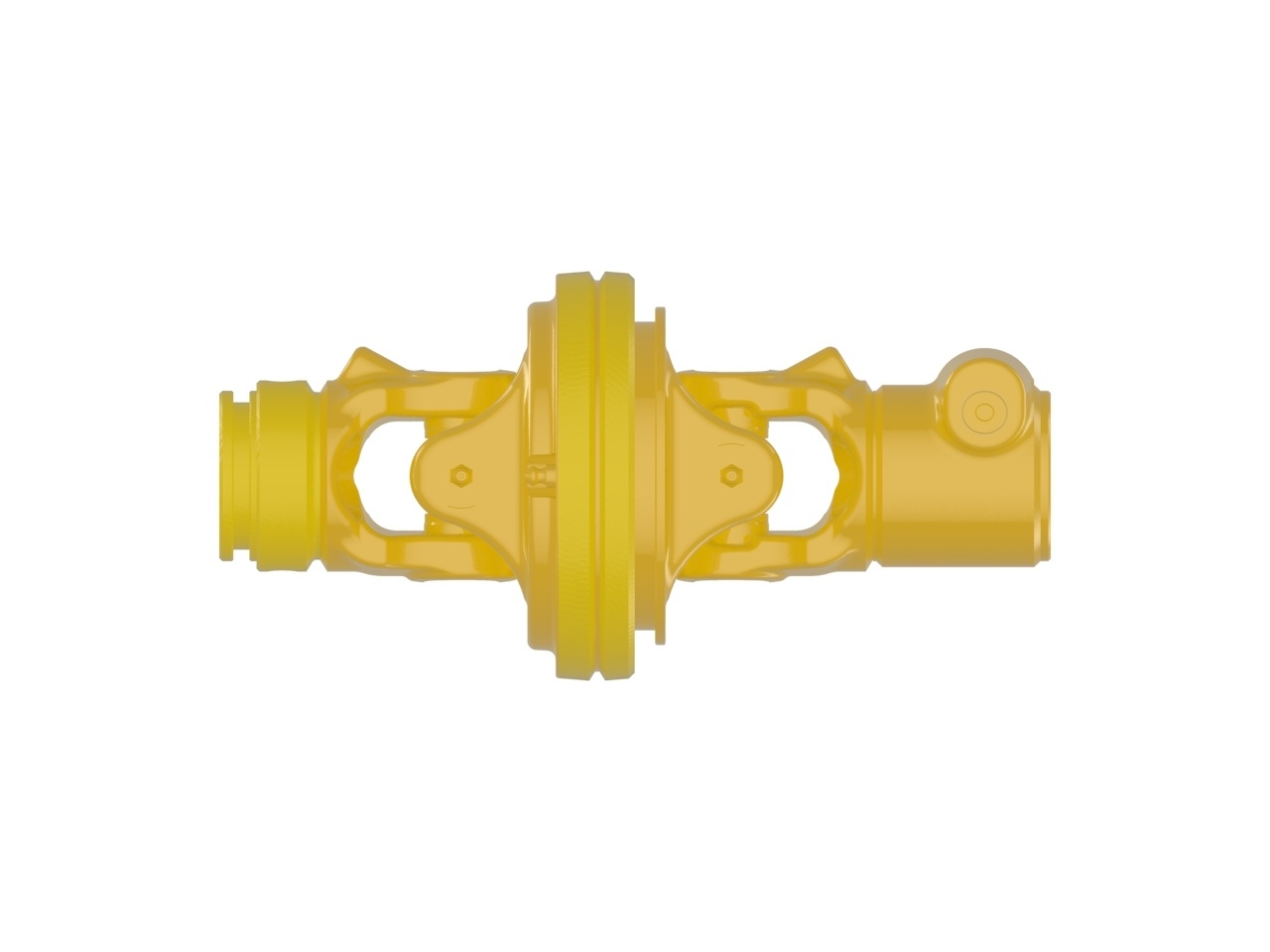

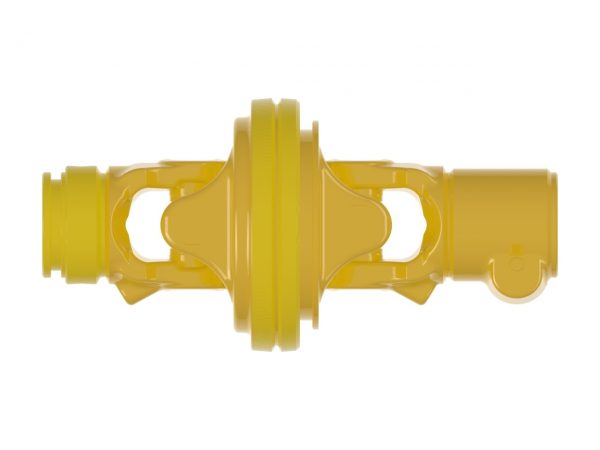

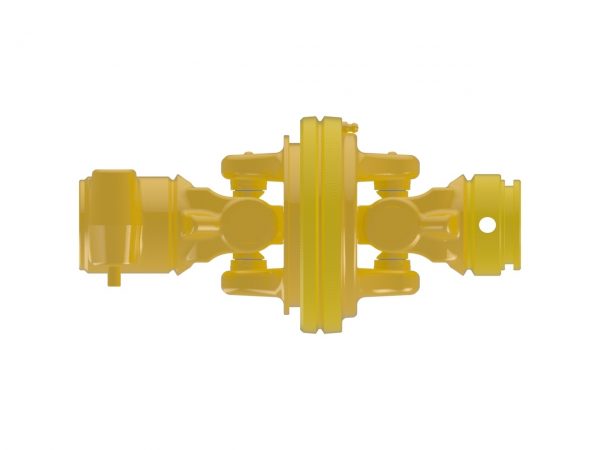

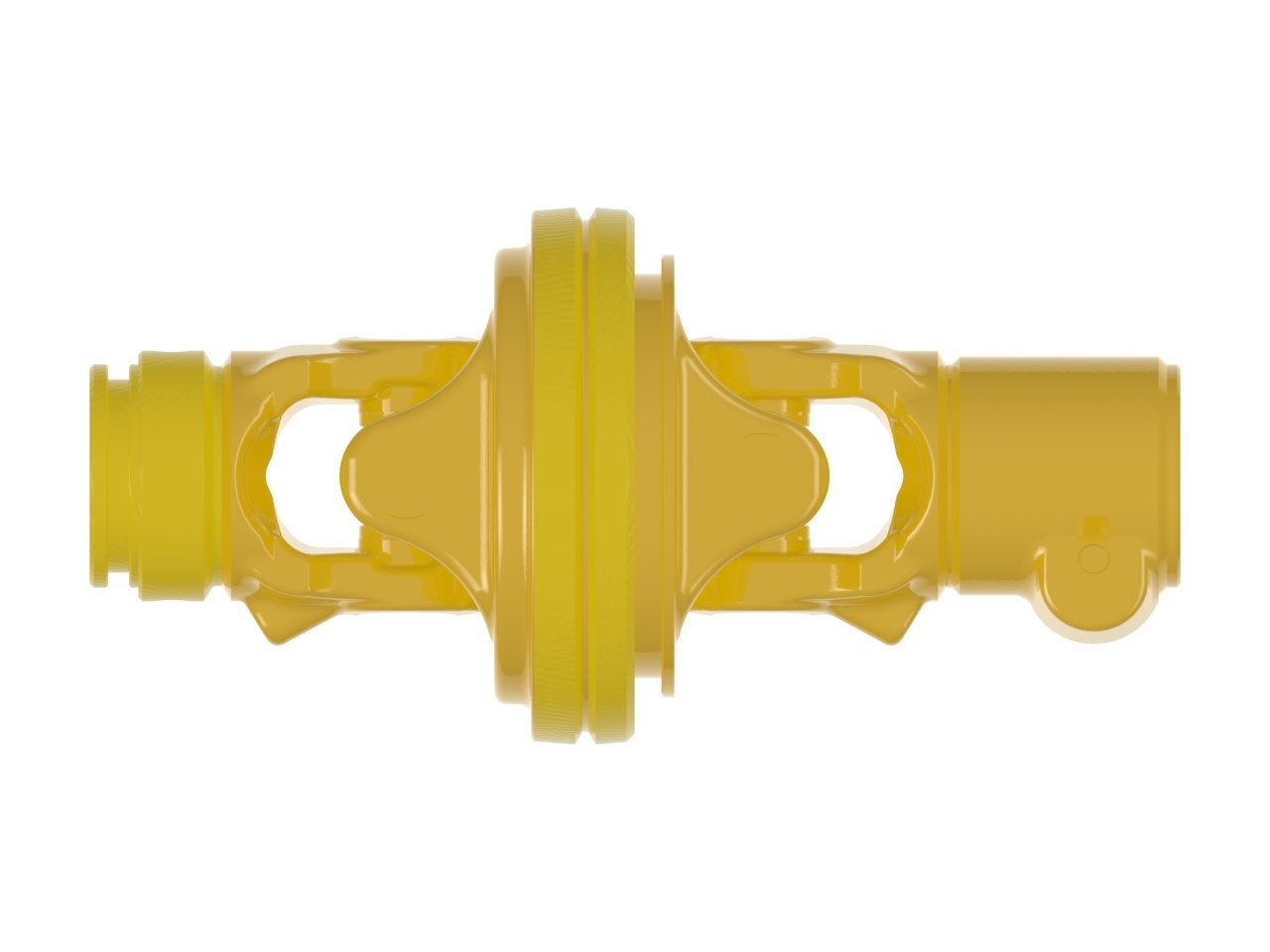

AB2-80 Series CV Wide Angle Universal Joint

AB2-80 series CV wide angle universal joint with 1 3/8-6 spline, quick disconnect connection and 36 mm trilobe, roll pin connection

View My List

The CV Wide Angle Universal Joint is a component of the Weasler high performance CV Wide Angle PTO drive shafts, which are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler CV Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.

PERFORMANCE BENEFITS

DESIGN FEATURES
• Fits Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
• Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
• Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
• Same component designs used for Weasler’s domestic and metric product lines.

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Bore 21.46 inches37 mm
Bore 2 36 MM TRILOBE
Compressed (Closed) Length3.39 inches86 mm
Compressed Overall Length10.42 inches265 mm
Connection 1 QUICK DISCONNECT
Connection 2 ROLL PIN
Extended Length3.39 inches86 mm
Extended Overall Length10.42 inches265 mm
HP@1000RPM47 HP35 kilowatts
HP@540RPM31 HP23 kilowatts
Length10.42 inches265 mm
Outside Diameter5.67 inches144 mm
Shipping Dimensions10.42" L  ×  5.678" H  ×  5.678" W26cm L  ×  14cm H  ×  14cm W
Shipping Volume335.94 in35505 cm3
Shipping Weight15.51 pounds7 kilograms
Weight15.51 pounds7 kilograms

Downloads

Document Name Type Language
Service Instructions - Lubricating 80 Deg CV.pdf Maintenance Document English
Service Instructions - CV Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle Operating.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle NonOperating.pdf Troubleshooting Document English
WE0101003_1019_USL_80DegConstantVelocityJoint.pdf Performance Benefits Document English
WE0101011_0817_USL_EasyLockGuard.pdf Performance Benefits Document English
