800-7732

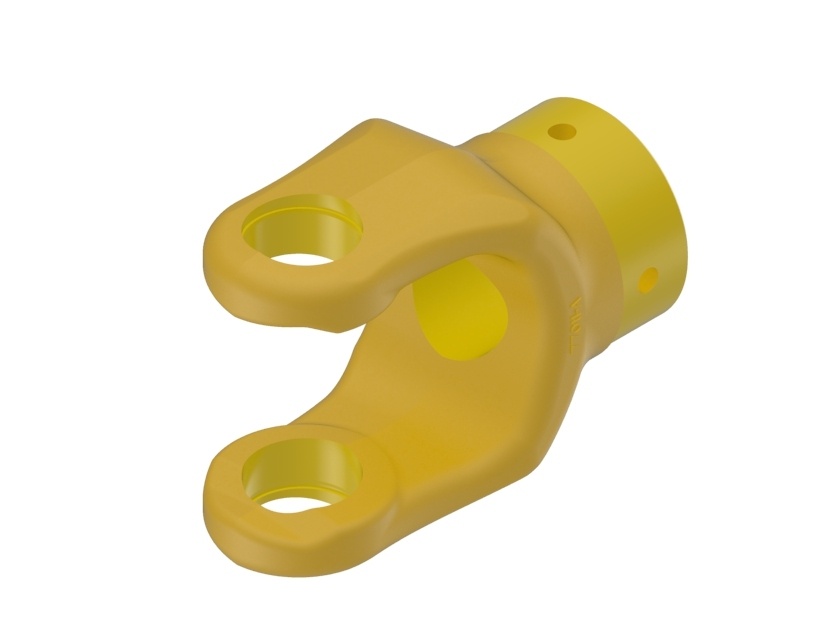

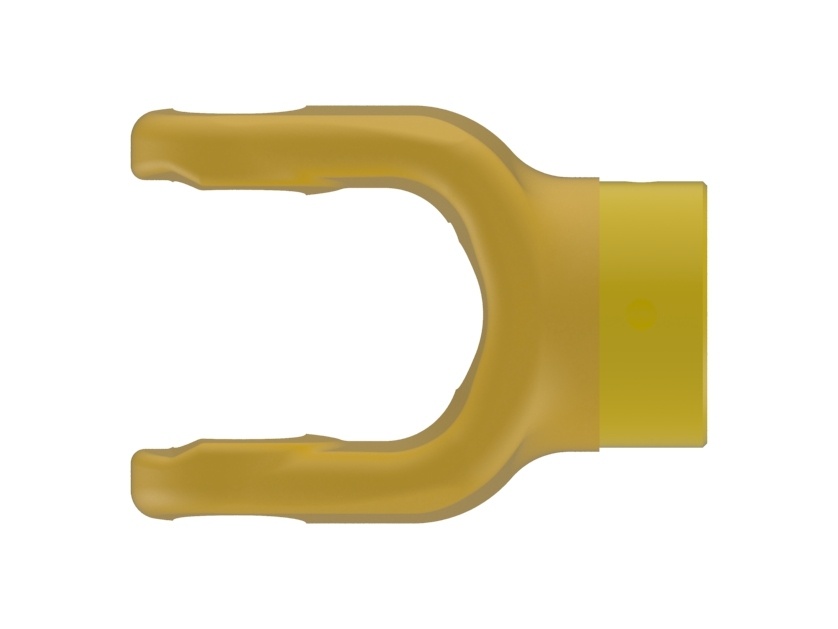

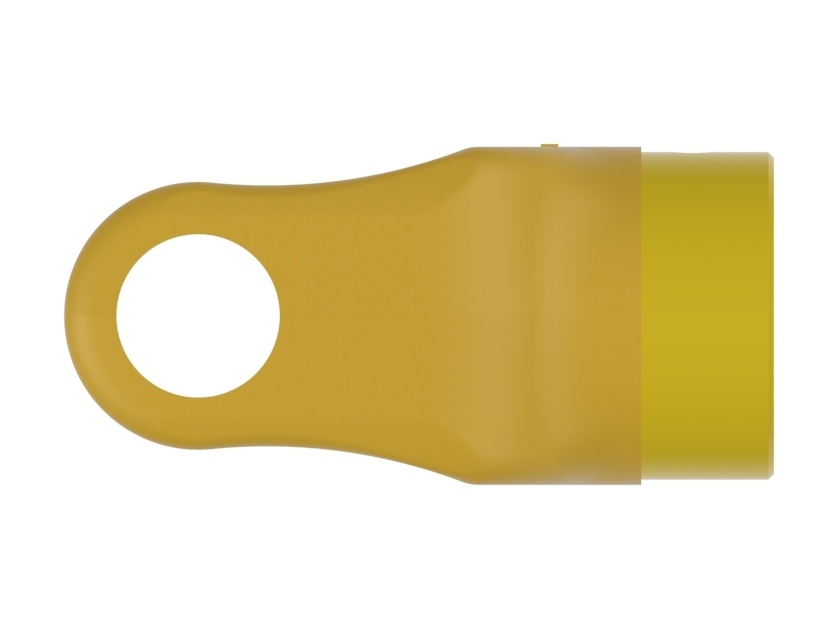

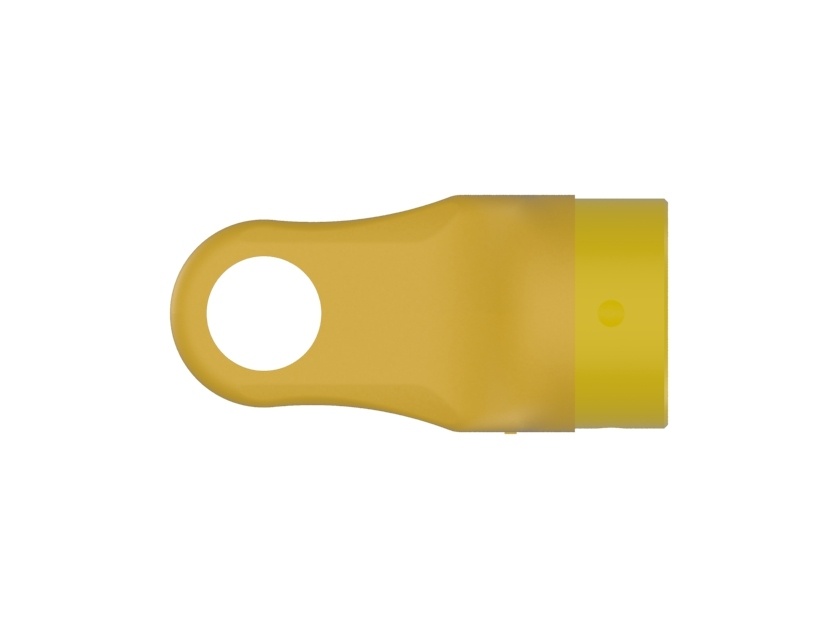

77 Series Setscrew Yoke

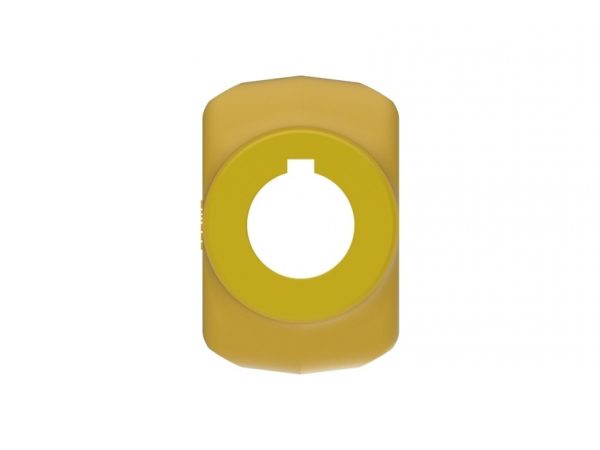

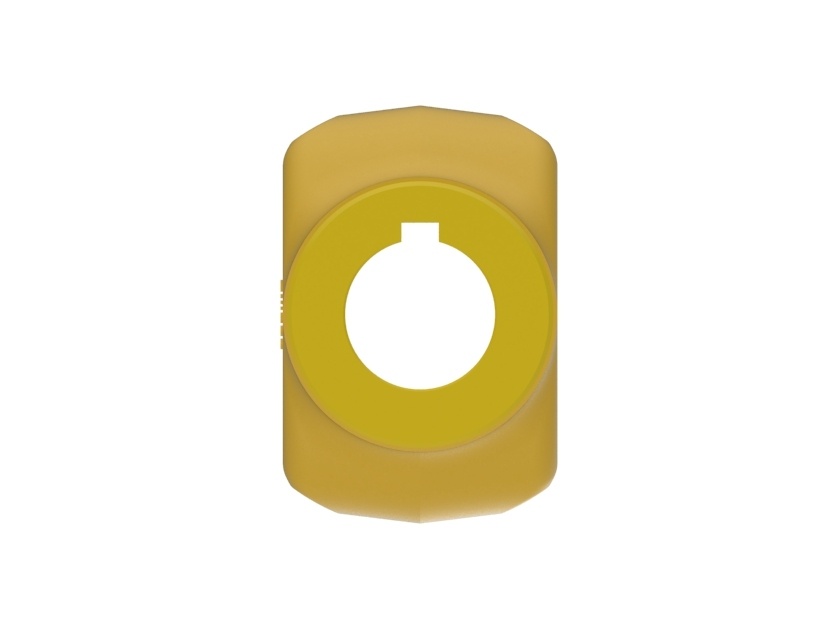

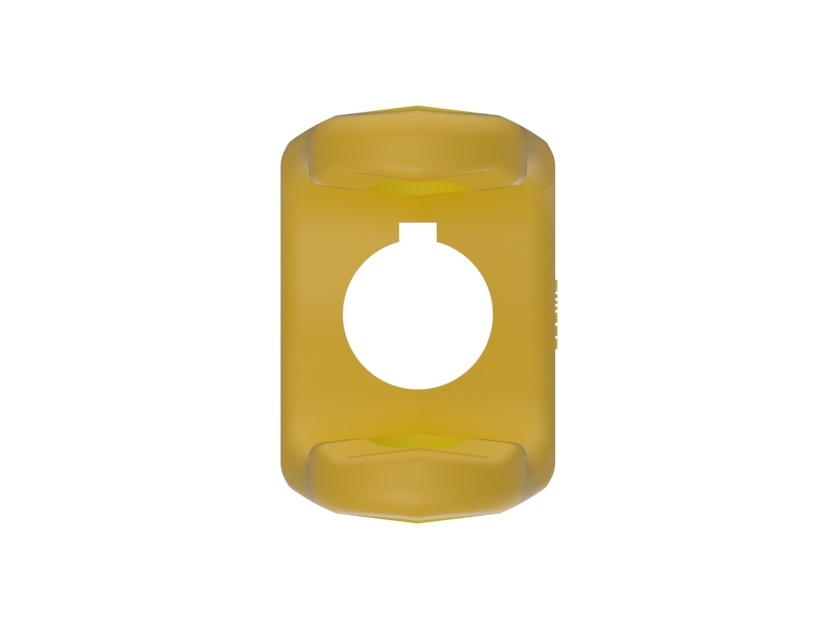

77 series yoke with round with keyway bore and setscrew connection

View My List

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 12.00 inches51 mm
Bore 1 ROUND WITH KEYWAY
Connection 1 SETSCREW
Height5.75 inches146 mm
HP@1000RPM264 HP197 kilowatts
HP@540RPM172 HP128 kilowatts
Keyway 10.50 inches13 mm
Length6.25 inches159 mm
Setscrew 1/2-13
Shipping Dimensions7.69" L  ×  5.75" H  ×  3.6" W20cm L  ×  15cm H  ×  9cm W
Shipping Volume127.21 in32085 cm3
Width3.54 inches90 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
