807-7732
CLAMP YOKE77 Series Clamp Yoke

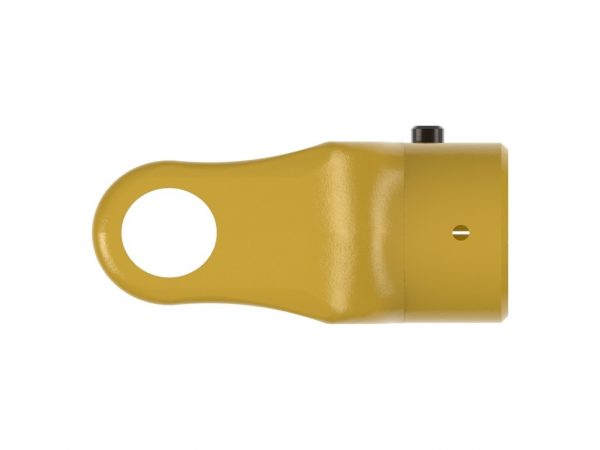

77 series yoke with round bore and clamp connection
The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 2.00 inches | 51 mm |
| Bore 1 | ROUND | |
| Connection 1 | CLAMP | |
| Height | 5.75 inches | 146 mm |
| HP@1000RPM | 264 HP | 197 kilowatts |
| HP@540RPM | 172 HP | 128 kilowatts |
| Length | 6.31 inches | 160 mm |
| Shipping Dimensions | 6.31" L × 5.75" H × 3.68" W | 16cm L × 15cm H × 9cm W |
| Shipping Volume | 133.51 in3 | 2188 cm3 |
| Width | 3.68 inches | 93 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
