CV WIDE ANGLE PTO DRIVE SHAFT6-80 Series CV Wide Angle PTO Drive Shaft

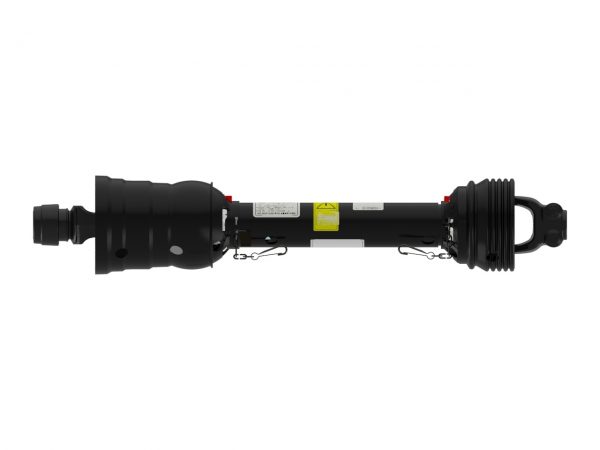

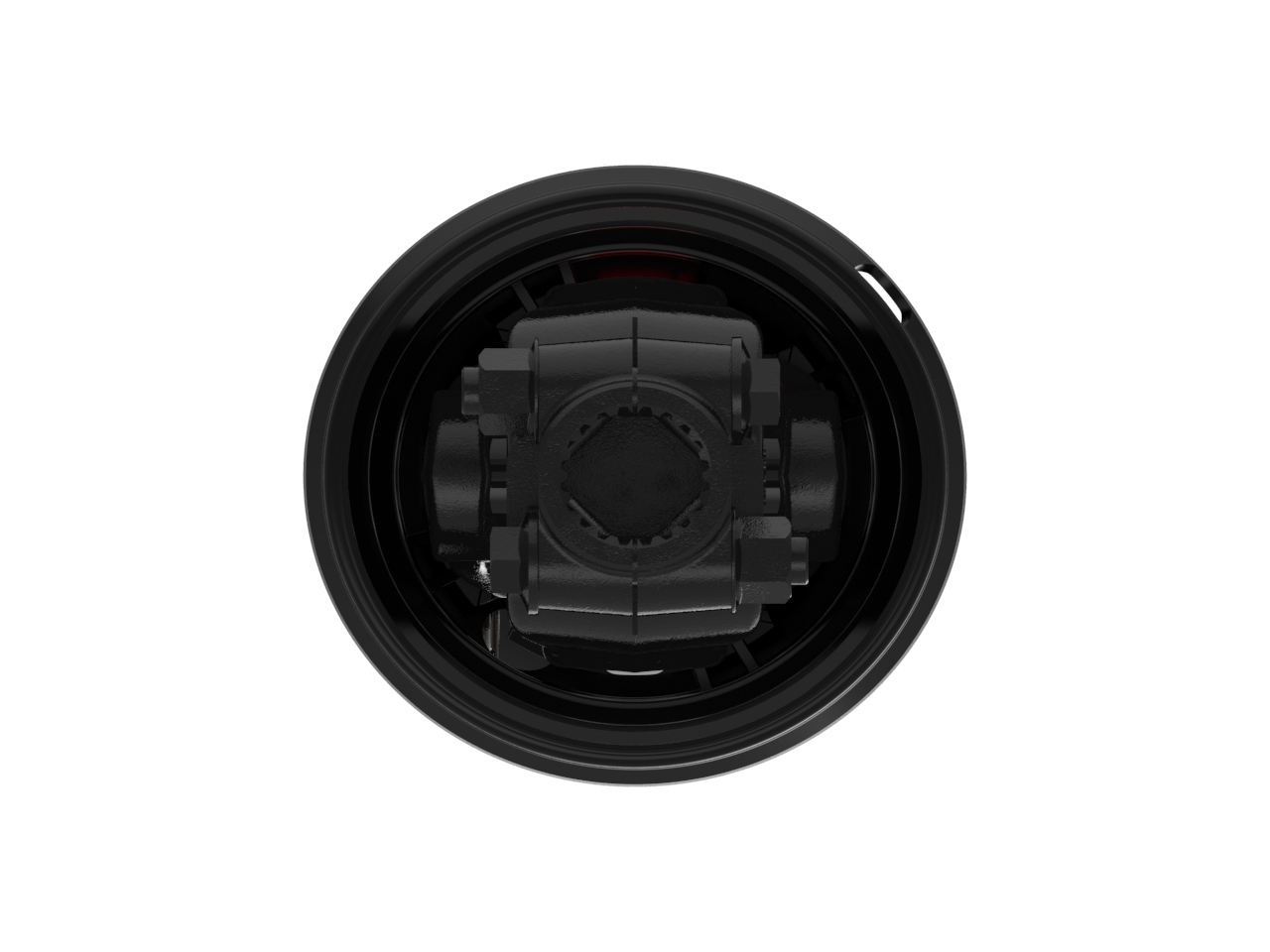

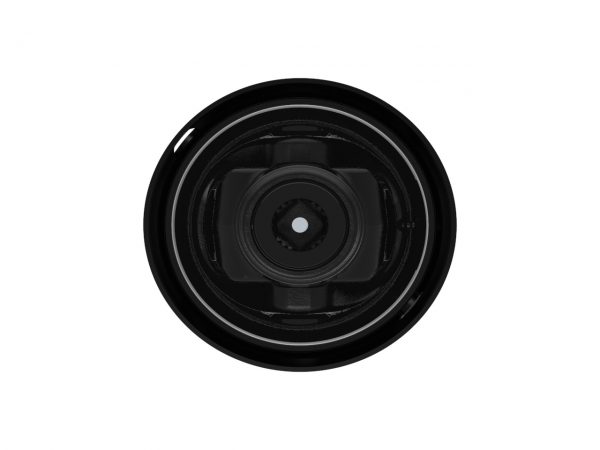

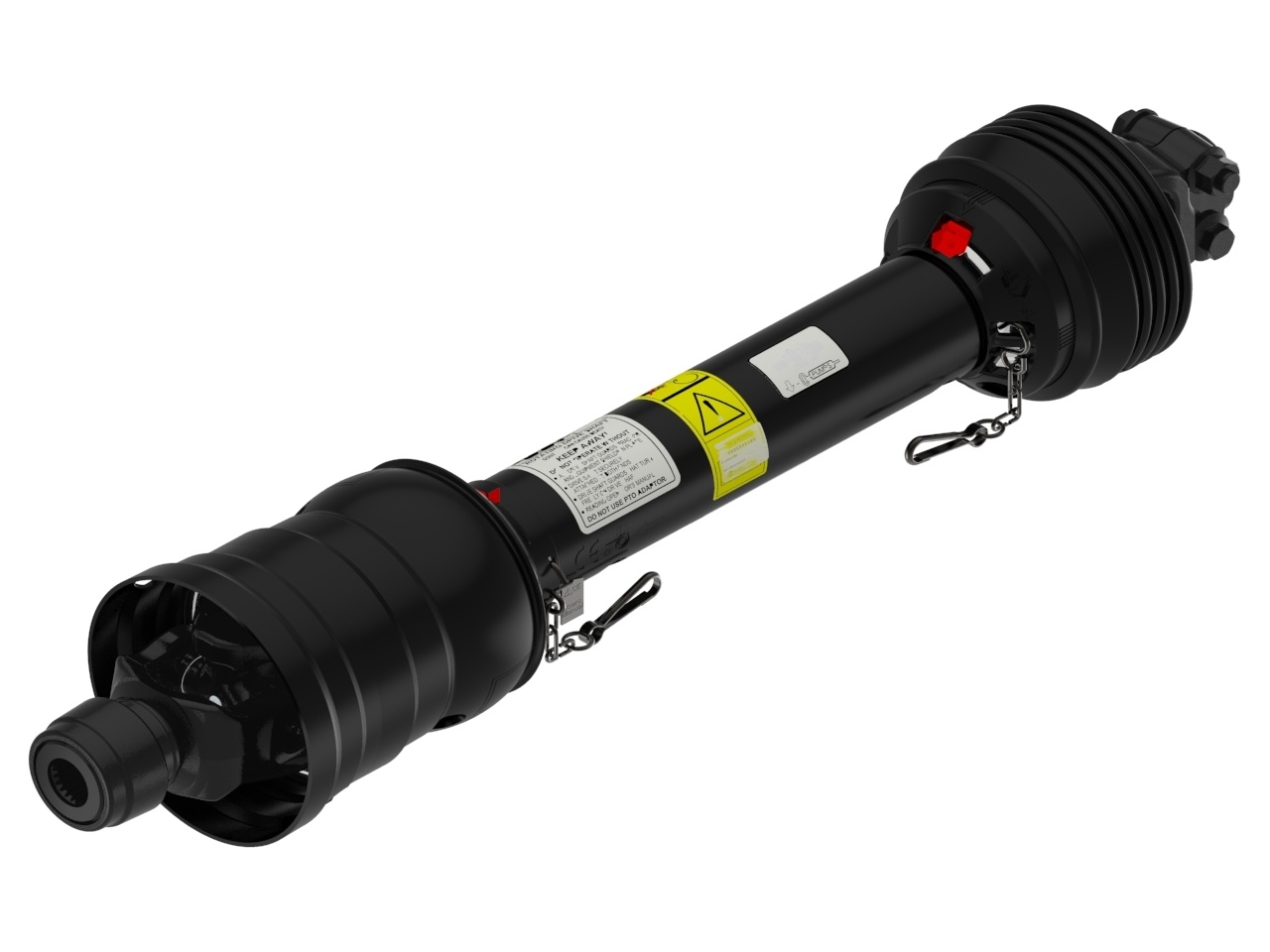

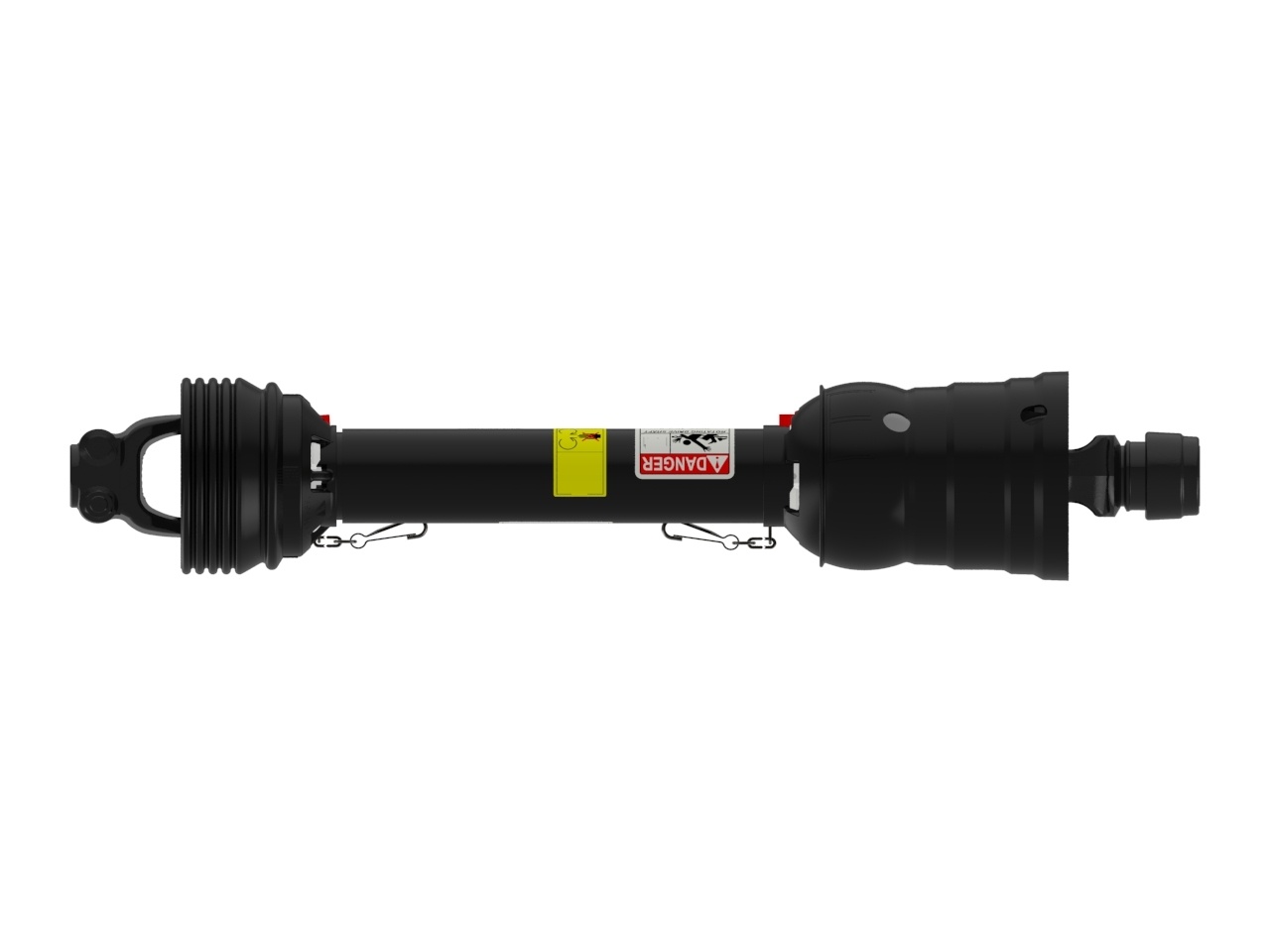

6-80 series CV wide angle PTO drive shaft with a 1 3/8-21 spline safety slide lock tractor connection and 1 3/4-20 spline clamp implement connection
The Weasler high performance CV Wide Angle PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler CV Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
PERFORMANCE BENEFITS
Design adjustability (cut-to-length) capabilities.
Interchangeability to fit with most competitor models.
Tri-lobe, lemon, and star shaft profiles available.
Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
Customer dedicated engineering and sales support.
DESIGN FEATURES
Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.37 inches | 35 mm |
Bore 1 | 1 3/8-21 SPLINE | |
Bore 2 | 1.75 inches | 44 mm |
Bore 2 | 1 3/4-20 SPLINE | |
Compressed (Closed) Length | 28.35 inches | 720 mm |
Compressed Overall Length | 39.15 inches | 994 mm |
Connection 1 | SAFETY SLIDE LOCK | |
Connection 2 | CLAMP | |
Extended Length | 41.14 inches | 1045 mm |
Extended Overall Length | 51.83 inches | 1316 mm |
HP@1000RPM | 179 HP | 133 kilowatts |
HP@540RPM | 117 HP | 87 kilowatts |
Length | 39.15 inches | 994 mm |
Outside Diameter | 7.75 inches | 197 mm |
Shipping Dimensions | 39.15" L × 0" H × 0" W | 99cm L × 0cm H × 0cm W |
