101-5520
TRACTOR YOKE55 Series Safety Slide Lock Yoke

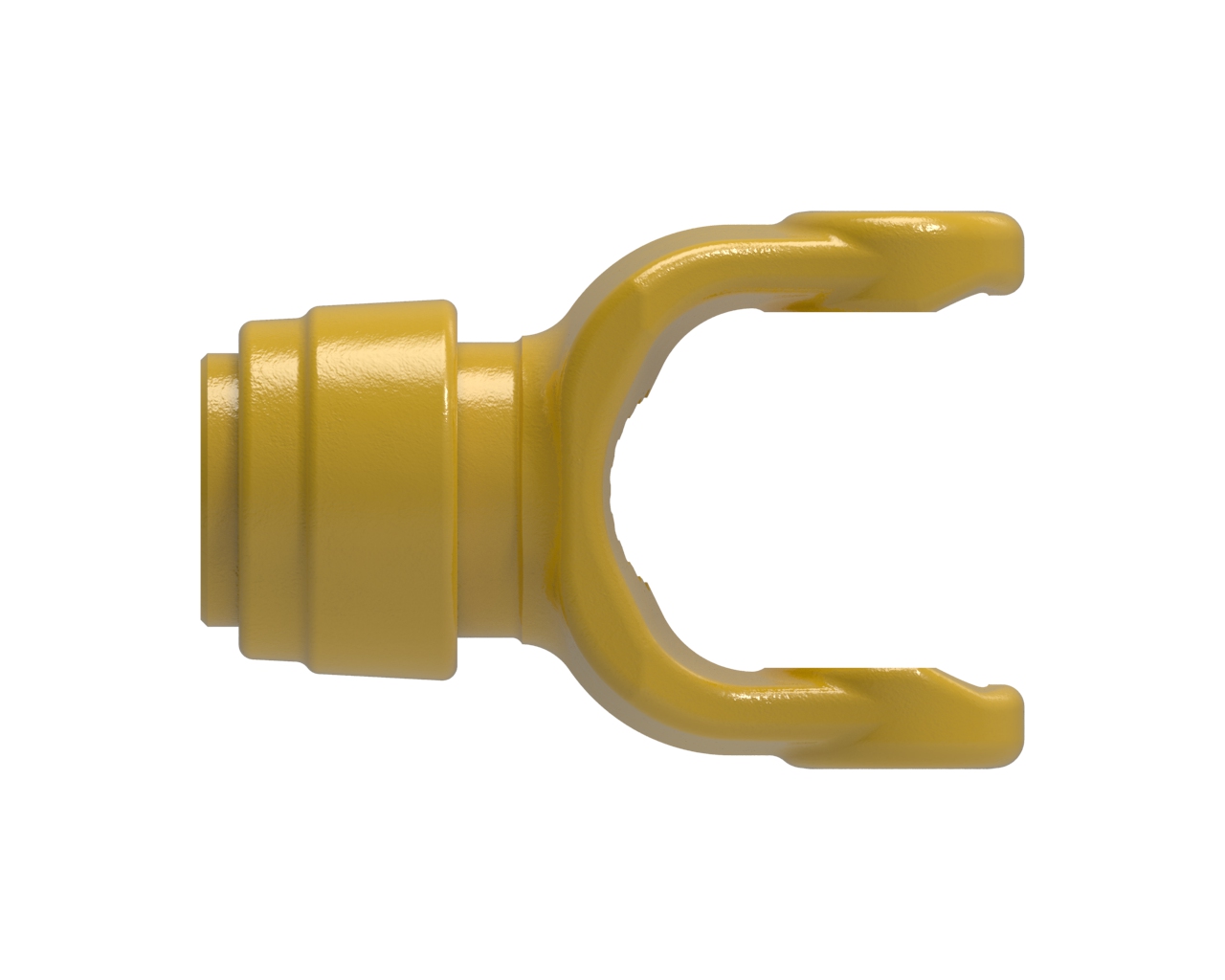

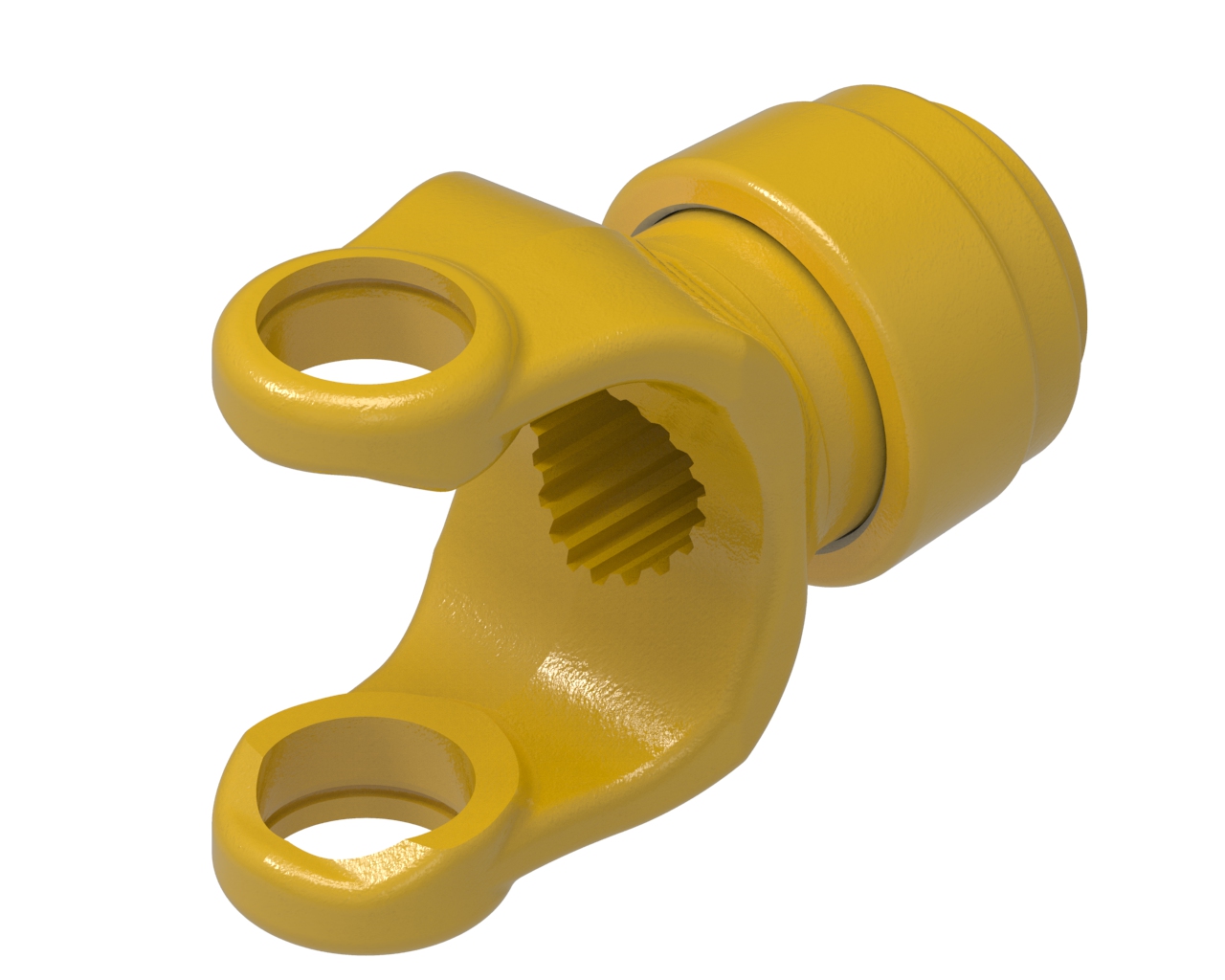

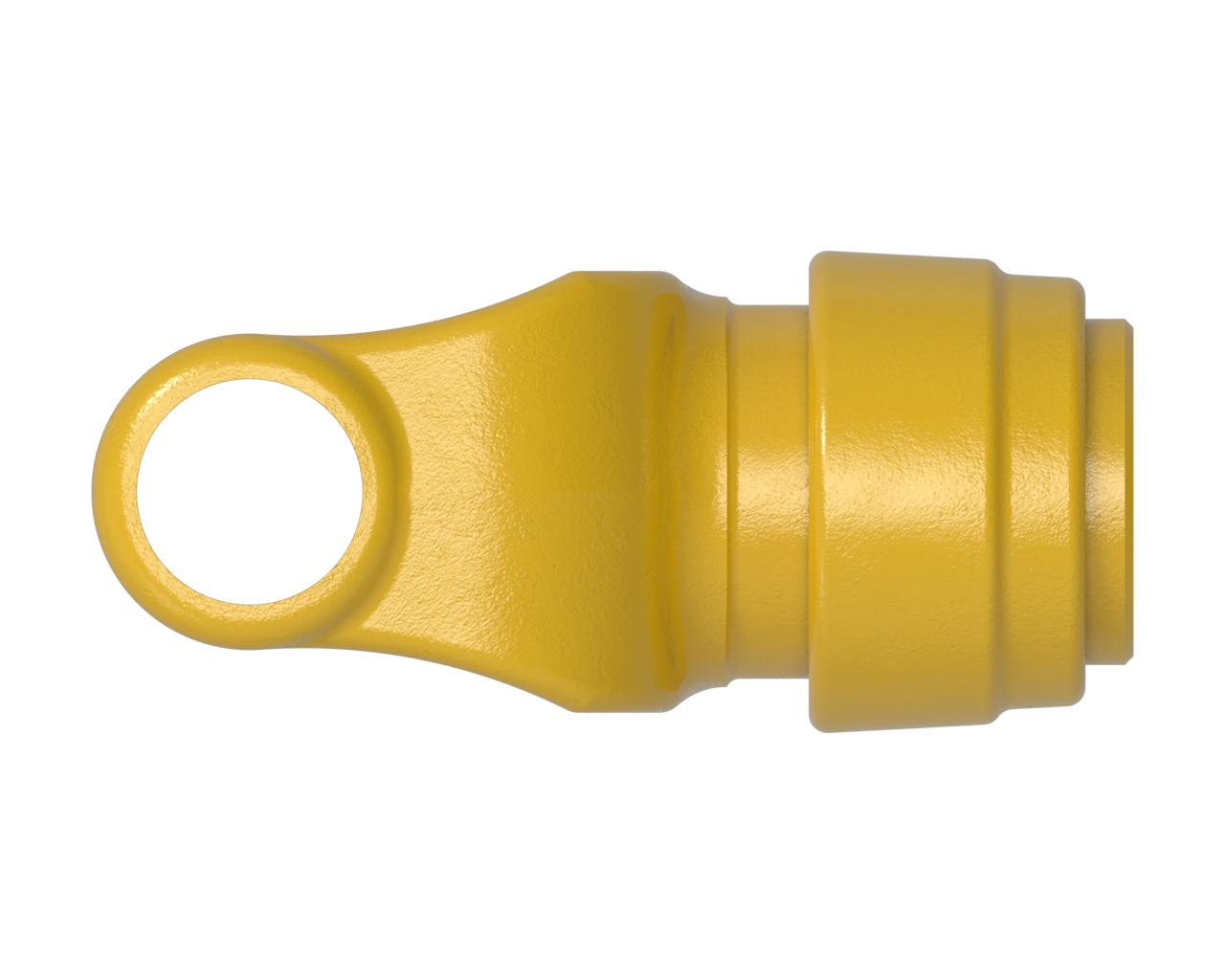

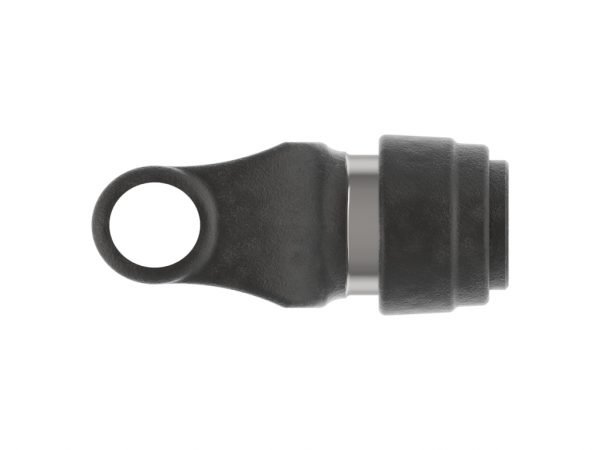

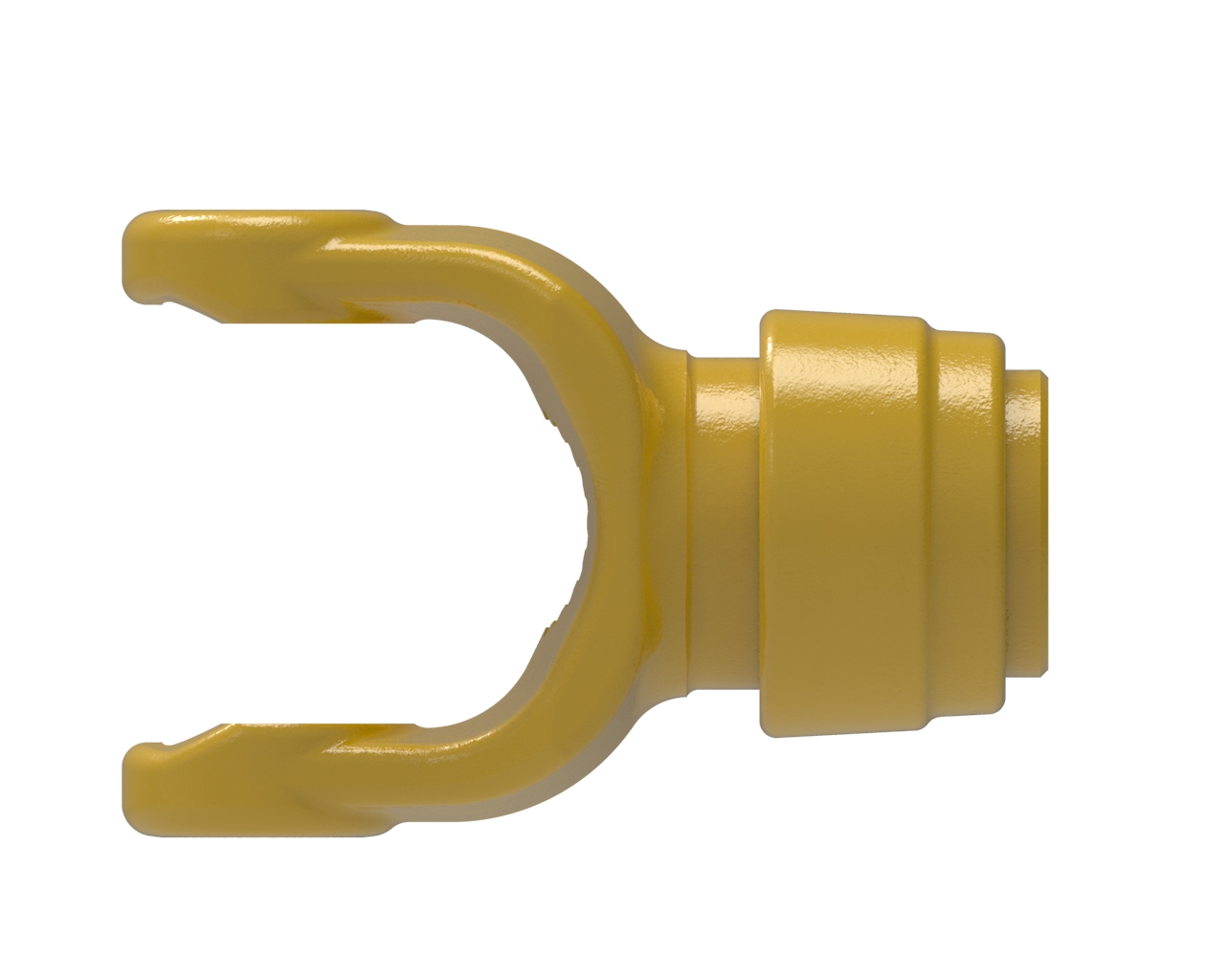

55 series yoke with 1 3/4-20 spline bore and safety slide lock connection
PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2″ 8-spline and 1 3/4″ 6-spline options are available. Lawn & Turf tractor yokes are offered in 1″ 10-spline and 1″ 15-spline.
PERFORMANCE BENEFITS
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.75 inches | 44 mm |
Bore 1 | 1 3/4-20 SPLINE | |
Connection 1 | SAFETY SLIDE LOCK | |
Height | 5.12 inches | 130 mm |
HP@1000RPM | 211 HP | 157 kilowatts |
HP@540RPM | 137 HP | 102 kilowatts |
Length | 6.00 inches | 152 mm |
Shipping Dimensions | 7.08" L × 5.125" H × 2.63" W | 18cm L × 13cm H × 7cm W |
Shipping Volume | 95.43 in3 | 1564 cm3 |
Shipping Weight | 7.36 pounds | 3 kilograms |
Weight | 7.36 pounds | 3 kilograms |
Width | 2.63 inches | 67 mm |
