801-5506

55 Series Pin Yoke

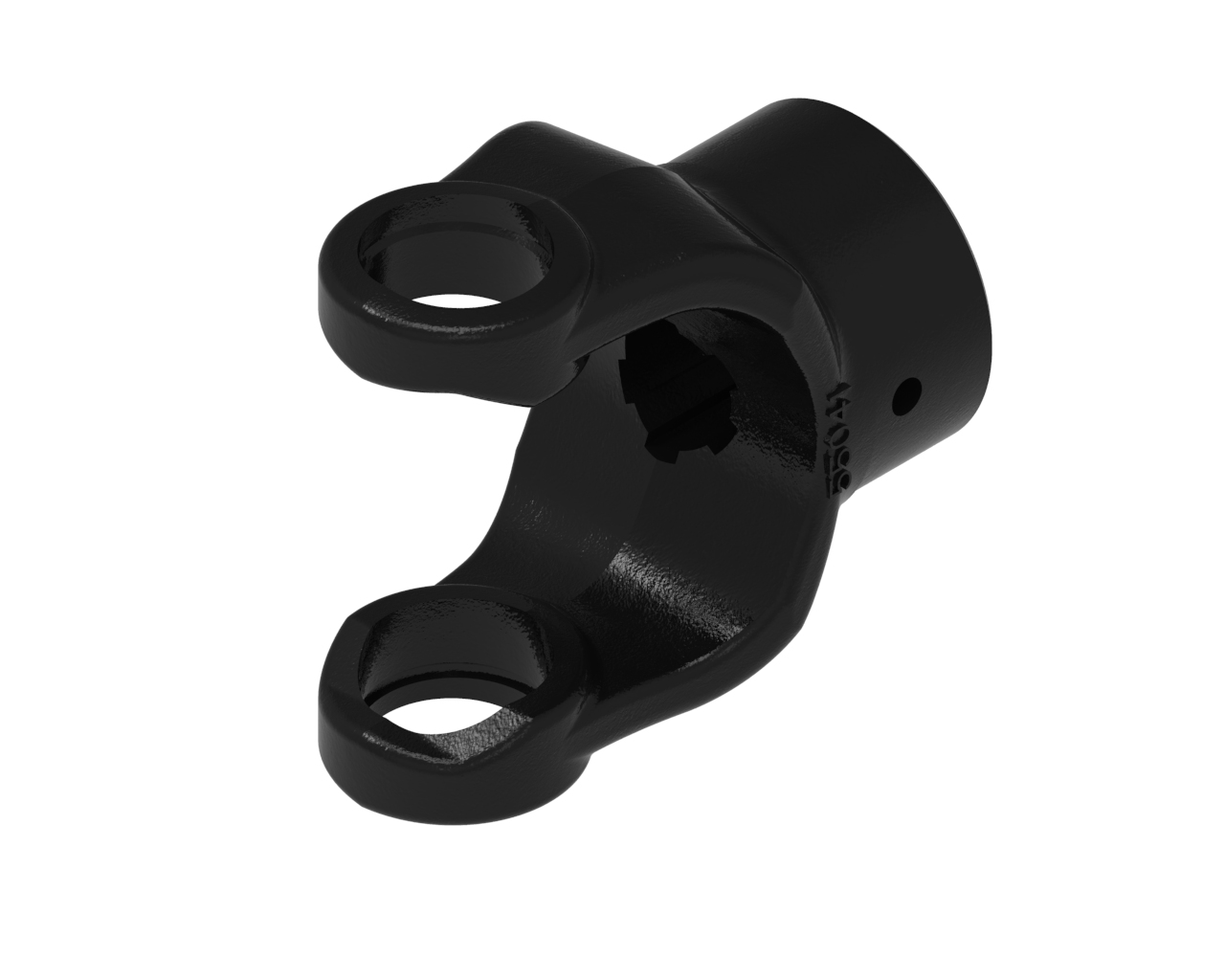

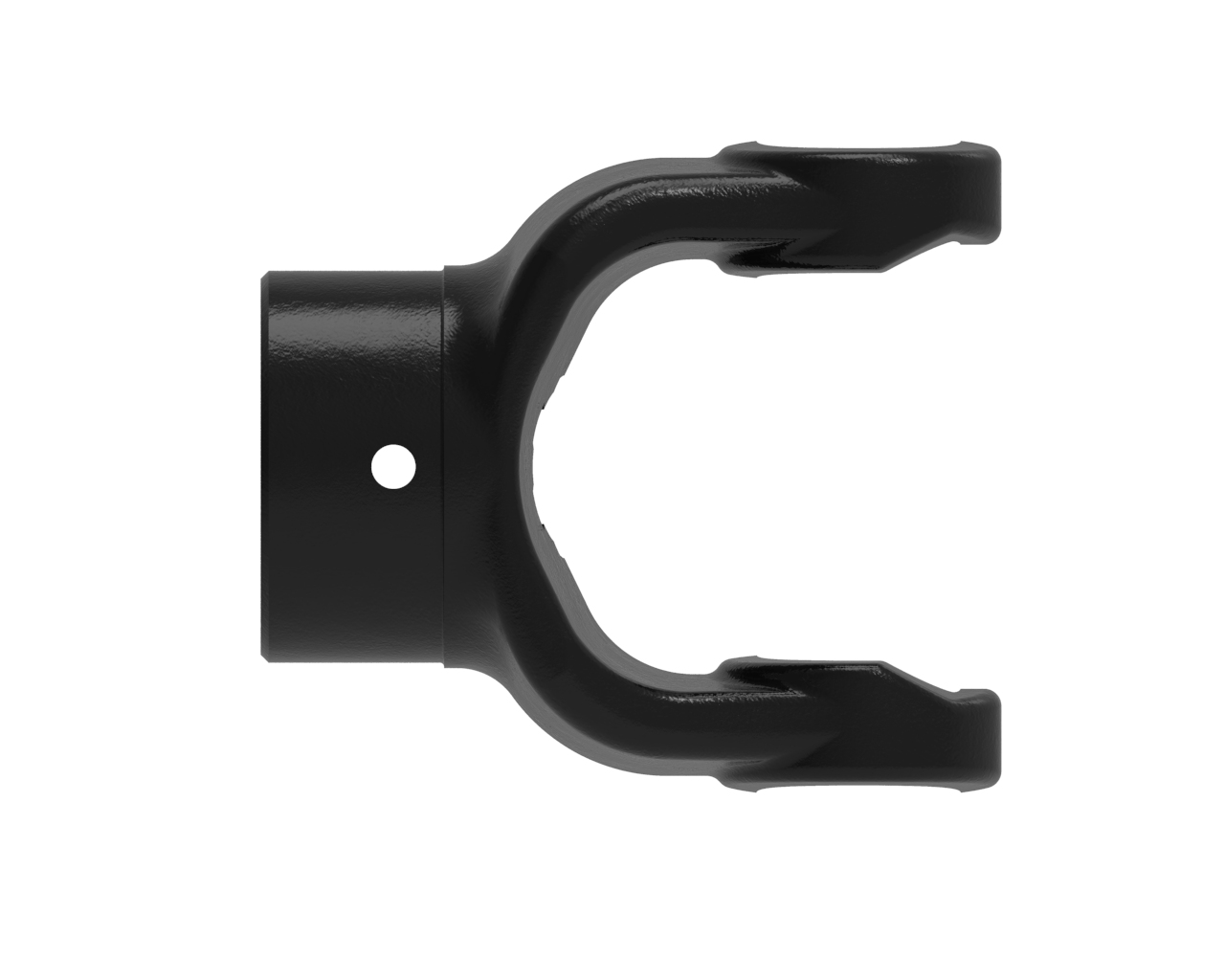

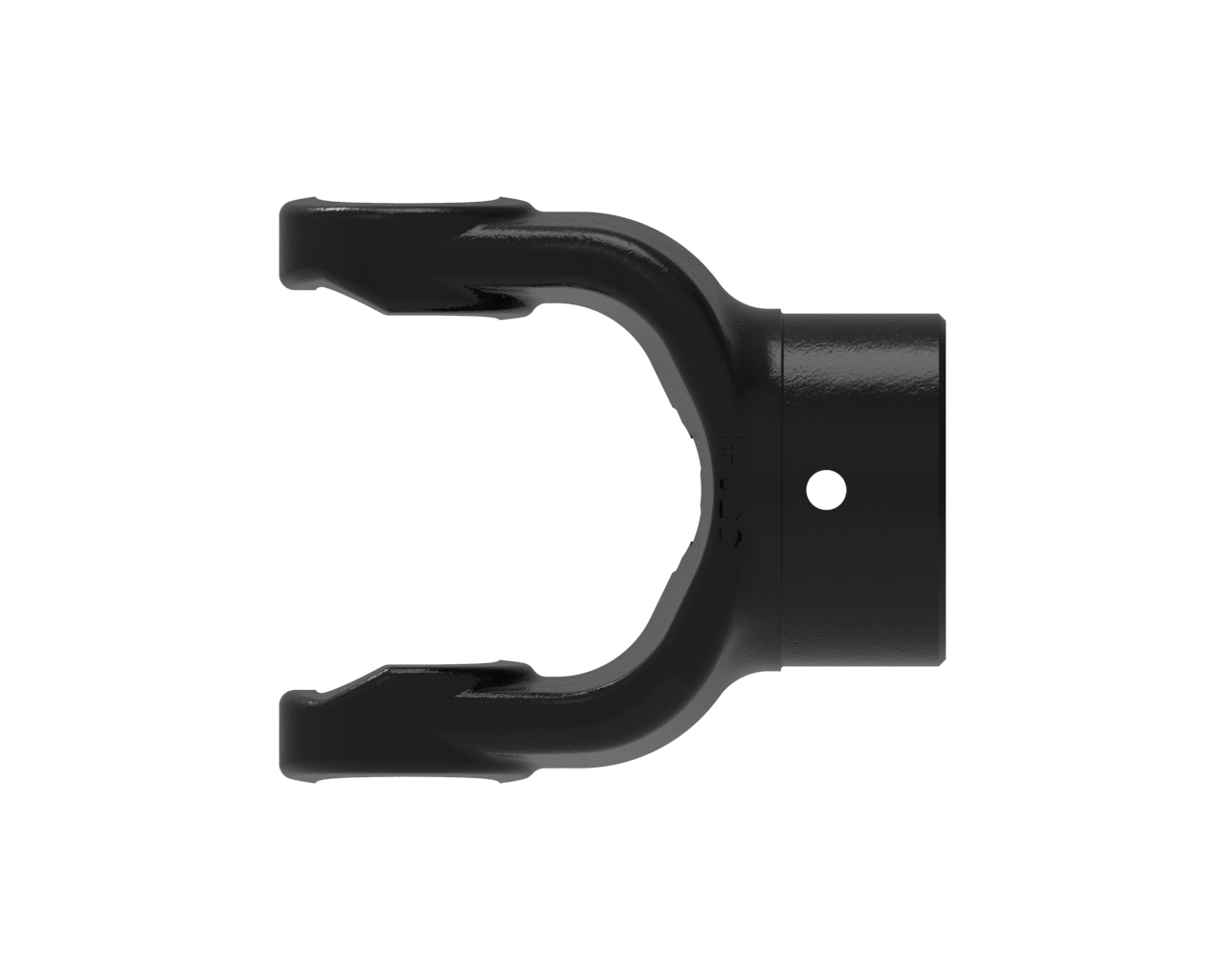

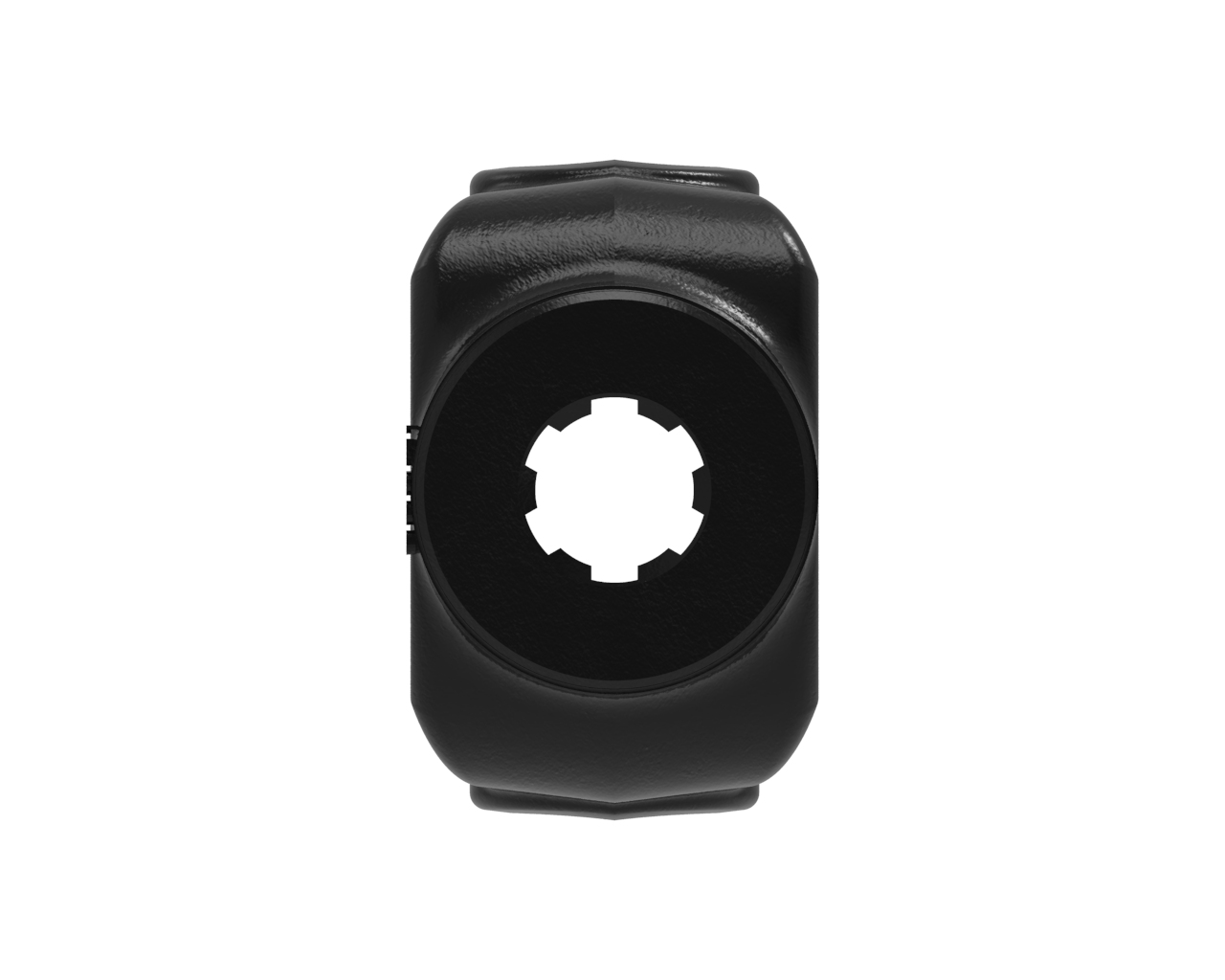

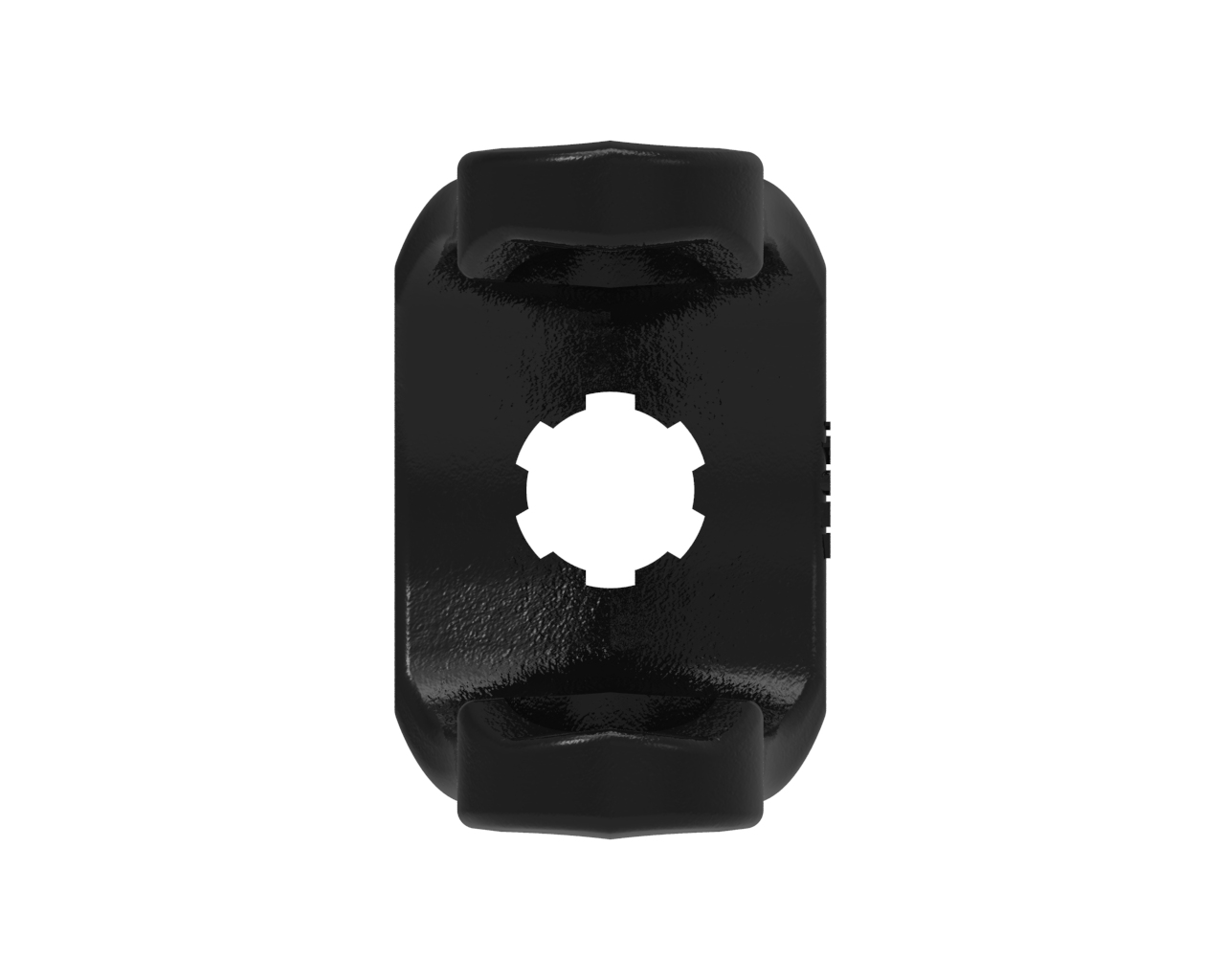

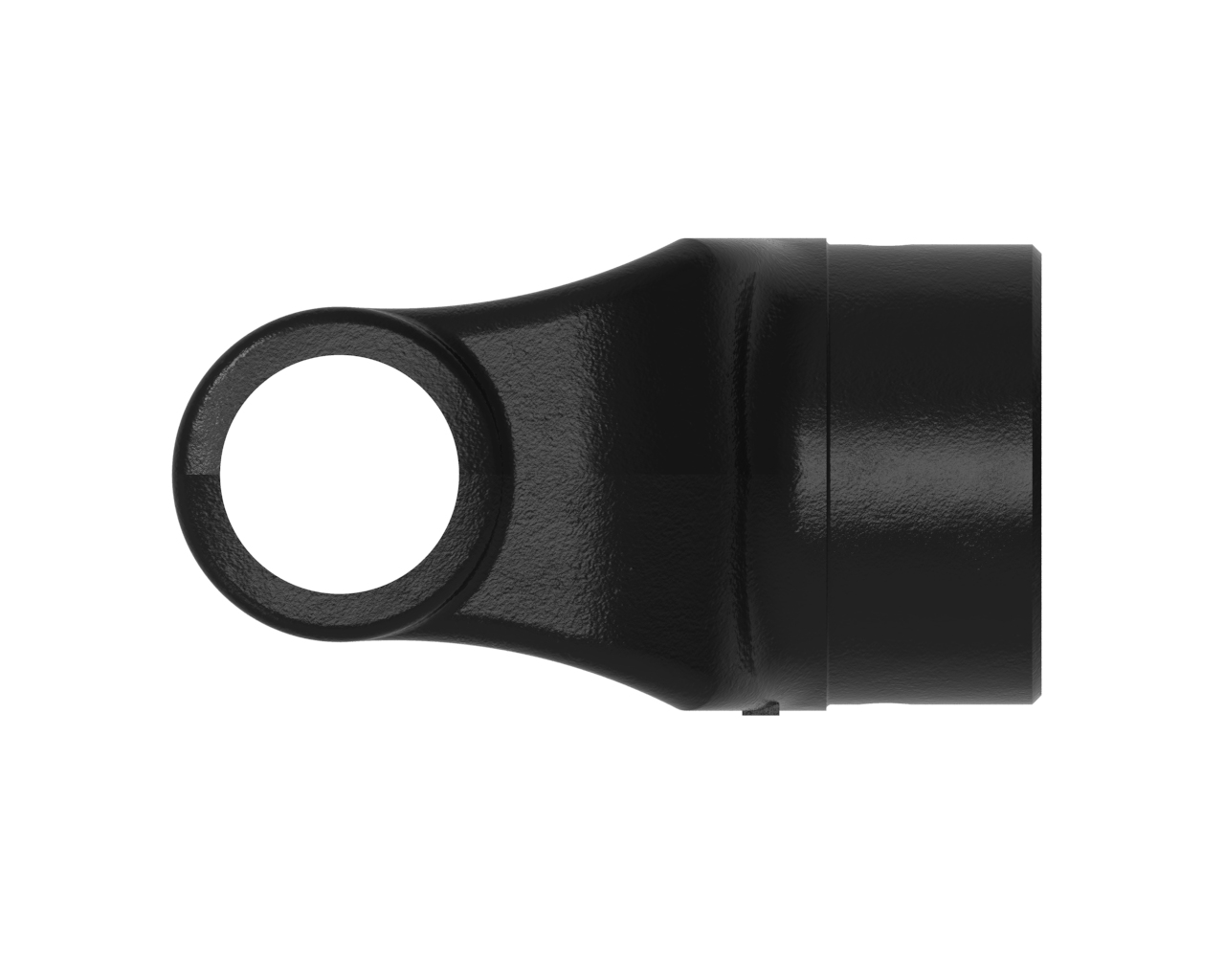

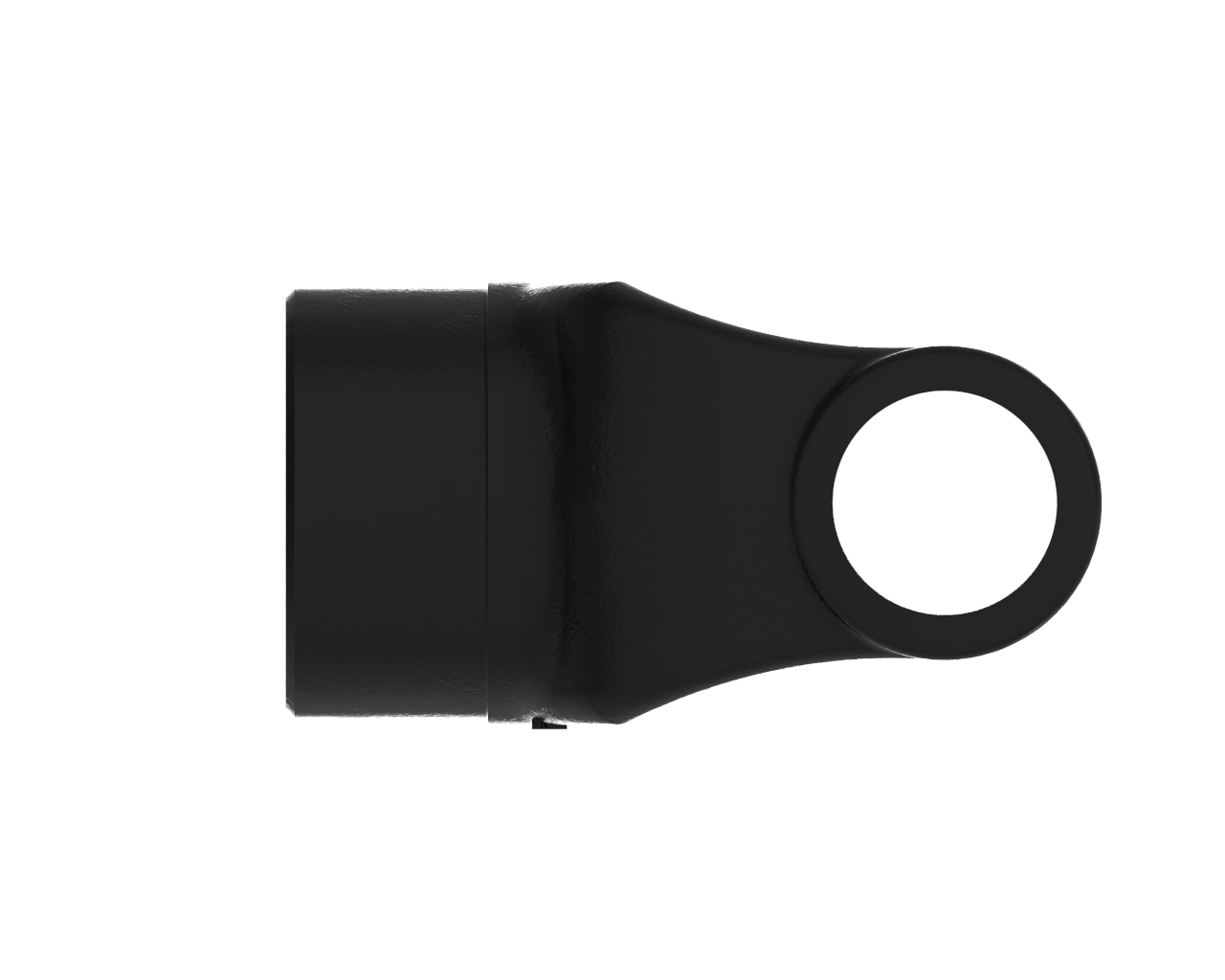

55 series yoke with 1 3/8-6 spline bore and pin connection

View My List

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Connection 1 PIN
Height5.13 inches130 mm
HP@1000RPM211 HP157 kilowatts
HP@540RPM137 HP102 kilowatts
Length4.50 inches114 mm
Pin Hole0.33 inches8 mm
Shipping Dimensions5.58" L  ×  5.13" H  ×  2.63" W14cm L  ×  13cm H  ×  7cm W
Shipping Volume75.28 in31234 cm3
Shipping Weight6.12 pounds3 kilograms
Weight6.12 pounds3 kilograms
Width2.63 inches67 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
