807-4406

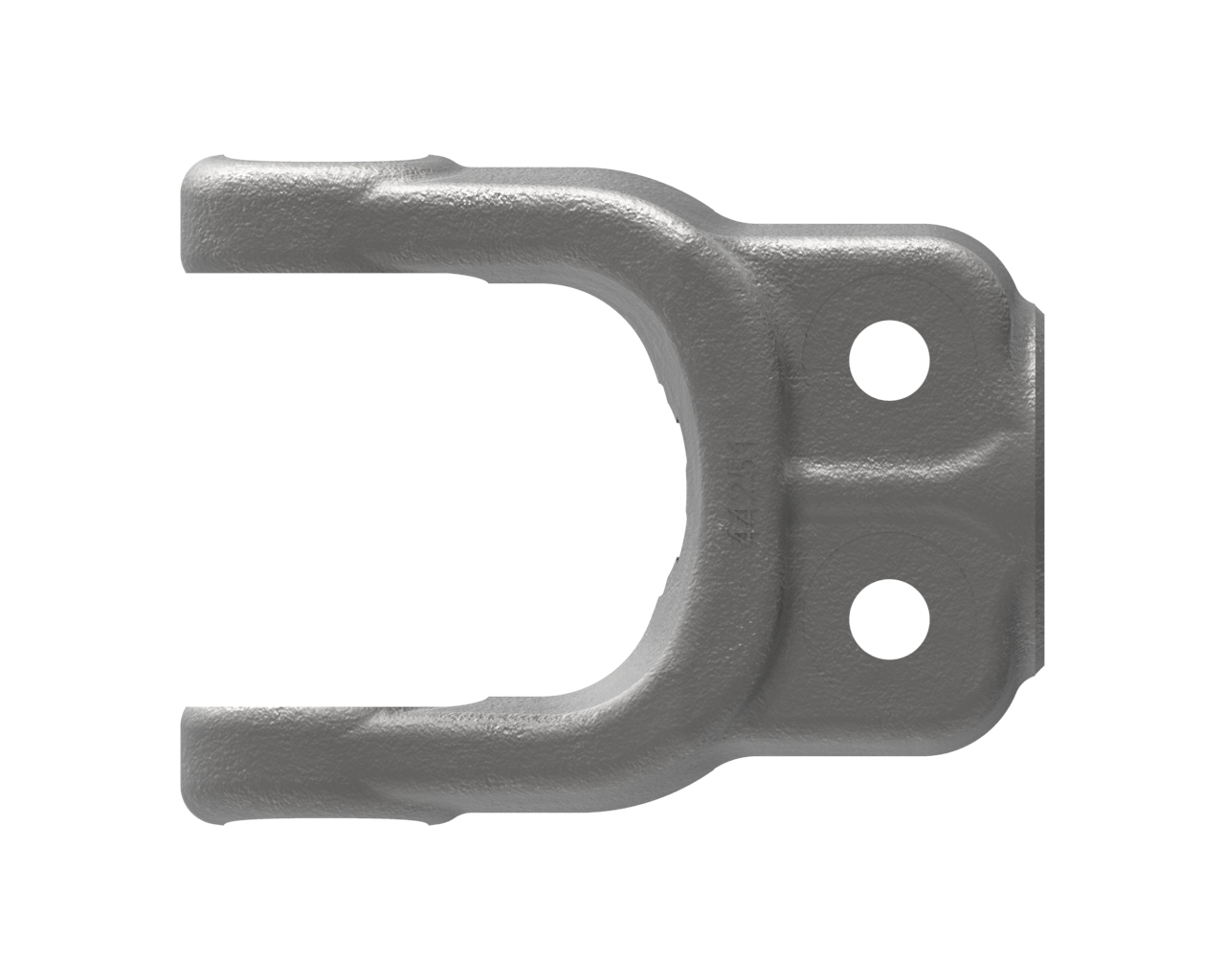

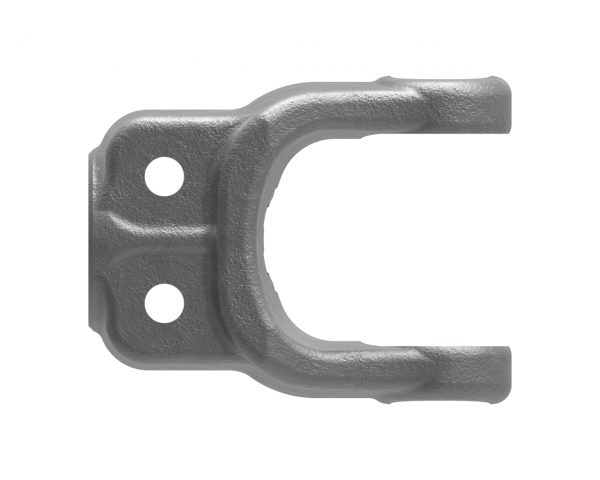

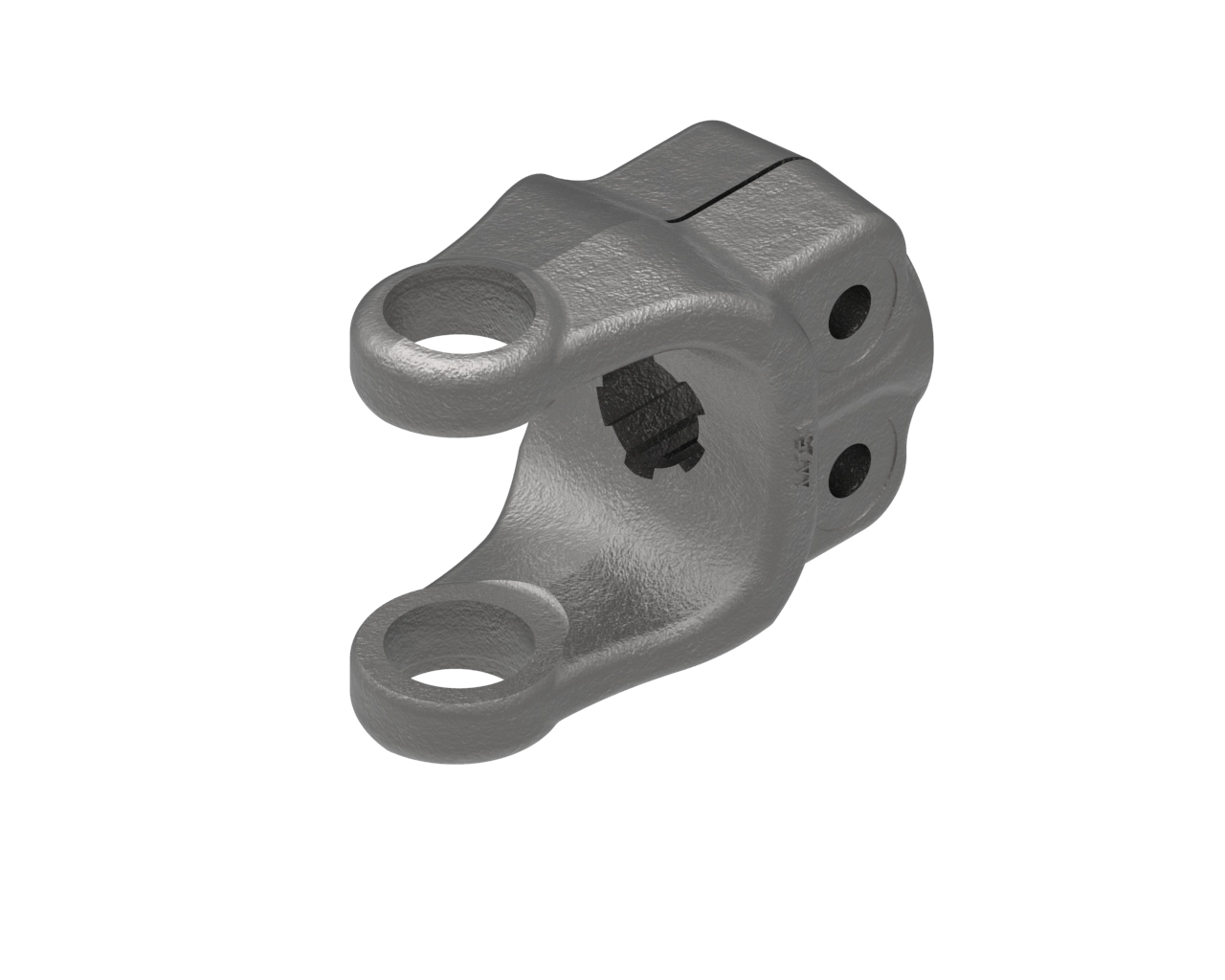

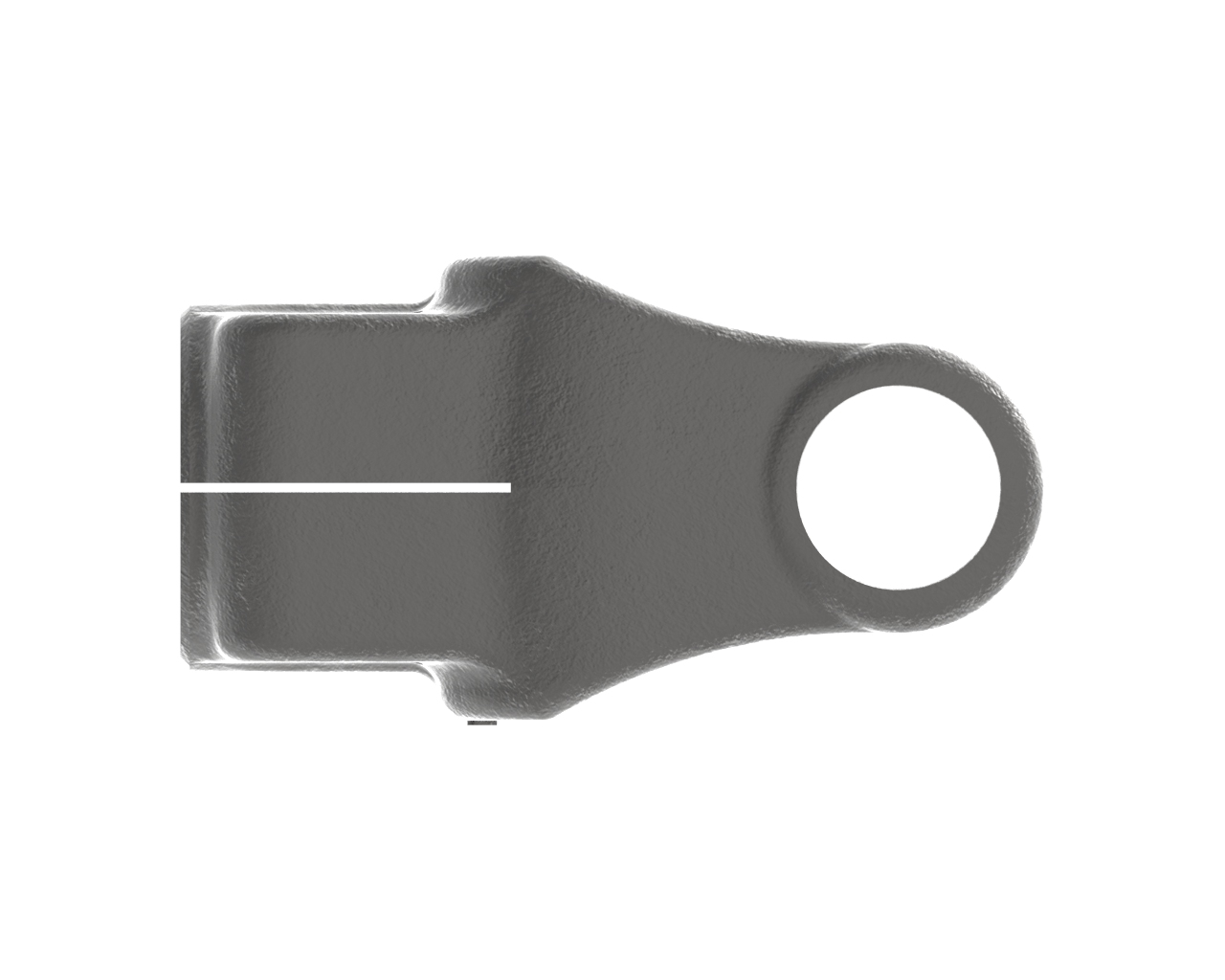

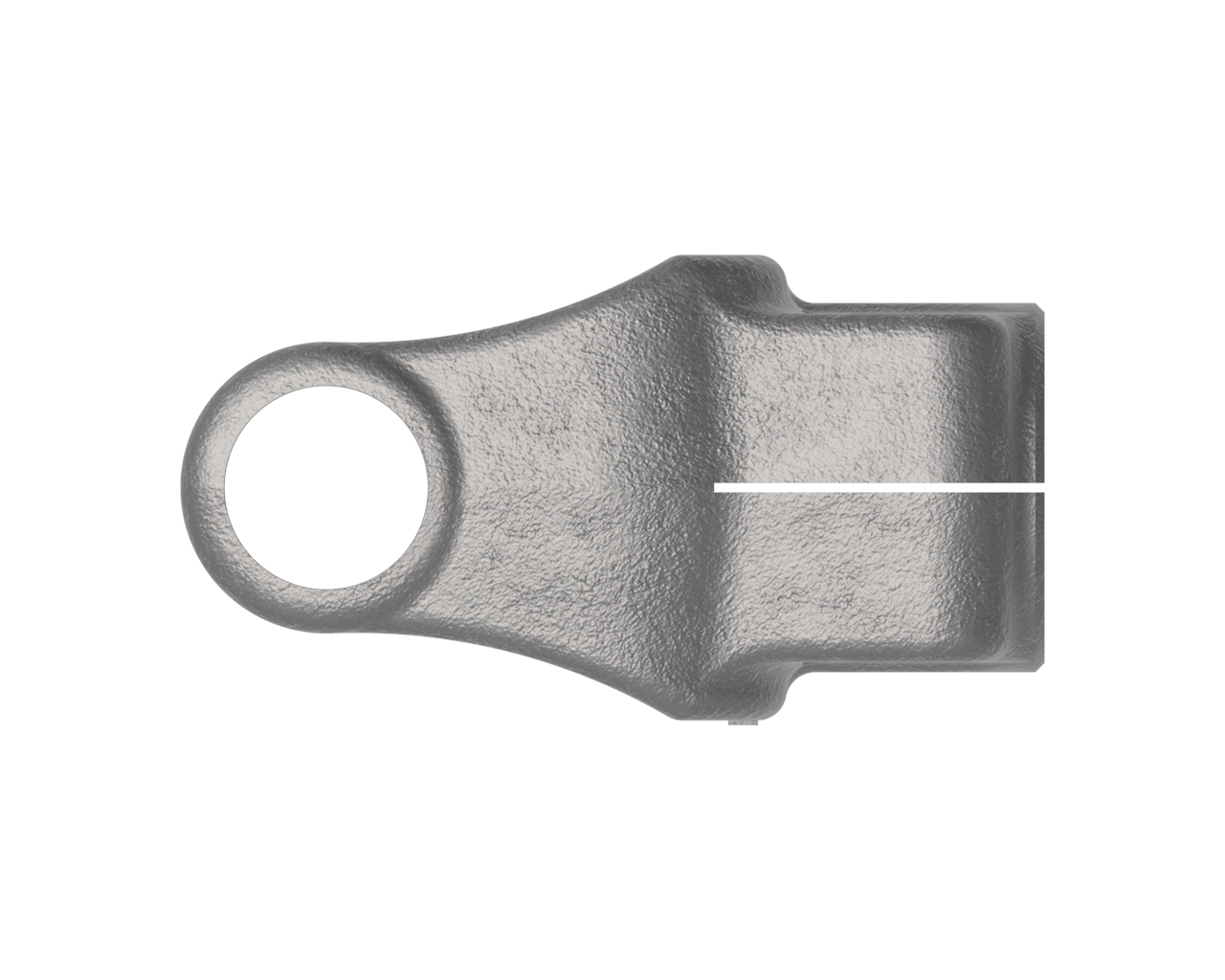

44 Series Clamp Yoke

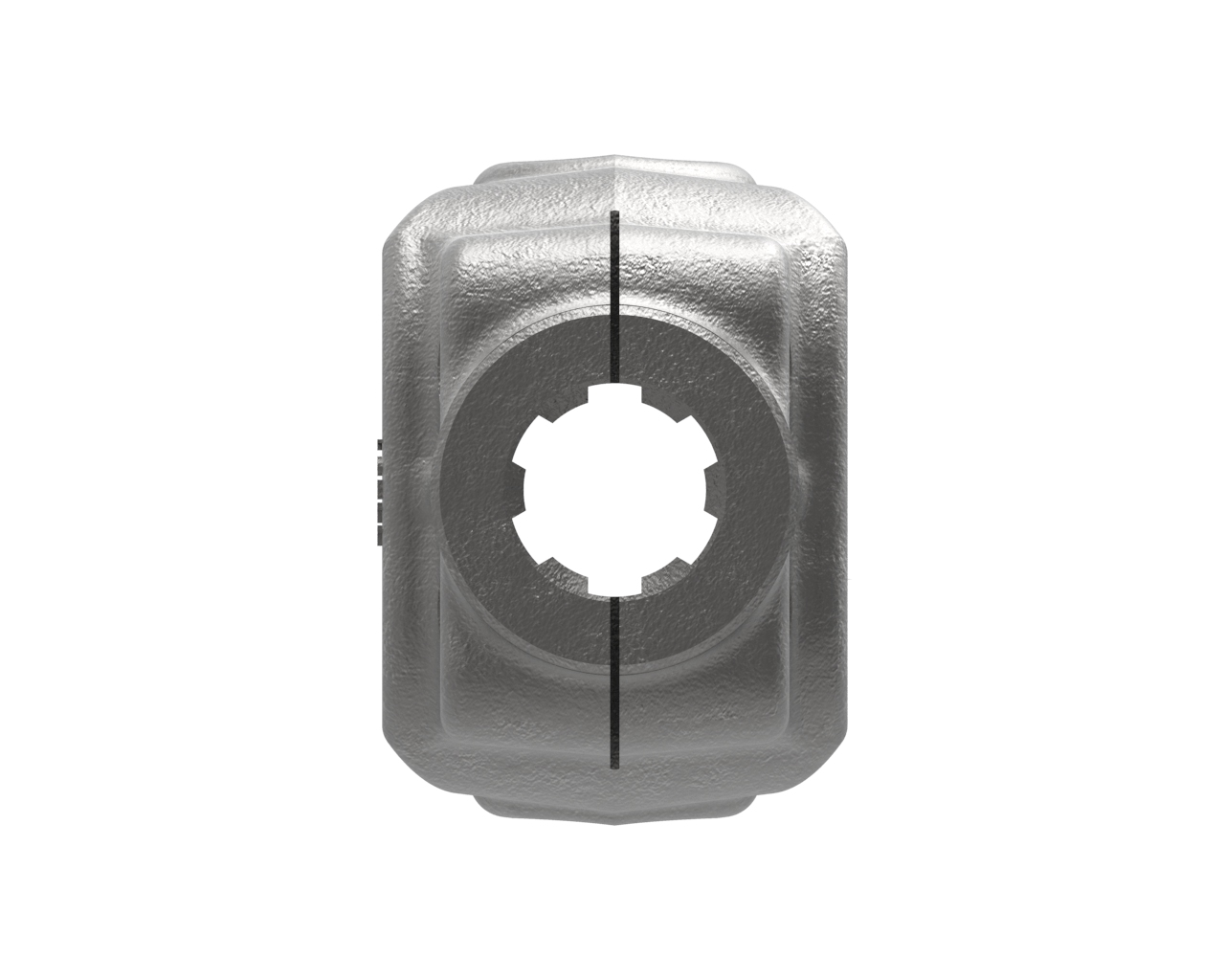

44 series yoke with 1 3/8-6 spline bore and clamp connection

View My List

The clamp yoke allows for a tight connection to a mating shaft to minimize fretting corrosion and wear, using standard hardware.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Connection 1 CLAMP
Height4.50 inches114 mm
HP@1000RPM158 HP118 kilowatts
HP@540RPM103 HP77 kilowatts
Length4.63 inches118 mm
Shipping Dimensions5.57" L  ×  4.5" H  ×  2.5" W14cm L  ×  11cm H  ×  6cm W
Shipping Volume62.66 in31027 cm3
Shipping Weight5.42 pounds2 kilograms
Weight5.42 pounds2 kilograms
Width2.50 inches64 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
Check out the new Aftermarket Make / Model Driveline FinderDOWNLOAD HERE
