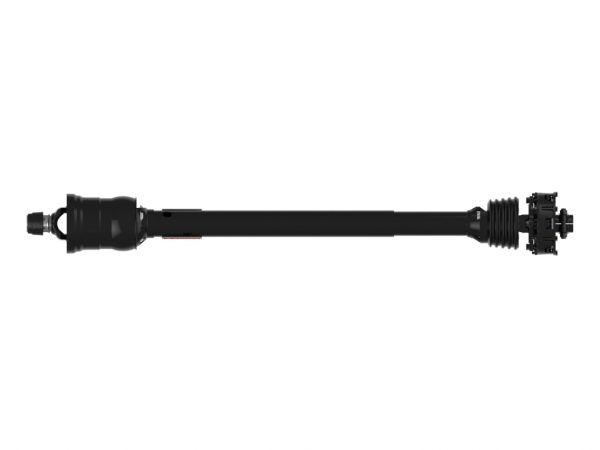

4-80 Series CV Wide Angle PTO Drive Shaft With Torqmaster Free Motion Clutch Yoke

4-80 Series CV Wide Angle PTO Drive Shaft With A 1 3/8-21 Spline Auto-lok Tractor Connection And 12000 Inch-pound Torqmaster Free Motion Clutch Yoke With 1 3/8-21 Spline Clamp Implement Connection

View My List

The Weasler high performance CV Wide Angle PTO drive shafts are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler CV Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.

PERFORMANCE BENEFITS
• Design adjustability (cut-to-length) capabilities.
• Interchangeability to fit with most competitor models.
• Tri-lobe, lemon, and star shaft profiles available.
• Easy lock guard construction allows quick and easy assembly or removal with a simple tool such as a key, coin or screwdriver.
• Available Extended lubrication E-kits reduce downtime with lubrication intervals of 50-250
hours and the high temperature triple lip seal retains grease better.
• Customer dedicated engineering and sales support.

DESIGN FEATURES
• Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
• Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
• Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
• Same component designs used for Weasler’s domestic and metric product lines.

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-21 SPLINE
Bore 21.37 inches35 mm
Bore 2 1 3/8-21 SPLINE
Compressed (Closed) Length46.00 inches1168 mm
Compressed Overall Length57.60 inches1463 mm
Connection 1 AUTO-LOK
Connection 2 CLAMP
Extended Length67.32 inches1710 mm
Extended Overall Length78.95 inches2005 mm
HP@1000RPM99 HP74 kilowatts
HP@540RPM64 HP48 kilowatts
Length57.60 inches1463 mm
Outside Diameter6.75 inches171 mm
Shipping Dimensions46" L  ×  7" H  ×  7" W117cm L  ×  18cm H  ×  18cm W
Shipping Volume2254.00 in336937 cm3

Downloads

Document Name Type Language
Service Instructions - Lubricating 80 Deg CV.pdf Maintenance Document English
Service Instructions - M Type Friction Clutch.pdf Maintenance Document English
Service Instructions - CV Joint.pdf Service Document English
Service Instructions - Universal Joint.pdf Service Document English
Service Instructions - Easy Lock Guards.pdf Service Document English
Service Instructions - M Type Friction Clutch.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle Operating.pdf Troubleshooting Document English
80 deg CV Joint - Over Angle NonOperating.pdf Troubleshooting Document English
WE0101003_1019_USL_80DegConstantVelocityJoint.pdf Performance Benefits Document English
WE0101011_0817_USL_EasyLockGuard.pdf Performance Benefits Document English
WE0101023_0817_USL_M-TypeFrictionClutch.pdf Performance Benefits Document English
