750-3500

4-50 Series Weld Yoke

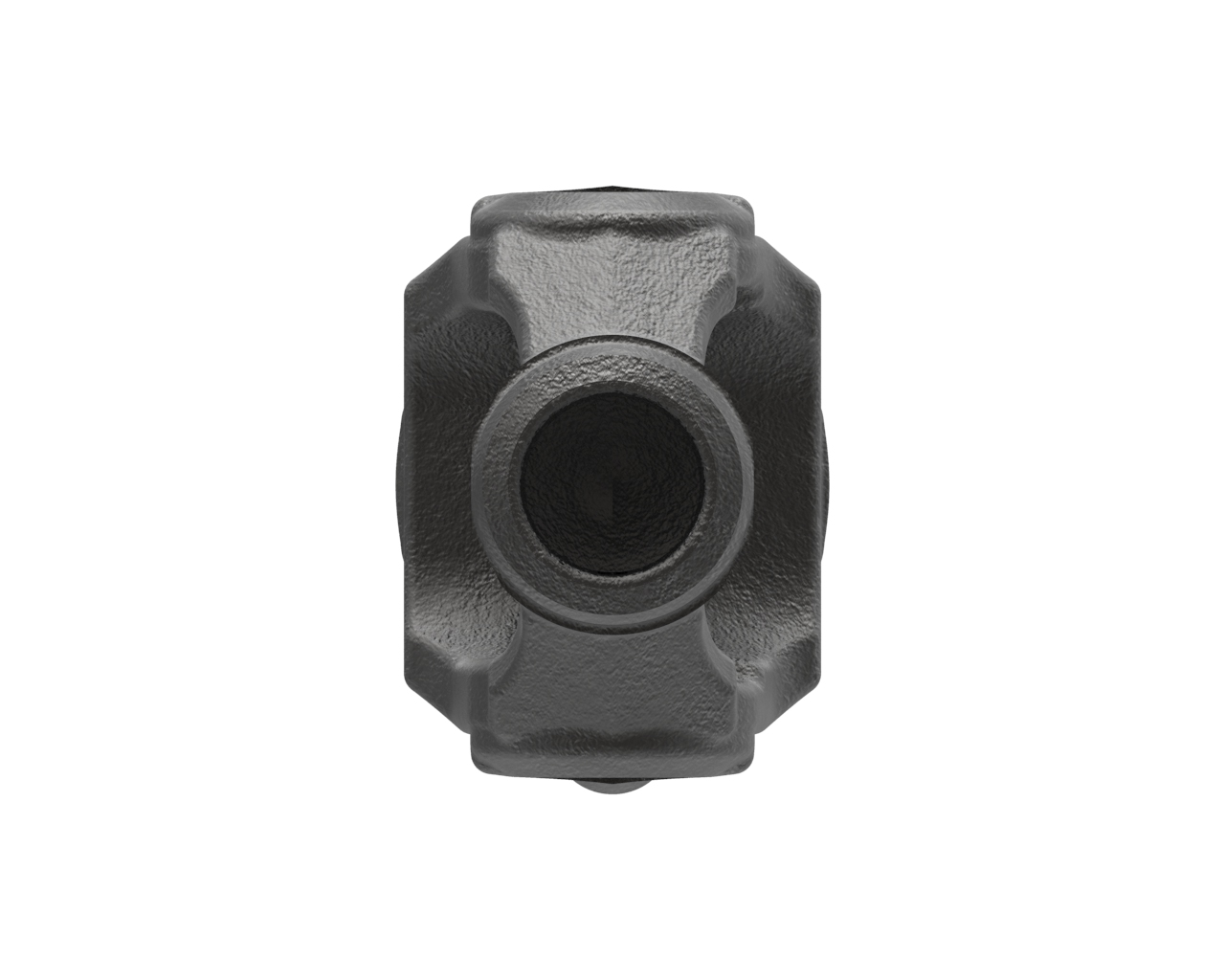

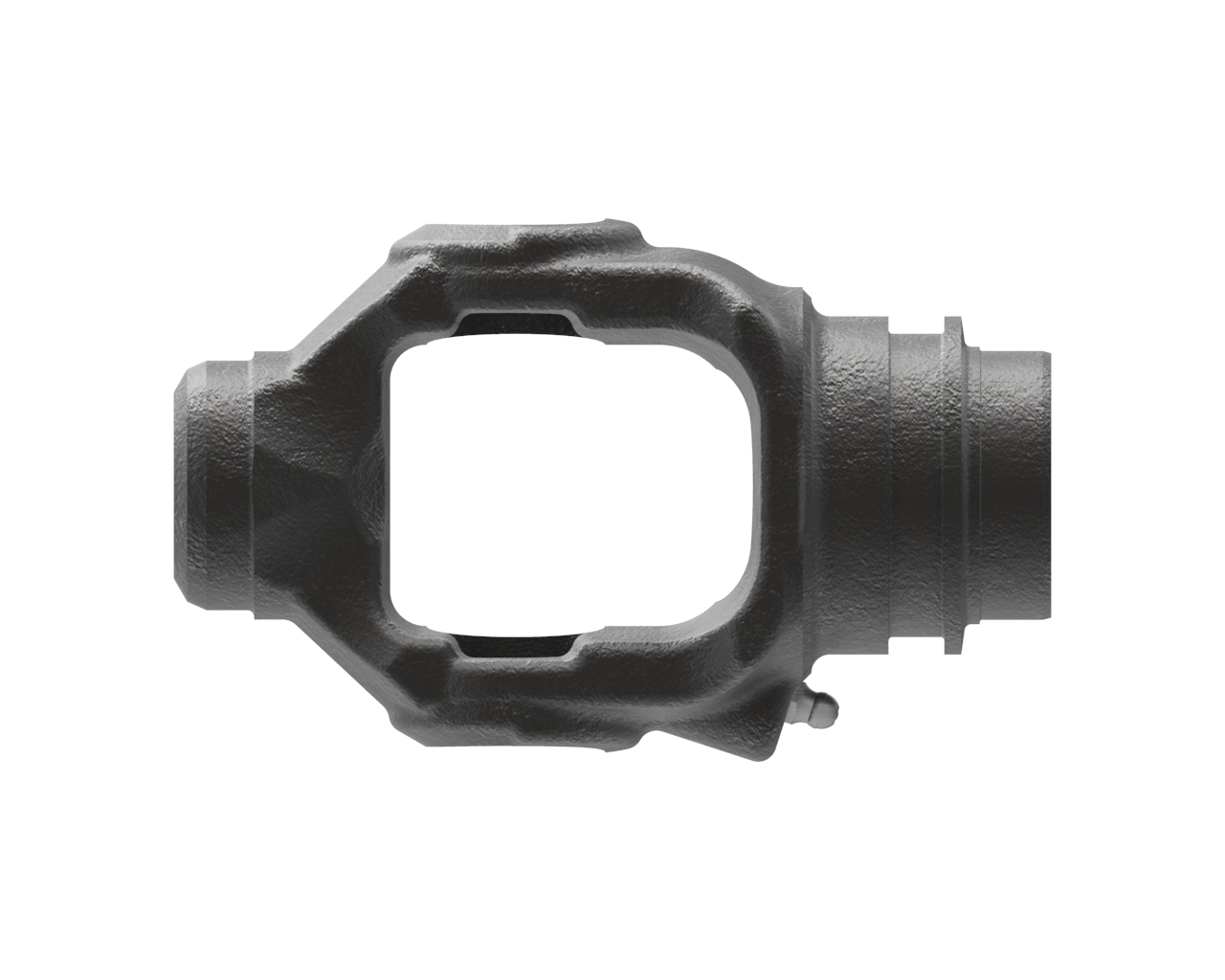

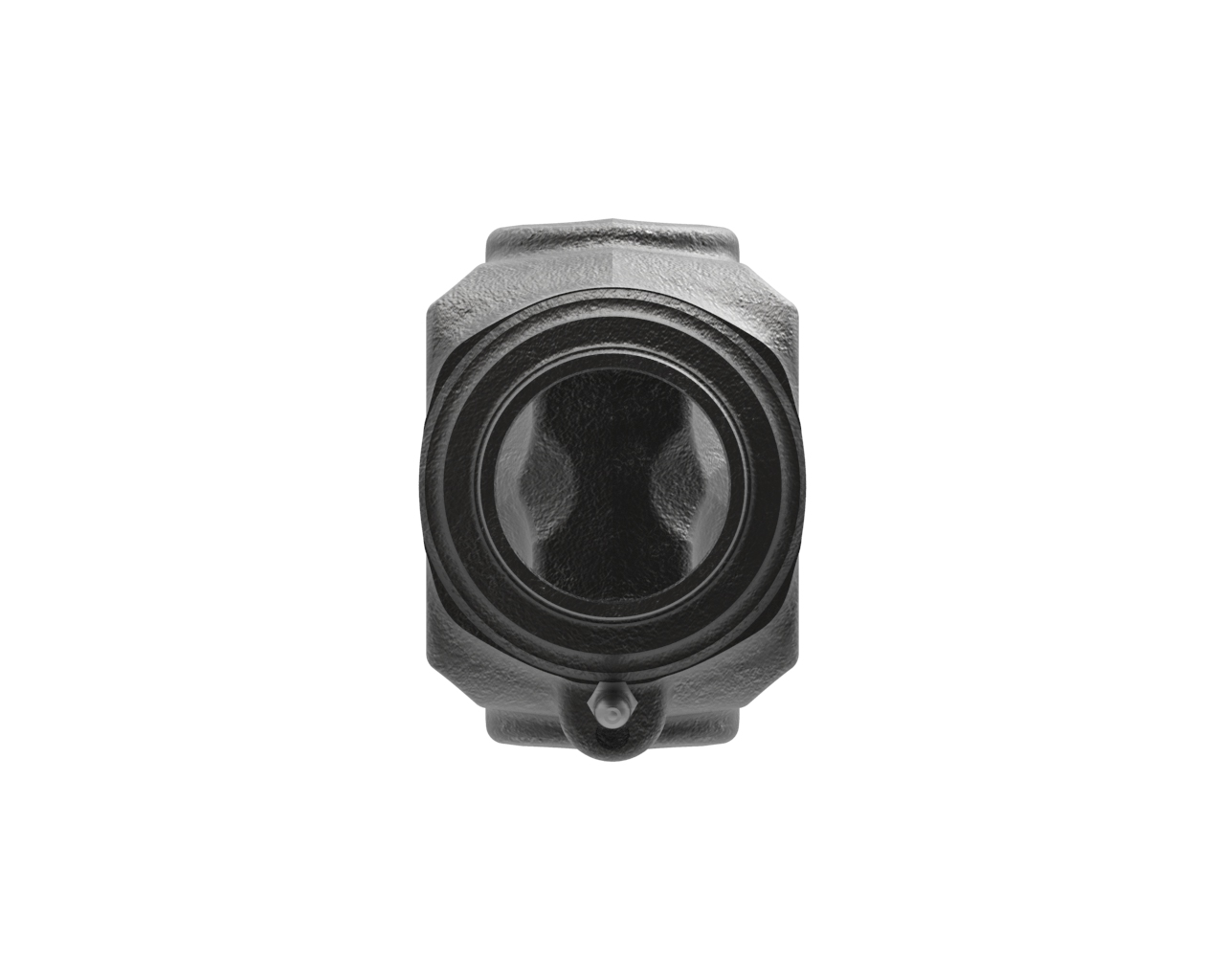

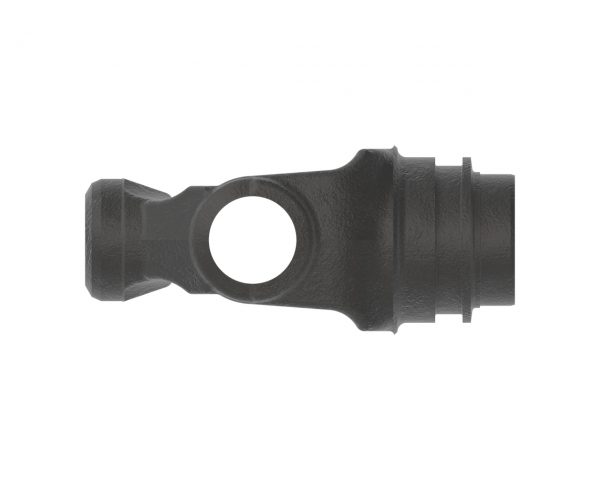

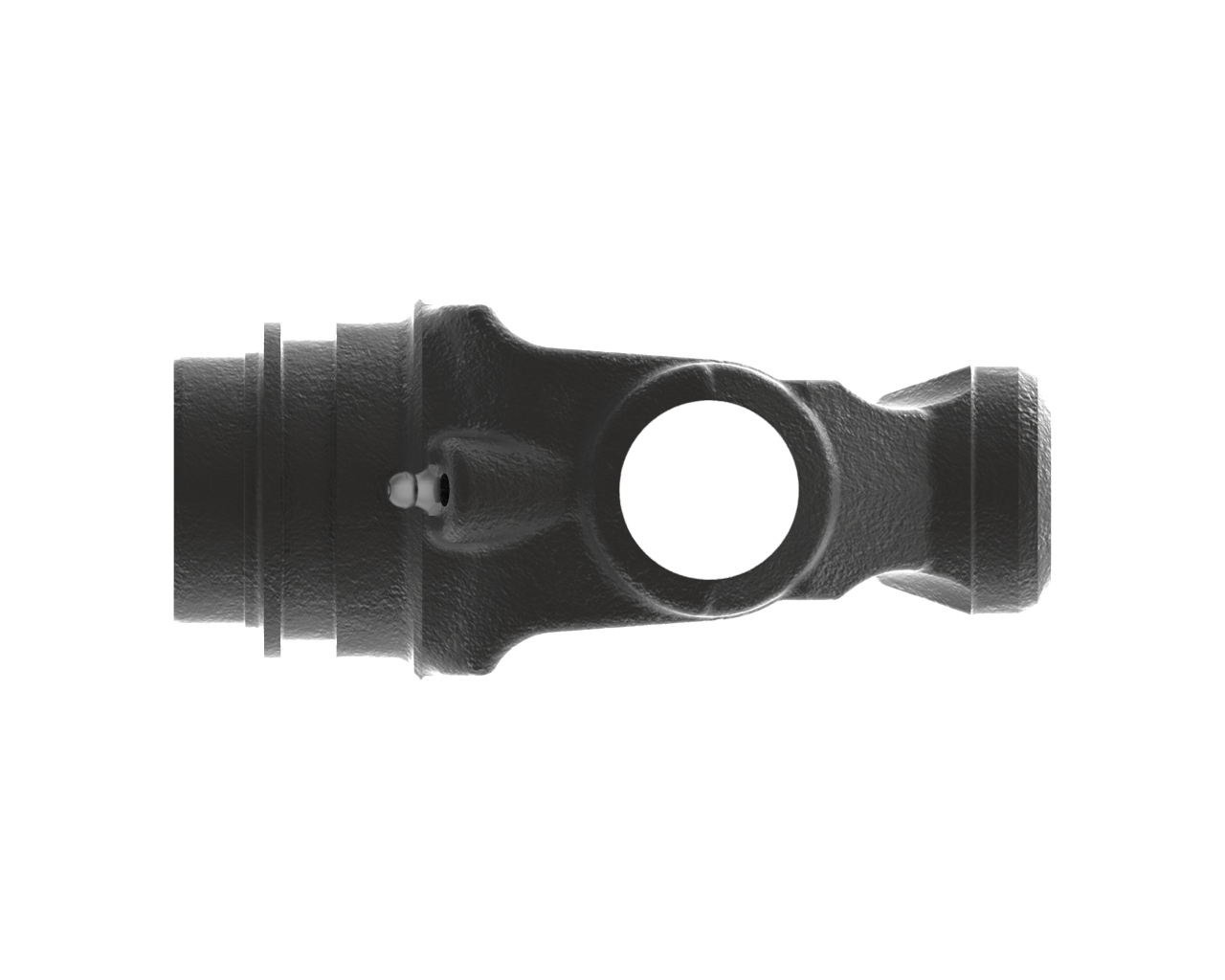

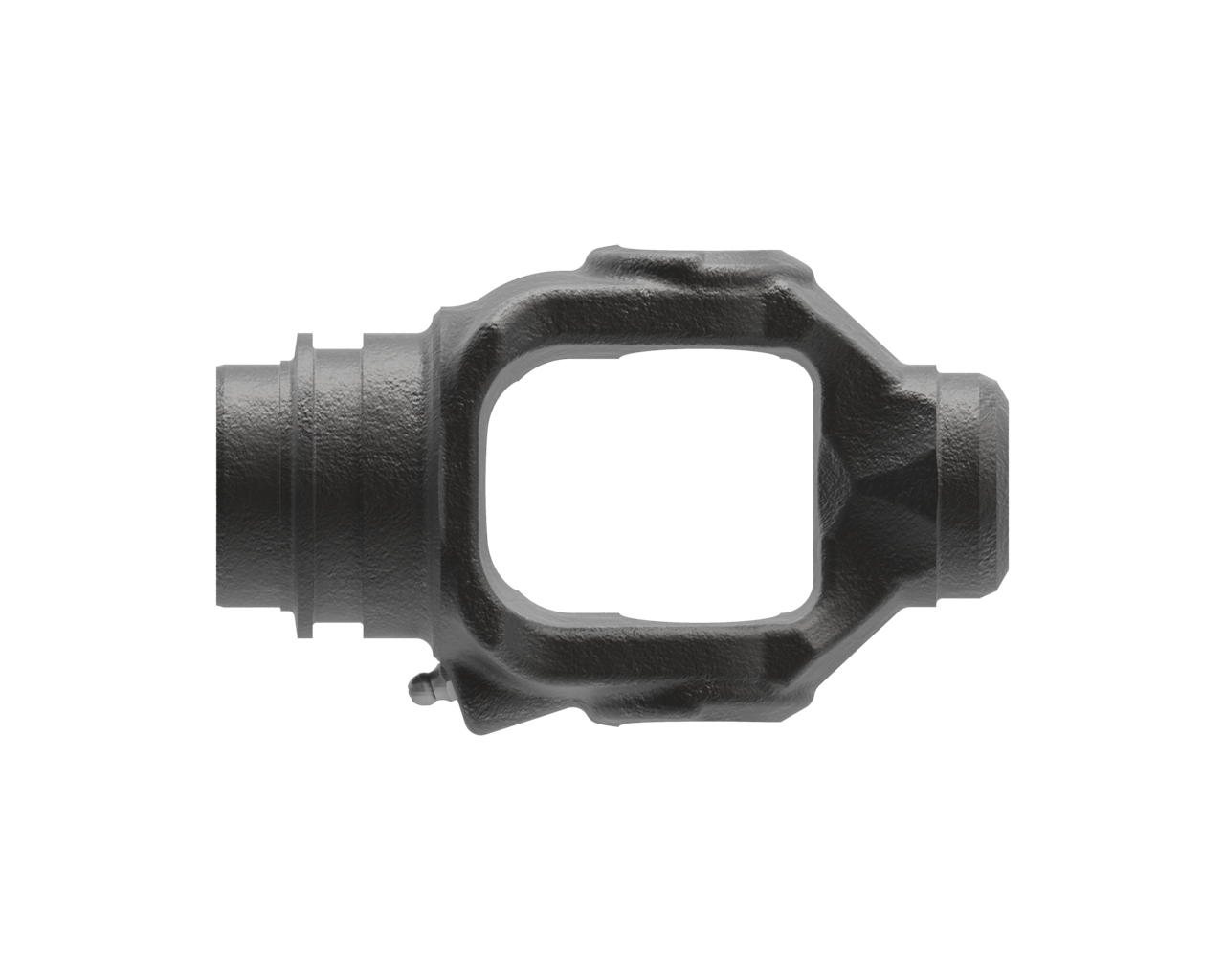

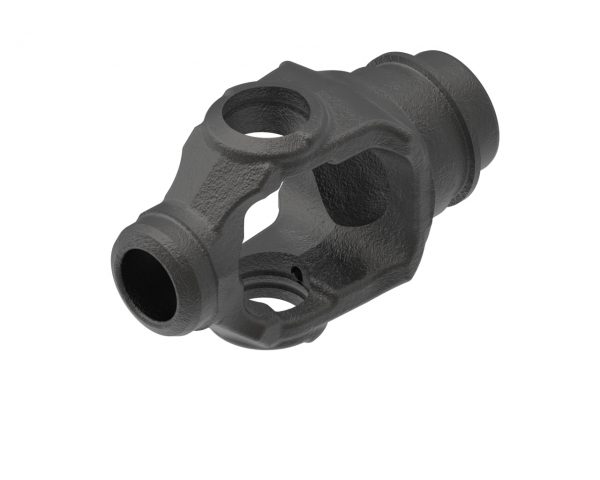

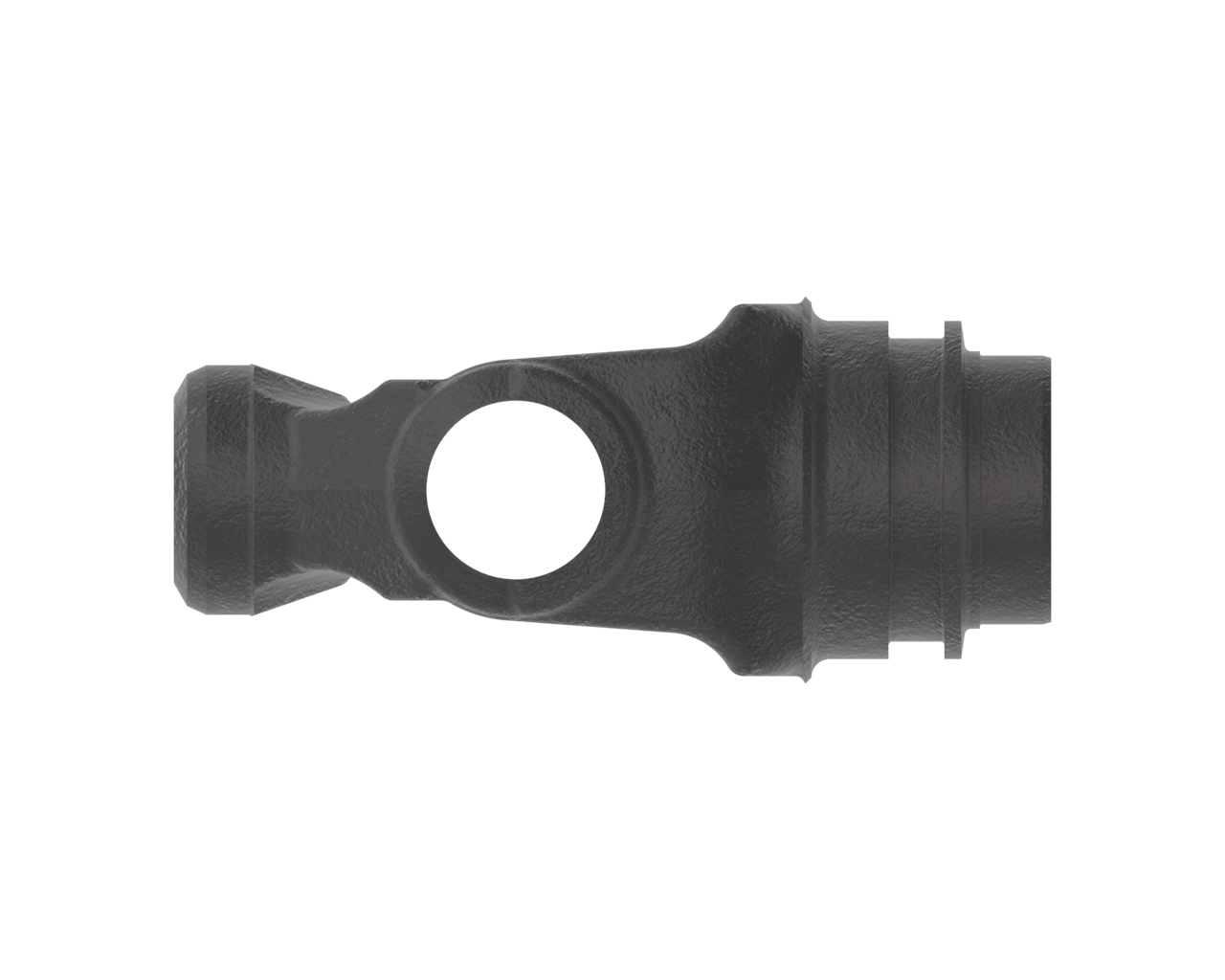

4-50 series yoke with round bore and weld connection

View My List

Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. Weasler CV wide angle yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube shapes.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.60 inches41 mm
Bore 1 ROUND
Connection 1 WELD
Height3.94 inches100 mm
HP@1000RPM119 HP89 kilowatts
HP@540RPM77 HP57 kilowatts
Length3.75 inches95 mm
Outside Diameter2.37 inches60 mm
Shipping Dimensions6.5" L  ×  3.94" H  ×  2.375" W17cm L  ×  10cm H  ×  6cm W
Shipping Volume60.82 in3997 cm3
Shipping Weight4.00 pounds2 kilograms
Weight4.00 pounds2 kilograms
Width2.37 inches60 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating 50 Deg CV.pdf Maintenance Document English
Service Instructions - CV Joint.pdf Service Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
50 deg CV Joint - Over Angle.pdf Troubleshooting Document English
WE0101001_0118_USL_50DegConstantVelocityJoint.pdf Performance Benefits Document English
