151-3521

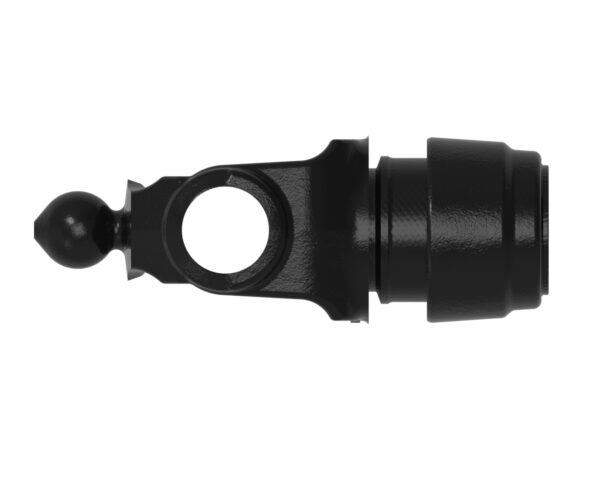

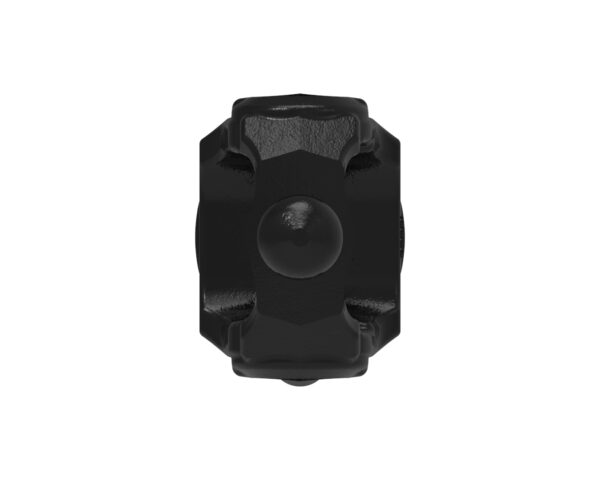

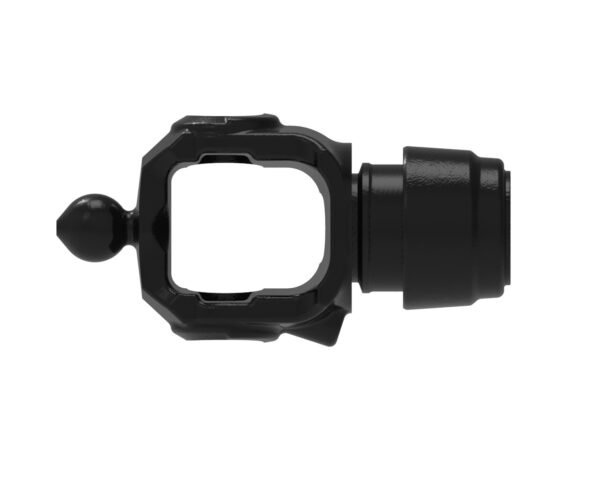

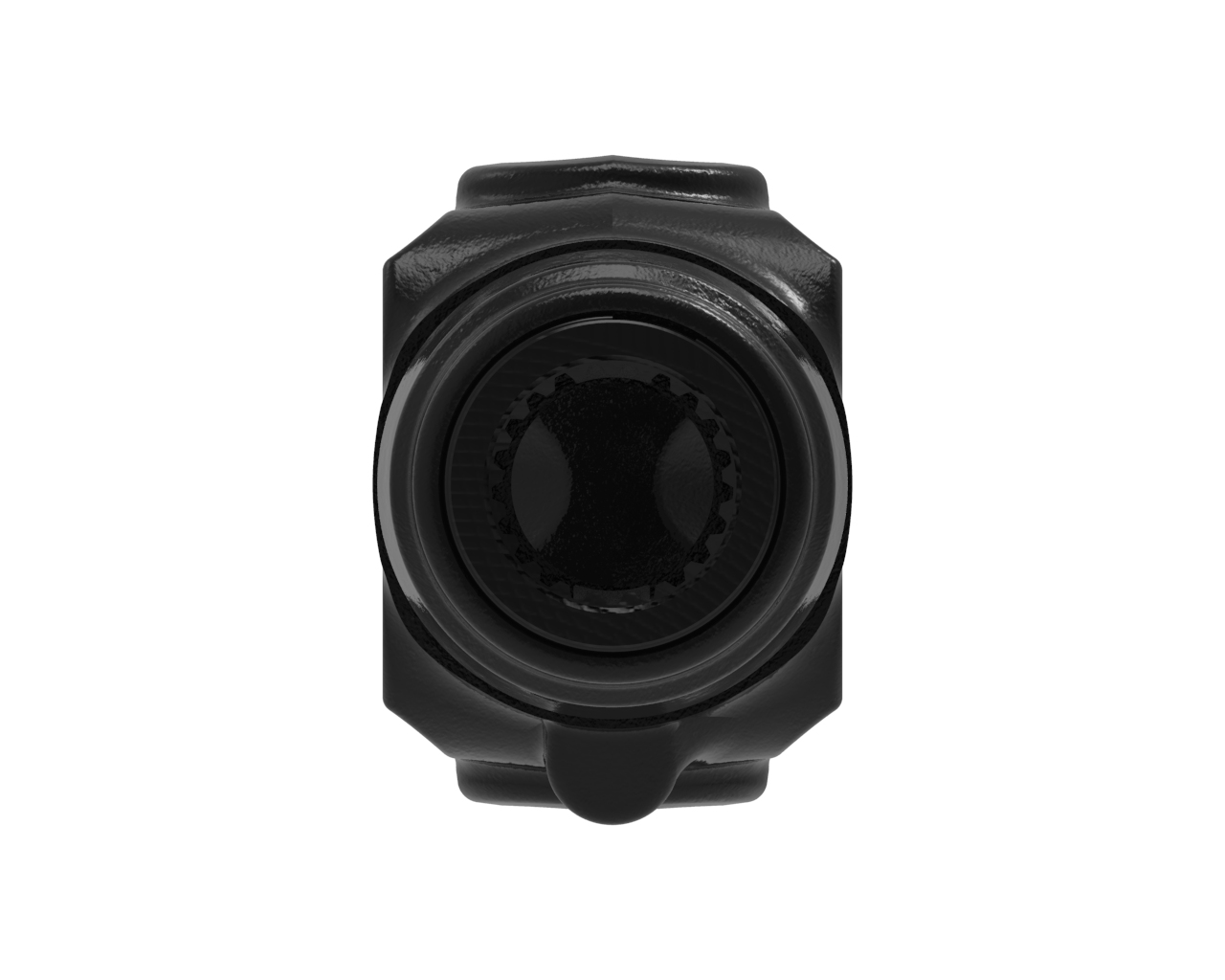

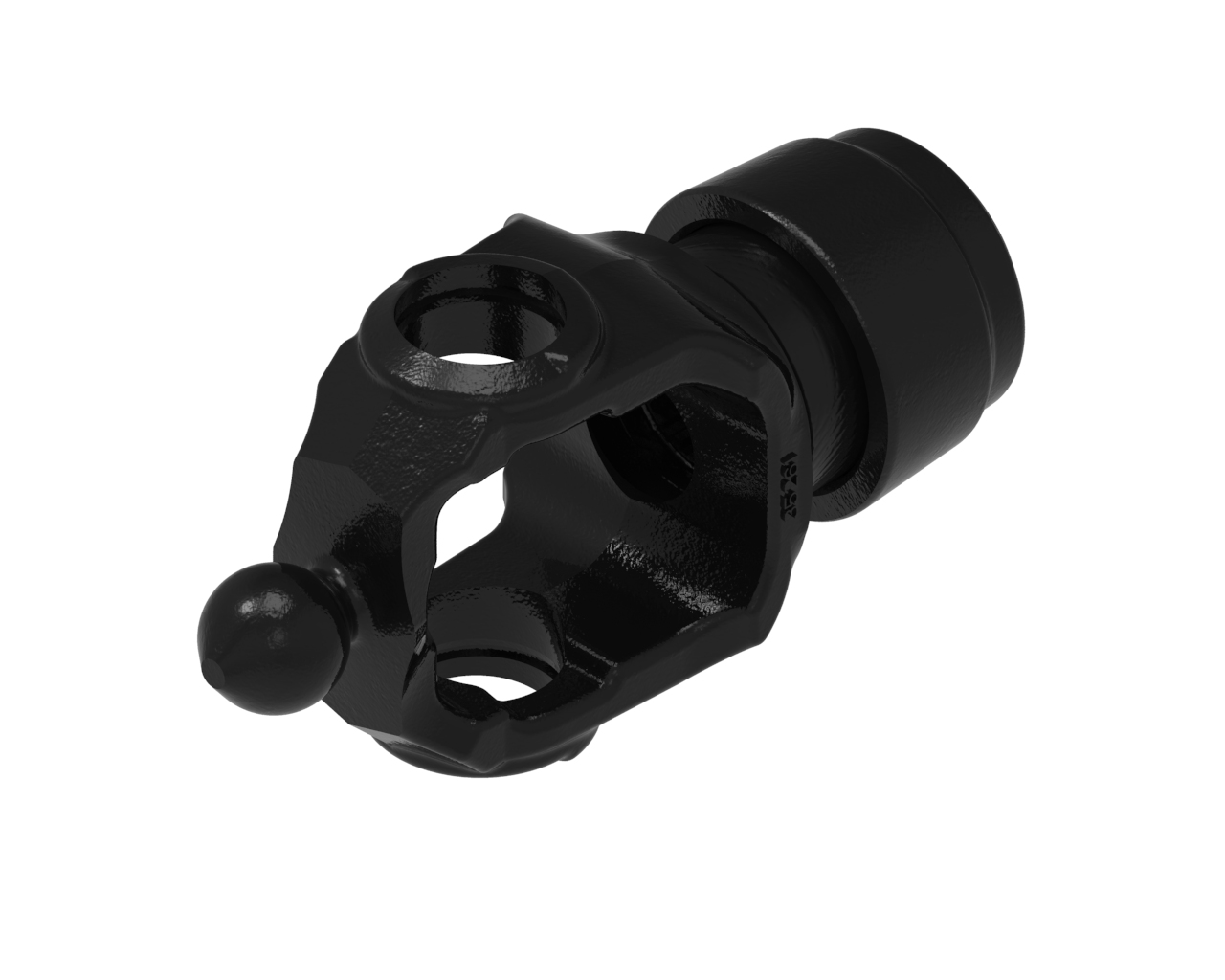

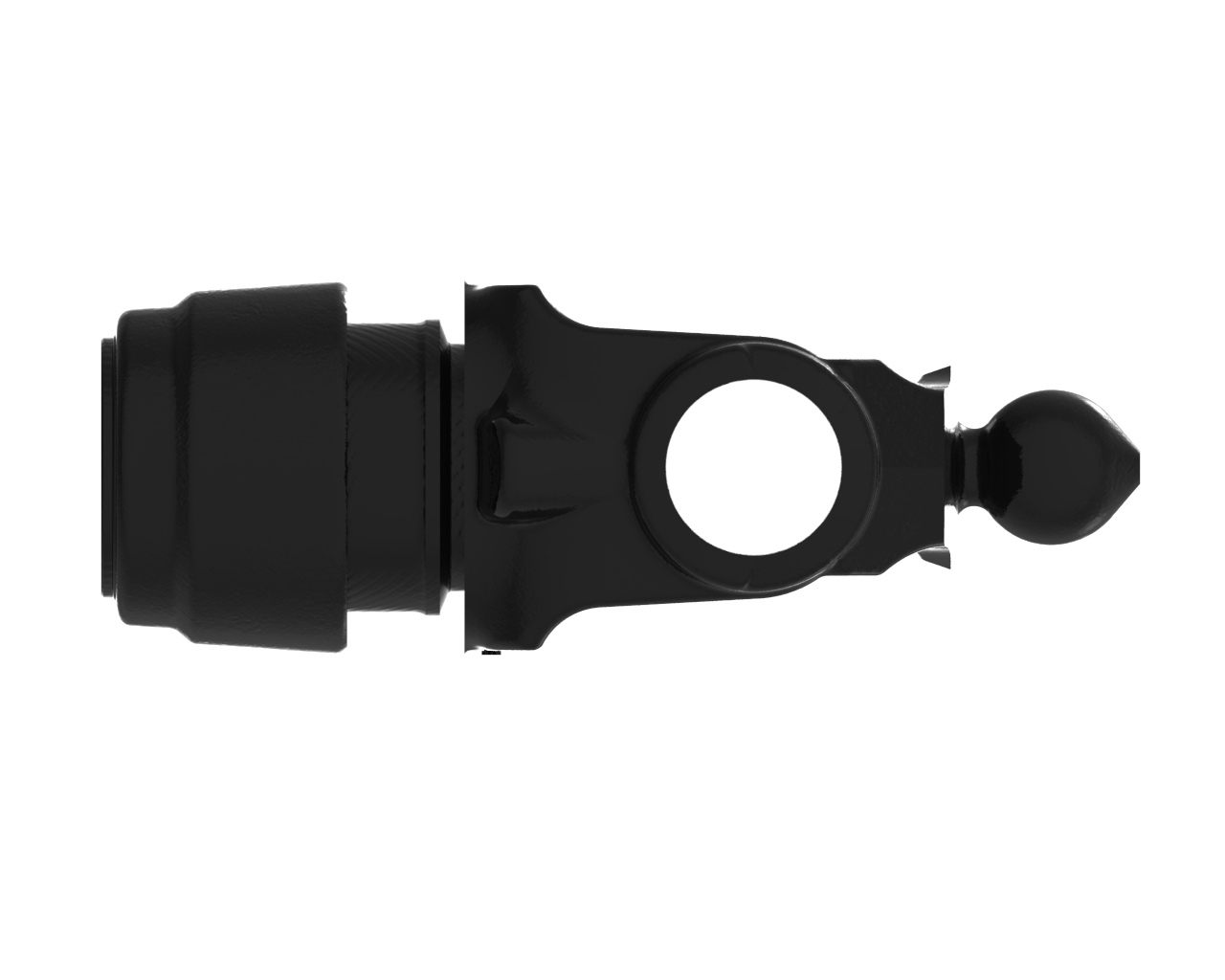

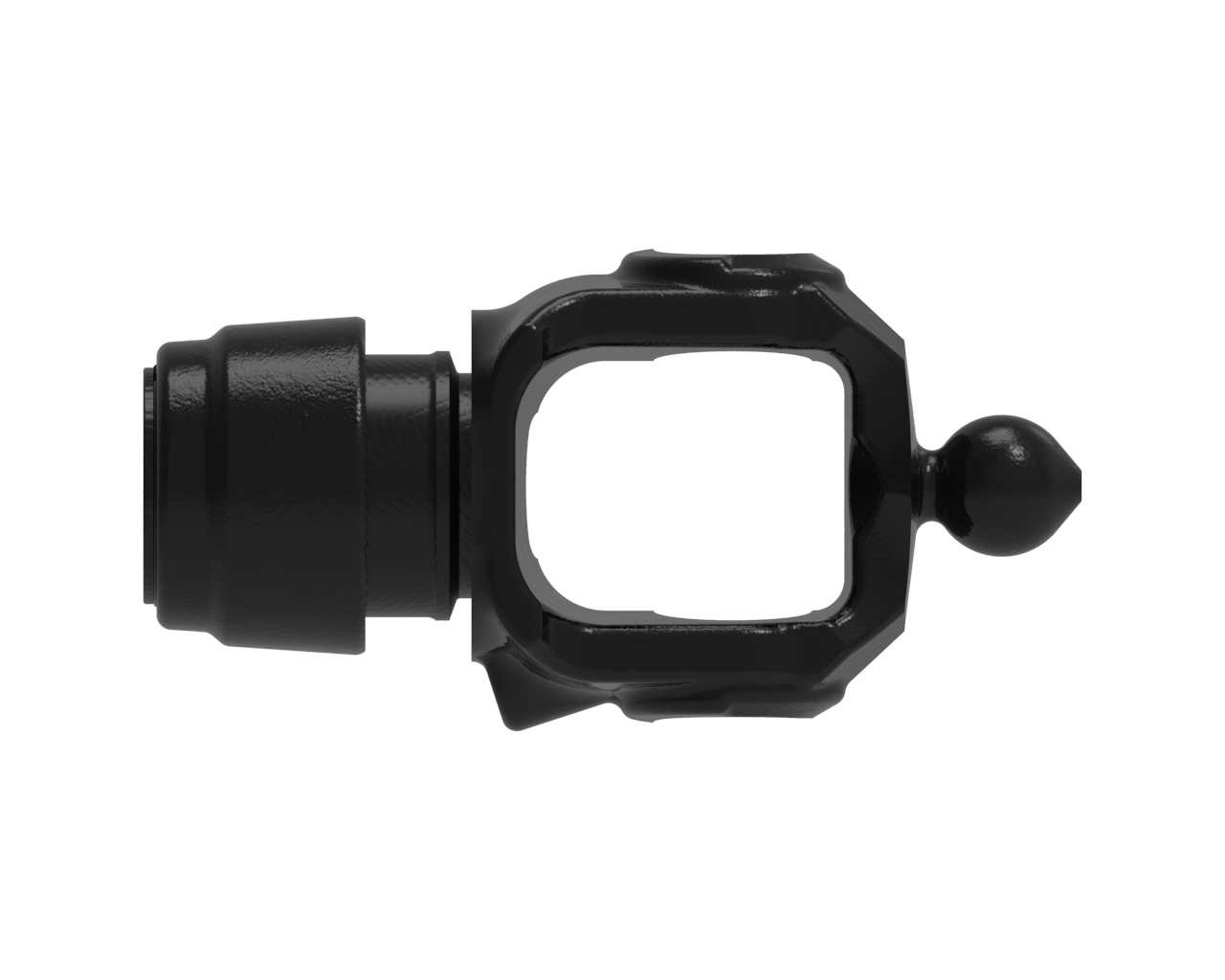

4-50 Series Safety Slide Lock Yoke

4-50 series yoke with 1 3/8-21 spline bore and safety slide lock connection

View My List

PTO drive shafts begin with a tractor yoke, it is the leading connection between the the tractor and the driveline. Weasler provides the CV wide angle tractor yokes with auto-lok or safety slide lock connections, and all connection types can be included on a 50° CV or 80° CV drive shaft or assembly. All yokes are compliant with, ANSI/ASABE AD5673, ANSI/ASABE S604 and EN1265. Agricultural CV wide angle tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-21 SPLINE
Connection 1 SAFETY SLIDE LOCK
Height3.91 inches99 mm
HP@1000RPM119 HP89 kilowatts
HP@540RPM77 HP57 kilowatts
Length4.65 inches118 mm
Shipping Dimensions7.407" L  ×  3.91" H  ×  2.75" W19cm L  ×  10cm H  ×  7cm W
Shipping Volume79.64 in31305 cm3
Shipping Weight5.00 pounds2 kilograms
Weight5.00 pounds2 kilograms
Width2.75 inches70 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating 50 Deg CV.pdf Maintenance Document English
Service Instructions - CV Joint.pdf Service Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
50 deg CV Joint - Over Angle.pdf Troubleshooting Document English
WE0101001_0118_USL_50DegConstantVelocityJoint.pdf Performance Benefits Document English

Support Videos

Performance Benefits Video
