304-3536

3-50 Series Roll Pin Yoke

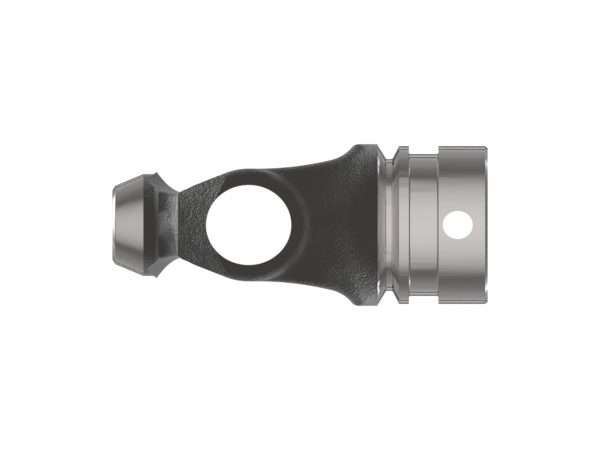

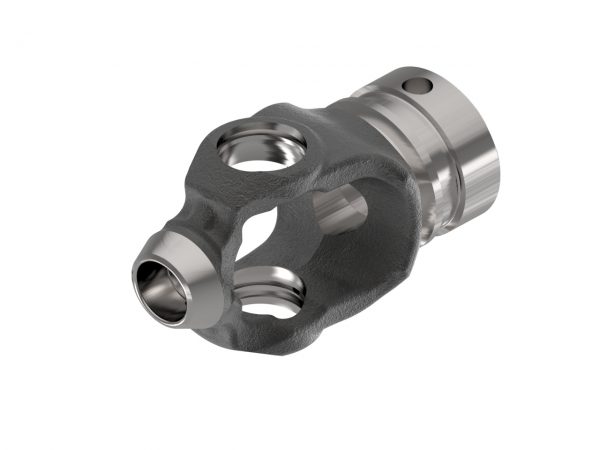

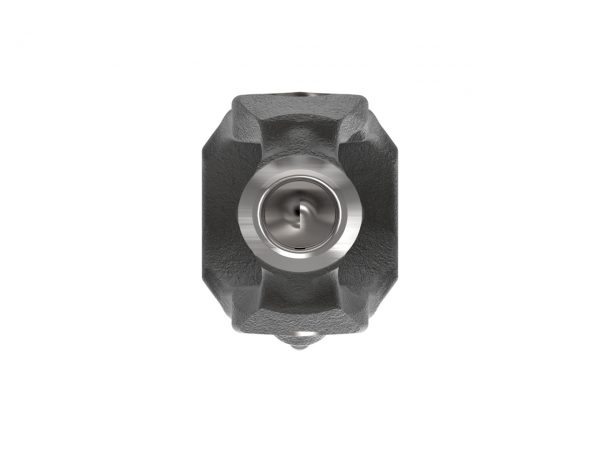

3-50 series yoke with 36 mm trilobe bore and roll pin connection. Note: Image color may not represent actual part.

This product is currently only available to customers in Europe and may not be available in your region. For more information about product availability feel free to contact us with any questions.

View My List

CV wide angle shaft yokes (or inner profile yokes) connect the cross and bearing kits to the telescoping shaft or inner tube. CV wide angle tube yokes (or outer profile yokes), connect the other cross and bearing kits to the opposite side of the telescoping shaft or outer tube. Weasler provides both domestic (North American) and Weasler Profile metric shaft and tube yoke connection options. Domestic yokes are provided as square, rectangle, hexagon or splined in shape. Weasler Profile metric yokes are provided as lemon, star, or trilobe in shape.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.41 inches36 mm
Bore 1 36 MM TRILOBE
Connection 1 ROLL PIN
Height3.07 inches78 mm
HP@1000RPM63 HP47 kilowatts
HP@540RPM41 HP31 kilowatts
Length3.15 inches80 mm
Outside Diameter2.22 inches56 mm
Pin Hole0.39 inches10 mm
Shipping Dimensions5.169" L  ×  3.07" H  ×  3" W13cm L  ×  8cm H  ×  8cm W
Shipping Volume47.61 in3780 cm3
Width3.00 inches76 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating 50 Deg CV.pdf Maintenance Document English
Service Instructions - CV Joint.pdf Service Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
50 deg CV Joint - Over Angle.pdf Troubleshooting Document English
WE0101001_0118_USL_50DegConstantVelocityJoint.pdf Performance Benefits Document English
