CV WIDE ANGLE UNIVERSAL JOINT3-50 Series CV Wide Angle Universal Joint

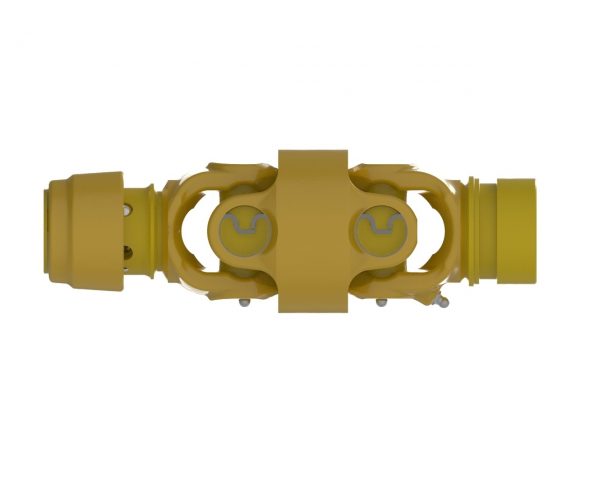

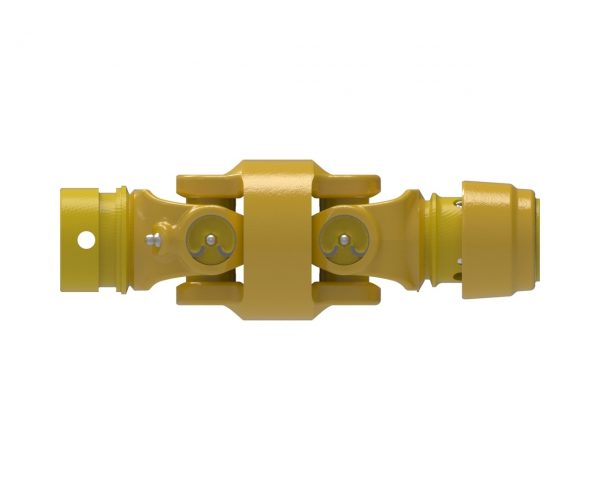

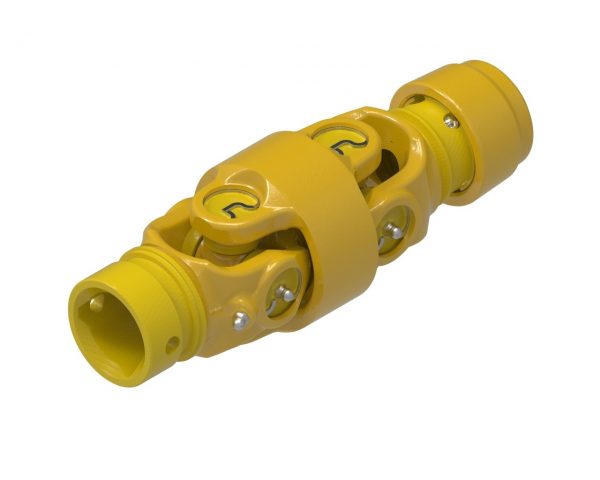

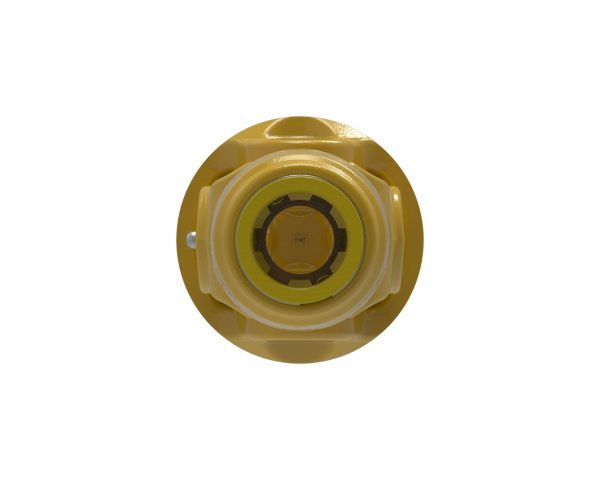

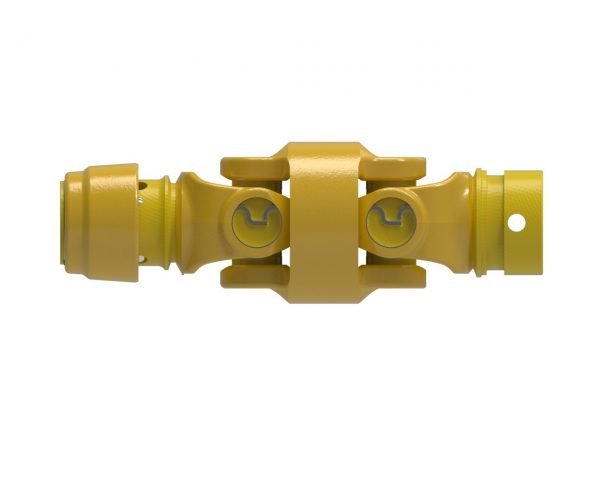

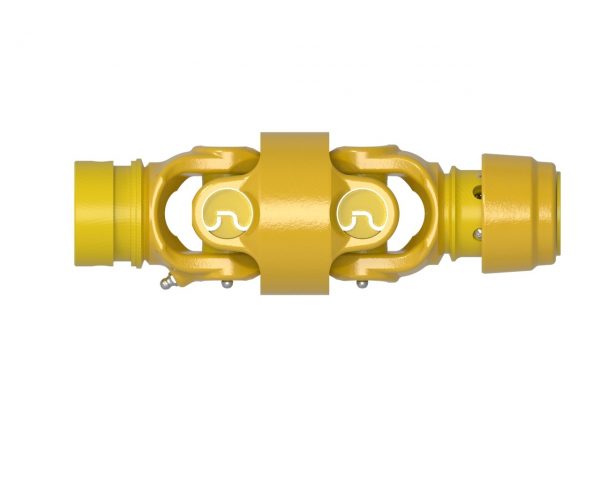

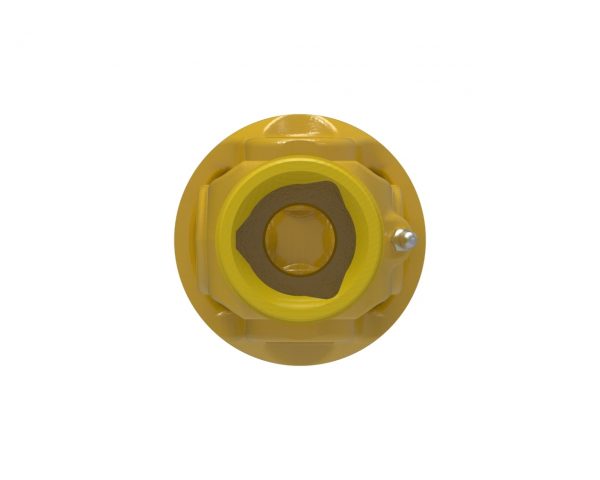

3-50 series CV wide angle universal joint with 1 3/8-6 spline, auto-lok connection and 43 mm trilobe, roll pin connection. Note: Image color may not represent actual part.
The CV Wide Angle Universal Joint is a component of the Weasler high performance CV Wide Angle PTO drive shafts, which are the foremost drive shaft solution in the agriculture and lawn & turf industries . Weasler CV Wide Angle PTO driveshafts are complete assemblies from tractor to implement. They are designed for continuous heavy-duty all purpose use and meet the requirements of large farms and contractors. Weasler CV Wide Angle yokes are made from steel to withstand robust conditions, and engineered for a precise fit. CV wide angle yokes allow a rotating shaft to transmit power through a variable angle, at constant rotational velocity, without an appreciable increase in vibration or friction. The metric product line offering of PTO drive shafts, Weasler Profile, meets and/or exceeds the quality of products currently offered by our competitors within a multitude of industries.
PERFORMANCE BENEFITS
DESIGN FEATURES
Fits Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation.
Yokes: Interchangeable with all other Weasler yokes and standard yokes available in the market, Cast iron collars,Through-Bore keeps debris from collecting inside.
Cross & Bearing Kits: High torque capacity and longer life, Manufactured with high quality steel for increased strength, Standard kits can be upgraded to or interchanged with E-Kits.
Same component designs used for Weasler’s domestic and metric product lines.
Specifications
Spec. | Imperial | Metric |
---|---|---|
Bore 1 | 1.37 inches | 35 mm |
Bore 1 | 1 3/8-6 SPLINE | |
Bore 2 | 1.75 inches | 44 mm |
Bore 2 | 43 MM TRILOBE | |
Compressed (Closed) Length | 3.00 inches | 76 mm |
Compressed Overall Length | 10.79 inches | 274 mm |
Connection 1 | AUTO-LOK | |
Connection 2 | ROLL PIN | |
Extended Length | 3.00 inches | 76 mm |
Extended Overall Length | 10.79 inches | 274 mm |
HP@1000RPM | 48 HP | 36 kilowatts |
HP@540RPM | 31 HP | 23 kilowatts |
Length | 10.79 inches | 274 mm |
Outside Diameter | 3.62 inches | 92 mm |
Shipping Dimensions | 10.799" L × 3.62" H × 3.62" W | 27cm L × 9cm H × 9cm W |
Shipping Volume | 141.51 in3 | 2319 cm3 |
Shipping Weight | 10.30 pounds | 5 kilograms |
Weight | 10.30 pounds | 5 kilograms |
