701-1400
TUBE WELD YOKE14 Series Weld Yoke

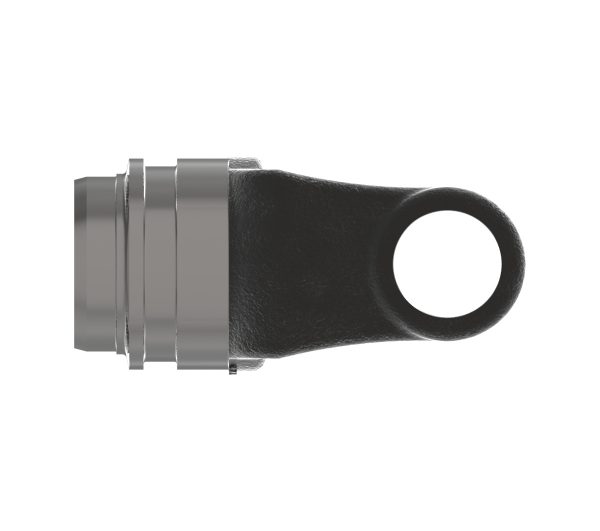

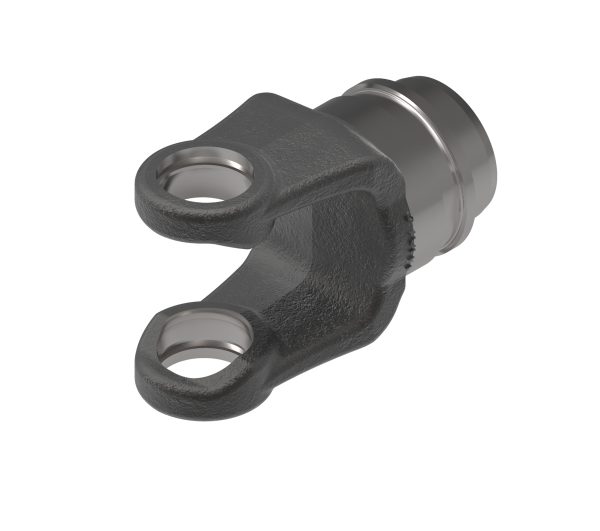

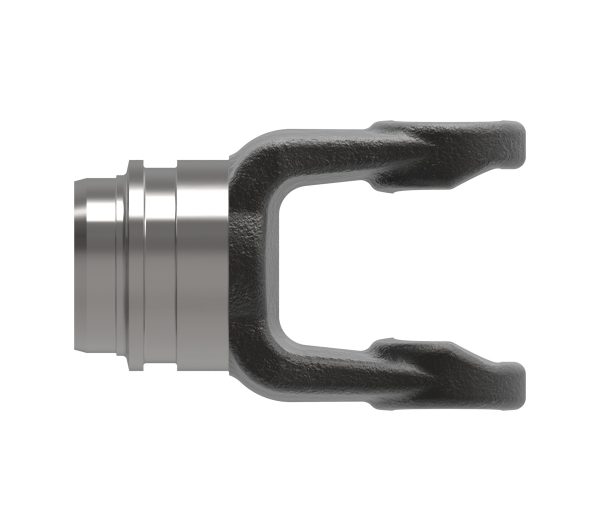

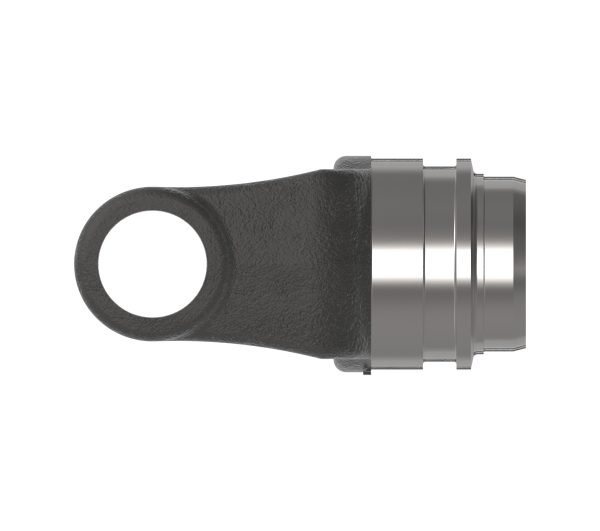

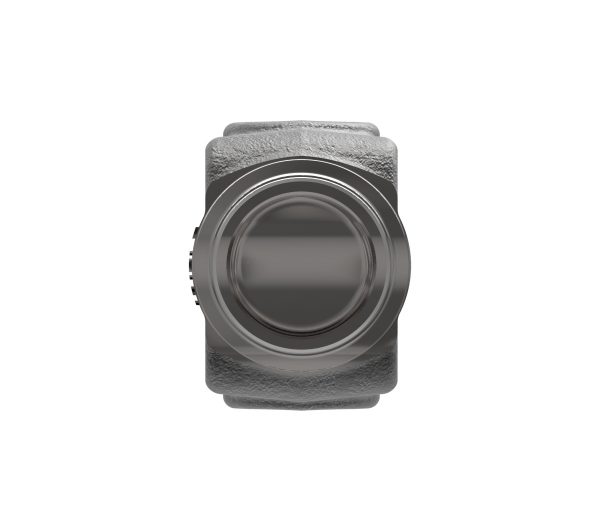

14 series yoke with solid bore and weld connection
Weasler yoke weldment assemblies provide yoke to shaft and yoke to tube weldment options that are offered in both North American (domestic) , German, and Italian shaft and tube profiles.
PERFORMANCE BENEFITS
Specifications
| Spec. | Imperial | Metric |
|---|---|---|
| Bore 1 | 0.00 inches | 0 mm |
| Bore 1 | SOLID | |
| Connection 1 | WELD | |
| Height | 3.38 inches | 86 mm |
| HP@1000RPM | 58 HP | 43 kilowatts |
| HP@540RPM | 38 HP | 28 kilowatts |
| Length | 3.87 inches | 98 mm |
| Outside Diameter | 2.25 inches | 57 mm |
| Shipping Dimensions | 4.69" L × 3.38" H × 2.31" W | 12cm L × 9cm H × 6cm W |
| Shipping Volume | 36.62 in3 | 600 cm3 |
| Shipping Weight | 2.40 pounds | 1 kilograms |
| Weight | 2.40 pounds | 1 kilograms |
| Width | 2.31 inches | 59 mm |
Downloads
| Document Name | Type | Language |
|---|---|---|
| Service Instructions - Lubricating PTO Drive Shaft.pdf | Maintenance Document | English |
| Service Instructions - Universal Joint.pdf | Service Document | English |
| Lack of Grease - Cross & Brg Kit.pdf | Troubleshooting Document | English |
