804-1420

14 Series Setscrew Yoke

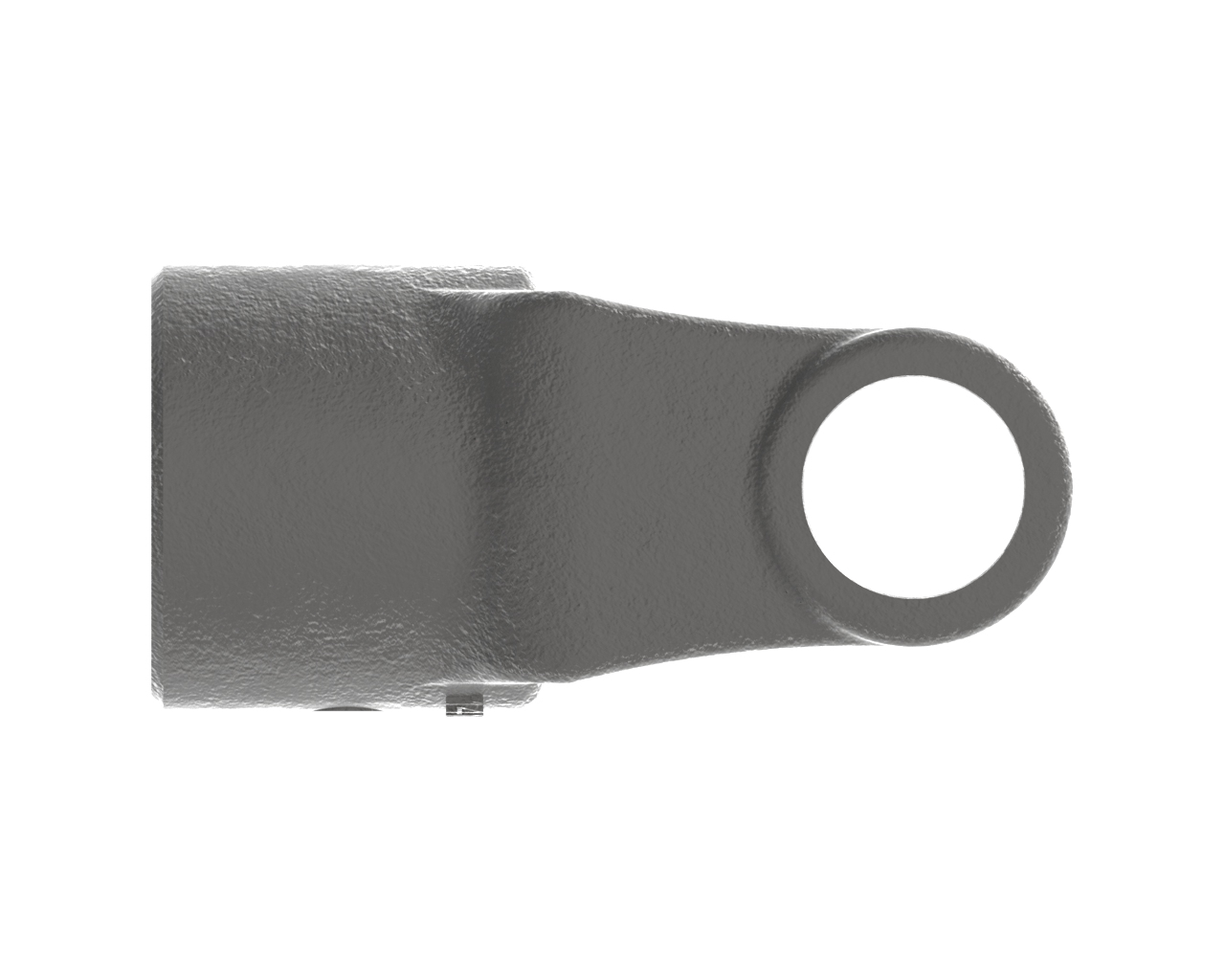

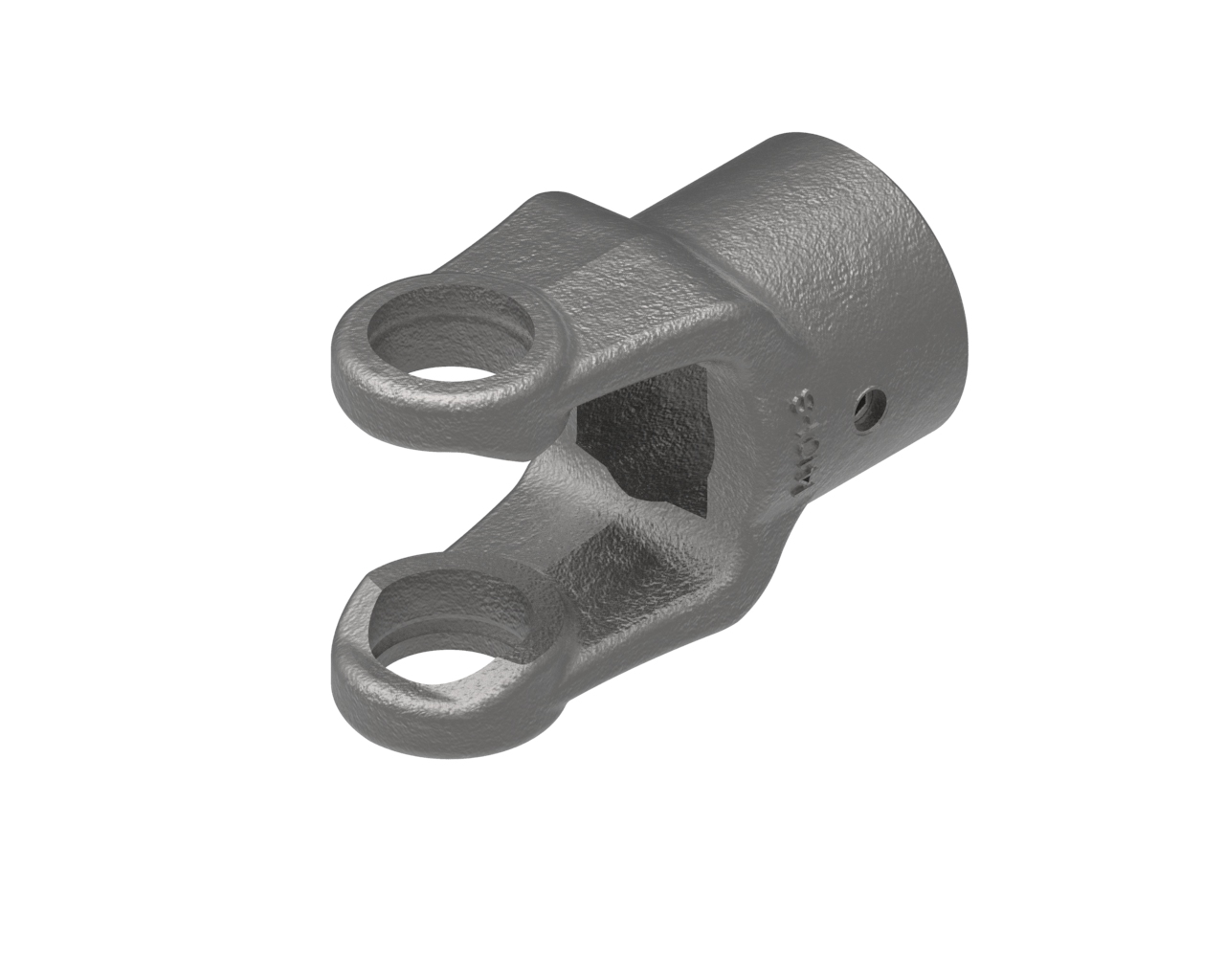

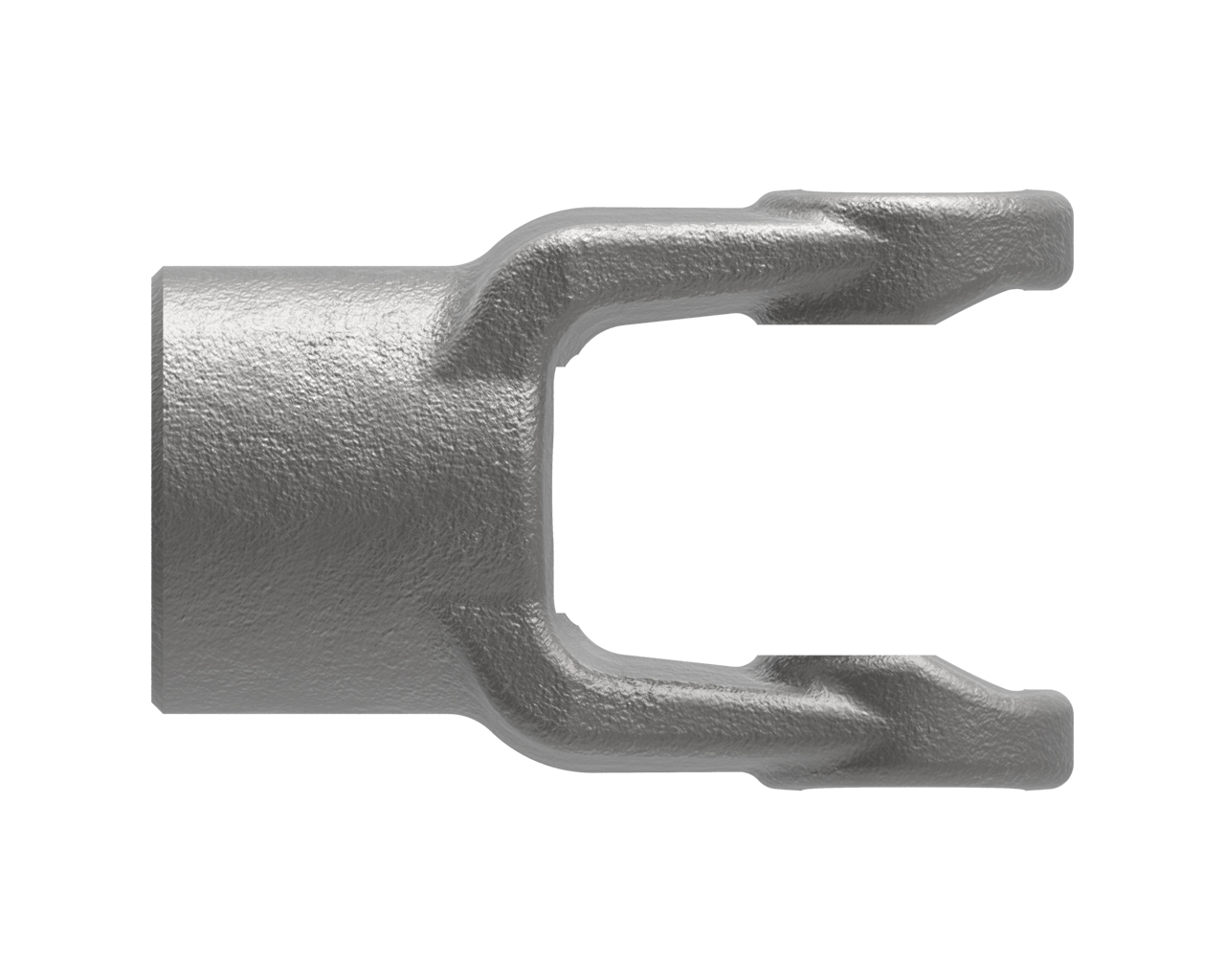

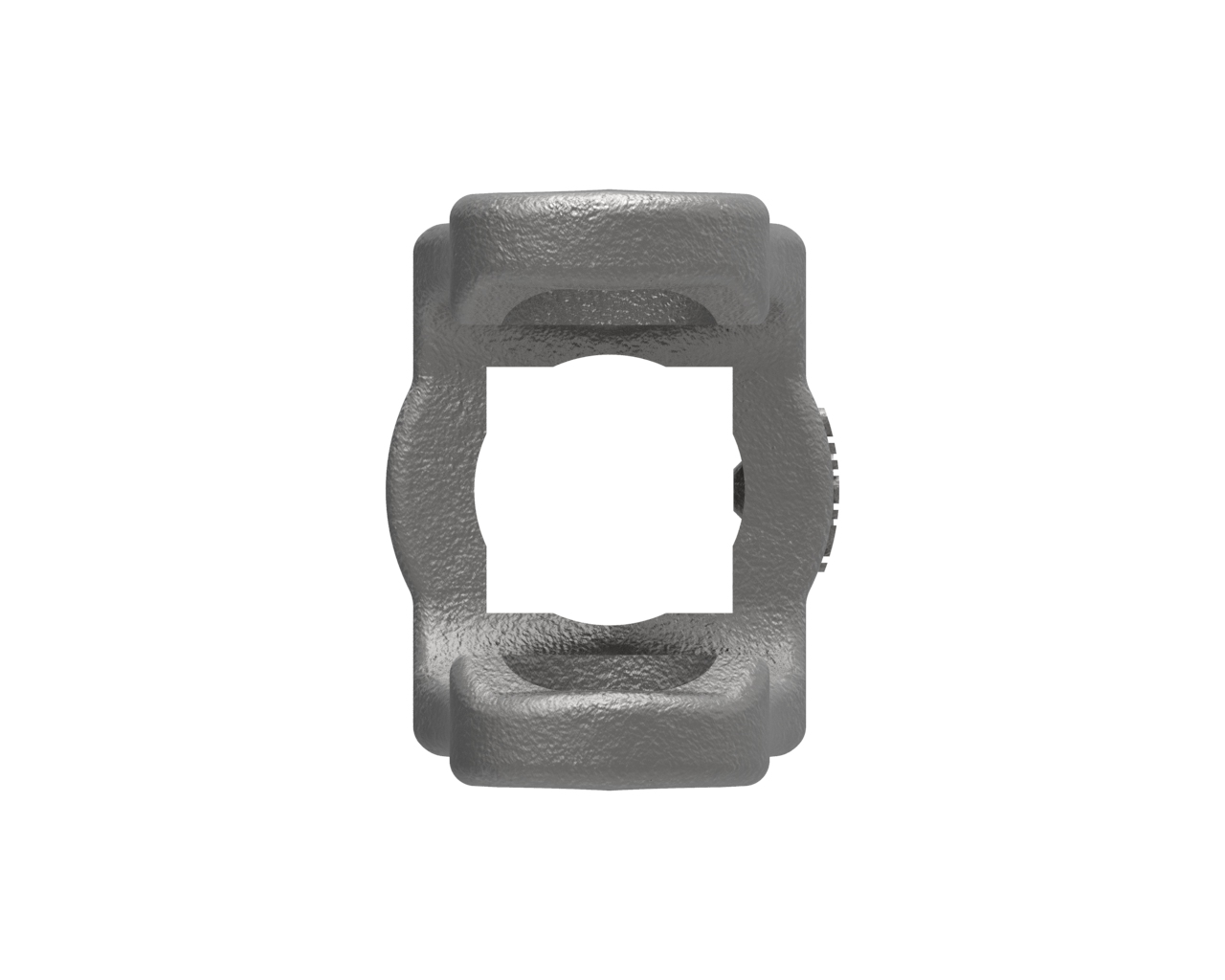

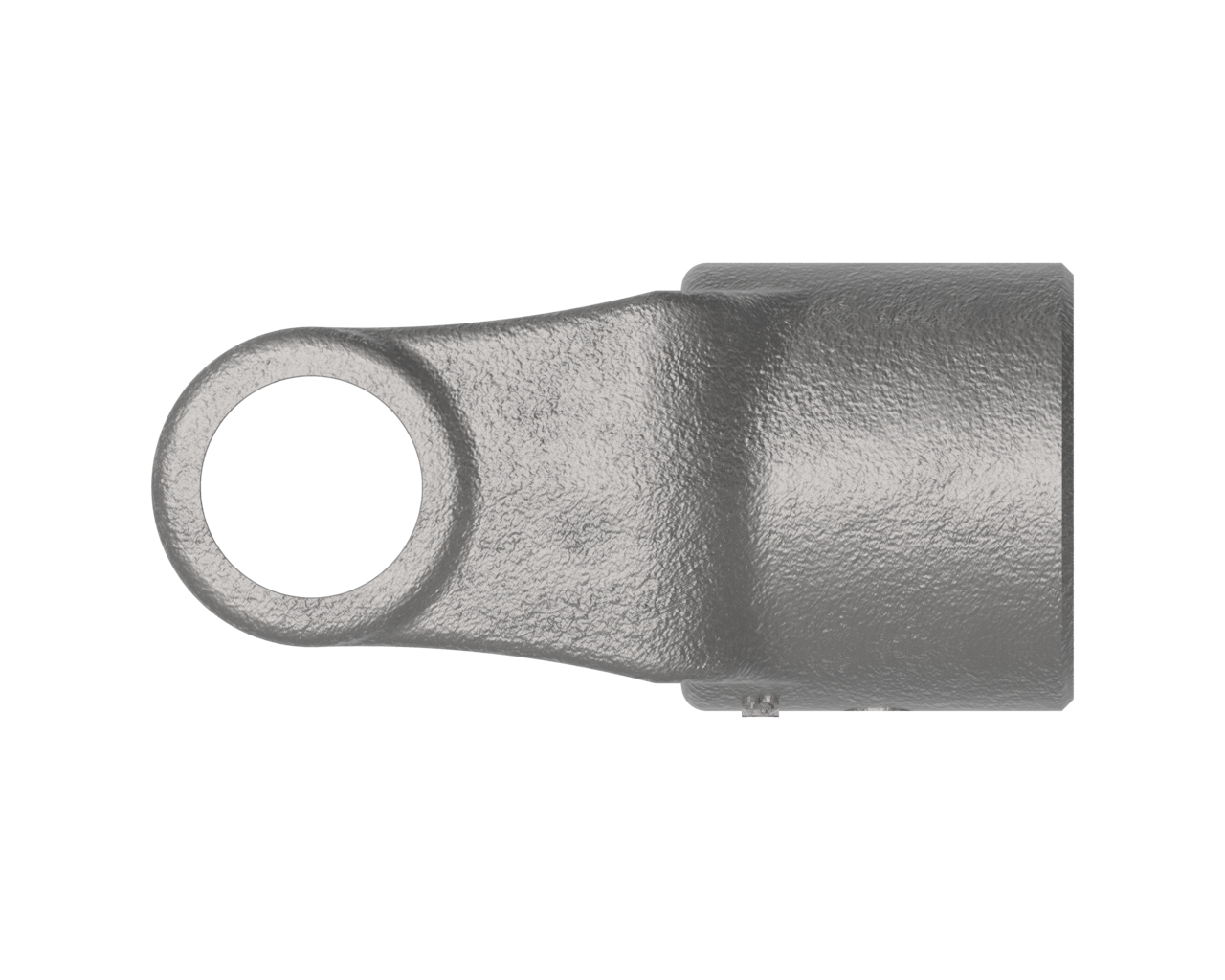

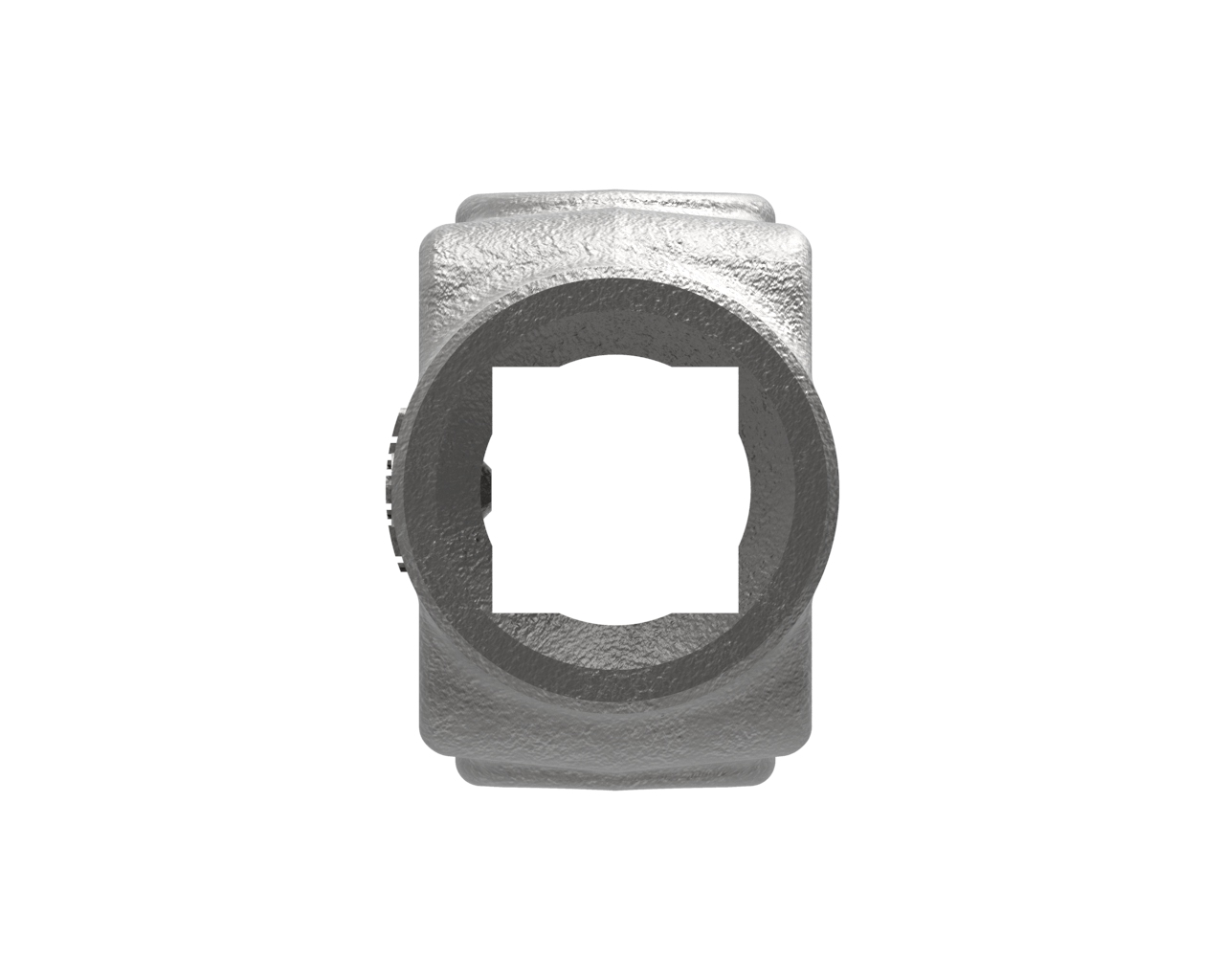

14 series yoke with 1 1/4 square bore and setscrew connection

View My List

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.25 inches32 mm
Bore 1 1 1/4 SQUARE
Connection 1 SETSCREW
Height3.38 inches86 mm
HP@1000RPM58 HP43 kilowatts
HP@540RPM38 HP28 kilowatts
Length3.88 inches99 mm
Setscrew 3/8-16
Shipping Dimensions4.7" L  ×  3.38" H  ×  2.31" W12cm L  ×  9cm H  ×  6cm W
Shipping Volume36.70 in3601 cm3
Shipping Weight2.32 pounds1 kilograms
Weight2.32 pounds1 kilograms
Width2.31 inches59 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
