100-1206

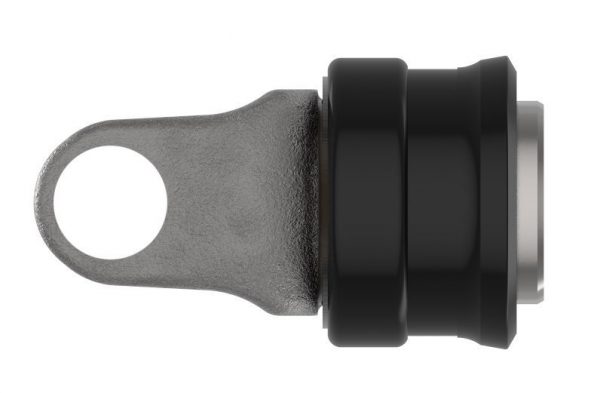

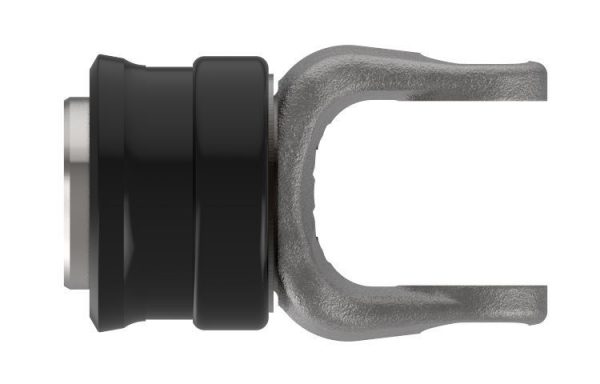

12 Series Spring-lok Yoke

12 series yoke with 1 3/8-6 spline bore and spring-lok connection

View My List

PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2″ 8-spline and 1 3/4″ 6-spline options are available. Lawn & Turf tractor yokes are offered in 1″ 10-spline and 1″ 15-spline.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.37 inches35 mm
Bore 1 1 3/8-6 SPLINE
Connection 1 SPRING-LOK
Height3.00 inches76 mm
HP@1000RPM40 HP30 kilowatts
HP@540RPM26 HP19 kilowatts
Length4.06 inches103 mm
Shipping Dimensions4.86" L  ×  3" H  ×  2.75" W12cm L  ×  8cm H  ×  7cm W
Shipping Volume40.10 in3657 cm3
Shipping Weight2.24 pounds1 kilograms
Weight2.24 pounds1 kilograms
Width2.75 inches70 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
WE0101004_0817_USL_AutoLokYoke.pdf Performance Benefits Document English
