806-0518

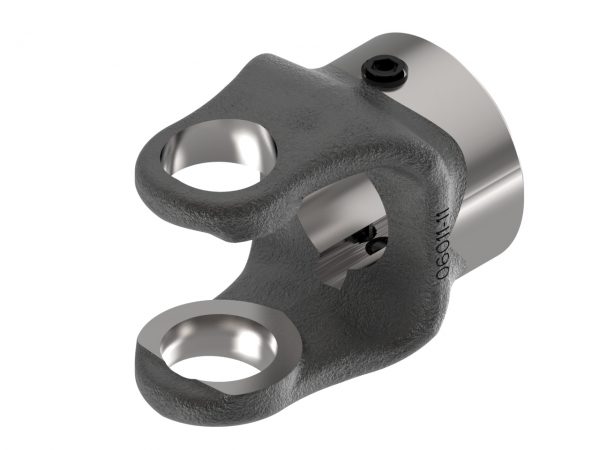

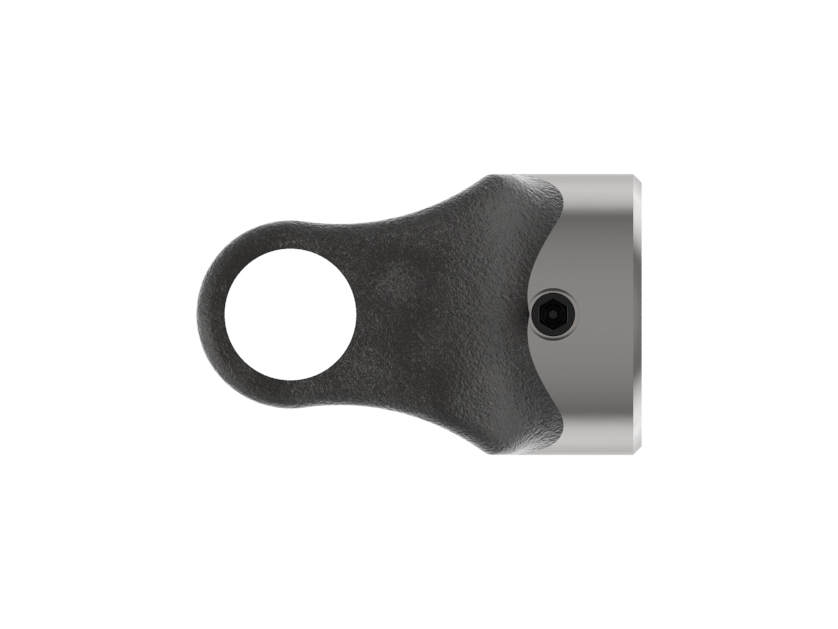

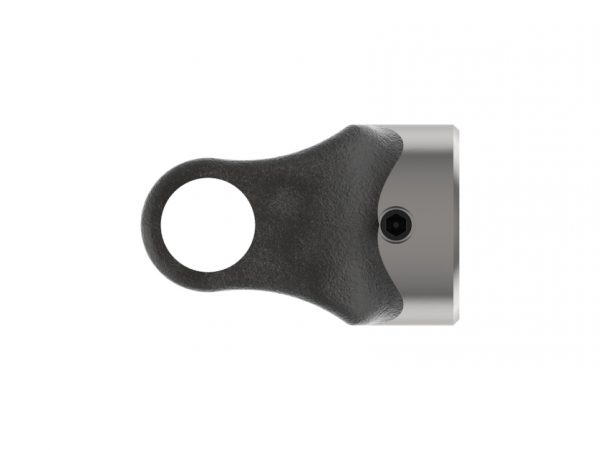

0675 Series Setscrew Yoke

0675 series yoke with round with 2 keyways bore and setscrew connection

View My List

PTO drive shafts end with an implement yoke, it is the final connection between the PTO drive shaft and the machine or implement connected to the tractor. Weasler implement yokes are provided in a variety of bore and mounting options. Bore options include square, rectangle, hexagon, round and spline. Standard yoke connection options are set screws and pins. Additional implement yoke connection options include torque limiter flage yokes, telescoping yokes (square, round, and hexagon), and clamp yokes.

PERFORMANCE BENEFITS

Specifications

Spec. Imperial Metric
Bore 11.12 inches28 mm
Bore 1 ROUND WITH 2 KEYWAYS
Connection 1 SETSCREW
Height2.50 inches64 mm
HP@1000RPM22 HP16 kilowatts
HP@540RPM15 HP11 kilowatts
Keyway 10.31 inches8 mm
Keyway 20.25 inches6 mm
Length2.50 inches64 mm
Setscrew 3/8-16
Shipping Dimensions3.17" L  ×  2.5" H  ×  2" W8cm L  ×  6cm H  ×  5cm W
Shipping Volume15.85 in3260 cm3
Shipping Weight1.20 pounds1 kilograms
Weight1.20 pounds1 kilograms
Width2.00 inches51 mm

Downloads

Document Name Type Language
Service Instructions - Lubricating PTO Drive Shaft.pdf Maintenance Document English
Service Instructions - Universal Joint.pdf Service Document English
Lack of Grease - Cross & Brg Kit.pdf Troubleshooting Document English
